Self-Lifting Truck-Mounted Pallet Stacker vs. Warehouse Pallet Stacker: What's the Real Difference?
A new full-electric self-lifting truck-mounted pallet stacker and a standard warehouse pallet stacker can carry almost identical rated loads on paper — so why does Risenmega sell both? The rated load only answers "how much." It doesn't answer "where," or "how it gets there." A warehouse stacker is built to stay inside one building and stack pallets onto racking. A self-lifting truck-mounted stacker is built to leave the building — riding along on the delivery truck and going to work the moment that truck stops, even when there's no forklift or loading dock waiting on the other end.
Same Load Rating, Two Different Jobs
Put a CDD Series self-lifting truck-mounted stacker next to a mid-range warehouse walkie stacker and the spec sheets look close enough to confuse a buyer: both are full-electric, both handle pallet loads in a similar range, both are walk-behind machines. The confusion clears up once you ask what each one is actually solving. A warehouse stacker solves vertical reach inside a fixed building. A self-lifting truck-mounted stacker solves getting the handling equipment to the point of use — a customer's dock, a construction site, a retail backroom — without assuming a forklift is already sitting there.
CDD Series: Built to Travel
Designed around transport. It self-loads and self-unloads on a compatible delivery truck, works at ground level or on low platforms, and is light and compact enough to ride inside the cargo box as part of the load itself.
Warehouse Stacker: Built to Stay
Designed around throughput. It runs the same aisles and racking all shift, reaches higher fork heights, and moves at faster travel speeds because it never has to leave the building or navigate a truck ramp.
Core Performance Comparison
| Spec | CDD Self-Lifting Truck-Mounted Stacker | Standard Warehouse Pallet Stacker |
|---|---|---|
| Primary usage location | Rides on the delivery truck; works wherever the truck stops | Fixed inside one warehouse or DC, working the aisles and racking |
| Self-loading / unloading | Yes — drives itself up and down a compatible ramp or tail lift | No — needs a forklift, dock leveler, or second machine to relocate |
| Rated load | 700 – 1,500 kg | 1.5 – 2 t (comparable full-electric walkie model) |
| Max fork / lift height | 800 – 1,600 mm (8 height options) | Up to ~2,930 mm (roughly 3 m) |
| Net machine weight | 299 – 425 kg | ~736 kg |
| Travel speed | 1 km/h creep, 3.5 km/h max — deliberately ramp-safe | 4.0 / 4.5 km/h |
| Typical working distance | Short hops between the truck bed and the drop point, repeated across several stops a day | Long, repeated runs up and down the same aisles, all shift |
| Best-suited conditions | Dock-free customer sites, ground-level pallets, ramp/tail-lift trucks, platforms up to 1.6 m | Racking above ~3 m, high-frequency continuous put-away, fixed dock/aisle layout |
Figures shown are for Risenmega's CDD Series (full-electric self-lifting truck-mounted stacker) against a comparable 1.5–2 ton full-electric warehouse walkie stacker. Exact numbers vary by configuration — see full CDD Series specs.
What the New Self-Lifting Stacker Actually Adds
Every walkie stacker lists "electric lift." Here's what changes when the stacker is designed to travel with the truck instead of staying in the warehouse.
Rides Along With the Truck
Small and light enough to travel inside the cargo box as part of the load, arriving at every stop instead of waiting back at the depot.

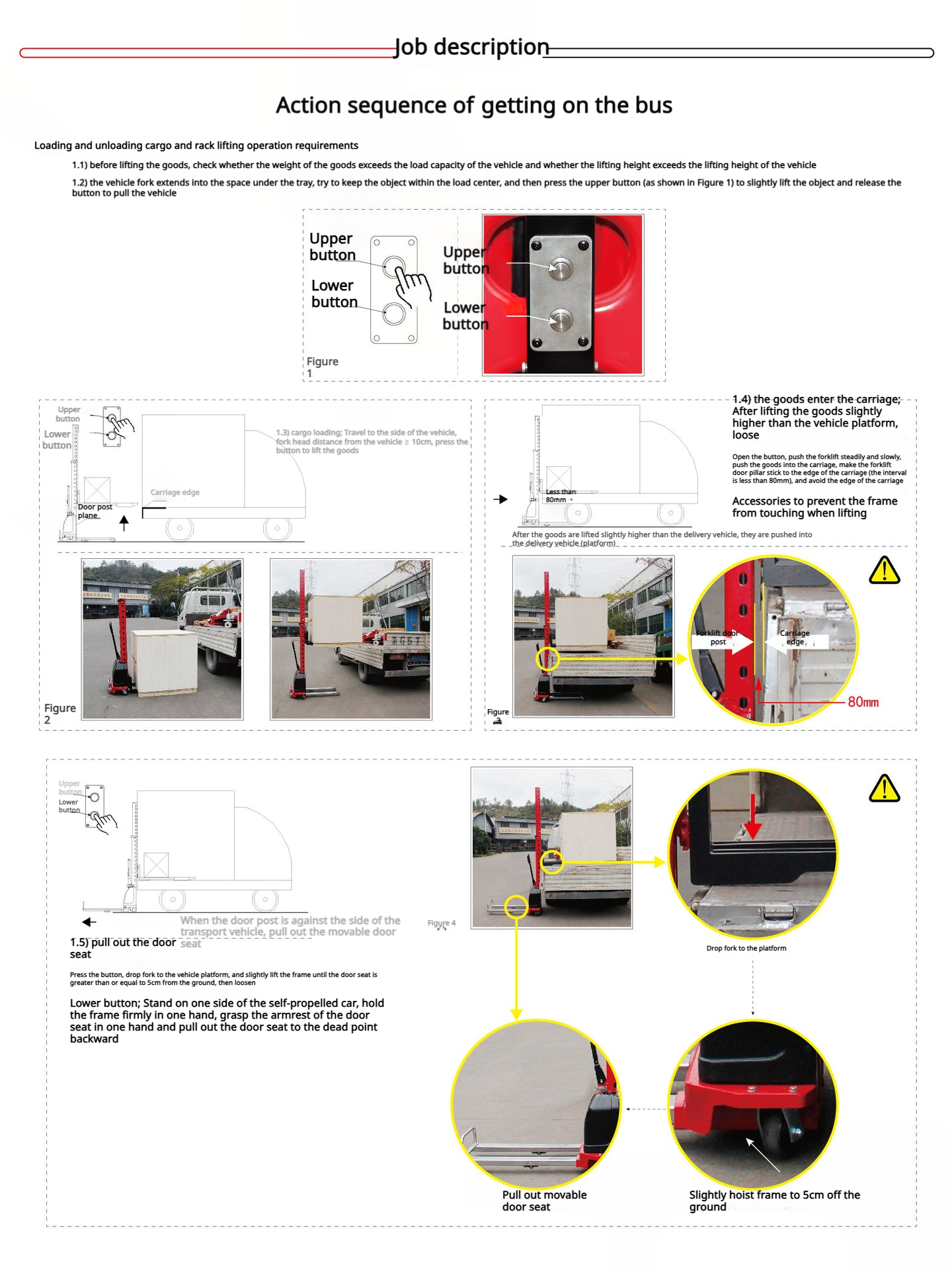

Self-Loading, Self-Unloading
Drives itself up and down a compatible ramp or tail lift, so no separate loading equipment is needed at either end of the trip.
No Second Forklift at the Destination
Removes the "hope there's a forklift on-site" gamble that dock-free deliveries create — the stacker brings its own handling capacity.
Light Enough to Travel
At 299–425 kg, it sits comfortably within the payload and floor-loading limits most box trucks and tail lifts are rated for.
Built for a Tight Cargo Box
A compact chassis and free-lift mast are sized to fit — and still work — inside a space-constrained truck bed.
Electric Drive + Electric Lift
Both travel and lift run off the 48V battery, so the operator steers rather than pushes — even after a full day of stops.
Why It Doesn't Replace the Warehouse Stacker
None of this makes the self-lifting truck-mounted stacker a universal replacement. Racking above roughly 3 m, long continuous aisle runs, and high-frequency put-away all shift are still a warehouse stacker's job — it travels faster, lifts higher, and isn't built around ramp transitions at all. The CDD Series' advantage was never "lifts higher." It's "can get on and off a truck, and start working the moment it arrives."
How to Choose
Choose the Self-Lifting Truck-Mounted Stacker if:
- You deliver to multiple customer sites and can't guarantee a forklift will be waiting
- Lift height needed is 1.6 m or under — pallets, curbside platforms, low racking
- The machine needs to travel inside the truck itself, not follow behind in a second vehicle
- You're loading or unloading more than once a shift and want a one-person job
Choose a Standard Warehouse Stacker if:
- The machine stays on one site, working fixed racking and aisles
- You need fork heights above roughly 3 m
- The job is continuous, high-frequency put-away and retrieval, all shift
- Travel speed and duty cycle matter more than portability
Not a High/Low Trade-Off — a Workflow Choice
A self-lifting truck-mounted stacker and a warehouse stacker aren't a downgraded or upgraded version of the same machine — they're built for different points in the supply chain.
A warehouse stacker keeps handling capability inside the building, working the same racking and aisles shift after shift. A self-lifting truck-mounted stacker takes that handling capability out to the customer's site — riding along on the truck and getting to work the moment it arrives, with no dock, no second forklift, and no waiting.
Self-Lifting Truck-Mounted Stacker FAQ
What is a self-lifting truck-mounted pallet stacker?
It's a full-electric walkie pallet stacker light and compact enough to ride on a delivery truck and drive itself up and down a compatible ramp or tail lift, so it can unload cargo at sites with no forklift or loading dock on hand.
How is it different from a normal warehouse pallet stacker?
A warehouse stacker is built to stay inside one facility and reach higher racking at faster travel speeds. A self-lifting truck-mounted stacker is built to leave the building — it self-loads onto the truck, is far lighter (299–425 kg vs. roughly 736 kg), and works at lower fork heights (up to 1.6 m).
Can a self-lifting stacker replace a warehouse stacker entirely?
Not for racking above roughly 3 m or continuous, high-frequency aisle work — a warehouse stacker is still the better fit there. The self-lifting stacker's strength is portability and dock-free unloading, not maximum lift height.
How much does the CDD Series self-lifting stacker weigh?
299–425 kg net weight including battery, depending on the rated load (700–1,500 kg) and fork-height configuration selected.
What lift height range does the CDD Series cover?
800 mm to 1,600 mm across 8 standard fork-height options — suited to pallets, truck-bed height differences, and low platforms rather than warehouse racking.
Do I still need a forklift at the delivery site?
No. That's the point of the design — the stacker travels with the truck and drives itself off, so the delivery crew isn't dependent on equipment already being on-site.
