How Does a Vacuum Lifter Keep Working at −20°C? Inside the Cold-Weather Build

How Does a Vacuum Lifter Keep Working at −20°C? Inside the Cold-Weather Build

risenmega |

Cold-Climate Material Handling Guide · ~8 min read

How Does a Vacuum Lifter Keep Working at −20°C? Inside the Cold-Weather Build

In Sweden, Norway and Finland, winter isn't a pause in the construction calendar — it's roughly half of it. Here's how a properly built vacuum lifter keeps glass, stone and panel installation on schedule when the thermometer drops well below zero.

Cold doesn't have to mean downtime

From October through April, large parts of Northern Europe operate at or below freezing for weeks at a time. Building envelopes still need to close on schedule — which means glass, stone and cladding installation has to keep moving, safely, in the cold.

200–800 kgLoad Capacity
3,700-5,000 mmLift Height
1 OperatorReplaces a 3–4 Person Crew
Dual SystemVacuum Circuit, Working + Backup

Winter Is the Job, Not a Delay, in the Nordics

Ask a facade contractor in Umeå or a stone installer outside Oslo when the "winter break" happens, and the honest answer is: it doesn't, not really. Average daily temperatures sit below freezing across much of Sweden, Norway and Finland from roughly November through March, and in the north, sub-zero conditions can stretch from October into May. Curtain walls still need to close before interior trades can start. Stone cladding still ships on schedule. A crew that stops working every time it snows would never finish a building.

That reality is reflected in how Nordic labor law treats cold. Sweden's Work Environment Act (Arbetsmiljölagen) and the Swedish Work Environment Authority's regulations, including the thermal-environment provisions in AFS 2023:12, don't set a single temperature at which outdoor construction must stop. Instead, they place a standing duty on the employer to protect workers from the weather "as far as possible" and to actively manage cold exposure as part of routine risk assessment — with closer scrutiny recommended once conditions drop below +10°C, and extra caution required below −5°C. Industry collective agreements in construction add further detail on top of that framework.

The practical takeaway: Nordic policy doesn't ask contractors to wait out the cold — it asks them to engineer the risk down. Shorter outdoor exposure per task, fewer workers handling heavy loads by hand, and less time spent wrestling awkward panels into position all directly reduce the cold-stress and injury risk that employers are legally responsible for managing. That's exactly the gap mechanized handling is built to close.

What Happens When Glass, Stone and Panels Meet a Sub-Zero Job Site

Picture a typical winter install: 6–9 m² curtain wall panels going into a high-rise frame at −8°C, or 20–30 mm marble treads being set on an exterior stair in Piteå. The materials haven't changed — but the conditions around them have, and traditional handling methods start showing their limits fast.

Manual carrying and multi-person crews

Cold reduces manual grip strength and fine motor control — a well-documented effect once skin temperature drops, and one that gets worse under thick winter gloves. Panels that a two-person crew might carry comfortably in autumn often need three or four workers in January, simply to compensate for slower reactions and a weaker hold. That means more people standing on icy, unfinished ground with a heavy, awkward load between them — exactly the combination that drives up slip-and-drop incidents.

Slings, ropes and clamp rigging

Rope and webbing stiffen in the cold and become harder to tension correctly. Metal rigging hardware is painfully cold to handle bare-handed, which pushes workers toward gloved rigging — and gloved rigging is where knots and clamp checks get rushed. None of this is a training problem; it's what cold does to rope, steel and hands.

Generic suction tools not built for the cold

Rubber has a glass transition temperature — the point below which a flexible compound turns hard and brittle, like actual glass. A suction pad that hasn't been engineered with cold-resistant rubber will harden in freezing air, and a hardened pad sits on top of a textured or slightly porous surface rather than sealing into it. In practice, that means a "vacuum lifter" bought without cold-rated components can lose grip reliability at the exact time of year it's needed most.

Handling a 60–150 kg glass or stone panel at −8°C: what typically changes
Factor Manual / sling handling Vacuum lift truck
Crew required 3–4 workers, more exposure time each 1 operator
Grip point Edges and corners — the weakest point on a cold, brittle panel Full face, load spread evenly
Effect of cold on the grip Reduced hand strength, stiff gloves Sealed vacuum, monitored continuously
Positioning into a tight frame Trial and error, repeated attempts Controlled rotation / tilt / side-shift
Outdoor task duration Longer — more cold exposure per crew member Shorter — fewer people, faster set

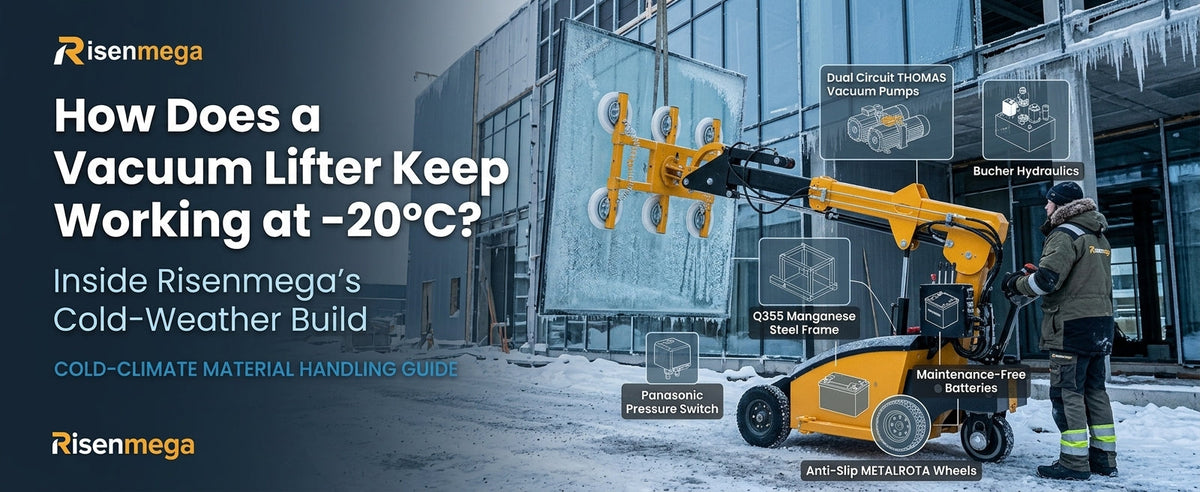

Inside the Risenmega Vacuum Lifter: Built With the Cold in Mind

The reason a Risenmega vacuum lift truck keeps working when a generic unit struggles isn't one single feature — it's that every major component was sourced for reliability under load, and reliability under load is exactly what cold weather tests.

Dual vacuum circuit — American THOMAS pump

The truck runs on double vacuum system control: one THOMAS DC pump actively holds the lift, while a second circuit stands by as an alternate. If the primary circuit is affected by a cold-related seal or line issue, the backup keeps the load secure instead of the system failing outright.

Swiss Bucher hydraulic pump station

A precision-built hydraulic station gives smoother, more predictable lift and lower response, which matters more — not less — once winter-grade hydraulic fluid is in the system. Predictable flow means fewer jerky movements that risk knocking a panel edge.

Italian METALROTA driving wheels

Heavy-duty wheels hold traction on packed snow, icy warehouse thresholds and uneven yard surfaces, and the unit is narrow enough to roll straight through a standard doorway — so it can move indoors to warm up between lifts instead of sitting outside all shift.

Q355 manganese steel frame

Higher-yield Q355 steel resists brittle cracking under sudden cold-impact loads better than standard mild steel — a meaningful margin when the frame is working outdoors through repeated freeze-thaw cycles all winter.

Panasonic digital pressure switch

A digital vacuum pressure switch and battery fuel gauge give the operator a continuous, real-time reading — so any pressure drift caused by cold-stiffened rubber shows up on the display long before it becomes a hazard.

Auto pressure-keeping + alarm

An automatic vacuum pressure-supply system holds a constant, safe suction level through the lift, and a dedicated pressure-keeping device with an audible/visual alarm takes over if power is ever interrupted — the same fail-safe that protects against a cold-drained battery.

Rounding out the safety package: an emergency stop button, an emergency lowering system, AC battery protection, and a cylinder holding valve. The unit runs on manual 360° rotation and 90° tilt with no external air compressor or power line required — which also means no outdoor air hose or extension cord to freeze, kink or trip a worker on an icy site. Capacity runs 200–800 kg across the range, with a 3,700-5,000 mm lift height, all from a single operator.

Vacuum lifter — key component summary
Component Source Why it matters in the cold
Vacuum pump
Working + Backup
American THOMAS Dual circuit keeps the load secure even if one circuit is affected by cold
Hydraulic pump station Swiss Bucher Smooth, precise lift response with winter-grade hydraulic fluid
Driving wheels Italian METALROTA Traction on snow, ice and uneven yard surfaces
Frame steel Q355 manganese Resists brittle fracture under cold-impact loads
Pressure display Japan Panasonic Real-time monitoring flags cold-related pressure drift early
Power source Maintenance-free battery No external power line or air hose to freeze on site

Why Face-Gripping Avoids the Damage the Cold Makes Worse

Cold does something specific to glass and stone: it reduces their impact toughness, meaning the exact force a panel could shrug off in summer is more likely to chip or crack it in winter. That makes where a lifting method grips the panel just as important as how hard it holds on.

  • Load spread across the whole face, not the edges. A vacuum lift truck grips the flat surface with multiple pads, distributing weight evenly. Clamps, slings and bare hands concentrate force at corners and edges — precisely where cold-brittle glass and stone are weakest.
  • One operator instead of a full crew. Fewer people spend fewer minutes exposed to the cold per panel installed, which directly supports the risk-reduction duty employers carry under frameworks like Sweden's Work Environment Act.
  • Controlled rotation, tilt and side-shift. Fine, deliberate positioning — a slow hover-and-nudge into a tight frame opening — replaces trial-and-error carrying, cutting the number of times a panel has to be picked up and repositioned in the cold.
  • No scratches, clamp marks or deformation. Coated metal panels and lacquered wood finishes, which can also become more sensitive to surface damage in freezing conditions, come through the lift with the finish intact.

Risenmega's broader material handling data — drawn from post-project feedback across glass, stone, metal and panel installations — has shown breakage reduced by roughly 90–95% and workplace injuries down 80–90% after switching from manual or sling handling to a vacuum lifter. Figures are directional and vary by site, but the underlying reason doesn't change with the season: face-gripping and single-operator control remove the two biggest damage and injury drivers, cold or not. See the full data in our Vacuum Lifting Machine material handling guide.

Cold-Rated Doesn't Mean Cold-Proof: Plan for Long-Term Wear

Cold-resistant components extend how far into winter a vacuum lift truck can work reliably, but sub-zero duty and freeze-thaw cycling still wear on pads, batteries, hydraulic fluid and sensors over time — which is why winter maintenance belongs in the operating plan, not as an afterthought. The full seasonal protocol is laid out in a dedicated resource:

📘 Read the complete Ultimate Winter Maintenance Guide for Aerial Lifts and Industrial Equipment for step-by-step care instructions covering hydraulic fluid, batteries, and cold-weather vacuum seal checks.

1 vs 3–4Operator count, single unit vs. manual crew
Dual CircuitVacuum backup built into every lift
No Air LineNo compressor hose to freeze on site

Frequently Asked Questions

Can a vacuum lift truck really operate below freezing?

Yes. Risenmega's vacuum lift trucks are built with cold-rated components — a dual vacuum circuit, a precision Swiss hydraulic pump station and a Q355 steel frame — that keep the machine reliable through winter conditions. The exact rated range depends on the specific model and configuration, so it's worth confirming the setup for your climate with our team before ordering.

Does cold weather affect the suction pad's grip?

Rubber gets harder as it gets colder, which can reduce how well a pad seals into a textured or slightly porous surface. Cold-resistant pad compounds are formulated to stay flexible at lower temperatures than standard rubber, and the truck's digital pressure display gives the operator a live reading to confirm the seal is holding before every lift.

Do I need a different suction pad configuration for winter jobs?

Not usually a different type, but pad condition matters more in winter. If pads have been stored cold or left resting on the ground, warm them and run a static hang test before the first lift of the day. Our team can also advise on cold-rated pad compounds for regular sub-zero use.

How does a vacuum lifter help meet Nordic cold-exposure work rules?

Frameworks like Sweden's Work Environment Act require employers to actively manage cold-weather risk to workers, rather than simply halting work. Replacing a 3–4 person carrying crew with a single operator running a vacuum lift truck directly cuts the amount of time workers spend exposed to the cold while handling heavy panels — supporting that duty in a practical, measurable way.

What maintenance does the lifter need after a winter season?

Check hydraulic fluid viscosity before switching back to summer-grade oil, inspect suction pads for flat spots or cracking, confirm battery capacity hasn't degraded, and recalibrate the vacuum pressure sensor if readings seem inconsistent. Full details are in our Winter Maintenance Guide.

Keep your winter installs on schedule

Send us your panel material, dimensions, weight and site temperature range, and our team will recommend a vacuum lift truck configuration built for your climate.
