A Chinese factory that mainly produces material handling and lifting platform equipment, among which the Spider Crane is one of our very competitive products, which has been improved many times, evolving from the previous large lifting equipment to a mini crane that can work in narrow spaces, both indoors and outdoors. Named for their "spider-like legs", these machines are recognized by the market for their wide range of applications and adaptable solutions. They solve the problem of conventional lifting equipment or truck-mounted cranes not being able to work due to size constraints, and excel in both the engineering and construction fields. Especially with Kubota's engine, the Spider Crane has revolutionized both power and environmental protection.
-
Learn MoreWhat is spider crane?
Engines, generators, motors, hydraulics, exchangers

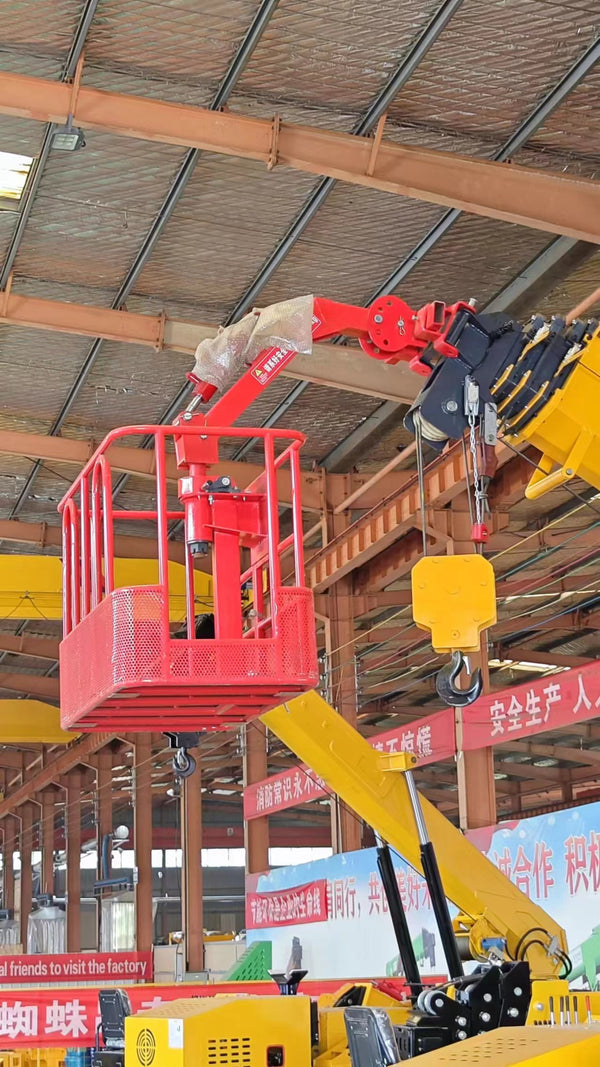

Spider Crane Lift With Lifting Basket 1-12Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift With Lifting Basket 1 Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift With Lifting Basket 10 Ton 12 Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift With Lifting Basket 2 Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift With Lifting Basket 3 Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift With Lifting Basket 5 Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift With Lifting Basket 8 Ton
Regular price From $10,428.00Unit price /Unavailable
Spider Crane Lift 100-1200 Series
Regular price From $10,428.00Unit price /Unavailable

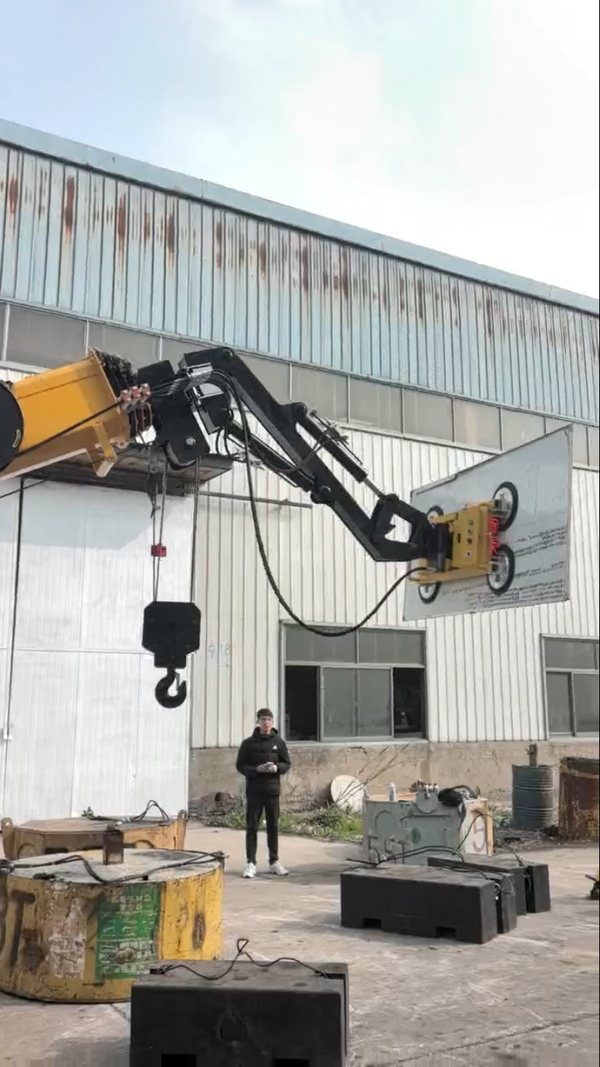

Spider Crane Lift and Vacuum Suction Cups
Regular price From $0.00Unit price /Unavailable
⚙️Spider Crane Attachments: Versatile Tools for Any Jobsite Customization
Explore our full range of attachments from vacuum lifters to clamps. Customize your spider crane for glass installation, steel lifting, drilling, or even concrete pouring. "Learn More→"
🔩Find the Perfect Spider Crane Fit for Every Project
From compact indoor units to heavy-duty outdoor machines. we’ve got your lifting needs covered. Discover mini cranes in various tonnages, arm lengths, and dimensions tailored for tight spaces.
⚒️Spider Crane Specs & Insights: Everything You Need to Know Before Buying
Dive into detailed specifications, load charts, and operating ranges in one clear guide. Understand what truly matters—stability, boom angle, footprint, and real-world performance.
Frequently Asked Question
Technical Questions
What is the maximum lifting capacity of this spider crane?
What is the maximum lifting capacity of this spider crane?
Our Risenmega spider crane can lift up to 3,000 kg -12000 kg at a 1.5-meter radius, and 600 kg-2700 kg at its maximum outreach of 8.5 meters. If you want to work up to 25M then it is recommended to work with people but not cargo.This makes it suitable for heavy lifting in tight-access spaces like rooftops, mezzanines, or industrial sites.
What is the maximum boom length and height it can reach?
What is the maximum boom length and height it can reach?
The telescopic boom standard extends up to 8.5 meters (27.9 feet) horizontally and provides a lifting height of 9.5 meters (31.1 feet) with the main boom. Optional jibs can increase vertical reach. Max to lifting 25 meters
Can it rotate 360 degrees? Is it a fixed or full-slew rotation?
Can it rotate 360 degrees? Is it a fixed or full-slew rotation?
Yes, the crane offers continuous 360-degree full-slew rotation, powered hydraulically for smooth, precise movement.
Is it suitable for indoor use? What is the exhaust emission level (if diesel)?
Is it suitable for indoor use? What is the exhaust emission level (if diesel)?
Yes — this model is available in battery-electric, diesel, or hybrid configurations. The electric version is zero-emission and nearly silent, ideal for indoor use. Diesel models comply with EU Stage V emissions.
Is this crane remote-controlled or manually operated?
Is this crane remote-controlled or manually operated?
Yes — it features wireless radio remote control with display feedback and emergency stop. Manual override controls are also available on the body for backup use.
How stable is it on uneven or soft ground? Are additional stabilizers needed?
How stable is it on uneven or soft ground? Are additional stabilizers needed?
The crane uses four independently adjustable spider-leg outriggers with auto-leveling sensors. Ground mats or base pads are recommended on soft or muddy terrain.
What power source does it use (diesel, electric, hybrid)?
What power source does it use (diesel, electric, hybrid)?
Available in three configurations:
Diesel (Yanmar/Kubota engines) for high-power outdoor lifting
Electric (AC or DC battery) for indoor and silent operation
Hybrid switch between modes
Usage & Application Questions
Can this crane be used for glass installation / HVAC work / confined-space construction?
Can this crane be used for glass installation / HVAC work / confined-space construction?
Yes — this spider crane is ideal for precision tasks like glass panel installation, HVAC unit lifting, and tight-space construction projects. With optional attachments such as vacuum lifters or searcher hooks, it can lift and position delicate or bulky equipment safely and accurately.
How does it perform on rough terrain or in narrow alleyways?
How does it perform on rough terrain or in narrow alleyways?
The spider crane is equipped with rubber crawler tracks and multi-angle hydraulic outriggers, giving it excellent mobility on uneven, gravel, muddy, or sloped terrain. Its folded width is less than 800 mm (31.5 in), allowing it to pass through standard doorways or narrow alleyways.
Can I use it in areas with limited headroom or underground spaces?
Can I use it in areas with limited headroom or underground spaces?
Yes — this crane is optimized for low-clearance environments, such as basements, tunnels, or indoor atriums. With a collapsed height of under 1.7 meters (5.6 ft) and the option to operate with the boom retracted, it can work safely in underground parking garages, subfloors, and mezzanines.
How long does setup and deployment usually take on-site?
How long does setup and deployment usually take on-site?
Typical setup takes 15–30 minutes, depending on site conditions. The outriggers are hydraulically deployed and can auto-level in seconds. Operators can begin lifting operations immediately after stabilizing and configuring the load radius.
What’s the typical job duration a full tank or battery charge can support?
What’s the typical job duration a full tank or battery charge can support?
Diesel Model: A full tank supports 8–10 hours of standard operation under mixed lifting and idling conditions
Battery-Electric Model: One full charge typically powers 6–8 hours of continuous lifting or 1–2 full work shifts with intermittent use.
Hybrid Model: Unlimited runtime with switching between diesel and battery as needed
Maintenance & After-Sales Service
What is the service interval? How often does it need maintenance?
What is the service interval? How often does it need maintenance?
We provide one year free warranty service, within one year of any problem we send technicians to the local maintenance, all wearing parts do not need to pay extra, if only wearing parts are bad free delivery to you to replace!
Is training provided for operators?
Is training provided for operators?
yes we can provide booking for you, it's very easy to use.
Is this crane CE/ISO/ANSI compliant?
Is this crane CE/ISO/ANSI compliant?
Yes, we can provide CE ISO9001 MSDS Certificate help you shipping to your country, very safety.
Are spare parts readily available? How expensive are they?
Are spare parts readily available? How expensive are they?
We can provide all the perishable parts, if broken we can directly send express delivery 3-5 days can be reached!
