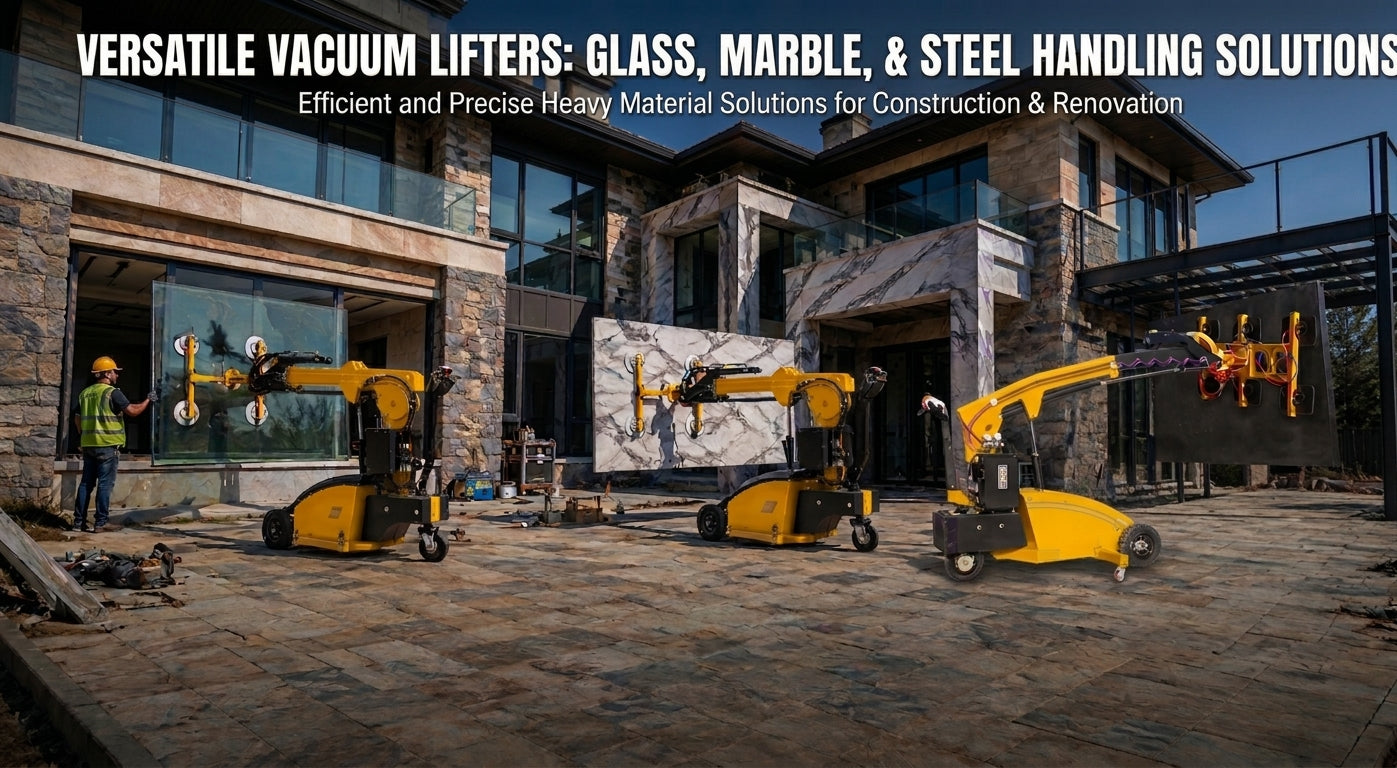

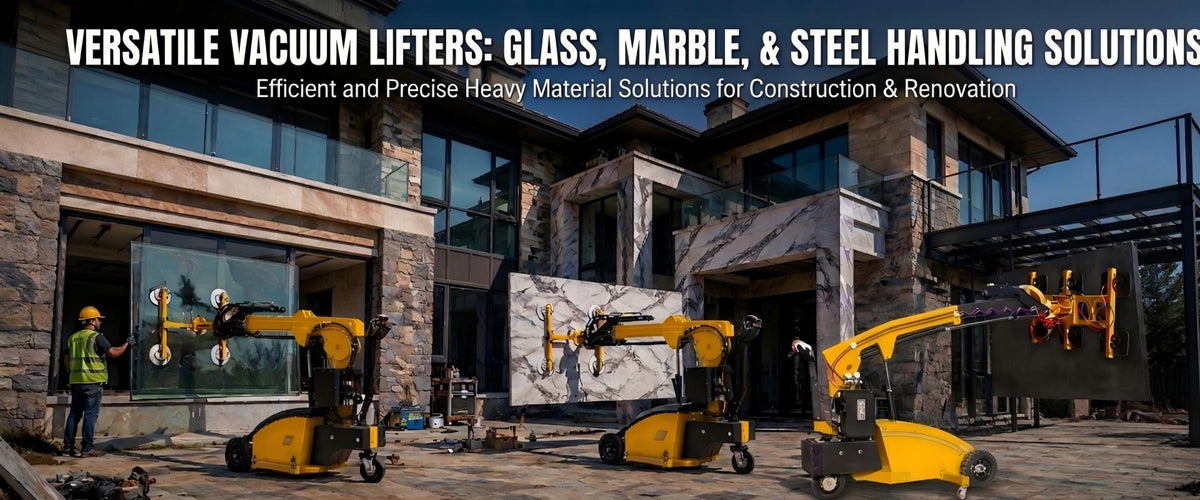

A vacuum lifter grips the flat face of a glass panel with rubber suction pads, then controls its position through rotation, tilting and side movement instead of relying on manual grip — used for floor-to-ceiling windows, railings, balustrades, interior partitions and curtain wall panels.

Single panels commonly run 3–9 m² and weigh 60–180 kg, with installation openings often leaving only 1–2 cm of clearance around the frame. On models equipped for it, 360° rotation, 90° tilting and side-shift let the operator align a panel with a frame without repositioning the whole machine — including a slow "hover and nudge" adjustment to work within that tight tolerance. Multi-point pad layouts spread the panel's weight evenly, reducing the tipping risk that comes with a high, off-centre grip point. In tight corridors and finished interiors, a compact self-propelled unit is often easier to bring into position than a crane or a forklift with a glass rack.

For curtain wall–specific selection criteria, see our vacuum glass lifter for curtain wall installation buyer's guide.

Stone is less forgiving than glass: it's heavy, brittle, and its surface finish varies more than most buyers expect — including marble wall panels, granite slabs, bathroom floor slabs and stair treads. Thin sections, such as 15–20 mm marble countertop stock, are a particular cracking risk under a conventional lift, and damage to natural stone usually isn't repairable.

Rubber pad or foam pad?

Rubber pads suit smooth, non-porous surfaces; foam or sponge pads conform to slightly porous or textured finishes. Pad choice should always be tested against the actual surface first, since polished, honed and flamed finishes on the same stone type behave differently under vacuum.

Example: stair tread installation

A typical tread runs roughly 1–1.5 m long and 20–30 mm thick, with weight concentrated toward the ends — exactly the geometry that causes a hand-carried tread to sag and snap in the middle. Vacuum gripping acts across the face instead of at the fragile nosing edge, making it easier to seat the tread precisely into the stringer slot. Loads that would normally need two to four workers carrying together can often be positioned by a single operator instead.

Vacuum lifting works well for aluminum facade panels, stainless steel sheets and coated cladding, since it grips the flat surface without clamping the edges — a real benefit on thin panels prone to deformation. Metal panels are smooth but genuinely awkward to grip manually: they're large, thin, and finishes scratch easily.

Magnetic lifting isn't always the right fit — aluminum isn't magnetic, and many finished stainless-steel surfaces need to stay scratch-free — which makes vacuum gripping a practical alternative. Pad choice depends on surface finish: rubber for smooth coated surfaces, large-area pads to distribute load across bigger sheets, and clamp-style pads for some framed panels. On many metal-panel installations, a single vacuum lifter can replace a small mobile crane or gantry-style lifting frame.

Sealed and lacquered wood panels can generally be vacuum-lifted with standard rubber pads, while raw or porous timber usually can't — the distinction is the surface, not the species. A sealed, laminated or lacquered panel has low air permeability, letting a rubber pad hold a seal normally; raw timber lets air pass through faster than the pad can maintain vacuum, so foam pads are usually needed instead.

For interior fit-out, a mobile vacuum lifter can carry a panel from floor level through a vertical lift of roughly 2–4 metres straight to its installation face in one continuous sequence, with fine tilt adjustment keeping the panel from twisting against the batten or grid before it's fixed.

Vacuum lifting can be used for PV modules, solar glass and selected BIPV panels — but only where the manufacturer's handling instructions permit face-gripping on that specific product. A standard module is roughly 2 m² with a tempered-glass face only 3–5 mm thick, and industry handling-damage figures for slings or unprotected manual carrying commonly run 3–5% — a meaningful loss given the per-unit replacement cost.

A forklift typically supports the load from underneath, which works for stacked pallets but is less useful for controlled, tilted placement onto an inclined roof or facade. Vacuum lifting instead grips the panel face and supports tilting for precise final positioning; real-time vacuum monitoring with an automatic low-suction alarm is what actually makes damage-free placement realistic. Always confirm permissible load points against the manufacturer's instructions first.
