Full Electric Walkie Pallet Stacker 700-1500kg
Description
Description
Full Electric Walkie Pallet Stacker — Electric Drive, Electric Lift
Risenmega's full electric walkie pallet stacker pairs a 48V electric drive motor with a 48V electric lift motor, so the operator steers, travels, and raises the load without pushing a single kilogram by hand. Built as a compact walk-behind electric stacker for 700 kg, 1,000 kg, and 1,500 kg duty, it's engineered for warehouses, workshops, loading docks, and — thanks to its anti-slip-out middle wheel and chrome outriggers — for one of the toughest jobs a pallet stacker ever does: getting on and off a delivery truck safely.
Most "electric" stackers only power the mast — you still push the whole machine by hand. This one doesn't. Every CDD-series unit drives itself and lifts itself, cutting operator fatigue on repetitive loading runs and keeping the job to one person instead of two. It's the difference between a semi-electric stacker and a genuine full electric pallet stacker — and it shows up in every shift.
What Makes It a Full Electric Stacker
Eight engineering details that separate a walk-behind electric stacker built to run every day from one built to sit on a spec sheet.
Dual Brushless DC Motors
48V brushless drive and lift motors — no carbon brushes to replace, ever, and roughly 20% lower energy use than a brushed motor of the same output.
Widened Shock-Absorbing Casters
A wider wheel stance with built-in shock absorption keeps the chassis stable under load while tracking straight over rough dock and yard surfaces.
Articulating Middle Wheel
The floating middle-wheel design rolls smoothly across asphalt, concrete, ramps, and dock lips instead of hanging up on the transition.
Free-Lift Mast
Forks pick a pallet straight up off the ground with no change in overall vehicle height — it slides under low truck beds and containers with no clearance surprises.
Space-Saving Knock-Down Frame
The compact split-frame design ships flat-packed — up to 36 units fit into a single 20-foot container, cutting your landed cost per unit.
Forced Speed-Limit at Height
Travel speed automatically drops as the forks rise, protecting the load and the operator whenever the stacker is working near full lift.

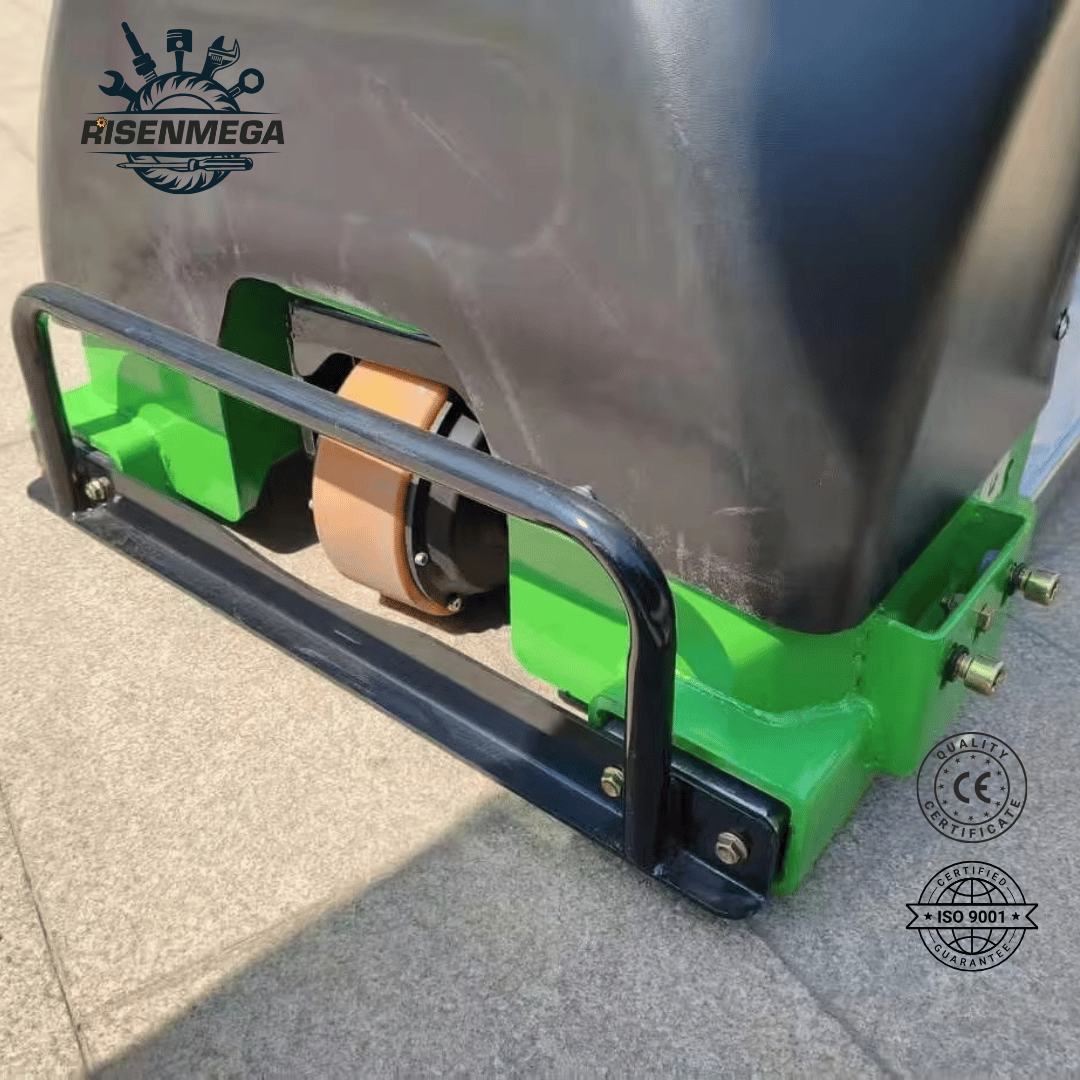

Anti-Roll-Out Middle Wheel
A dedicated wheel-retention design keeps the stacker from sliding out of the truck bed while it's being loaded or unloaded — right where most transport accidents happen.
Chrome-Plated Outrigger Legs
Hard-chrome straddle legs resist corrosion and abrasion, staying smooth and rust-free long after painted legs would wear through.
Built for Low-Clearance, High-Frequency Lifting
With a fork lift range of 800–1,600 mm, this electric forklift stacker is sized for jobs where headroom and precision matter more than reaching the top of a rack.
- Loading and unloading pallets on delivery trucks and vans
- Warehouse and distribution-center dock work
- Workshops, light manufacturing, and assembly lines
- Retail backrooms and e-commerce fulfillment stations
- Low-level shelving and staging areas
Engineered to Get On and Off a Truck Safely
Loading a pallet stacker onto a delivery truck — and getting it back off again — is often the riskiest few minutes of its working day. The anti-roll-out middle wheel and chrome-plated outriggers on this walk-behind electric stacker are built specifically for that moment, keeping the chassis planted on the ramp instead of sliding out from under the operator.
Choose Your Capacity
Three ratings on one platform. All dimensions below are factory-standard for the CDD series; contact us for lift-height or fork-spread customization.
| Model | CDD07B700 kg | CDD10E1,000 kg | CDD15E1,500 kg |
|---|---|---|---|
| Power & Operation | |||
| Power Type | 48V maintenance-free battery — electric drive + electric lift | 48V maintenance-free battery — electric drive + electric lift | 48V maintenance-free battery — electric drive + electric lift |
| Operation Type | Walk-behind (pedestrian) | Walk-behind (pedestrian) | Walk-behind (pedestrian) |
| Load Center (C) | 400 mm | 400 mm | 400 mm |
| Chassis & Wheels | |||
| Wheelbase (L0) | 922 mm | 924 mm | 924 mm |
| Front Wheel Track (W1) | 405 / 525 mm | 405 / 525 mm | 405 / 525 mm |
| Rear Wheel Track (W2) | 802 mm | 802 mm | 802 mm |
| Drive Wheel (Ø × W) | Ø185 × 70 mm | Ø185 × 70 mm | Ø185 × 70 mm |
| Caster / Universal Wheel | Ø75 × 50 mm | Ø75 × 45 mm | Ø75 × 45 mm |
| Middle Wheel | Ø45 × 30 mm | Ø45 × 30 mm | Ø45 × 30 mm |
| Front / Load Wheel | Ø80 × 70 mm | Ø80 × 70 mm | 2×Ø80×70 / 2×Ø80×60 mm |
| Outrigger Leg Length (L3) | 770 mm | 770 mm | 780 mm |
| Fork & Dimensions | |||
| Max Fork Height (H)* | 800–1,600 mm | 800–1,600 mm | 800–1,600 mm |
| Fork Spread, Outside (W3) | 565 / 685 mm | 565 / 685 mm | 565 / 685 mm |
| Fork Length (L2) | 1,195 mm | 1,195 mm | 1,250 mm |
| Fork Thickness (B1) | 70 mm | 70 mm | 80 mm |
| Fork Width (B2) | 190 mm | 190 mm | 190 mm |
| Overall Length (L1) | 1,603 mm | 1,603 mm | 1,657 mm |
| Overall Width | 852 mm | 852 mm | 802 mm |
| Closed Height (H1)* | 1,155–1,955 mm | 1,166–1,966 mm | 1,163–1,963 mm |
| Max Height, Forks Up (H2)* | 1,875–3,475 mm | 1,850–3,450 mm | 1,861–3,461 mm |
| Performance | |||
| Lift Speed | 55 mm/s | 55 mm/s | 55 mm/s |
| Lowering Speed | 100 mm/s | 100 mm/s | 100 mm/s |
| Lift Motor Power | 0.8 kW | 1.6 kW | 2.0 kW |
| Drive Motor Power | 0.8 kW | 0.8 kW | 0.8 kW |
| Max Travel Speed (Slow / Full) | 1 / 3.5 km/h | 1 / 3.5 km/h | 1 / 3.5 km/h |
| Gradeability (Loaded / Empty) | 5% / 10% | 5% / 10% | 5% / 10% |
| Battery & Weight | |||
| Battery Voltage | 48 V | 48 V | 48 V |
| Battery Capacity | 25 Ah (lead-acid) | 25 Ah (lead-acid) | 25 Ah (lead-acid) |
| Battery Weight | 25 kg | 25 kg | 25 kg |
| Net Weight incl. Battery* | 299–333 kg | 342–377 kg | 390–425 kg |
Backed by 5+ Years Exporting to Europe
CE Certified
Full documentation, ready for customs clearance in the EU and beyond.
Alloy & Q-Steel Build
Structural components in high-strength alloy steel for a longer service life.
Countries Served
Container consolidation available — combine stackers with other Risenmega machinery in one shipment.
Overseas After-Sales
One year of after-sales support and free replacement parts on qualifying issues.
Get Pricing & Lead Time for Your Configuration
Tell us your capacity and preferred fork-lift height and we'll confirm pricing, lead time, and container-loading options.
