How to Calculate Forklift Aisle Width and Turning Radius Before You Buy
A forklift that does not fit your aisles is an expensive mistake. Use one simple formula, a real datasheet example and a free calculator to check the fit before you place an order.
Try the aisle calculator Get a free spec check
Aisle width = turning radius + load distance + pallet depth + 200 mm clearance. For a 2-ton Risenmega EFL201 carrying a pallet 1,000 mm deep along the forks, that adds up to 3,683 mm. If your racking aisle is narrower than that, you need a different machine, not a tighter driver.Aisle Width vs. Turning Radius: Two Numbers, Two Different Jobs
Most buyers look at the forklift's capacity and lift height first. Aisle fit comes second, often too late. Two numbers on every datasheet decide whether the machine works in your building.
How tightly the truck turns
This is the outer radius of the smallest circle the forklift can drive. It tells you how much room the truck body needs to swing around a corner. Example: EFL201.
How wide the aisle must be to stack
This is the aisle width needed to turn 90° and place a pallet into a rack. It is larger than the turning radius because it includes the load. Example: EFL201, 1000×1200 pallet.
Why it matters: a forklift can turn in a small space and still be unable to stack in your rack aisle. Always compare your aisle with Ast, not with the turning radius alone. This is also what safety rules ask you to plan for: OSHA requires sufficient safe clearances for aisles, doorways and turns wherever mechanical handling equipment is used.
How to Calculate Forklift Aisle Width in 4 Steps
Datasheets publish Ast for you, but only for standard pallets. If your pallet, load or layout is different, use this planning formula. It reproduces the published EFL201 figures exactly.
Wa = turning radius | x = load distance (front axle to fork face) | L = load depth along the forks | C = safety clearance (200 mm)
Read the datasheet
Find Wa (turning radius) and x (load distance). For the EFL201 they are 2,078 mm and 405 mm.
Measure your load
Measure the depth of the load along the forks, including any product that overhangs the pallet. A 1,000 mm pallet gives L = 1,000 mm.
Add the numbers
2,078 + 405 + 1,000 + 200 = 3,683 mm. That is the narrowest aisle for right-angle stacking with this pallet.
Compare with your real aisle
Measure the clear gap between racks or product, not the drawing. Add extra buffer where people walk or racking is high.
Worked example: the EFL201 2-ton electric forklift
| Load (EFL201) | Depth along forks (L) | Formula result | Datasheet Ast |
|---|---|---|---|
| 1000×1200 pallet, lengthways | 1,000 mm | 2,078 + 405 + 1,000 + 200 = 3,683 mm | 3,683 mm |
| 800×1200 pallet, crossways | 1,200 mm | 2,078 + 405 + 1,200 + 200 = 3,883 mm | 3,883 mm |
Pattern to remember: every extra millimetre of load depth costs one extra millimetre of aisle. The formula is a planning tool. Always confirm the final Ast on the datasheet for your exact configuration.
Free Forklift Aisle Width Calculator
The fields start with the EFL201 values. Change them to match your forklift datasheet and your pallet.
Do Not Forget U-Turns, Cross Aisles and Doorways
Stacking is only one movement. Forklifts also turn at aisle ends, cross aisles and dock doors, and each of those needs its own check.
Quick U-turn rule: a full U-turn needs about twice the turning radius. For the EFL201 that is 2 × 2,078 = 4,156 mm. For the CQD15S forward-moving electric stacker (turning radius 1,765 mm) it is 3,530 mm.
Also measure the overall width against your narrowest doorway or gate. The EFL201 is 1,080 mm wide and the CQD15S is 1,090 mm. Leave room on both sides so the operator can pass safely.
Glass Panels, Long Loads and Forklift Vacuum Attachments
The formula works for any load, but a standard pallet is not always what you carry. Glass, steel plate and concrete slabs are often much longer than 1,200 mm, and that changes everything.
Risenmega's forklift attached vacuum lifter (300–800 kg) has a frame that expands up to 2,660 × 1,140 mm. A load 2,660 mm long along the forks would push the same forklift's aisle need to roughly 5.3 m or more (2,078 + 405 + 2,660 + 200). The attachment also moves the load centre forward, so use the real dimensions of the attachment and load.
Not sure how your glass or panel handling fits? Send us the load size and the aisle drawing, and we will check it. See also our guide to forklift vacuum attachment vs. mobile vacuum lifter.
5 Costly Aisle-Width Mistakes to Avoid
- Comparing the aisle with the turning radius onlyTurning radius is not the stacking aisle. Always use Ast or the formula above.
- Measuring the pallet but not the loadProduct that overhangs the pallet makes the load deeper and the aisle wider.
- Trusting the floor plan, not the floorColumn guards, sprinkler pipes and pallets that lean into the aisle reduce the real width. Measure on site.
- Skipping the cross aisles and door widthsMany buyers check the racking aisle and forget the dock door or the corner that leads to it.
- Forgetting lift height and mast heightLowered mast height decides whether the truck passes under doors. The EFL201 3-stage mast reaches 5,000 mm but is 2,250 mm tall when lowered.
Which Risenmega Machine Fits Your Aisle?
Machine type changes aisle need more than any other factor. A compact counterbalance forklift is flexible indoors and outdoors. A forward-moving stacker works in tighter aisles. Our electric stacker vs. electric forklift guide explains the trade-offs in more detail.

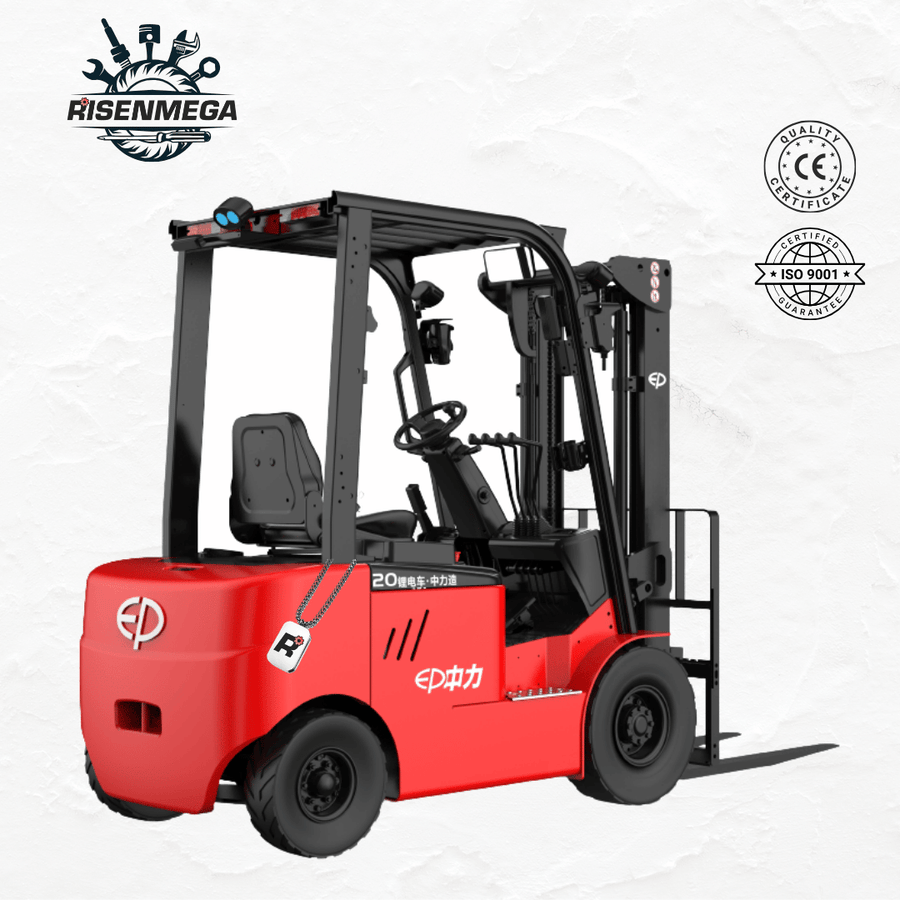

EFL201 2-Ton Electric Forklift
A compact counterbalance forklift for warehouses, distribution centers and mixed indoor-outdoor work.
- Turning radius: 2,078 mm
- Stacking aisle (Ast): 3,683 mm (1000×1200 lengthways)
- Overall width: 1,080 mm
- Capacity 2,000 kg, lift height up to 5,000 mm
- 80V lithium battery, optional cab
CQD15S Forward-Moving Electric Stacker
A walkie-type stacker whose mast extends forward, so it can place pallets without driving the whole truck into the rack.
- Turning radius: 1,765 mm
- Overall size (L×W×H): 2,335 × 1,090 × 2,050 mm
- Forward reach: 1,665 mm
- Capacity 1.5–2 t, lift height 3 m (3.5 m option)
- 48V/420Ah battery, 7–8 hours runtime
Specifications are for reference and vary by configuration. Ask us for the exact Ast of the CQD15S with your pallet size.
Need help choosing capacity, mast and battery too? Read our electric forklift buying guide, or browse all electric forklifts and electric stackers.
Forklift Aisle Width and Turning Radius: FAQ
What is forklift aisle width (Ast)?
Ast is the stacking aisle width: the minimum aisle a forklift needs to turn 90° with a load and place it in a rack. It includes the truck's turning radius, the load and a safety clearance.
How do I calculate the aisle width for a forklift?
Add the turning radius (Wa), the load distance (x), the load depth along the forks (L) and 200 mm of clearance. For the EFL201 with a 1,000 mm deep pallet: 2,078 + 405 + 1,000 + 200 = 3,683 mm.
What is the difference between turning radius and aisle width?
Turning radius describes the truck alone. Aisle width describes truck plus load while stacking, so it is always larger. Use aisle width to check your racking.
What aisle width does a 2-ton electric forklift need?
The Risenmega EFL201 (2,000 kg) needs 3,683 mm with a 1000×1200 pallet lengthways and 3,883 mm with an 800×1200 pallet crossways, according to its datasheet.
How wide must the space be for a forklift U-turn?
Plan for about twice the turning radius. That is roughly 4.16 m for the EFL201 and 3.53 m for the CQD15S stacker.
What can I use in very narrow aisles?
Forward-moving stackers and walk-behind electric stackers are designed for tighter layouts than counterbalance forklifts. Send us your aisle width and pallet size and we will recommend a suitable model.
Not Sure If It Fits? We Will Check for You
Send Risenmega your aisle width and pallet size, and our team will confirm the aisle need and suggest the right forklift or stacker, before you commit budget.
