Spider Crane Lift With Lifting Basket 14 Ton 16 Ton
Towable Boom Lift
Q355 Hydraulic Motor, it can support 1-12Ton and fit for narrow base.
Description
Description

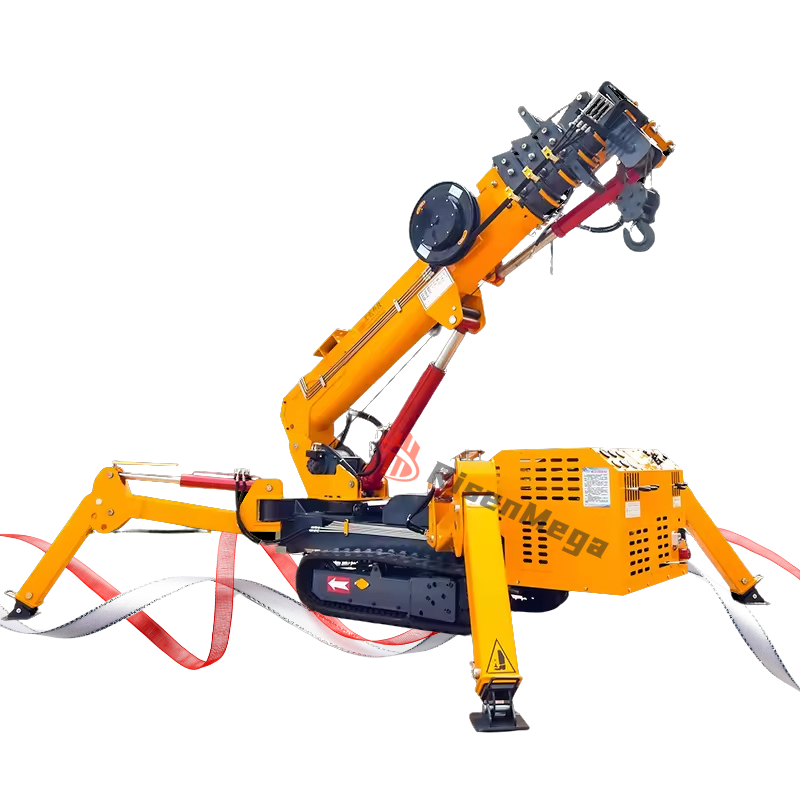

The heavy end of the Risenmega spider crane range — RM14.0 (14T) and RM16.0 (16T) — built for restricted-access construction and heavy installation lifts where a standard crawler crane can't set up. Both run on a Yuchai 85kW diesel engine, fold on manual-rotation outriggers with automatic support, and share the same 7-point safety system.
Overview: Built for the Heaviest Confined-Access Lifts
- Hexagonal automatic boom, 5-section — RM14.0 extends 5.5–21.8 m, RM16.0 extends 6.0–23.5 m, both fully extending in 50 seconds
- High/low-speed hydraulic winch — hook speed 6.5 m/min (slow) or 12 m/min (fast) on both models
- 360° continuous hydraulic slew — no dead angle, full rotation in 120 seconds
- Manual-rotation outriggers, automatic support — RM14.0 extends to 7400/7000/6000 mm (side/front/rear); RM16.0 extends further to 7800/7900/7200 mm
- Yuchai 85kW diesel engine — identical power plant on both models, paired with a YE2-180-6 15/18kW electric motor option
- Wireless remote control — 100 m range, included on every model
RM14.0 vs RM16.0 Comparison
| Spec | RM14.0 | RM16.0 |
|---|---|---|
| Rated capacity | 14 T | 16 T |
| Working max capacity | 21.1 m × 1.5 T | 22.8 m × 1.6 T |
| Max ground lifting height | 22 m (4-rope) | 23.8 m (4-rope) |
| Boom length | 5.5–21.8 m | 6.0–23.5 m |
| Wire rope | Φ11 mm × 110 m (Max) | Φ11 mm × 110 m (Max) |
| Max extension range (Side/Front/Rear) | 7400 / 7000 / 6000 mm | 7800 / 7900 / 7200 mm |
| Rubber track | 3350 × 400 mm | 3350 × 400 mm |
| Power | Yuchai diesel 85kW | Yuchai diesel 85kW |
| Dimensions (L×W×H, folded) | 6300 × 2000 × 2400 mm | 6800 × 2000 × 2400 mm |
| Machine weight | 14500 kg | 15500 kg |
Specifications shown are standard reference data. Final configuration is confirmed in the quotation and technical agreement.
RM14.0 Full Technical Parameters

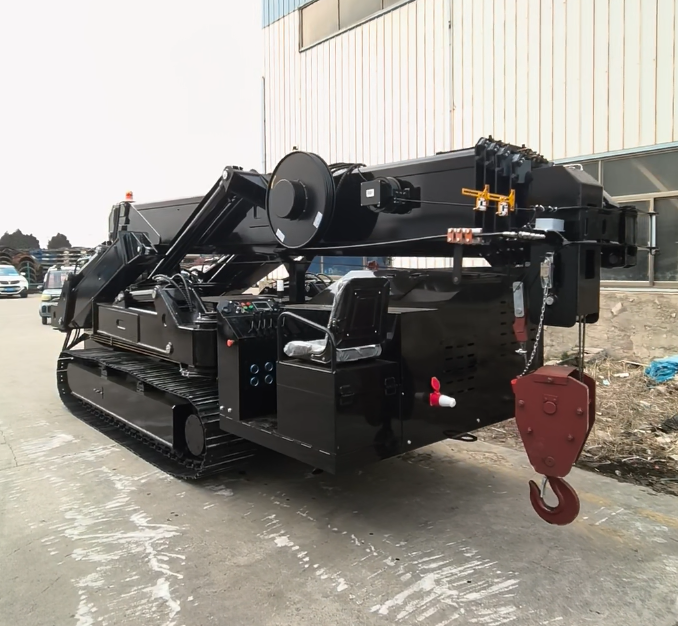

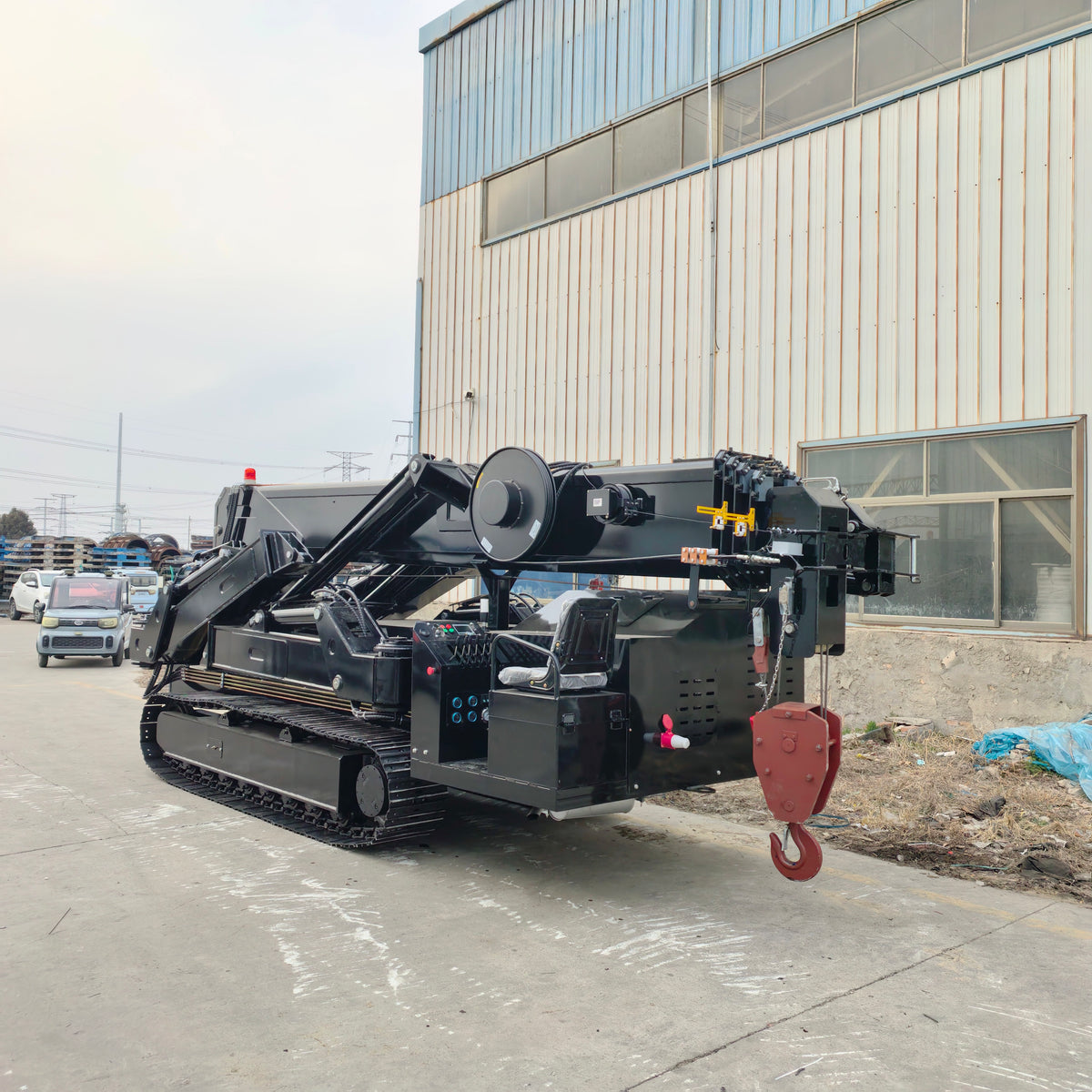

RM14.0 14 Ton
| Model | RM14.0 |
| Rated capacity | 14 T |
| Working max capacity | 21.1 m × 1.5 T |
| Max ground lifting height | 22 m (4-rope) |
| Winch type | Hydraulic motor drive, high/low speed |
| Hook speed | Slow 6.5 m/min / Fast 12 m/min |
| Wire rope | Φ11 mm × 110 m (Max) |
| Boom type | Hexagonal automatic, 5-section |
| Boom length | 5.5–21.8 m |
| Extension time | 50 sec (fully extended) |
| Boom angle / time | 0–78° / 60 sec |
| Slew angle / speed | 0–360° / 120 sec |
| Outrigger type | Manual rotation, automatic support |
| Max extension range | Side 7400 / Front 7000 / Rear 6000 mm |
| Driving mode | Hydraulic motor |
| Walking speed | Low 0–0.8 / High 0–2 km/h |
| Grade ability | 20° |
| Rubber track | 3350 × 400 mm |
| Power options | Yuchai diesel 85kW |
| Electric motor | YE2-180-6, AC380V, 18kW/970min⁻¹ |
| Remote control | Wireless, 100 m range |
| Dimensions | 6300 × 2000 × 2400 mm |
| Hydraulic oil tank | 130 L |
| Machine weight | 14500 kg |
RM16.0 Full Technical Parameters

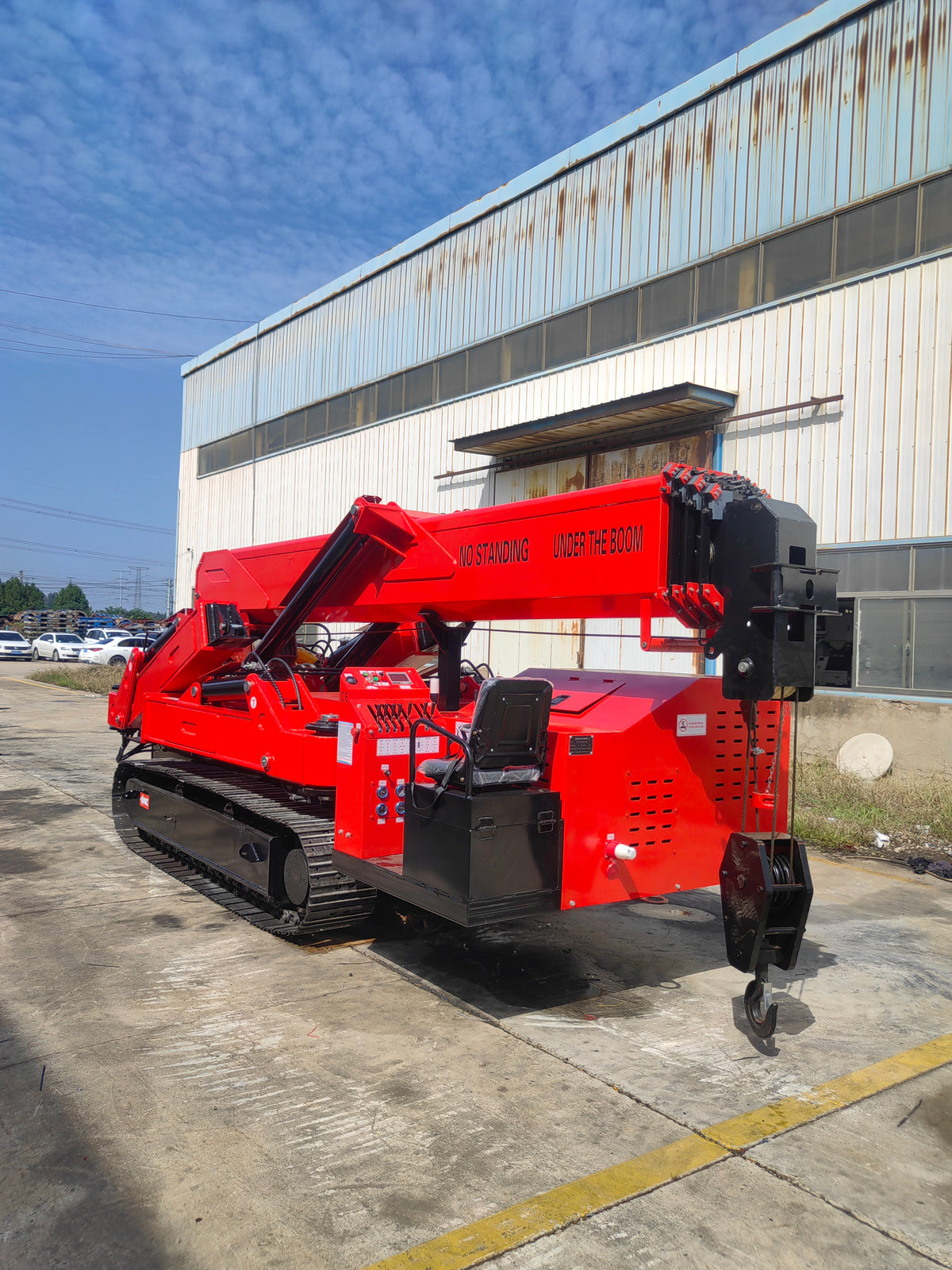

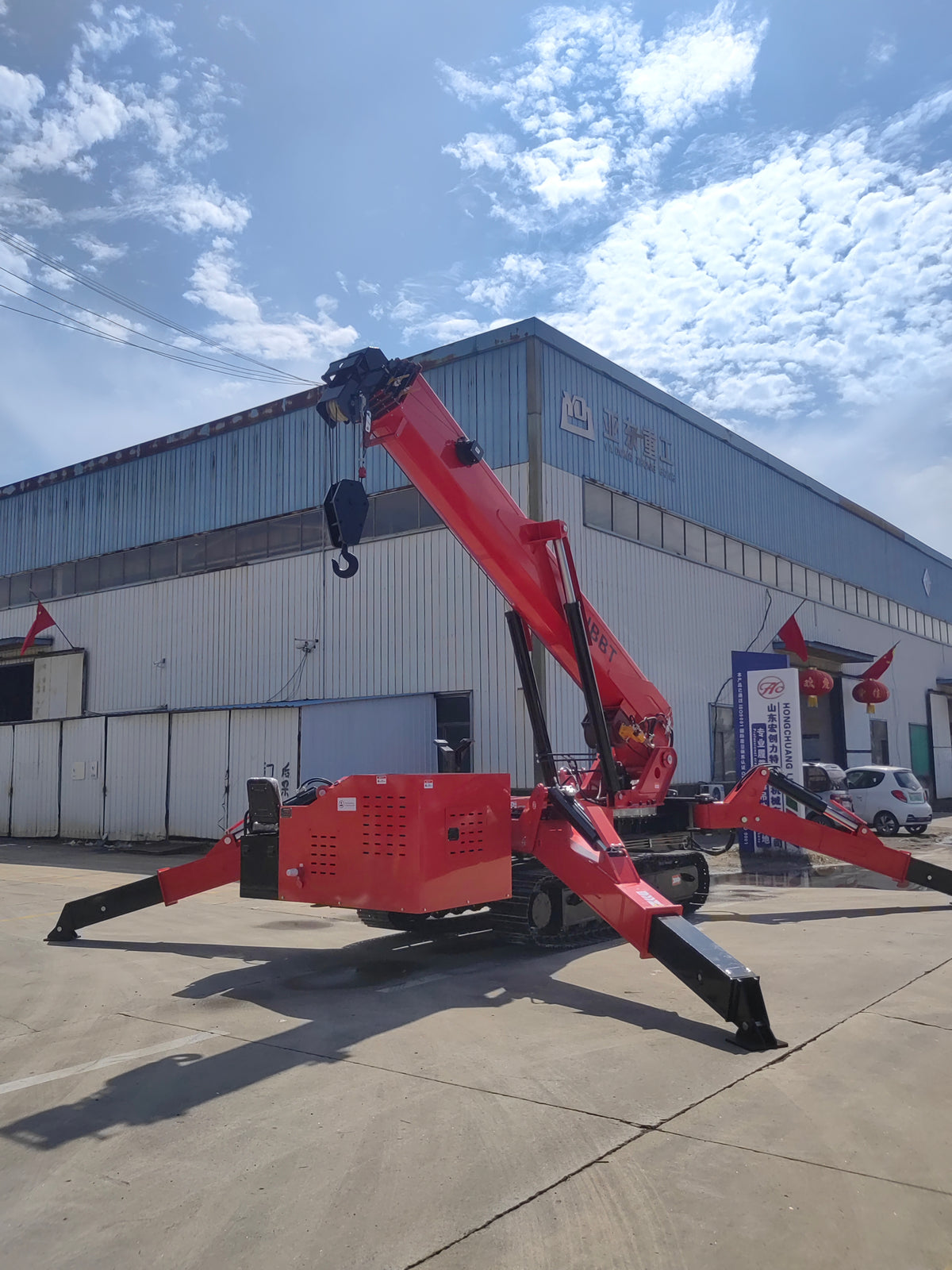

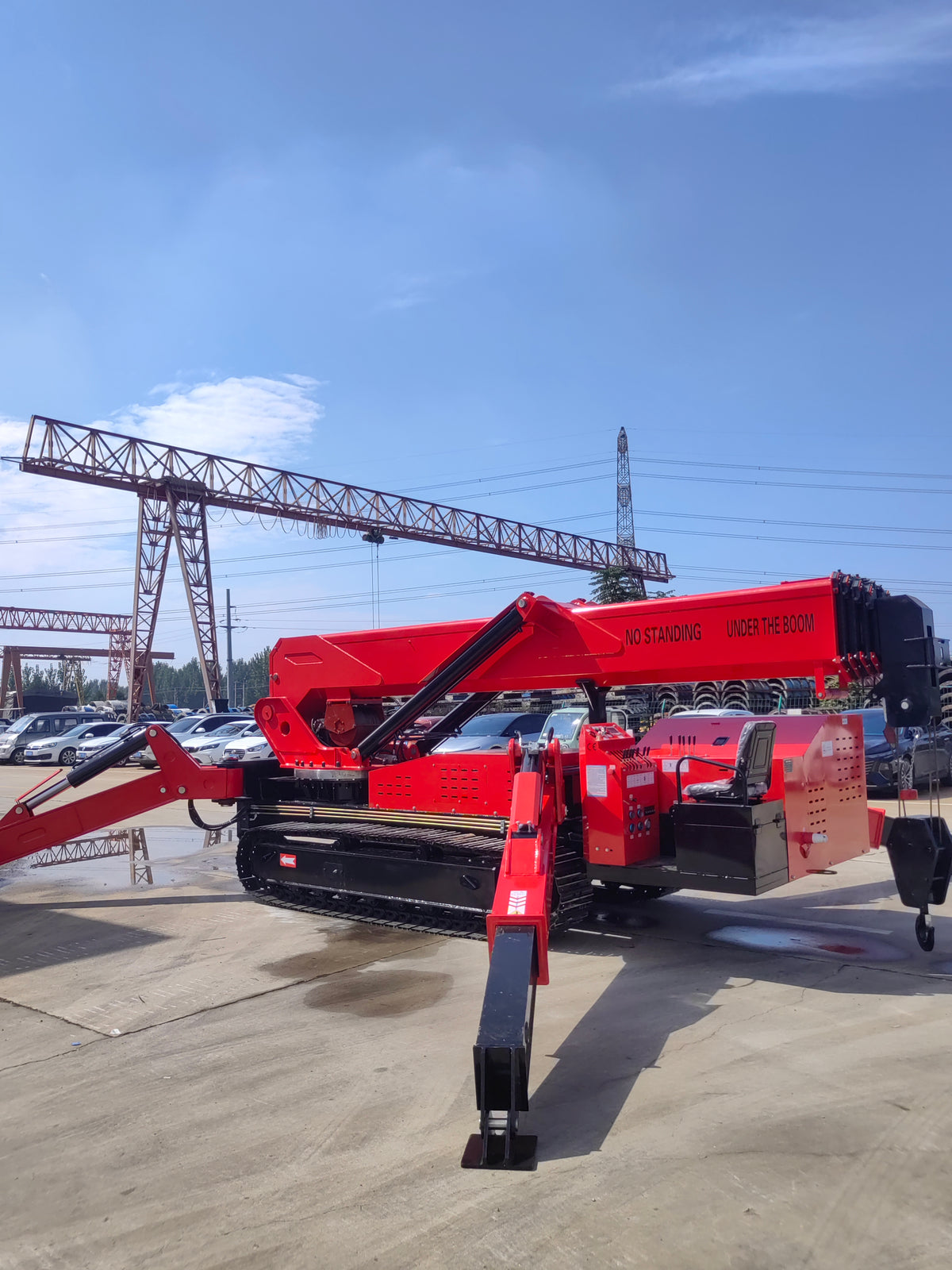

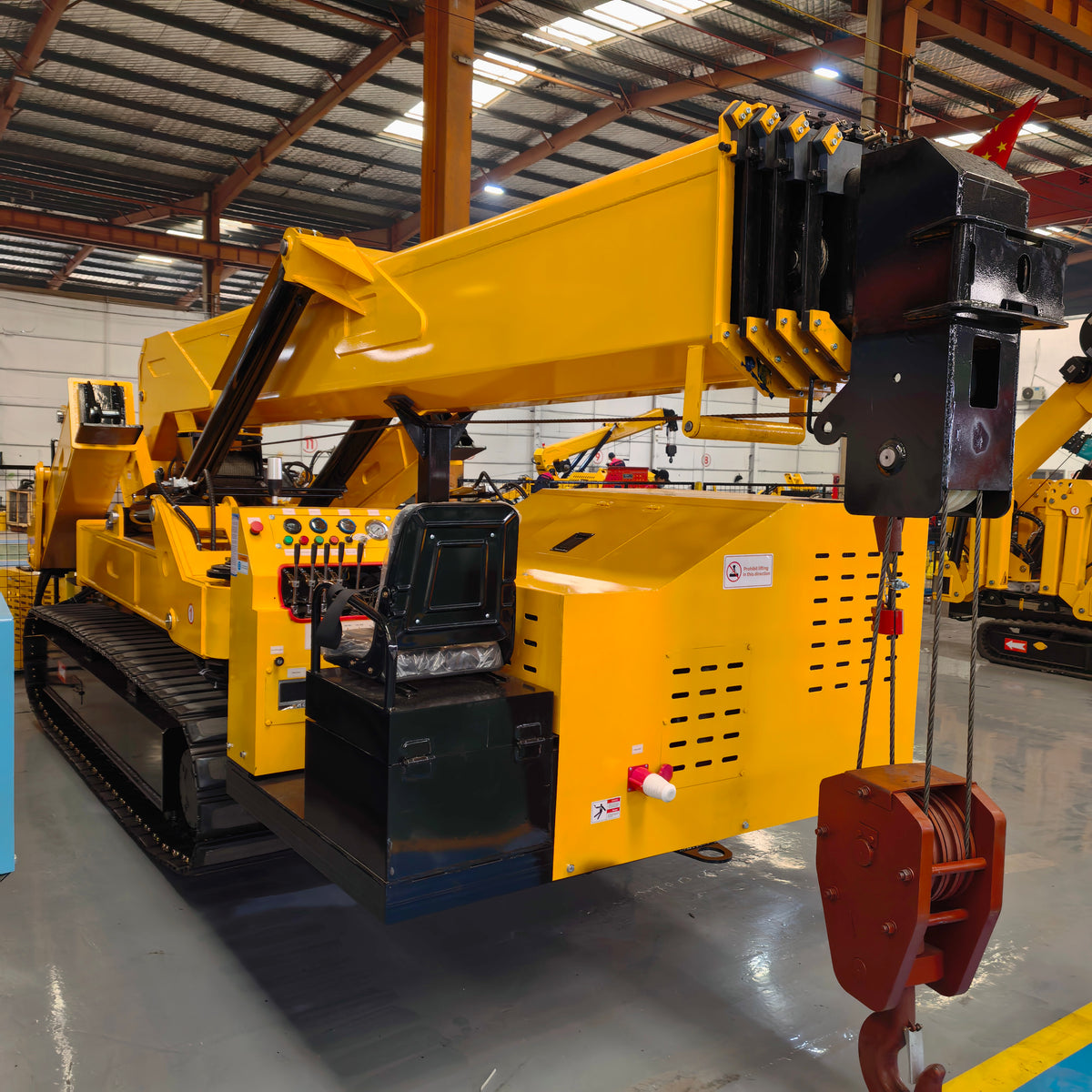

RM16.0 16 Ton
| Model | RM16.0 |
| Rated capacity | 16 T |
| Working max capacity | 22.8 m × 1.6 T |
| Max ground lifting height | 23.8 m (4-rope) |
| Winch type | Hydraulic motor drive, high/low speed |
| Hook speed | Slow 6.5 m/min / Fast 12 m/min |
| Wire rope | Φ11 mm × 110 m (Max) |
| Boom type | Hexagonal automatic, 5-section |
| Boom length | 6.0–23.5 m |
| Extension time | 50 sec (fully extended) |
| Boom angle / time | 0–78° / 60 sec |
| Slew angle / speed | 0–360° / 120 sec |
| Outrigger type | Manual rotation, automatic support |
| Max extension range | Side 7800 / Front 7900 / Rear 7200 mm |
| Driving mode | Hydraulic motor |
| Walking speed | Low 0–0.8 / High 0–2 km/h |
| Grade ability | 20° |
| Rubber track | 3350 × 400 mm |
| Power options | Yuchai diesel 85kW |
| Electric motor | YE2-180-6, AC380V, 18kW/970min⁻¹ |
| Remote control | Wireless, 100 m range |
| Dimensions | 6800 × 2000 × 2400 mm |
| Hydraulic oil tank | 130 L |
| Machine weight | 15500 kg |
Attachments & Customization
Hydraulic Fly Jib
Work Basket
Glass Suction Cup
Grab Bucket
One-Key Leveling
Torque Display
Safety Systems
Torque limiter
Restricts hoisting when load exceeds the rated capacity for the current radius
Anti-rollover device
Monitors chassis stability during outrigger deployment and lifting
Interlock
Prevents conflicting or unsafe simultaneous movements
Hook overwinding device
Stops the winch before the hook block contacts the boom tip
Overload alarm limiter
Alerts the operator and limits further hoisting near rated capacity
Tri-color alarm light
Visual status indicator for normal, warning, and overload conditions
Emergency stop button
Cuts power instantly in a critical situation
Shipping & Warranty
- Shipping terms: FOB / CIF / DDP door-to-door
- Container consolidation: combining multiple products in one container can reduce freight cost
- Documentation: model-specific technical files aligned with the quoted configuration
- Pre-shipment inspection: photo/video evidence coordinated before dispatch
- Spare parts: perishable parts ship by express if a part fails
Ready to Discuss RM14.0 or RM16.0?
Share your required capacity, lift height, working radius, and destination for a configuration and quotation.
Frequently Asked Questions
What's the difference between RM14.0 and RM16.0?
Both share the same Yuchai 85kW diesel engine, control system, and 7-point safety system. RM16.0 has a longer boom (up to 23.5 m vs 21.8 m), reaches 23.8 m vs 22 m max height, and has a wider outrigger extension range and 1000 kg more machine weight.
What power options are available?
Both models run on a Yuchai 85kW diesel engine as standard, paired with a YE2-180-6 electric motor (18kW) for electric-powered operation where a power supply is available.
Is it remote-controlled?
Yes, wireless radio remote (100 m range) is included on both models, with an optional upgraded proportional control system.
What attachments can I add?
Both models accept a hydraulic fly jib, work basket, glass suction cup, and grab bucket, plus one-key leveling and a torque display on request.
What are the shipping and payment terms?
Units ship FOB, CIF, or DDP from Qingdao. Contact us for a quotation matched to your configuration and destination.
How is quality verified before shipment?
Risenmega coordinates pre-shipment inspection with photo and video evidence, plus model-specific technical documentation aligned with the quoted configuration.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What Is a Spider Crane?
A spider crane is a compact, self-propelled lifting machine mounted on rubber crawler tracks. Named for its four extendable outrigger "legs", it can fold to less than 800 mm wide to pass through standard doorways, then deploy for stable lifting in confined indoor or outdoor spaces where conventional cranes cannot operate.
🎁 Lifting capacity: 500 kg to 12,000 kg
🎁 Folded width: as narrow as 700–800 mm
🎁 Max lifting height: up to 25 meters
🎁 Customize more than 10 types of attachments
🎁 Outriggers: 4 independently adjustable legs
🎁 Power options: diesel (Kubota/Yanmar), electric
🎁 Control: wireless radio remote
🎁 Rotation: 360° continuous hydraulic slew
Contact WHATSAPP
Risenmega Spider Crane Specifications: Which Model Is Right for You?
Risenmega manufactures spider cranes from 1 ton to 12 tons, with arm lengths from 8 to 25 meters. Use the table below to match your lifting capacity and access requirements to the right model — each links directly to full technical specs and pricing.
| Model | Max Lift | Max Height | Dimensions | Grade IP | Engine | Power |
| 1 Ton spider crane | 1000KG | 8M | 2260*600*1470MM | IP-67 | Honda GX390 | 9.6KW |
| 2 Ton spider crane | 2000KG | 8M | 2780*710*1620MM | IP-67 | Honda 390CC | 10KW |
| 3 Ton spider crane | 3000KG | 10.5M | 3450*950*1700MM | IP-67 | Changchai EV80 | 12.0KW |
| 5 Ton spider crane | 5000KG | 16.5M | 4650*1400*2160MM | IP-67 | YN 25GB | 37KW |
| 8 Ton spider crane | 8000KG | 17.5M | 5010*1600*2200MM | IP-67 | YN 27GBZ | 58KW |
| 10 Ton spider crane | 10000KG | 20M | 5550*1850*2300MM | IP-67 | YN 27GBZ | 58KW |
| 12 Ton spider crane | 12000KG | 22M | 6050*1850*2300MM | IP-67 | Changchai | 65KW |
