Full Electric Glass Vacuum Lifter Suction Cup 200-1200 KG
Vacuum Lifter
Double system control, one vacuum system for working, and one for alternate.American THOMAS vacuum pump
Description
Description
Full-Electric Glass Vacuum Lifter, 400–1200 KG Capacity
A single-operator, battery-powered suction lifter built for glass curtain wall installation, insulated glazing units, and heavy sheet glass handling. Electric 360° rotation and 90° tilt let it turn sideways through narrow doorways and set panels precisely — no air compressor, no external power line, no second worker.
The Risenmega RMSC electric glass vacuum lifter is designed for glaziers, curtain-wall contractors, and glass fabricators who need to move large, heavy glass panels safely with a single operator. Because the vacuum pump and control system run on a maintenance-free onboard battery, the lifter needs no compressed-air source and no mains power connection during operation — plug in to recharge, then work anywhere on site.
An auto vacuum pressure supply system keeps the whole circuit at a constant, safe holding pressure throughout the lift, while a digital vacuum pressure switch and battery fuel gauge let the operator monitor suction and charge status at a glance. The frame is built from Q345 low-alloy structural steel (the Chinese-standard equivalent of 16Mn, comparable to European S355) for a rigid, long-service-life chassis. The lifting head rotates a full 360° and tilts 90°, so panels can be picked up flat and set vertically into a curtain wall frame — or turned sideways to pass through a standard door opening.
Key Features
What makes the RMSC series a reliable, jobsite-ready glass vacuum lifter.
High-Flow Vacuum Pump
Equipped with a THOMAS-brand vacuum pump paired with a maintenance-free battery pack, delivering consistent suction without an external air line.
*Please confirm the exact pump model/spec sheet with our sales team before publishing pump-origin claims.Digital Pressure & Battery Display
A digital vacuum pressure switch and battery fuel gauge give the operator a continuous, at-a-glance read on suction level and remaining charge.
Auto Pressure-Supply System
Automatically tops up vacuum pressure during handling, keeping the whole circuit at a constant, safe holding value from pick-up to placement.
360° Electric Rotation, 90° Electric Tilt
Fully powered rotation and tilt make it easy to reposition a panel in mid-air or turn it sideways to clear a narrow doorway or corridor.
Q345 Structural Steel Frame
A high-strength, low-alloy structural steel frame (Q345) built for daily heavy-duty use and long service life on site.
Battery Backup Holding Power
If site power is interrupted, the vacuum circuit retains holding pressure on battery power, extending safe handling time before you need to set the load down.
Technical Specifications
RMSC40H/X to RMSC120H/X — full-electric glass vacuum lifter, 400–1200 KG range.
| Model | RMSC40H/X | RMSC60H/X | RMSC80H/X | RMSC100H/X | RMSC120H/X |
|---|---|---|---|---|---|
| Load Capacity | 400 KG | 600 KG | 800 KG | 1000 KG | 1200 KG |
| Rotation | 360° Electric | 360° Electric | 360° Electric | 360° Electric | 360° Electric |
| Tilting | 90° Electric | 90° Electric | 90° Electric | 90° Electric | 90° Electric |
| Pad Diameter | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Pads Qty. | 4 | 6 | 8 | 10 | 12 |
| Operation | Electrical | Electrical | Electrical | Electrical | Electrical |
| Battery (V/Ah) | 12V / 20Ah | 12V / 20Ah | 12V / 20Ah | 12V / 20Ah | 12V / 20Ah |
| Charger (V/A) | 24V / 6A | 24V / 6A | 24V / 6A | 24V / 6A | 24V / 6A |
| Suction Frame Size * | 920 × 820 mm | 2430 × 1090 mm | 1980 × 1610 mm | 1980 × 1610 mm | 1980 × 1610 mm |
| Frame Size (H) * | 2396 × 1180 mm | 2396 × 1180 mm | 2396 × 1180 mm | 2396 × 1180 mm | 2396 × 1180 mm |
| Packing Size * | 1200×800×520 mm | 1200×800×520 mm | 1200×800×520 mm | 1200×800×520 mm | 1200×800×520 mm |
| Machine Size (H) | 2250×1080×590 mm | 2250×1080×590 mm | 2250×1080×590 mm | 2250×1080×590 mm | 2250×1080×590 mm |
Applications
Where the RMSC electric glass vacuum lifter is typically used.
Product Gallery

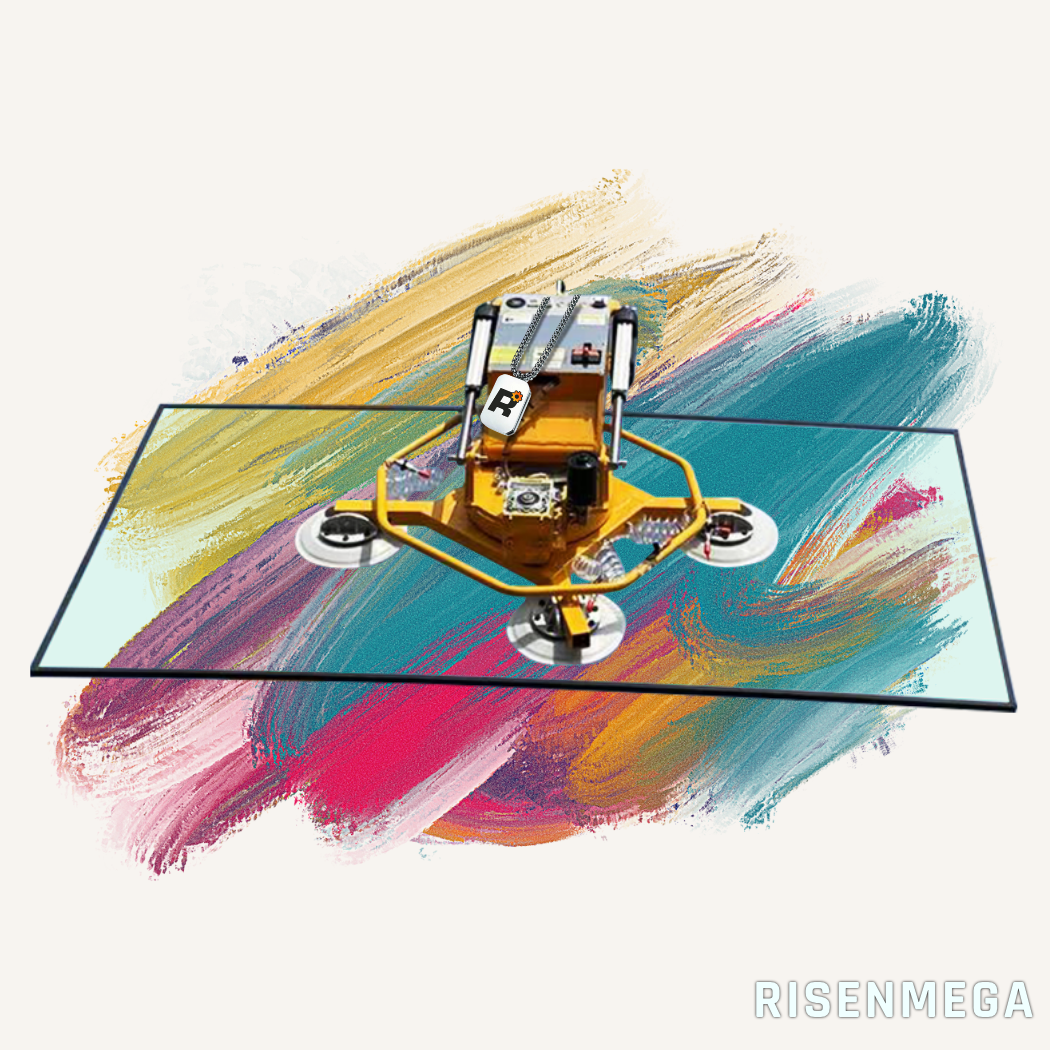

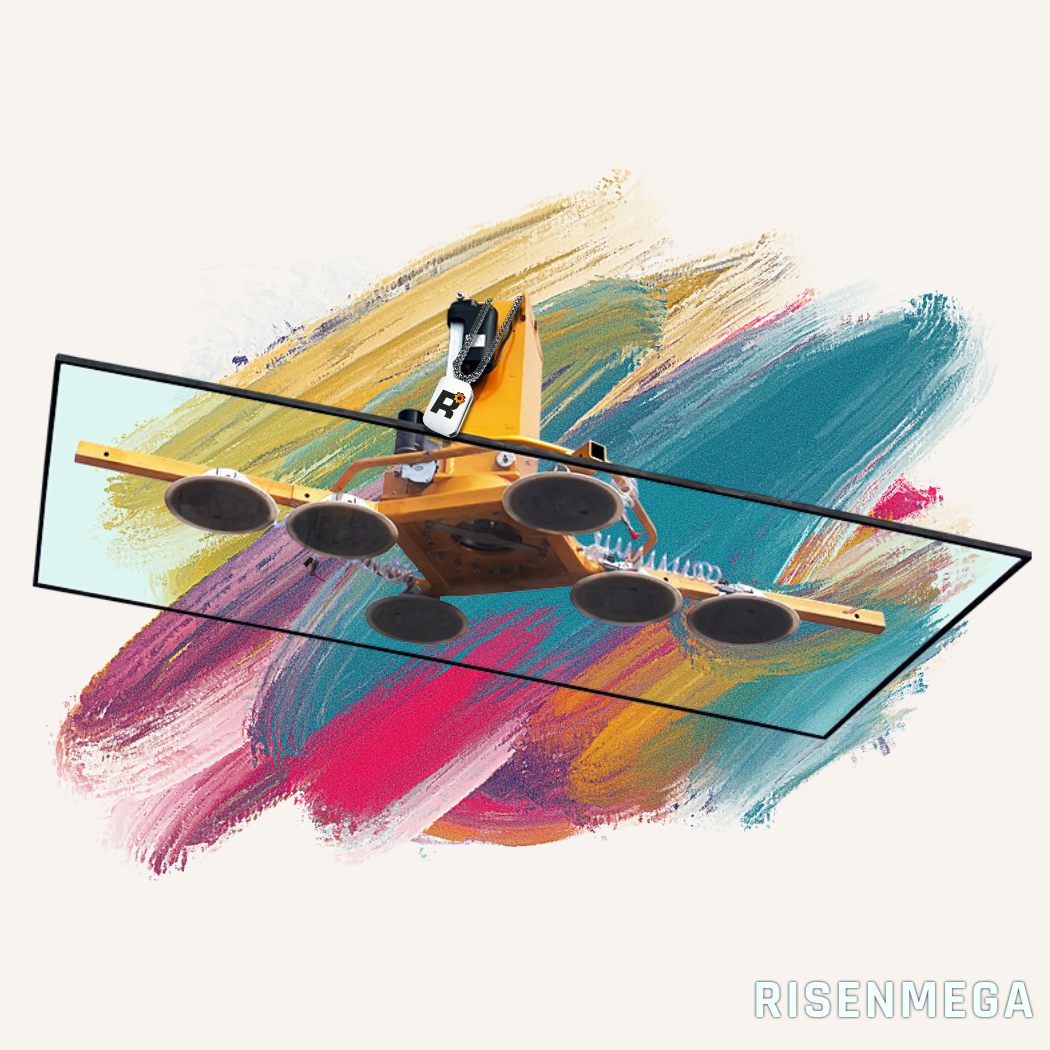

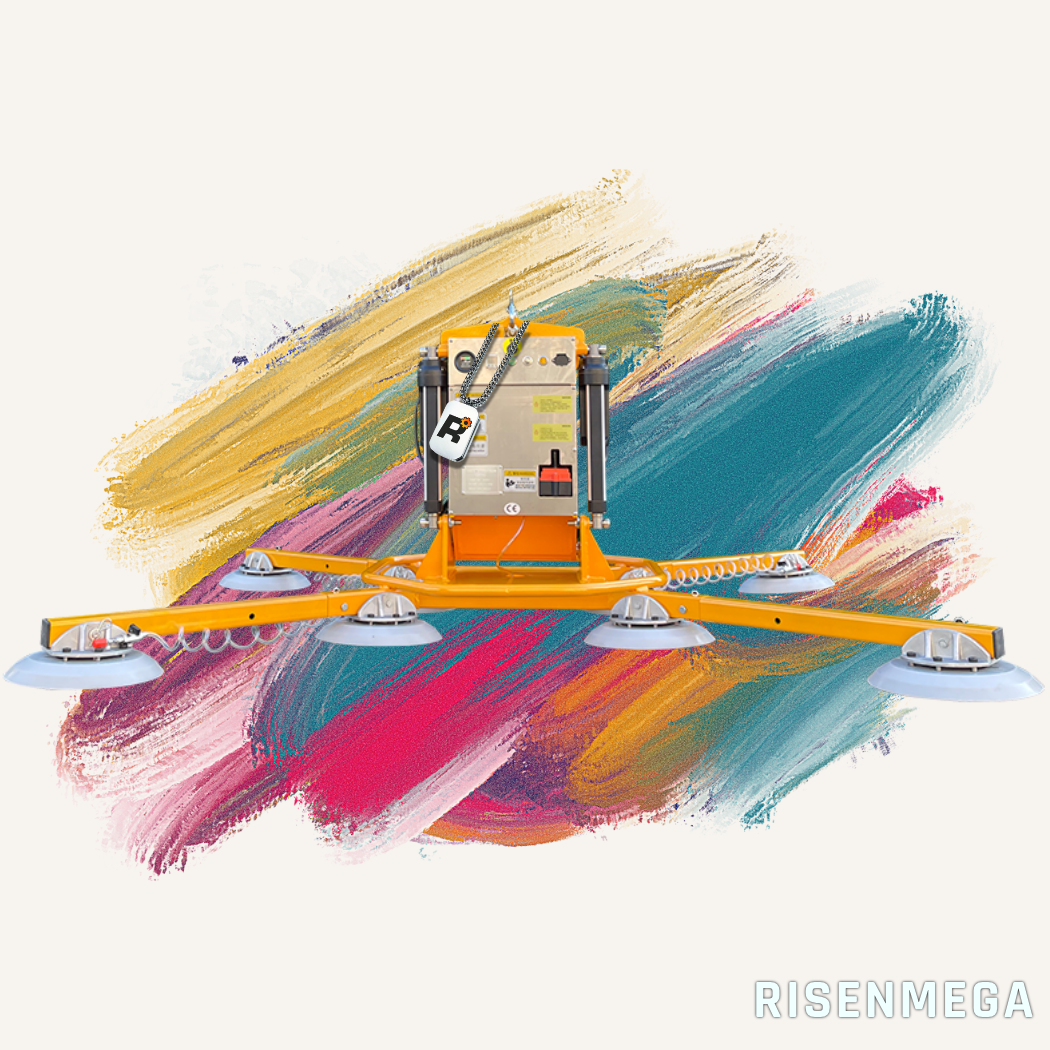

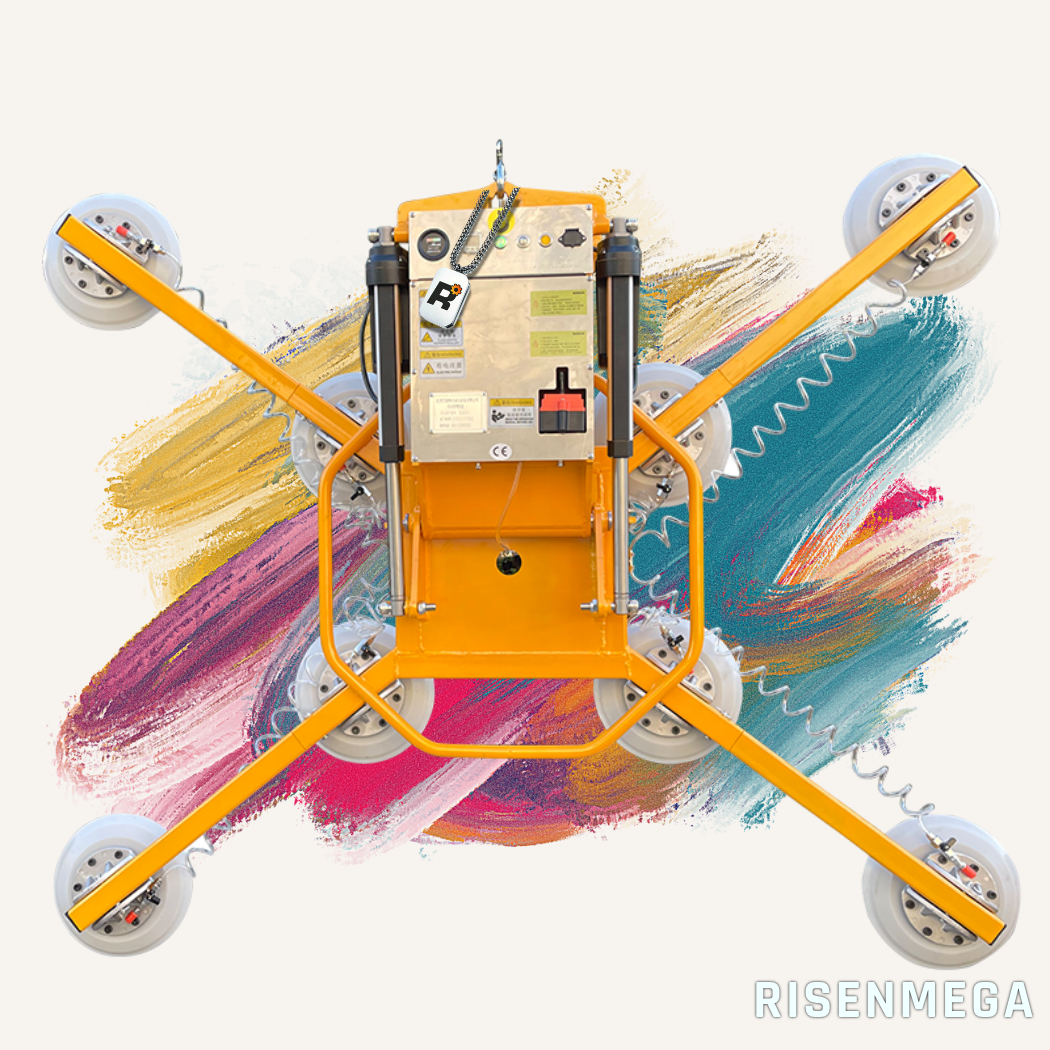

RMSC full-electric glass vacuum lifter — overview and detail views.
Certification, Payment & Shipping
CE Documentation
CE documentation is available for applicable models, with export documents provided before shipment. Ask our team to confirm coverage for the specific RMSC model you need.
Payment
Once the model and configuration are confirmed, the deposit can be paid by PayPal or T/T bank transfer, with the balance due before shipment.
Delivery & Shipping
Shipped from Qingdao port by default. Every machine is loaded onto wooden crates with metal reinforcement plates to prevent rust and transit damage, and photographed/videoed for your confirmation before loading.
Frequently Asked Questions
What load capacity does the RMSC electric glass vacuum lifter cover?
The RMSC series covers 400 KG to 1200 KG across five models (RMSC40H/X through RMSC120H/X), so you can match capacity to your heaviest panel size.
Do I need an air compressor or mains power to operate it?
No. The lifter runs on its onboard maintenance-free battery and vacuum pump, so it does not require a compressed-air line or an external power supply during use — only recharging between shifts.
What happens if power is interrupted mid-lift?
The battery-backed vacuum circuit and auto pressure-supply system maintain holding pressure on the panel, extending the safe window to set the load down in a controlled way.
Can it rotate and tilt to install vertical curtain-wall panels?
Yes. All RMSC models offer full-electric 360° rotation and 90° tilt, allowing the operator to lift a panel flat and rotate it into a vertical installation position, or turn it sideways to clear a doorway.
Is CE documentation available?
CE documentation is available for applicable models, with export paperwork prepared before shipment — confirm coverage for your chosen model with our sales team.
How is the machine packed and shipped?
Machines ship from Qingdao port, crated in wood with metal reinforcement to prevent transit damage and corrosion, with photo/video confirmation sent before the container is loaded.
Need help choosing the right RMSC model?
Tell us your glass panel size and weight — our team will recommend the correct capacity and pad configuration.
