Wheelchair Vertical Home Lift 1-18M
Wheelchair home lift
According to your meet, we can customized 1-20M vertical lift, and choice capacity, with wide space in the machine
Description
Description

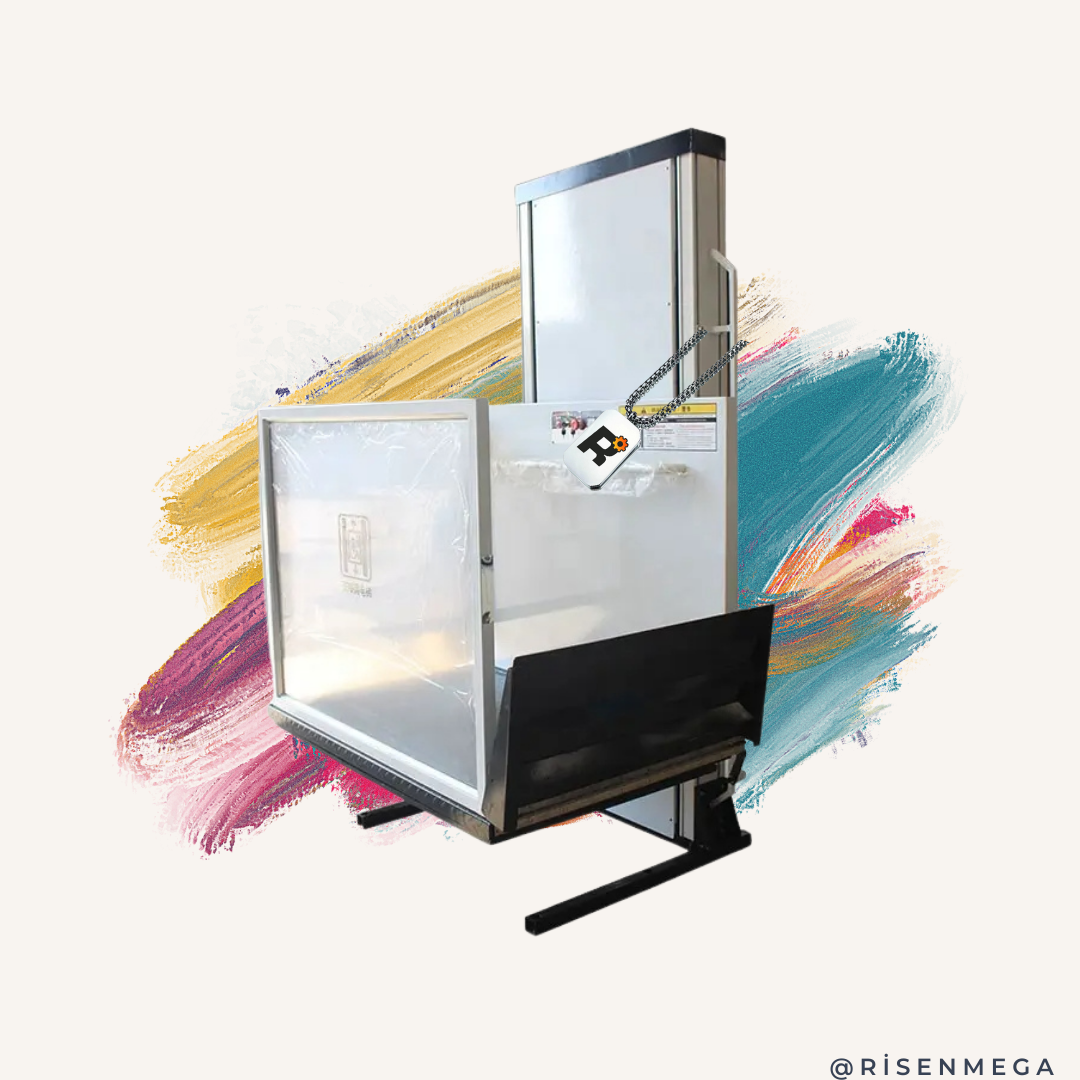

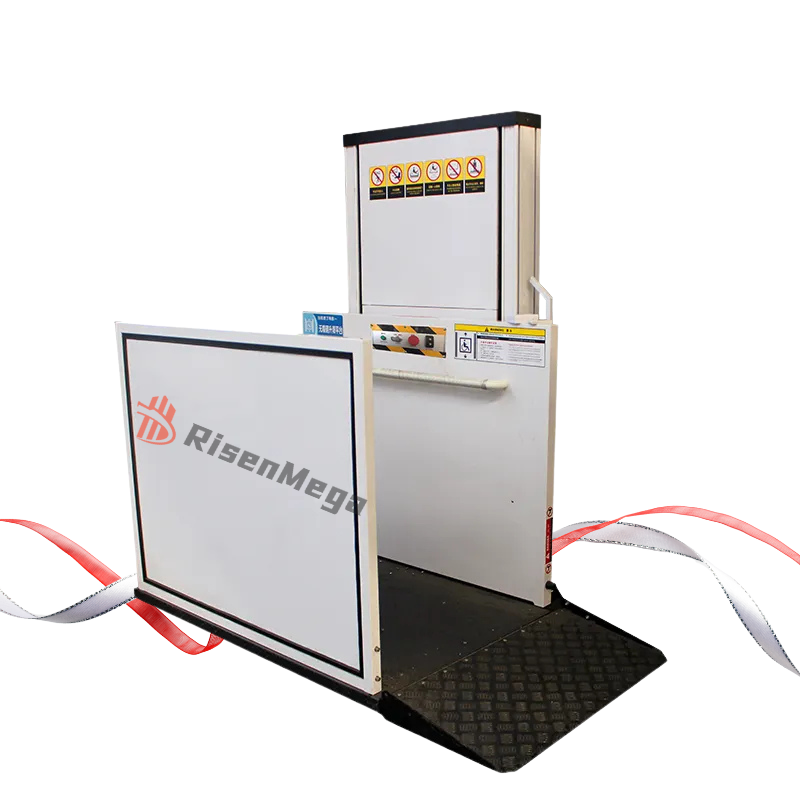

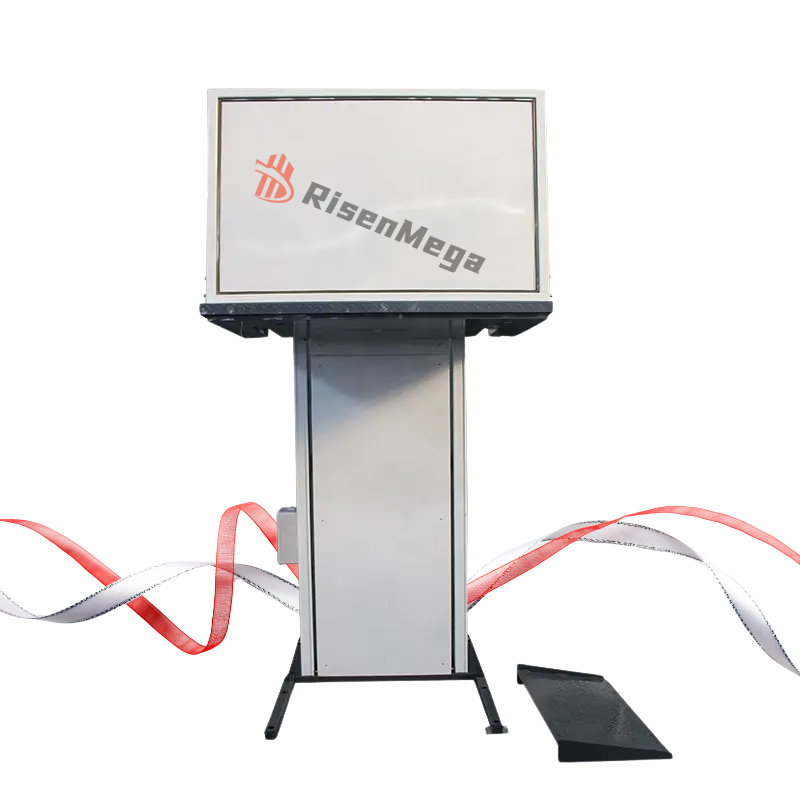

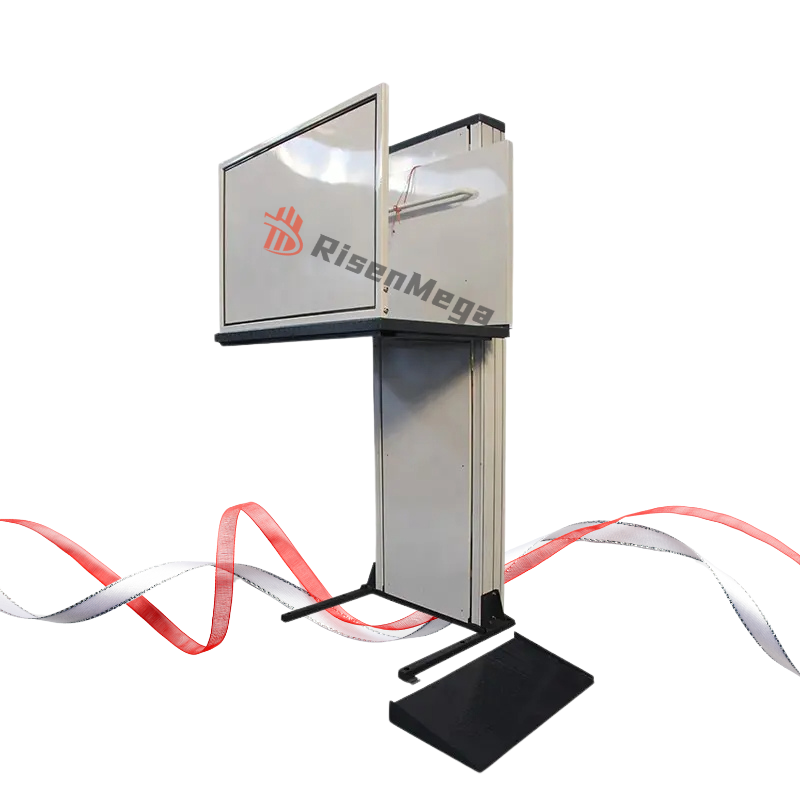

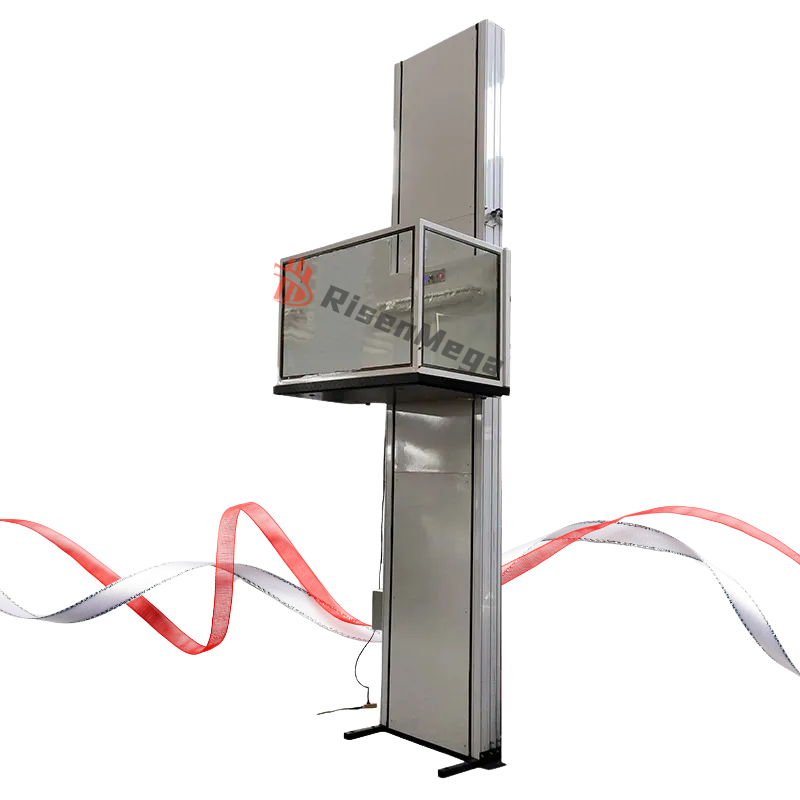

Wheelchair Vertical Home Lift 1–18M
250KG Hydraulic Platform Lift, Built To Order
A self-supporting hydraulic lift that carries a wheelchair, mobility scooter, or caregiver-assisted passenger safely between levels — from a single 1-metre porch step to a full 18-metre, multi-storey shaft. Rated to 250 kg as standard, with every dimension, capacity, and finish below open to customization for your exact site.
One Lift Platform, Built For Any Rise From 1M To 18M
A code-compliant ramp needs roughly 300 mm of run for every 25 mm of rise — on a two-storey home, that's a ramp longer than most driveways. The Risenmega Wheelchair Vertical Home Lift solves the same problem inside a footprint as small as 1.2 m², using a self-supporting steel guide-rail mast that needs no separate machine room or overhead crane beam.
Because the mast, hydraulic power pack, and platform are engineered per project, the same product family covers a single-step porch lift as easily as an 18-metre shaft through a multi-storey home. Choose the travel height your site actually needs, a straight-through or adjacent-access door layout, and a cabin finish — from an open steel-mesh enclosure to a fully glazed viewing cabin.
Six Systems That Keep Every Ride Predictable
External Call Station
A wall-mounted call box at each landing — or an optional wireless remote — summons the platform without anyone walking it back manually.
Emergency Stop Button
A dedicated stop switch on the control panel halts platform travel instantly at any point in the run.
Manual Emergency Lowering
If power is lost or a fault occurs, the hydraulic valve can be opened by hand (or the lead screw turned manually) to bring the platform down safely.
Safety Interlock System
Gate and door interlocks prevent the platform from moving until every access point is fully closed and confirmed.
Anti-Fall Cocking Plate
A mechanical cocking plate engages automatically as the platform rises, locking it in place if hydraulic pressure is ever lost.
Non-Slip Steel Platform Floor
Diamond-plate flooring gives sure footing for wheelchair casters and scooter wheels, even in wet or icy entryways.
Reference Clearances From A Recent Under-Stair Install
Every shaft is drawn to fit the site, but the CAD drawings below — from a completed installation beside an existing staircase — show the scale of space this lift actually needs: a shaft footprint under 1.5 m² and a compact overhead clearance rather than a full elevator shaft.
These figures come from one project's CAD layout and are shown as a reference, not a universal spec — a 1-metre porch lift and an 18-metre multi-storey lift will each have different pit, header, and footprint needs. Send us your staircase or shaft drawing and we'll confirm the exact requirements before you order.
Model Range — 1 To 18 Metres, 250 KG Standard Load
The table below lists reference points across our full custom range at the standard 250 kg load rating. Any travel height between 1 m and 18 m — not just the models listed — can be built to match your exact floor-to-floor rise; treat these figures as a starting point and tell us your actual rise, footprint, and passenger requirements for a matched quotation.
| Model | Travel Height (m) Customizable |
Rated Load (kg)
Customizable
|
Platform Size (mm) Customizable |
Overall Dimensions L×W×H (m) Customizable |
|---|---|---|---|---|
| RMW-1 | 1 | 250 | 1200 × 1000 | 1.3 × 0.8 × 1.8 |
| RMW-2 | 2 | 250 | 1200 × 1000 | 1.3 × 0.8 × 2.8 |
| RMW-3 | 3 | 250 | 1200 × 1000 | 1.3 × 0.8 × 3.8 |
| RMW-4 | 4 | 250 | 1200 × 1000 | 1.3 × 0.8 × 4.8 |
| RMW-5 | 5 | 250 | 1200 × 1000 | 1.3 × 0.8 × 5.8 |
| RMW-6 | 6 | 250 | 1200 × 1000 | 1.3 × 0.8 × 6.8 |
| RMW-8 | 8 | 250 | 1200 × 1000 | 1.3 × 0.8 × 8.8 |
| RMW-10 | 10 | 250 | 1200 × 1000 | 1.3 × 0.8 × 10.8 |
| RMW-12 | 12 | 250 | 1200 × 1000 | 1.3 × 0.8 × 12.8 |
| RMW-15 | 15 | 250 | 1200 × 1000 | 1.3 × 0.8 × 15.8 |
| RMW-18 | 18 | 250 | 1200 × 1000 | 1.3 × 0.8 × 18.8 |
Need a different load, a wider platform, or a travel height between the rows above (e.g. 7 m, 11 m, 14 m)? Nothing in this table is fixed — capacity, height, footprint, and finish are all reconfigured to match your project, in 0.1 m increments. Dimensions above are factory-reference values; final general arrangement drawings are issued after your site survey and confirmed before production.
Where This Lift Goes To Work

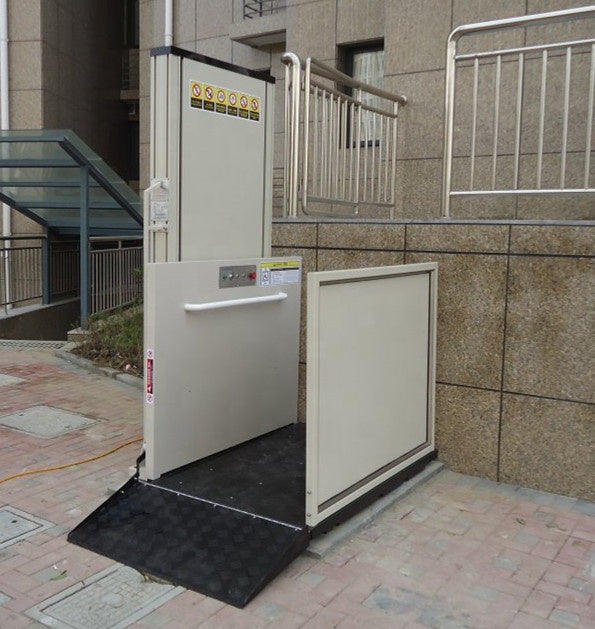

Porch, entry step & threshold access
Split-level & multi-storey homes
Villa, duplex & townhouse staircases
Basement & garage access
Guesthouses, clinics & care homes
Built To Your Project, Not The Other Way Around
Nothing on this page is a fixed catalog spec. Risenmega engineers each lift around your floor plan, so every parameter below — starting with load and travel height — is a baseline we adjust to fit the real site, not a limit.
250 kg standard across the 1–18 m range; higher rated loads engineered on request.
Any stop from 1 m to 18 m — matched to your exact floor-to-floor rise.
Single-phase 220V or three-phase 380V, frequency matched to your grid.
Open steel mesh, powder-coated panel, or glazed viewing panels.
Push-button station, key switch, or wireless remote control.
Straight-through or adjacent-side door configuration.
1200×1000 mm standard; larger sizes available for scooters or an attendant.
Exterior color matched to your facade on request (RAL code).

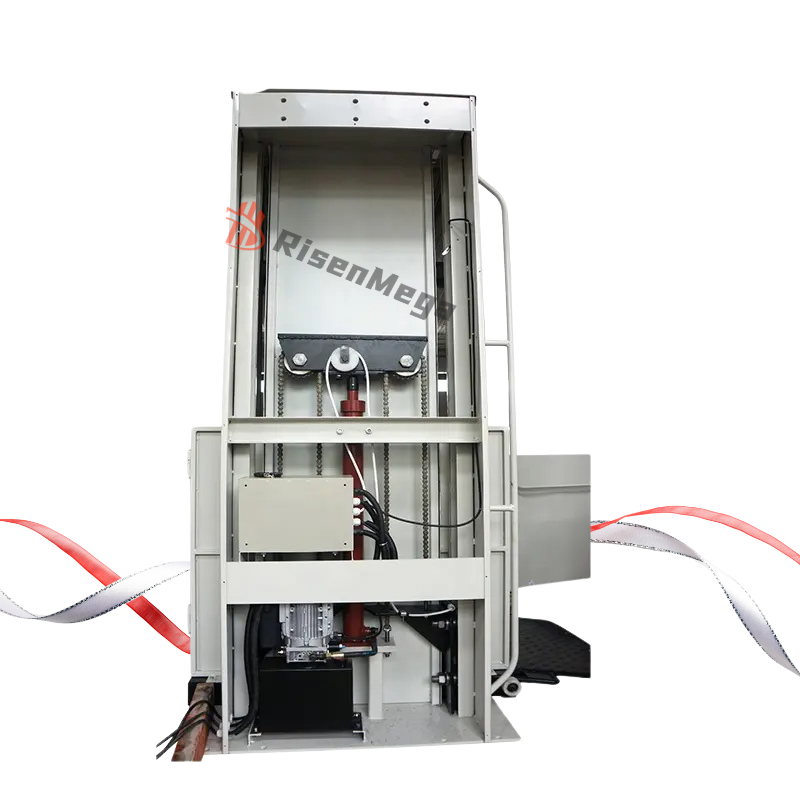

What's Inside The Mast
Every lift is powered by a compact hydraulic power pack integrated into the base of the mast — no separate machine room required. Each unit ships with a visible pressure gauge, a dual solenoid valve block, a manual release valve for emergency lowering, and braided hydraulic hoses rated to SAE 100R2AT for long service life under repeated cycling.
- CE documentation available for applicable models
- Export documents prepared before shipment
- Factory photo & video confirmation prior to loading
- Steel guide-rail mast, self-supporting — no dedicated shaft required
Watch This Lift Run, Start To Finish
Every unit is fully assembled and cycle-tested in our accessibility assembly area before it leaves the facility — platform travel, door interlocks, and the call station are all checked against your confirmed configuration.
Specs on a page only tell you so much. We filmed a full run on Instagram — the platform rising, the doors closing, the whole ride in real time. Hit play and see exactly what shows up at your door.
▶ Watch It Run On Instagram @risenmega — the full ride, real timeFrom Deposit To Delivery
Confirm model, travel height & configuration with our team.
Pay a 30% deposit by PayPal or T/T bank transfer.
Production, then crating in wooden crates with metal reinforcement to prevent transit corrosion.
Photo & video confirmation of the finished unit before it's loaded.
FOB, CIF or DDP shipping worldwide from Qingdao port.
Ordering more than one machine? Consolidate multiple products into a single container and save up to 30% on freight.
Common Questions
How much weight can this wheelchair home lift carry?
This series is rated to 250 kg (≈ 550 lb) in standard configuration — enough for a power wheelchair plus occupant. Because every unit is custom-built, higher rated loads are available whenever your project needs them; just tell us the required capacity when you request a quote.
Can I customize the load, height, or platform size?
Yes — every specification on this page is a starting point, not a fixed catalog option. Risenmega engineers each lift to the customer's floor plan, so load capacity, travel height, platform size, voltage, control type, and cabin finish are all configured to order.
What travel heights are available?
This range covers 1 to 18 metres of vertical travel — from a single porch step or threshold up to a full multi-storey shaft. Any intermediate stop height in between can be built to match your exact floor-to-floor rise.
What happens during a power outage?
The hydraulic valve can be released manually — or the lead screw turned by hand — to lower the platform to the ground floor safely without electrical power.
Does it need a separate machine room?
No. The hydraulic power pack is integrated into the base of the guide-rail mast, so no dedicated machine room is required. Pit and headroom needs are confirmed against your site drawing before production.
Is the lift certified for export?
CE documentation is available for applicable models, and export documents are prepared and provided before shipment.
How is it shipped and installed?
Units are crated at Qingdao port and shipped FOB, CIF, or DDP to your destination, with photo and video confirmation before loading. Our team supports remote installation guidance, and multiple orders can be consolidated into one container to reduce freight cost.
