Vacuum lift Small truck with suction cups 200 KG
Vacuum Lifter
Double system control, one vacuum system for working, and one for alternate.American THOMAS vacuum pump
Description
Description

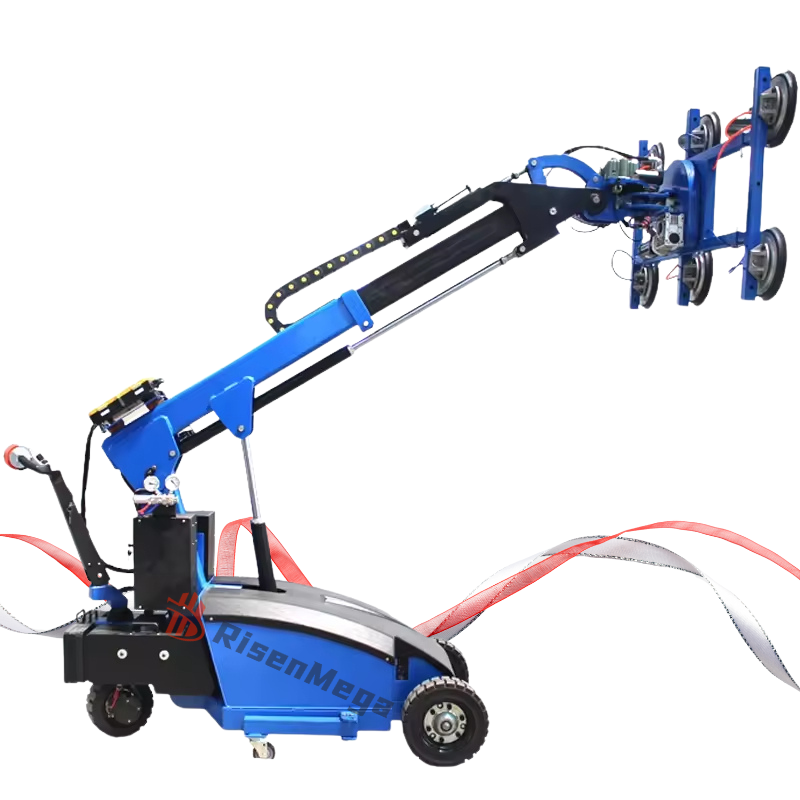

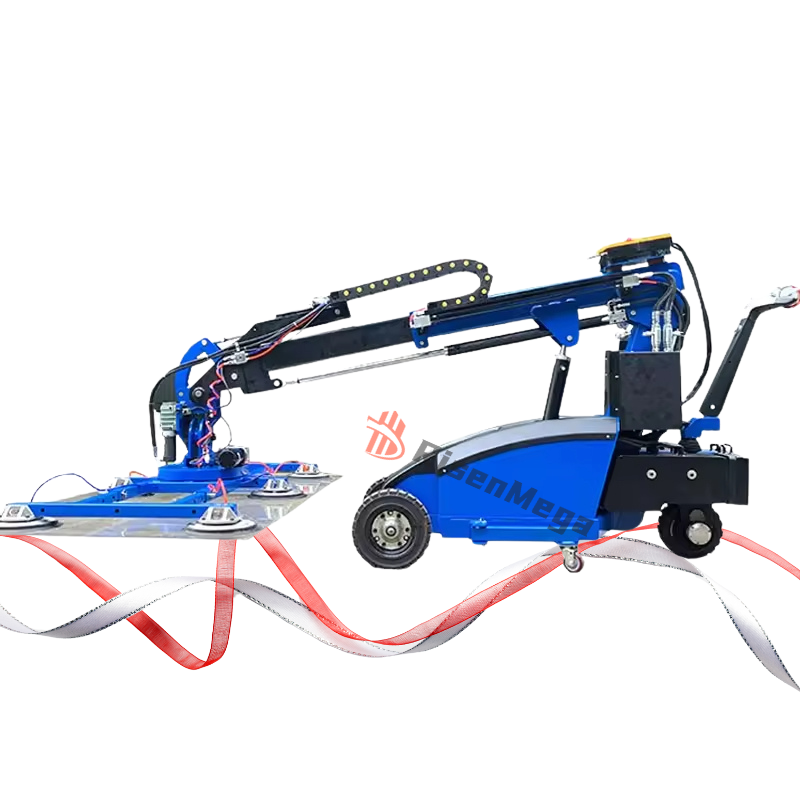

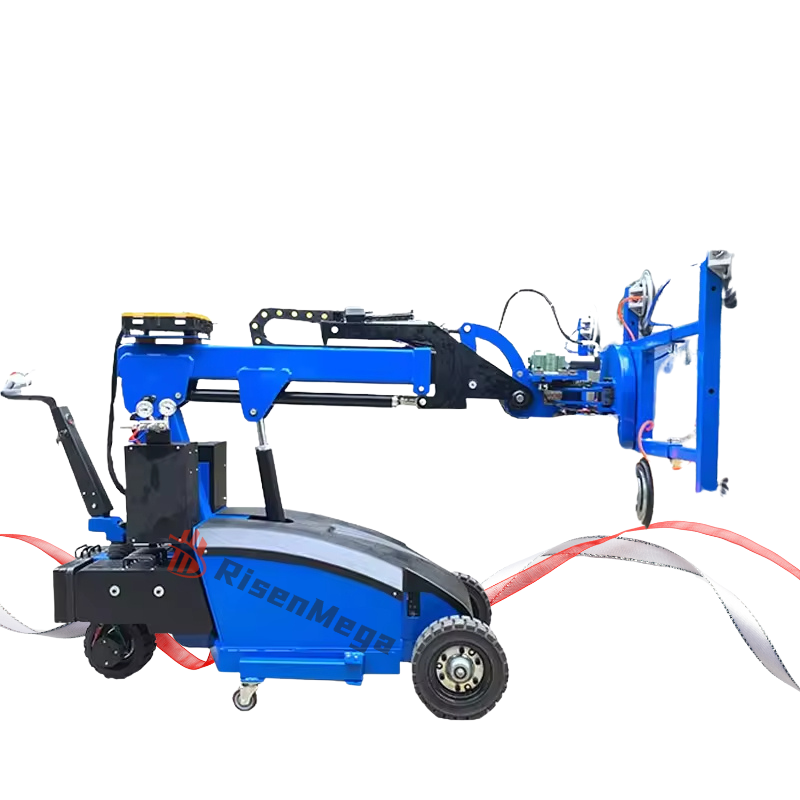

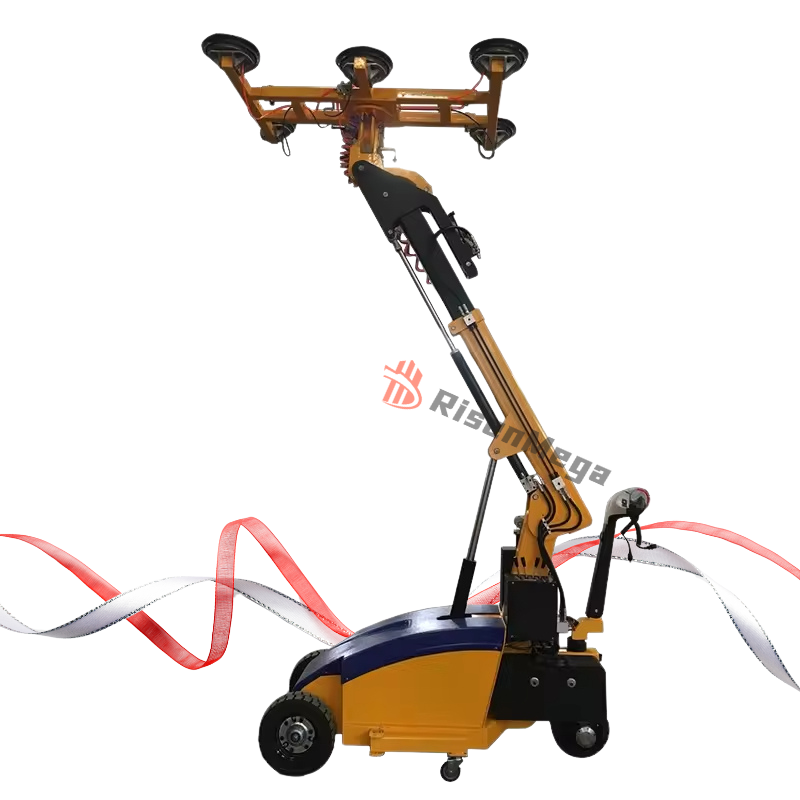

200KG Vacuum Lift Truck
with Suction Cups
The entry model in Risenmega's RM-LO series — a self-contained, battery-powered vacuum manipulator built to move glass, stone, steel and composite panels up to 200kg. No compressed-air line, no external power hookup, just one operator and a wireless remote.
Built to Handle Four Job-Site Materials
One suction-cup frame, four material types. Swap pad configuration and the same walk-behind chassis moves flat stock across your shop or job site.
Glass
Flat & tempered sheet, curtain-wall units, door panels.
Stone
Marble & granite slabs, cut-to-size countertop blanks.
Panel
Solar modules, composite cladding, insulated wall panels.
Steel
Flat sheet metal and coated steel plate up to load rating.
What's Inside the Frame
Every RM-LO unit — including the 200kg entry model — shares the same component sourcing standard across the series.
-
Q355 Structural Steel Frame
Higher-grade manganese steel than standard Q235 builds — better fatigue resistance for units cycling loads through a full shift.
-
American THOMAS DC Vacuum Pump
Continuous-duty vacuum generation designed for repeated pick-and-place cycles, not just intermittent use.
-
Italian METALROTA Drive Wheels
Heavy-duty wheel hubs rated for repeated loaded travel across workshop floors and yard surfaces.
-
Swiss Bucher Hydraulic Pump Station
Paired with a maintenance-free battery pack — no acid top-ups, no scheduled cell servicing.
-
Fully Self-Contained Power
No compressed-air line and no external power outlet required — the whole lift/rotate/vacuum cycle runs off the onboard battery.
-
360° Frame Rotation
Manual full-circle rotation of the pad frame for repositioning a panel without repositioning the whole chassis.
-
90° Left / Right Tilt
Independent from rotation — tilts the pad frame 90° to each side (180° total range) to bring a vertical panel flat or upright.
-
100mm Lateral Side-Shift
50mm left + 50mm right of automatic side-shift to fine-tune pad alignment without repositioning the whole unit.
Customization available: lifting method, load capacity, drive system, motor spec, plug type, paint color, voltage, charging time and hydraulic cylinder can all be adjusted for OEM or project-specific orders.
Six Motions, One Wireless Remote
The operating sequence below mirrors the actual control layout on the machine — from ground travel to final panel placement.
Lateral Side Shift — 100mm
Fine-align the pad frame left or right without moving the chassis.
AutomaticMain Boom Lifting / Lowering
Raises the load up to the 2750mm maximum lift height.
AutomaticTelescopic Boom Extend / Retract
Reaches the load out and pulls it back over the chassis for travel.
AutomaticPad Frame Turn — Ceiling ↔ Ground
Swings the frame from a ground pick-up angle to an overhead-set angle.
AutomaticPad Frame Rotation — 360°
Rotates the panel in place to match final orientation.
Manual · Electric OptionalPad Frame Tilt — 90°+90°
Tilts the frame to bring a vertical sheet flat, or a flat sheet upright.
Manual · Electric OptionalA dual-joystick wireless remote controls boom extend/retract, boom up/down, frame tilt and side-shift — plus dedicated suction and air-release buttons, so one operator runs the entire cycle from a safe standing distance.
The Suction Force Is Never a Guess
A Panasonic digital vacuum sensor reads suction pressure continuously and displays it in real time on the control panel — not just an indicator light, an actual kPa readout.
If suction drops below the -54 kPa safe-lift threshold, the panel is not liftable until pressure is restored — the operator sees this on the gauge before it becomes a dropped-load problem. The system also includes automatic start/stop suction with sensitive, stable response.
RM-LO Series — Compare All Five Capacities
The 200KG model (highlighted) uses a more compact walk-behind chassis — a narrower 620mm frame with 2750mm lift height — while the 300–600KG models share an 840mm-wide frame with 3700mm lift height.
| Model | RMLO20This Model | RMLO30 | RMLO40 | RMLO50 | RMLO60 |
|---|---|---|---|---|---|
| Load Capacity | 200 KG | 300 KG | 400 KG | 500 KG | 600 KG |
| Rotation | 360° | 360° | 360° | 360° | 360° |
| Max. Lifting Height | 2750 mm | 3700 mm | 3700 mm | 3700 mm | 3700 mm |
| Operation | Walk Type | Walk Type | Walk Type | Walk Type | Walk Type |
| Battery (V/Ah) | 2×12V/35Ah | 2×12V/100Ah | 2×12V/100Ah | 2×12V/100Ah | 2×12V/100Ah |
| Charger (V/A) | 24V/8A | 24V/15A | 24V/15A | 24V/18A | 24V/18A |
| Driving Motor (V/W) | 24V/750W | 24V/1200W | 24V/1200W | 24V/1500W | 24V/1500W |
| Lifting Motor (V/W) | 24V/1500W | 24V/2000W | 24V/2000W | 24V/2200W | 24V/2200W |
| Width | 620 mm | 840 mm | 840 mm | 840 mm | 840 mm |
| Length | 2350 mm | 2560 mm | 2560 mm | 2660 mm | 2660 mm |
| Front Wheel Size | 300×80mm ×2 | 400×80mm ×2 | 400×80mm ×2 | 400×90mm ×2 | 400×90mm ×2 |
| Rear Wheel Size | 210×70mm ×1 | 250×80mm | 250×80mm | 300×100mm | 300×100mm |
| Pads (Size / Qty) | 250mm × 4 | 250mm × 4 | 300mm × 4 | 300mm × 6 | 300mm × 6 |
| Side-Shift (L+R) | 50mm + 50mm | 75mm + 75mm | 75mm + 75mm | 75mm + 75mm | 75mm + 75mm |
Note: the RMLO20 (200KG) model uses a dedicated compact chassis — narrower frame, single rear wheel and lighter-duty motor/battery set — rather than a scaled-down version of the 300–600KG units. Please confirm final specifications against the factory datasheet at order stage.
Four Built-In Safety Layers
Emergency Stop Button
Immediately halts all powered motion at the press of a single button.
Emergency Lowering System
Brings a raised load safely down to ground level if main power is interrupted.
AC Battery Protection
Guards the battery pack against overcharge and deep-discharge damage.
Cylinder Holding Valve
Locks the lift cylinder in position to prevent boom drift under a suspended load.
A vacuum pressure compensation system keeps the whole circuit at a stable, safe pressure during handling, and extends the emergency-handling window if power is lost mid-lift. An optional dual vacuum system — one circuit working, one on standby — is available for jobs where a backup line is required.
Before Every Lift
- Confirm contact surfaces and vacuum pads are clean and free of debris
- Position pads correctly on the load before engaging suction
- Check the vacuum gauge reads above the -54 kPa minimum
- Keep unauthorized personnel clear of the working radius
Never
- Lift a load if the vacuum indicator shows inadequate suction
- Use the lifter on cracked or structurally compromised glass
- Touch the vacuum release controls while a load is suspended
- Position a loaded or unloaded lifter directly over people
Inspection Schedule
A short routine keeps the vacuum pads and lifting system within factory tolerance.
One Order, Full Export Support
CE-Ready & ISO 9001
Documentation prepared for compliance-focused buyers.
FOB · CIF · DDP Shipping
Freight managed from Qingdao port to your door.
Container Consolidation
Combine multiple machine types in one container, one document set.
1-Year Overseas After-Sales
Free replacement of parts, with a 30% deposit order structure.
Common Questions About the 200KG Vacuum Lifter
What materials can the 200kg vacuum lift truck handle?
Does this machine need a compressed-air line or external power outlet?
What's the difference between the 200KG and 300KG models?
How is suction force monitored during a lift?
Is the 200kg vacuum lifter suitable for outdoor or sloped use?
What's the typical lead time and shipping process?
Ready to Spec Your 200KG Vacuum Lifter?
Tell us your material, panel size and daily cycle count — we'll confirm the right RM-LO configuration and a factory-certified spec sheet.
