Vacuum lift medium truck with suction cups 800 KG
Vacuum Lifter
Double system control, one vacuum system for working, and one for alternate.American THOMAS vacuum pump
Description
Description

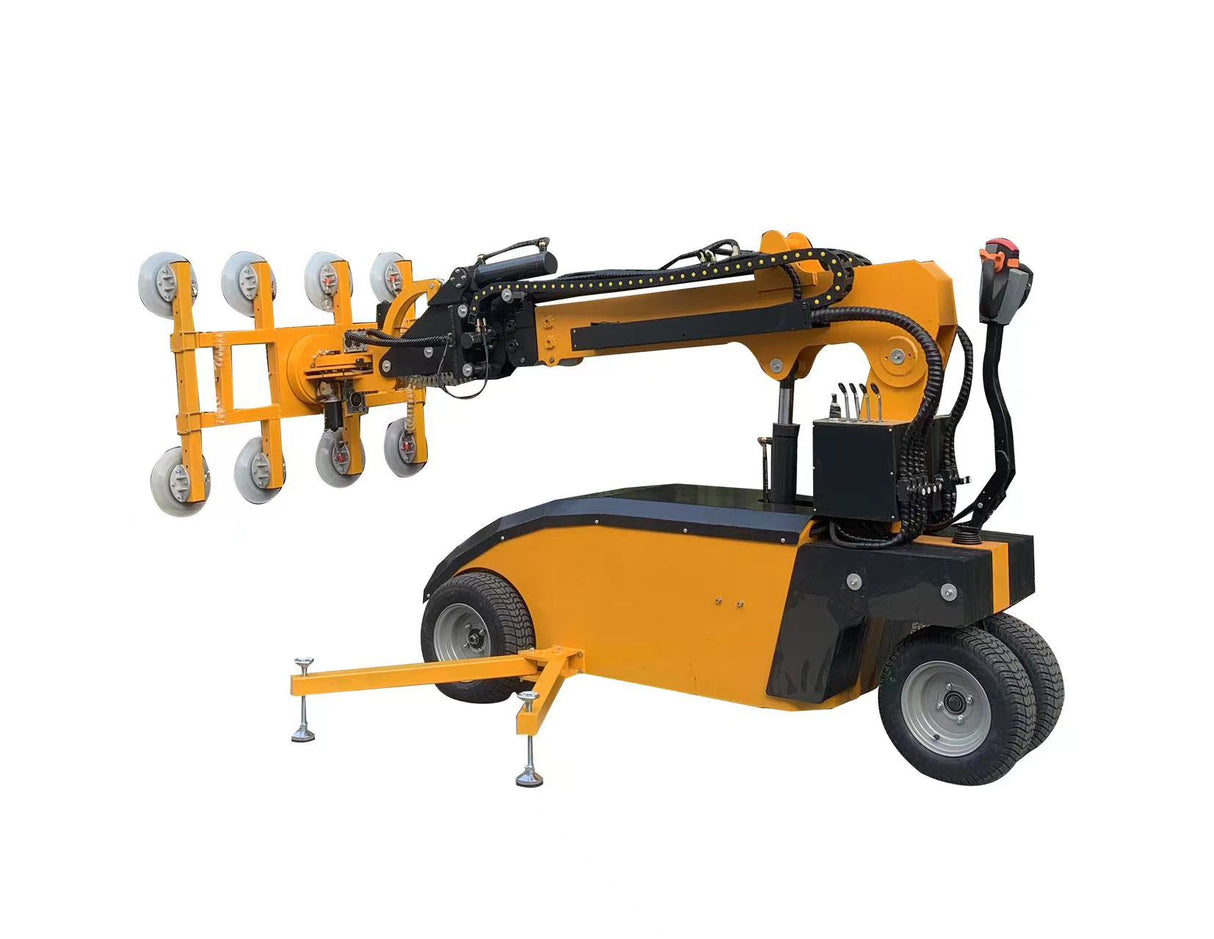

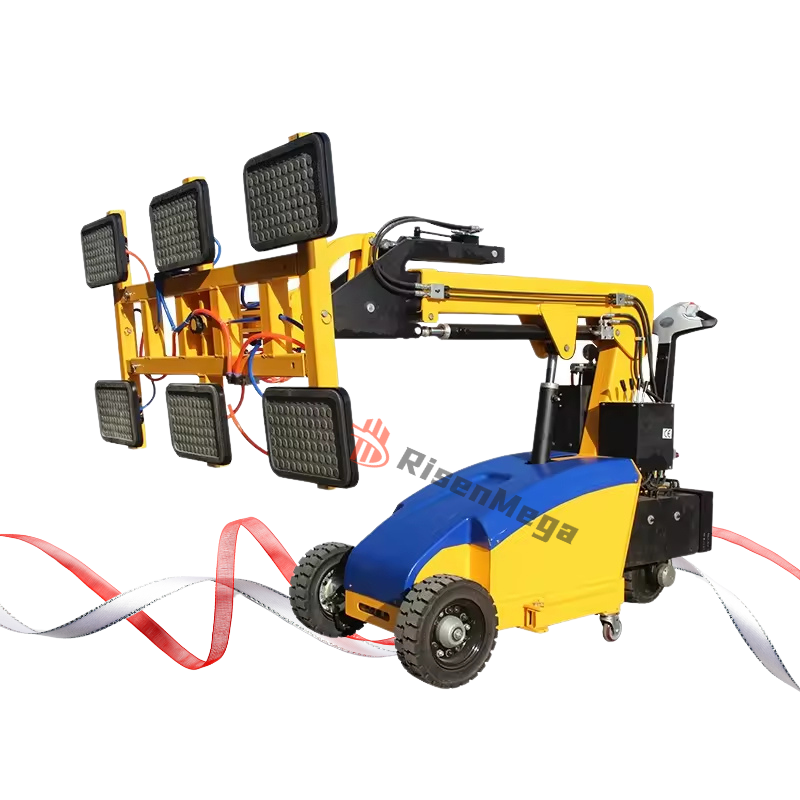

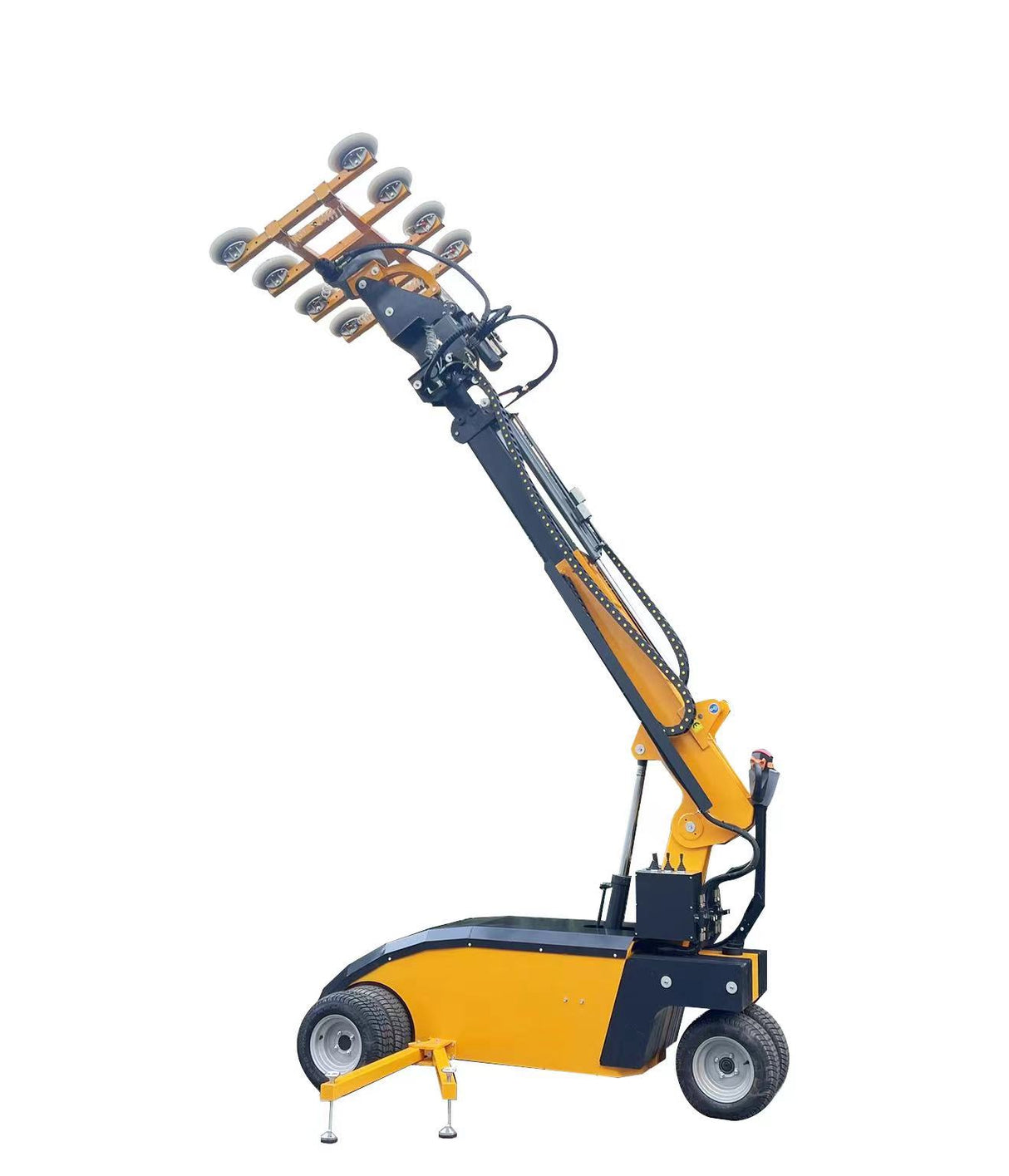

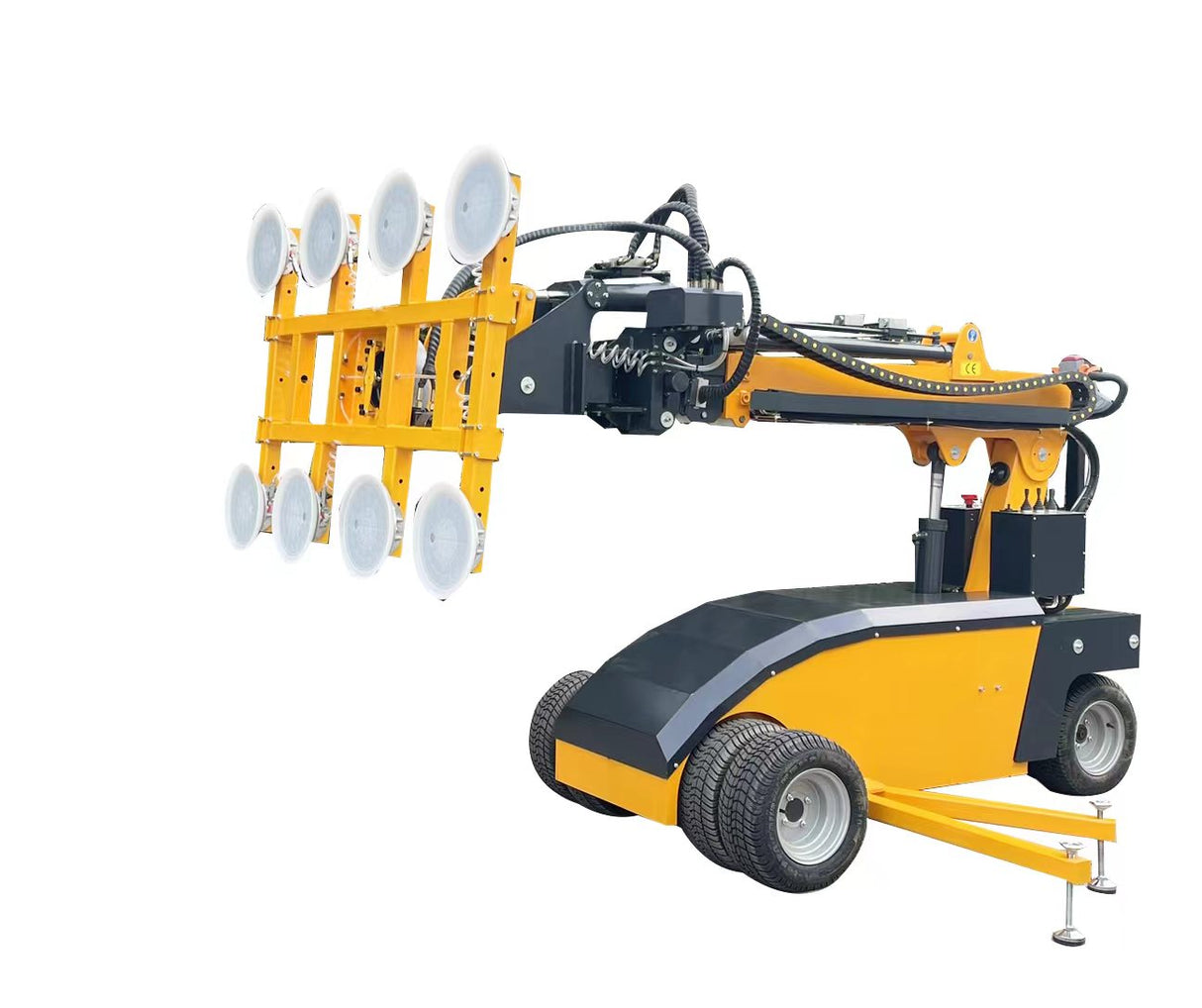

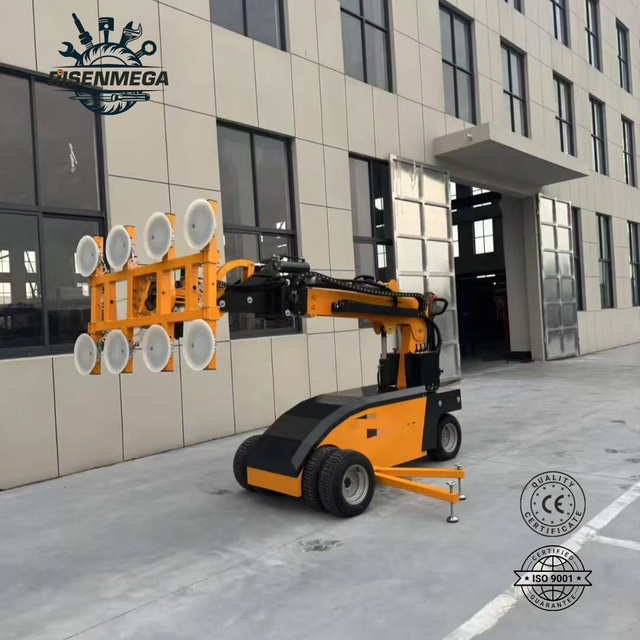

Electric Vacuum Lifter — RMLO80
800kg Electric Vacuum Lifter for Glass, Stone, Panel & Steel
The RMLO80 is Risenmega's largest walk-behind vacuum lifter — rated to 800kg with rear-wheel drive for a tight turning radius even at full load, and a dual vacuum circuit built in as standard equipment. Battery powered end to end, with reach up to 5,000mm.
Confirmed against a live digital readout before load-off — with a standby circuit ready if the primary line is ever interrupted mid-lift.
Overview
The top of the RMLO range, built for heavier daily loads
The RMLO80 steps up from the compact 840mm RMLO50/60 chassis to a wider 1,070mm platform with a four-wheel front axle and rear-wheel drive, so it stays stable at full 800kg capacity and extended boom reach while remaining easy to maneuver in tight aisles. It shares its 24V/1500W drive motor and 24V/2200W lift motor with the rest of the line — the extra capacity comes from a reinforced frame, not a heavier drivetrain to maintain.
800kg, Panasonic-Verified
A digital gauge confirms hold pressure before every lift; suction adjusts from −12 to −71kPa.
Rear-Wheel Drive
A tight turning radius even at full load, through the same aisles as smaller lifters.
Dual Vacuum, Standard
Live circuit plus pressure-compensated standby — an option on smaller RMLO models, standard here.
Self-Contained
A maintenance-free 24V/150Ah pack runs pump, lift and drive — no compressor, no outlet.
Where It Fits
RMLO50 vs. RMLO60 vs. RMLO80
Not sure the 800kg model is the right fit? Here's how it sits above the rest of the range.
| Specification | RMLO50 | RMLO60 | RMLO80 |
|---|---|---|---|
| Load Capacity | 500 kg | 600 kg |
YOU'RE VIEWING 800 kg |
| Max Lifting Height | 3,700 mm | 3,700 mm | 4,500 / 5,000 mm |
| Overall Width | 840 mm | 840 mm | 1,070 mm |
| Overall Length | 2,660 mm | 2,660 mm | 2,800 / 3,000 mm |
| Battery | 2×12V/100Ah | 2×12V/100Ah | 2×12V/150Ah |
| Front Wheel | Ø400×90mm ×2 | Ø400×90mm ×2 | Ø400×90mm ×4 |
| Dual Vacuum Backup | Optional | Optional | Standard |
The RMLO80 is the largest walk-behind model in the RMLO series. See our full RMLO range or contact us with your heaviest regular load and we'll confirm the right fit.
Technical Data
RMLO80 full specifications
Every number from the factory spec sheet, in one place.
| Capacity & Motion | |
| Load Capacity | 800 kg (1,764 lb) |
| Rotation | 360° manual¹ |
| Side Turning | 90° L + 90° R |
| Max Lifting Height | 4,500 / 5,000 mm |
| Lateral Side Shift | 150 mm (75+75) |
| Max Climbing Gradient | 15% |
| Operation Mode | Walk-behind, rear-wheel drive |
| Power System | |
| Battery | 2×12V/150Ah |
| Charger | 24V/18A |
| Driving Motor | 24V/1500W |
| Lifting Motor | 24V/2200W |
| Min. Vacuum to Lift | −54 kPa |
| Adjustable Suction Range | −12 to −71 kPa |
| Dimensions & Wheels | |
| Overall Width | 1,070 mm (42.1") |
| Overall Length | 2,800 / 3,000 mm |
| Front Wheel | Ø400×90mm ×4 |
| Rear Wheel | Ø300×100mm |
| Suction Pads | 8 × Ø300mm² |
| Vacuumming Material | Glass · Stone · Panel · Steel |
¹ Electric rotation and electric tilt are available as options. ² Pad quantity is not broken out separately for RMLO80 in the source spec sheet; shown here as 8 × Ø300mm to match the 800kg pad count used elsewhere in the Risenmega lineup (RMHO80, RMLF80) — confirm against your current factory spec before publishing.
Operation & Safety
What's powered, and what protects the load
Powered & Manual Functions
- AUTOLateral side shift — 150mm total (75mm left + 75mm right)
- AUTOMain boom lifting/lowering and telescopic extend/retract
- AUTOPad frame turns upward toward the ceiling or downward to the ground
- AUTORear-wheel drive walking, for a tight turning radius at full load
- MANUALPad frame 360° rotation and 180° tilt (electric optional)
- MANUAL90° side turning, left and right (electric optional)
Safety Systems
- SAFEEmergency Stop — immediately halts all lifter functions
- SAFEEmergency Lowering — brings a suspended load down safely on power loss
- SAFECylinder Holding Valve — locks the lift cylinder, prevents drift under load
- SAFEAC Battery Protection — guards against overcharge and fault conditions
- SAFEDual Vacuum Backup — standby circuit with pressure compensation, standard on RMLO80
- SAFEIndependent Pad Valves — reconfigure the pad layout for irregular loads
Applications
Built for the heaviest daily glass, stone & panel handling
Maintenance & Support
Inspection schedule
Correct any fault before the next lift. If the RMLO80 is used less than one day in a two-week period, perform the Periodic inspection before using it again.
| Action | Every Lift | Frequent (20–40 hrs) | Periodic (250–400 hrs) |
|---|---|---|---|
| Examine vacuum pads for contaminants or damage | ✓ | ✓ | ✓ |
| Examine load surface for contaminants or debris | ✓ | ✓ | ✓ |
| Examine controls and indicators for damage | — | ✓ | ✓ |
| Examine lifter's structure for damage | — | ✓ | ✓ |
| Examine vacuum system for damage | — | ✓ | ✓ |
| Examine air filters for conditions requiring service | — | ✓ | ✓ |
| Perform a vacuum hold test | — | ✓ | ✓ |
| Check for unusual vibration or noise while operating | — | ✓ | ✓ |
| Test the wireless remote control system | — | ✓ | ✓ |
| Full electrical & structural inspection per local code | — | — | ✓ |
Replace vacuum pads every 2 years, or sooner if sealing edges are cut, cracked, or glazed. Never clean vacuum pads with harsh chemicals or rubber conditioners.
FAQ
Common questions about the RMLO80
What is the load capacity of the RMLO80?
The RMLO80 is rated to lift 800kg (1,764 lb) of glass, stone, panel, or steel, with a max lift height of 4,500mm or 5,000mm depending on configuration, and 360° rotation.
How is the RMLO80 different from the RMLO50 and RMLO60?
The RMLO80 uses a wider 1,070mm chassis with a four-wheel front axle and rear-wheel drive, rated to 800kg with up to 5,000mm of reach — versus the compact 840mm frame shared by the 500kg and 600kg models.
Does the RMLO80 need an air compressor or external power?
No. A maintenance-free 2×12V/150Ah battery pack powers the vacuum pump, lift motor, and drive system — no shop air line, generator, or power cable needed.
Does the RMLO80 have a backup vacuum system?
Yes. Unlike the RMLO50/60, where dual vacuum backup is optional, the RMLO80 ships with a standard live + standby circuit with pressure compensation, so holding pressure stays steady even after a power interruption.
What vacuum pressure does it need to operate safely?
A minimum of −54kPa is required before lifting. Suction is adjustable from −12kPa to −71kPa via the remote, with a Panasonic digital gauge showing live pressure.
Which RMLO model is right for my job?
Match the model to your heaviest regular load with some margin: RMLO50 up to 500kg, RMLO60 up to 600kg, RMLO80 up to 800kg. Contact us with your material, sheet size, and site conditions and we'll recommend a configuration.
Ready to move your next 800kg load?
Tell us your material, sheet size, and site conditions — we'll confirm whether the RMLO80 is the right fit or point you to the model that is.
