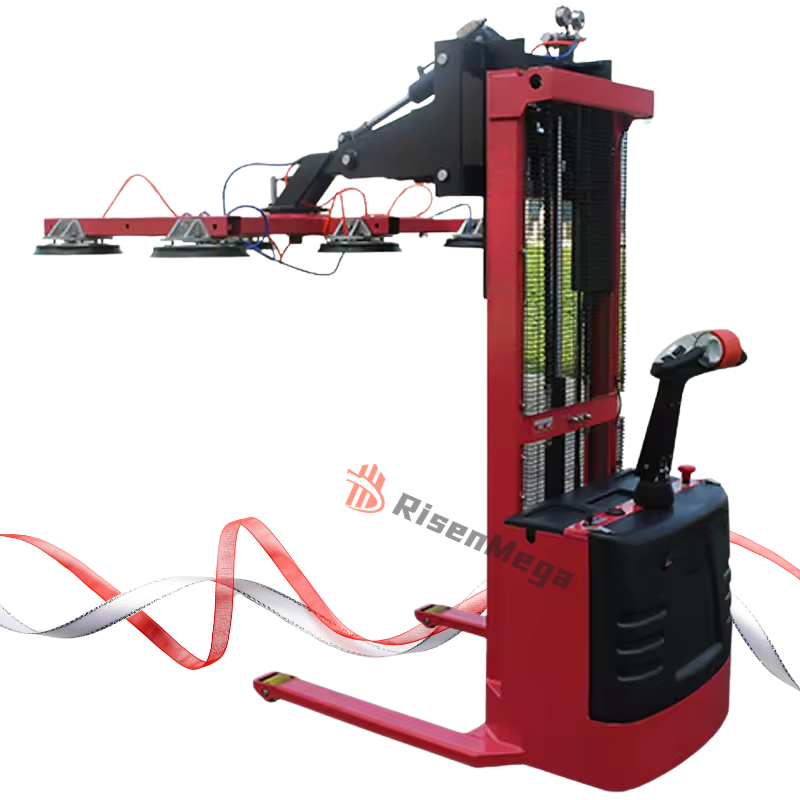

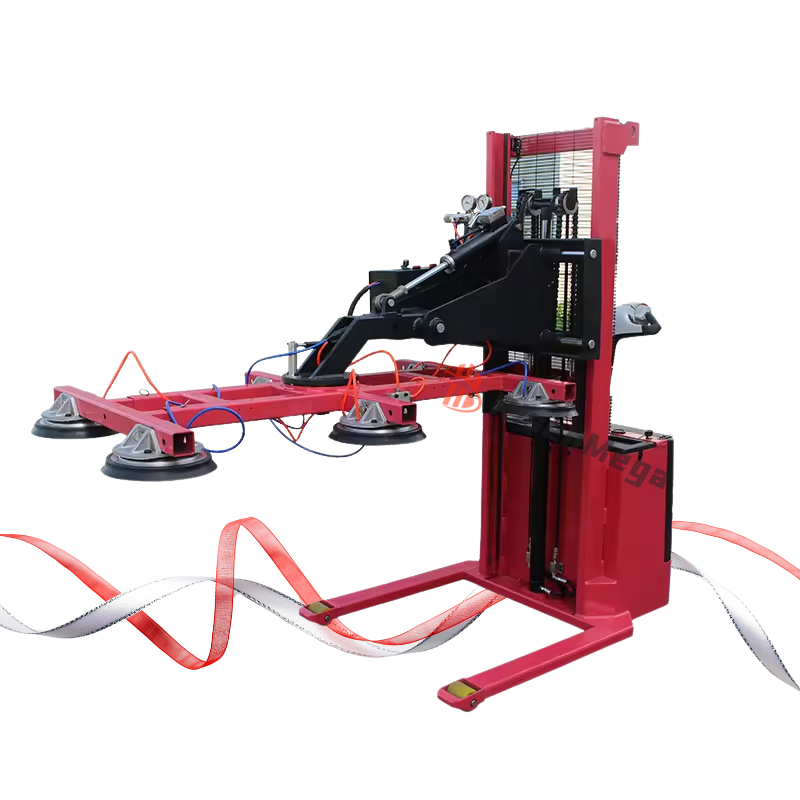

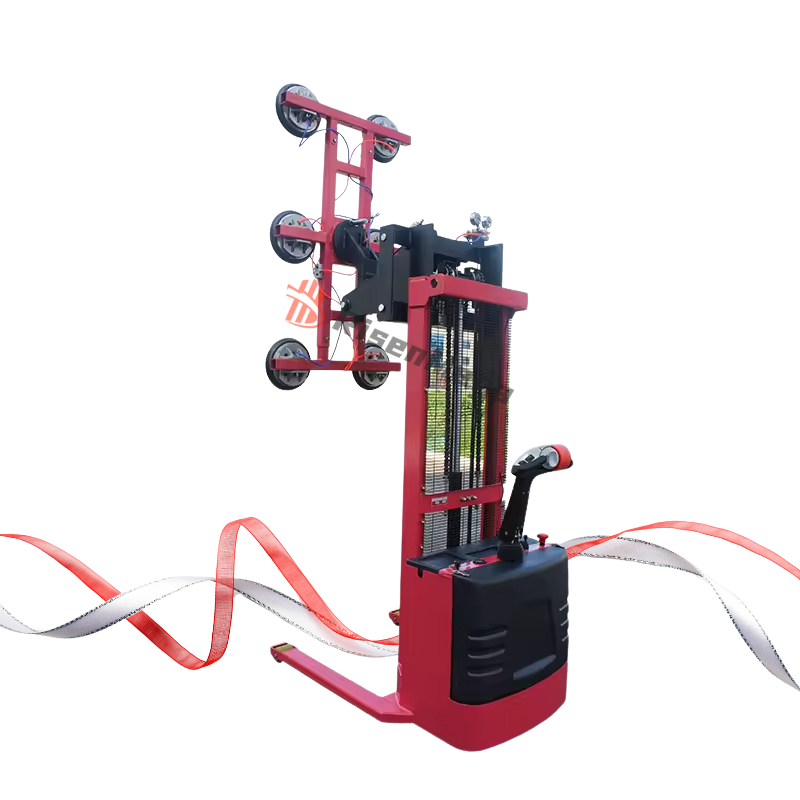

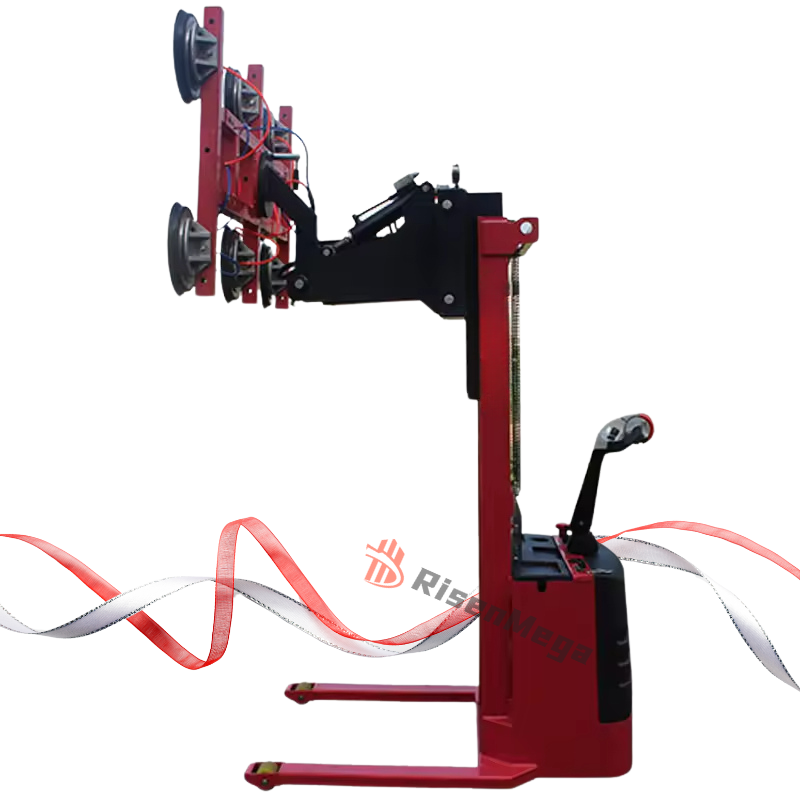

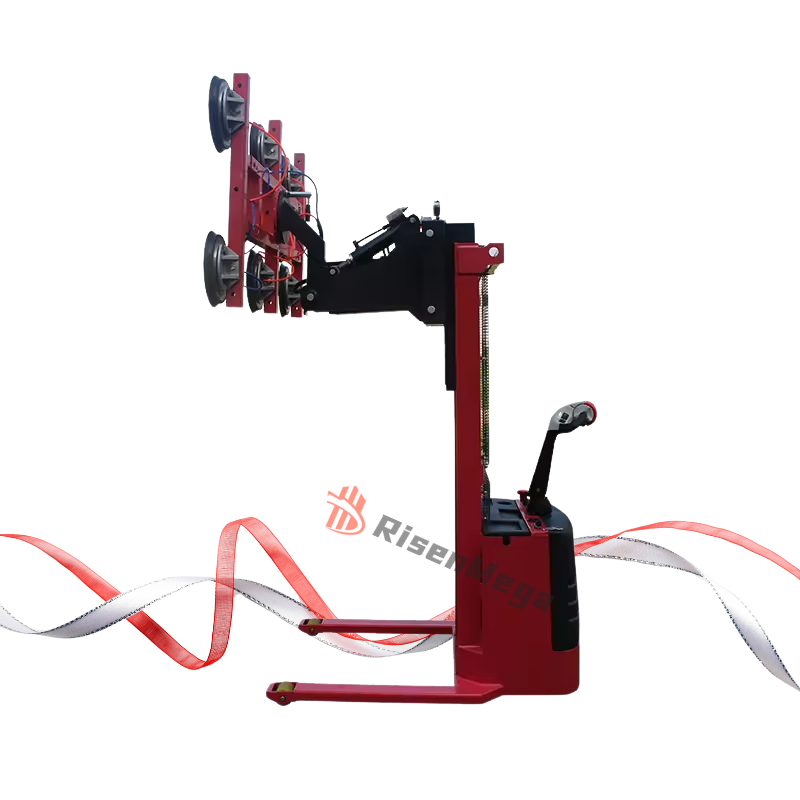

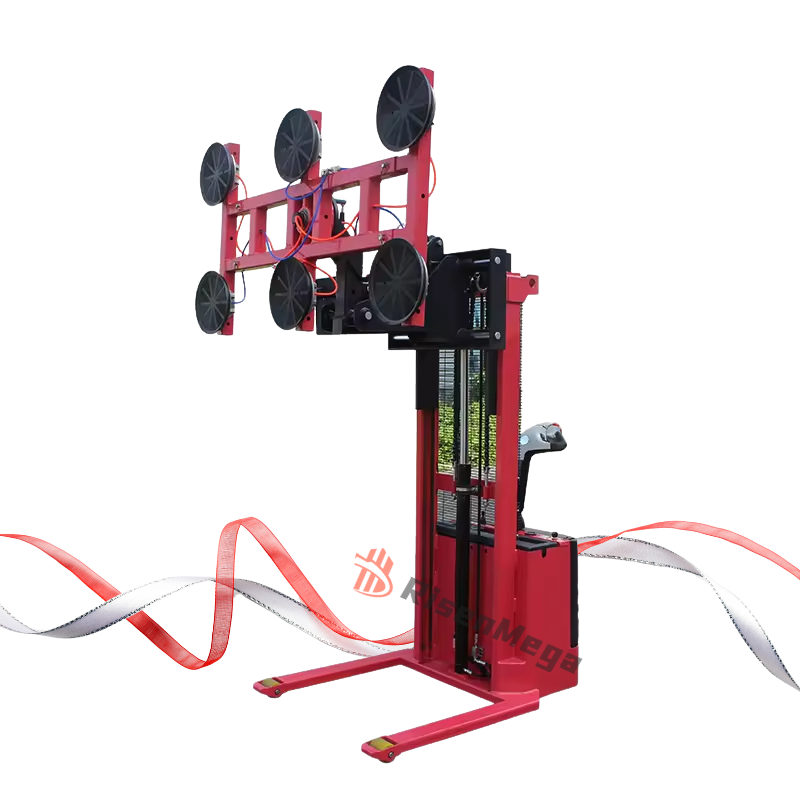

Vacuum lift HO Series truck with suction cups 400-600 KG
Vacuum lift HO Series truck with suction cups 400-600 KG - 300KG / 1600 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
Vacuum lift HO Series truck with suction cups 400-600 KG
Vacuum Lifter
Double system control, one vacuum system for working, and one for alternate.American THOMAS vacuum pump
Description
Description
Vacuum lift HO Series with suction cups 400 KG Parameters:
- Q355 Stronger manganese steel construction.
- American THOMAS DC vacuum pump, Italian METALROTA heavy-duty driving wheels.
- Swiss Bucher hydraulic pump station and intelligent maintenance-free batteries.
- It can easily realize the movement and handling of glass.
- without the need of external air source or power supply.
- Manually rotate 360 degrees in the vertical side, and manually rotate 90 degrees in the horizontal side
|
Model
|
RMHO30
|
RMHO40
|
RMHO50
|
RMHO60
|
RMHO80
|
|
Load Capacity
|
300KG
|
400KG
|
500KG
|
600KG
|
800KG
|
|
Rotation
|
360°
|
360°
|
360°
|
360°
|
360°
|
|
Max.Lifting Height
|
1600mm
|
1600mm
|
1600mm
|
1600mm
|
1600mm
|
|
Operation
|
Electrical
|
Electrical
|
Electrical
|
Electrical
|
Electrical
|
|
Battery(V/A)
|
2*12/100
|
2*12/100
|
2*12/120
|
2*12/120
|
2*12/150
|
|
Speed(km/h)
|
4/6
|
4/6
|
4/6
|
4/6
|
4/6
|
|
Driving Motor(kw)
|
1.2/1.6
|
1.2/1.6
|
1.5/2.0
|
1.5/2.0
|
1.5/2.2
|
|
Pads Qty.
|
4
|
4
|
6
|
6
|
8
|
|
Overall Width
|
850mm
|
850mm
|
850mm
|
850mm
|
850mm
|
|
Length
|
2200mm
|
2200mm
|
2300mm
|
2300mm
|
2350mm
|
|
Front Wheel Size
|
80*70*2mm
|
80*70*2mm
|
80*70*2mm
|
80*70*2mm
|
80*70*2mm
|
|
Driving Wheel Size
|
250*80mm
|
250*80mm
|
250*80mm
|
250*80mm
|
250*80mm
|
|
Pads Size
|
300mm
|
300mm
|
300mm
|
300mm
|
300mm
|
|
Suction Frame Size
|
1000*800mm
|
1000*800mm
|
1600*900mm
|
1600*900mm
|
1600*900mm
|
