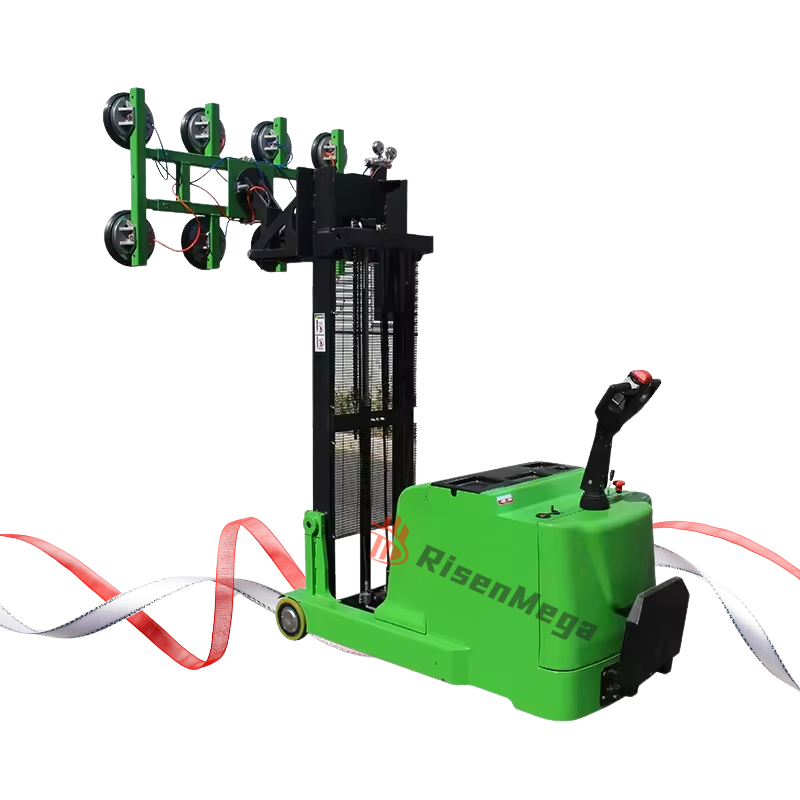

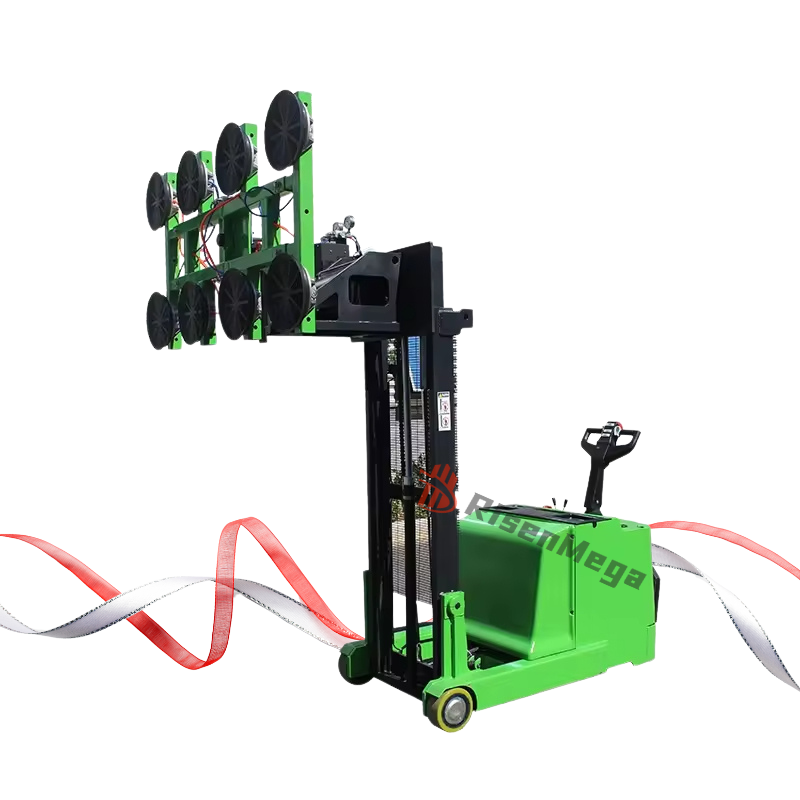

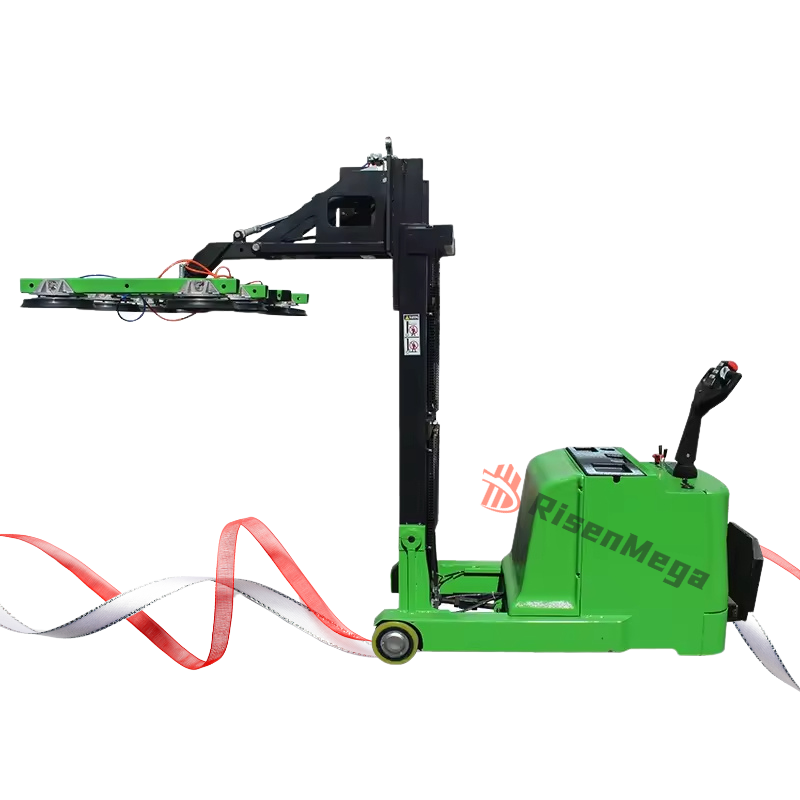

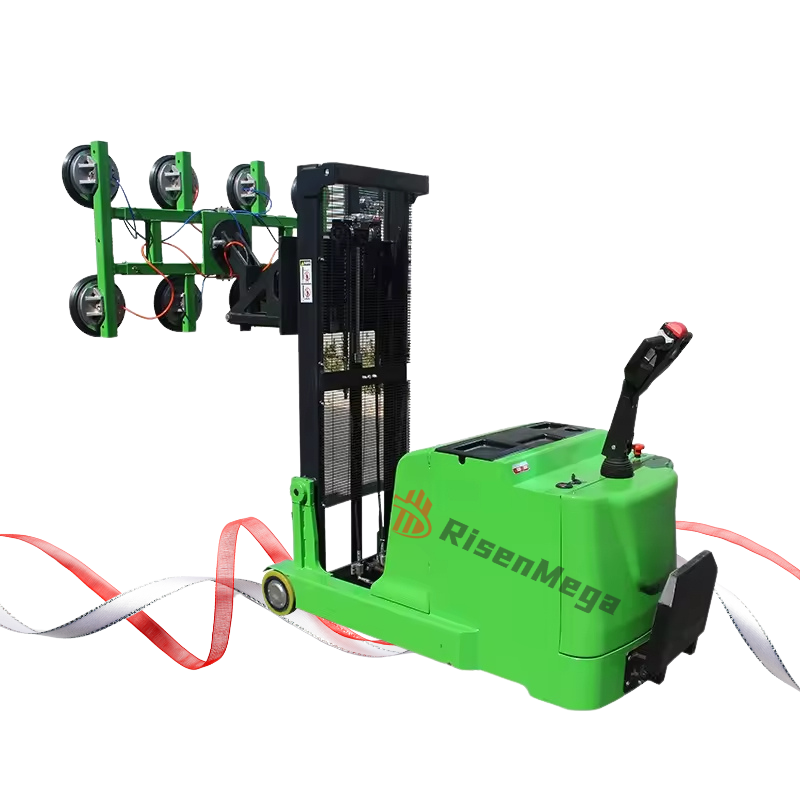

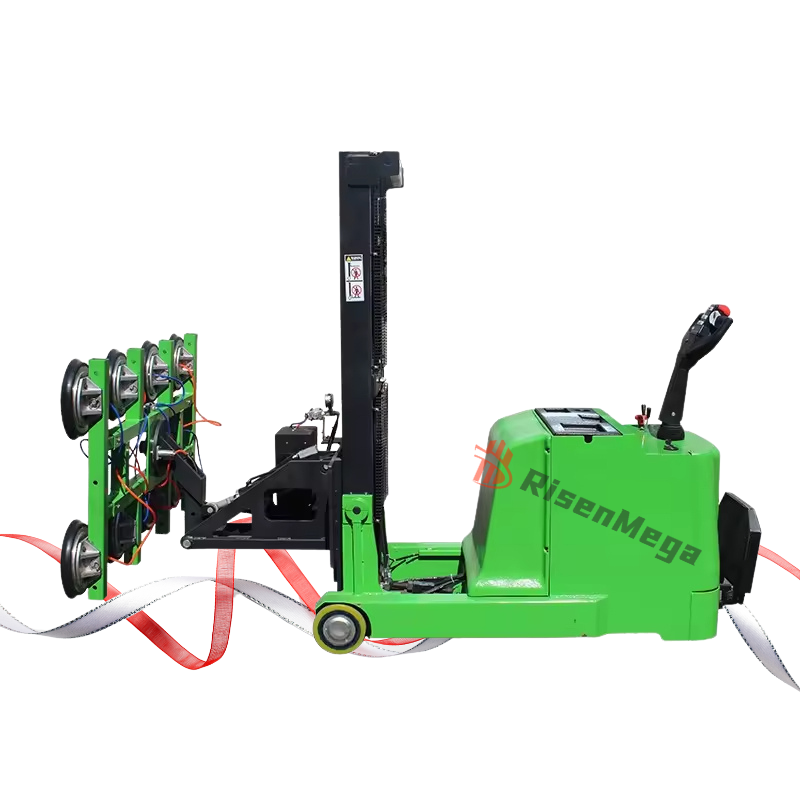

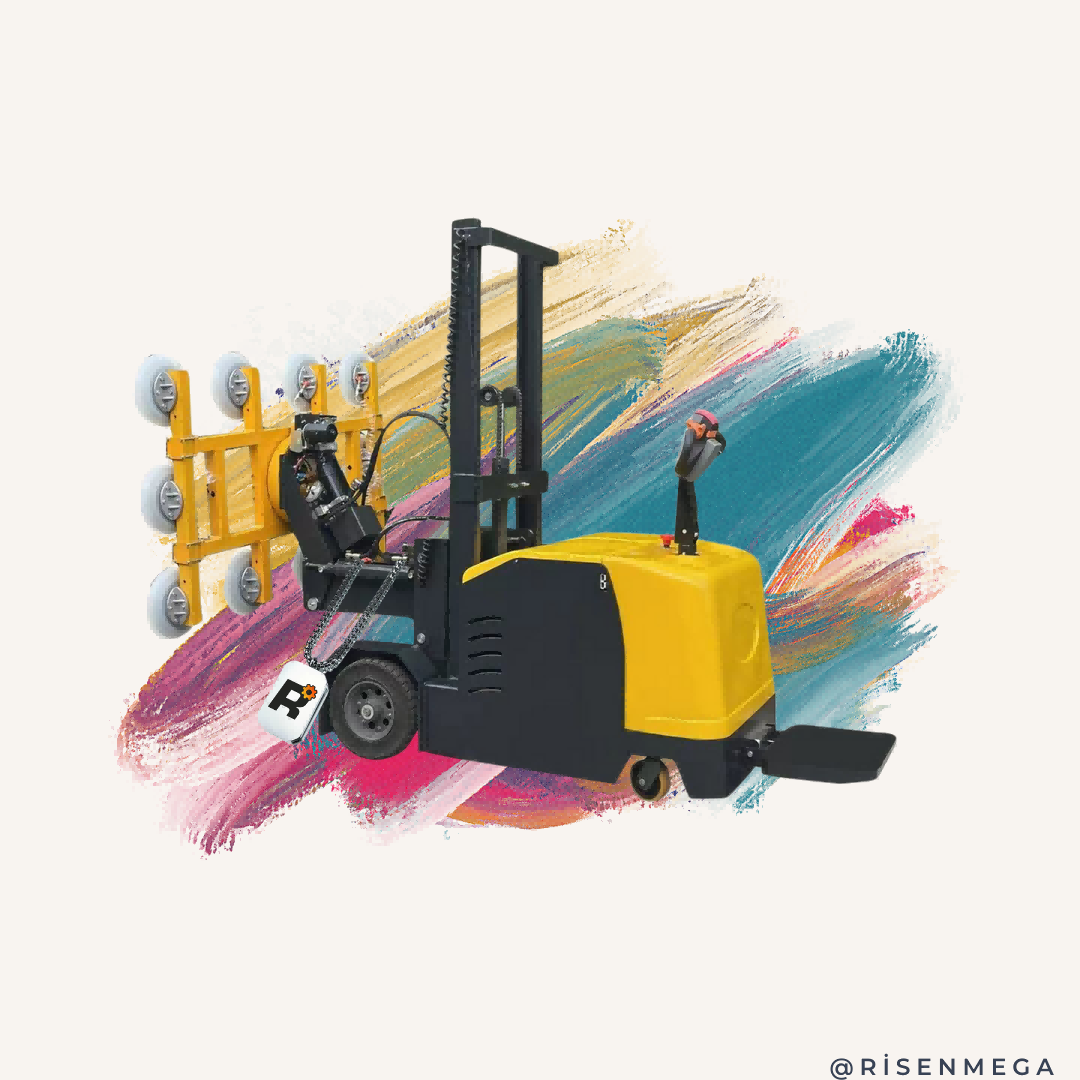

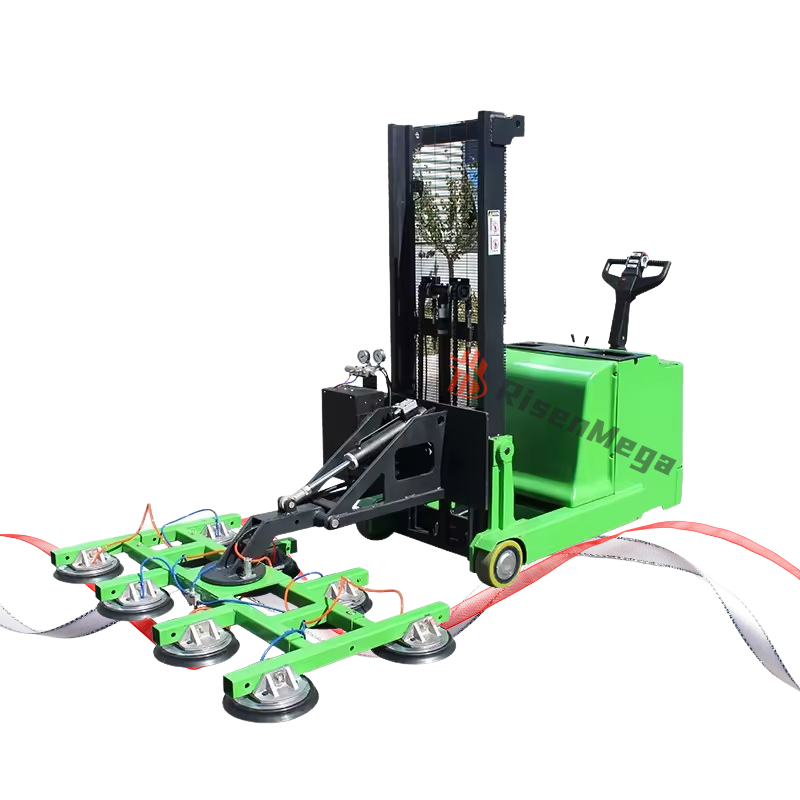

Vacuum lift HO Series truck with suction cups 300 KG
Vacuum lift HO Series truck with suction cups 300 KG - 300KG / 1600 mm is backordered and will ship as soon as it is back in stock.
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
Vacuum lift HO Series truck with suction cups 300 KG
Vacuum Lifter
Double system control, one vacuum system for working, and one for alternate.American THOMAS vacuum pump
Description
Description
Vacuum Lift Trolley for Glass, 300–800KG, Self-Powered On or Off Site
The RM-HO walks itself into position on two driving wheels, lifts glass panels up to 1600mm high on its own hydraulic mast, and rotates the load 360° without a forklift, crane, or compressed-air line anywhere on site.
What Is the RM-HO Vacuum Lift Trolley, and Who Uses It?
Unlike a forklift attachment, the RM-HO does not need a host machine: it drives itself on two 250×80mm rubber driving wheels at 4 or 6 km/h, lifts on its own hydraulic mast, and holds the load with vacuum pads controlled from an onboard pump — no external air compressor or building power required.
- Frame built from Q355 manganese steel, rated for repeated heavy-panel cycles without frame flex.
- American THOMAS DC vacuum pump drives the suction system; Italian METALROTA wheels carry the load.
- Swiss Bucher hydraulic pump station raises the mast; onboard maintenance-free batteries run the whole unit.
- Standard rotation is 360° in the vertical plane and 90° in the horizontal plane, manual, with electric vacuum pick-up and release.
- Runs indoors or on site with no external air line or grid power connection.
Q355 Steel Frame
Higher-grade manganese steel than standard Q235/Q245 frames, for less deflection under full rated load.
THOMAS Vacuum Pump
US-made DC pump for consistent suction pressure across a full shift, not just at start-up.
METALROTA Wheels
Italian heavy-duty driving wheels rated for the trolley's own weight plus the full glass load.
Two Upgrades Buyers Ask For Most
Wireless Remote Control
Drive, lift, and vacuum release can be operated from a handheld remote instead of the onboard panel — useful when the operator needs to stand clear of the panel during placement. Available as a custom option; specify at order time.
Full-Electric Horizontal Rotation
Standard units rotate 90° horizontally by hand. On request, the horizontal (side) rotation axis can be upgraded to fully electric, so the entire pick-rotate-place sequence — vertical rotation, horizontal rotation, and vacuum release — runs without manual handling of the frame.
Which RM-HO Model Fits Your Load — 300KG or 800KG?
| Model | RMHO30 | RMHO40 | RMHO50 | RMHO60 | RMHO80 |
|---|---|---|---|---|---|
| Load Capacity | 300KG | 400KG | 500KG | 600KG | 800KG |
| Rotation | 360° | 360° | 360° | 360° | 360° |
| Max. Lifting Height | 1600mm | 1600mm | 1600mm | 1600mm | 1600mm |
| Operation | Electrical | Electrical | Electrical | Electrical | Electrical |
| Battery (V/A) | 2×12/100 | 2×12/100 | 2×12/120 | 2×12/120 | 2×12/150 |
| Speed (km/h) | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 |
| Driving Motor (kW) | 1.2/1.6 | 1.2/1.6 | 1.5/2.0 | 1.5/2.0 | 1.5/2.2 |
| Pads Qty. | 4 | 4 | 6 | 6 | 8 |
| Overall Width | 850mm | 850mm | 850mm | 850mm | 850mm |
| Length | 2200mm | 2200mm | 2300mm | 2300mm | 2350mm |
| Front Wheel Size | 80×70×2mm | 80×70×2mm | 80×70×2mm | 80×70×2mm | 80×70×2mm |
| Driving Wheel Size | 250×80mm | 250×80mm | 250×80mm | 250×80mm | 250×80mm |
| Pads Size | 300mm | 300mm | 300mm | 300mm | 300mm |
| Suction Frame Size | 1000×800mm | 1000×800mm | 1600×900mm | 1600×900mm | 1600×900mm |
Buyer tip: if your typical panel is wide but under 500KG, the suction frame size matters more than raw capacity — RMHO50 already steps up to the larger 1600×900mm frame and 6 pads, which better distributes suction across an oversized panel than the smaller RMHO30/40 frame at the same 4-pad count would.
How Much Does an RM-HO Vacuum Lifter Cost, and How Do You Order One?
Because pad count, frame size, and battery capacity change across the five RMHO models — and because many buyers customize the suction frame to match a specific glass or panel size — RM-HO pricing is quoted per configuration rather than listed as one flat number. Send us the panel weight, largest panel dimensions, and whether the unit works indoors or on an active job site, and we'll return a firm FOB quote within one business day.
- Customization: wireless remote control and full-electric horizontal rotation are the two most common upgrades — flag either at quote stage since they affect price and build time.
- Deposit: 30% by PayPal, Venmo, or T/T to confirm the model and lock production.
- Balance: due before the unit is loaded, once photos/video of the finished machine are sent for approval.
- Shipping terms: FOB, CIF, or DDP door-to-door from Qingdao port — CIF/DDP roll ocean freight and destination customs into one quoted number.
- Container consolidation: ordering an RM-HO alongside other Risenmega equipment (forklift, scissor lift, etc.) can share one container and cut per-unit freight cost.
RM-HO Trolley or Forklift-Attached Vacuum Lifter — Which Do You Need?
RM-HO Vacuum Lift Trolley
- Own driving wheels and hydraulic mast — works independently of any other equipment.
- Battery-powered vacuum pump and drive motor in one sealed unit.
- Fits through standard doorways at 850mm overall width.
- Better fit for warehouses, showrooms, and interior installs with no forklift access.
Forklift-Attached Vacuum Lifter
- Lower unit cost since it reuses a forklift you already operate.
- Lifting height and travel speed depend on the host forklift, not the attachment.
- Needs a forklift operator and forklift access to the work area at all times.
- Better fit for yards and loading docks where forklifts already move material.
How Long Does an RM-HO Order Take, From Deposit to Delivery?
Spec Confirmation
Confirm model, battery, and pad layout; 30% deposit paid.
Production
Frame, pump, and hydraulic assembly built and tested at the factory.
QC & Crating
Photos and video sent for approval; unit crated in wood and metal plate for transit.
Shipment
Balance paid, unit loaded FOB/CIF/DDP from Qingdao per agreed schedule.
What Stops the RM-HO From Dropping a Panel if Something Fails?
Emergency Stop Button
Cuts power to drive and lift instantly if an operator needs to halt the machine.
Emergency Lowering System
Brings a raised load safely to ground level even if primary power is lost.
AC Battery Protect
Guards the battery pack against over-discharge that would otherwise shorten its life.
Cylinder Holding Valve
Locks the hydraulic cylinder in position, preventing mast drift if a hose fails.
How the RM-HO Handles a Panel, Step by Step
Common Questions About the RM-HO Series
Does the RM-HO need an external air compressor?
No. The onboard THOMAS DC vacuum pump and battery power the whole unit; no compressed-air line or grid connection is required.
Can one RM-HO handle different glass sizes?
Within its frame size, yes — pad position can be adjusted; panels far larger than the rated frame need a model with a bigger suction frame instead.
Is the rotation automatic or manual?
Standard units rotate manually (360° vertical, 90° horizontal); vacuum pick-up/release is electric. Full-electric horizontal rotation and a wireless remote control are available as custom options.
What happens if the battery dies mid-lift?
The emergency lowering system and cylinder holding valve bring the load down safely and hold mast position without power.
Can RM-HO ship in the same container as other equipment?
Yes — Risenmega consolidates multiple machines into one container to reduce per-unit freight cost.
