Vacuum lift Glass Trolley truck with suction cups 200-400 KG

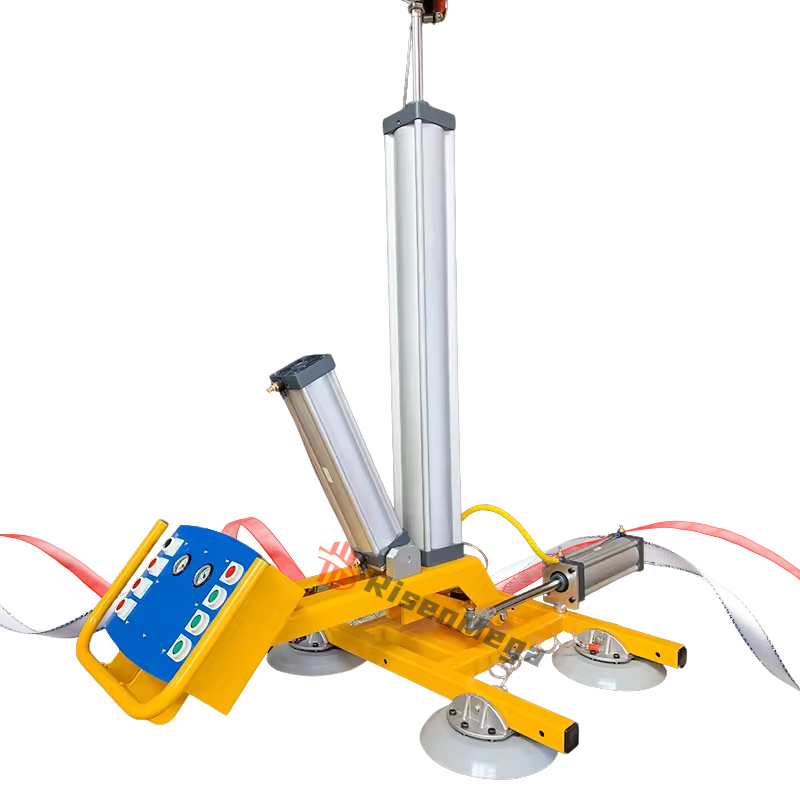

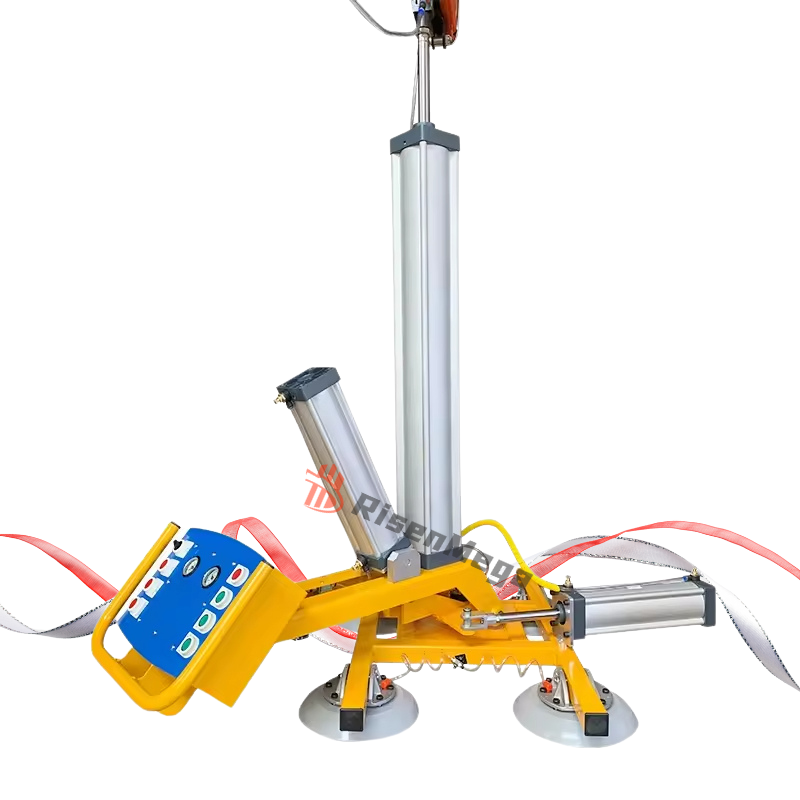

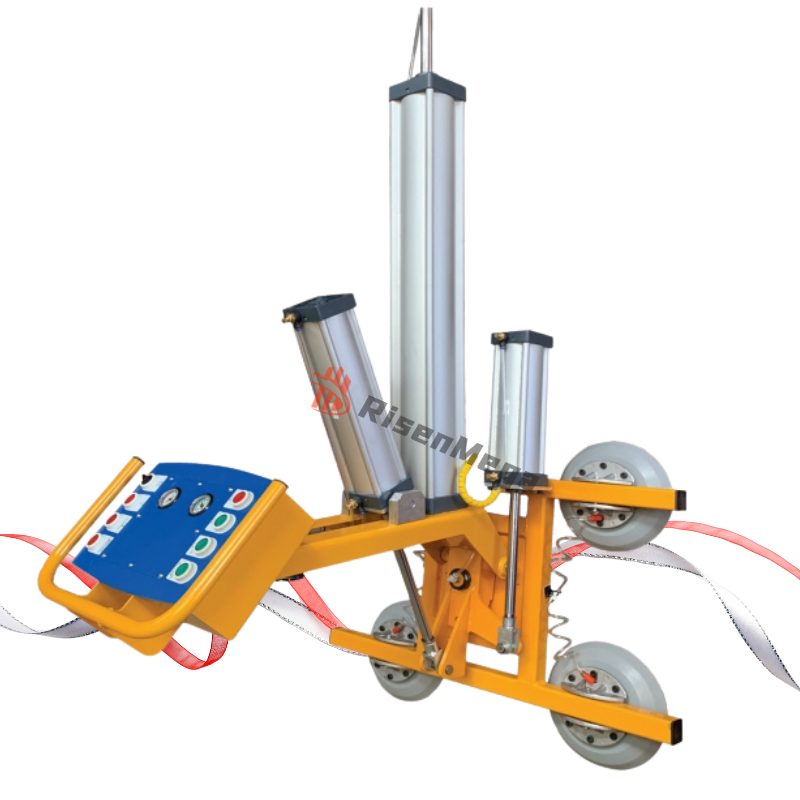

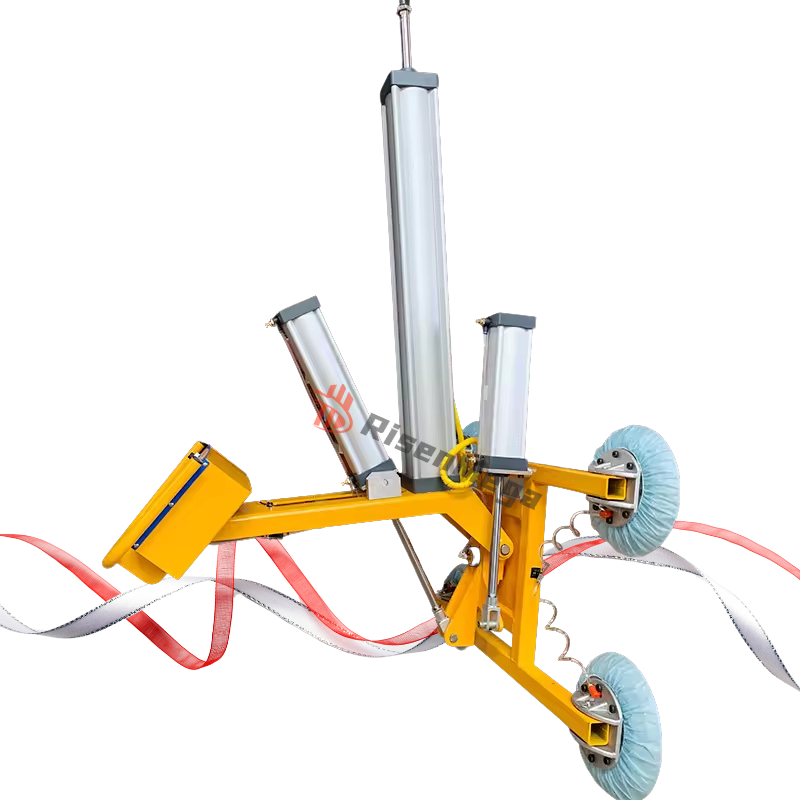

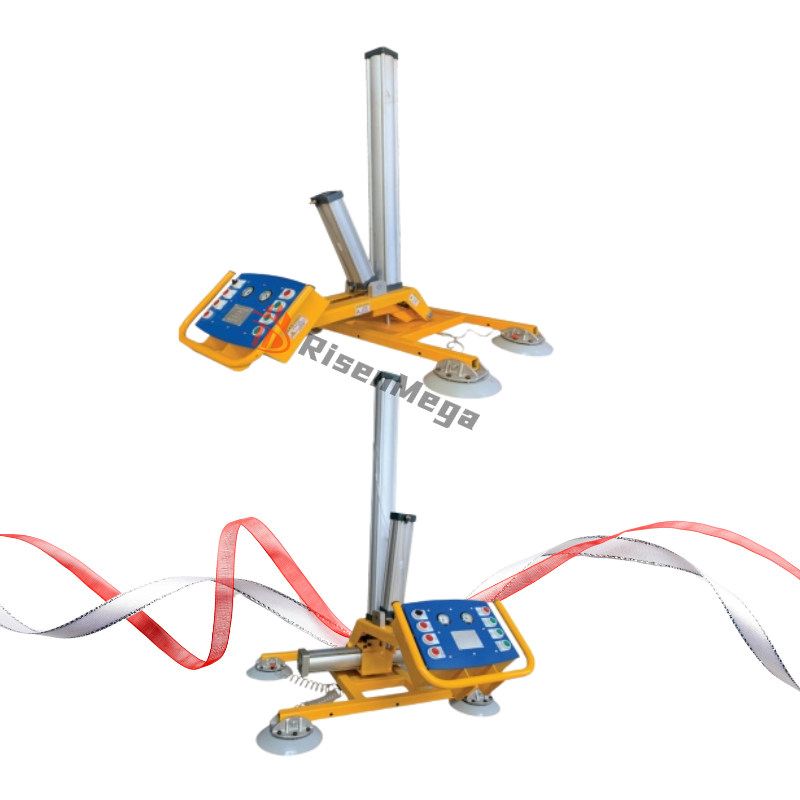

Vacuum Lifter
Double system control, one vacuum system for working, and one for alternate.American THOMAS vacuum pump
Description
Description

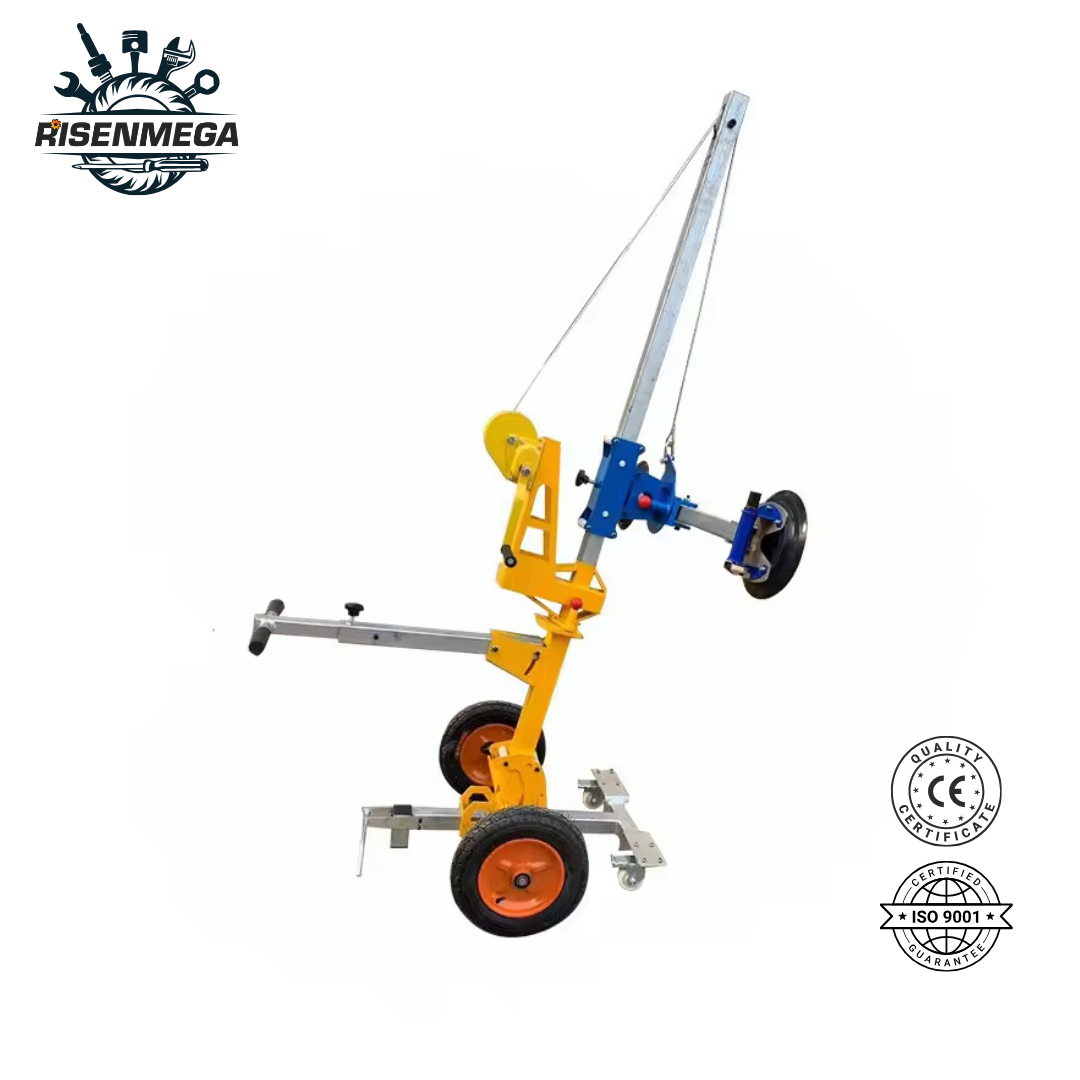

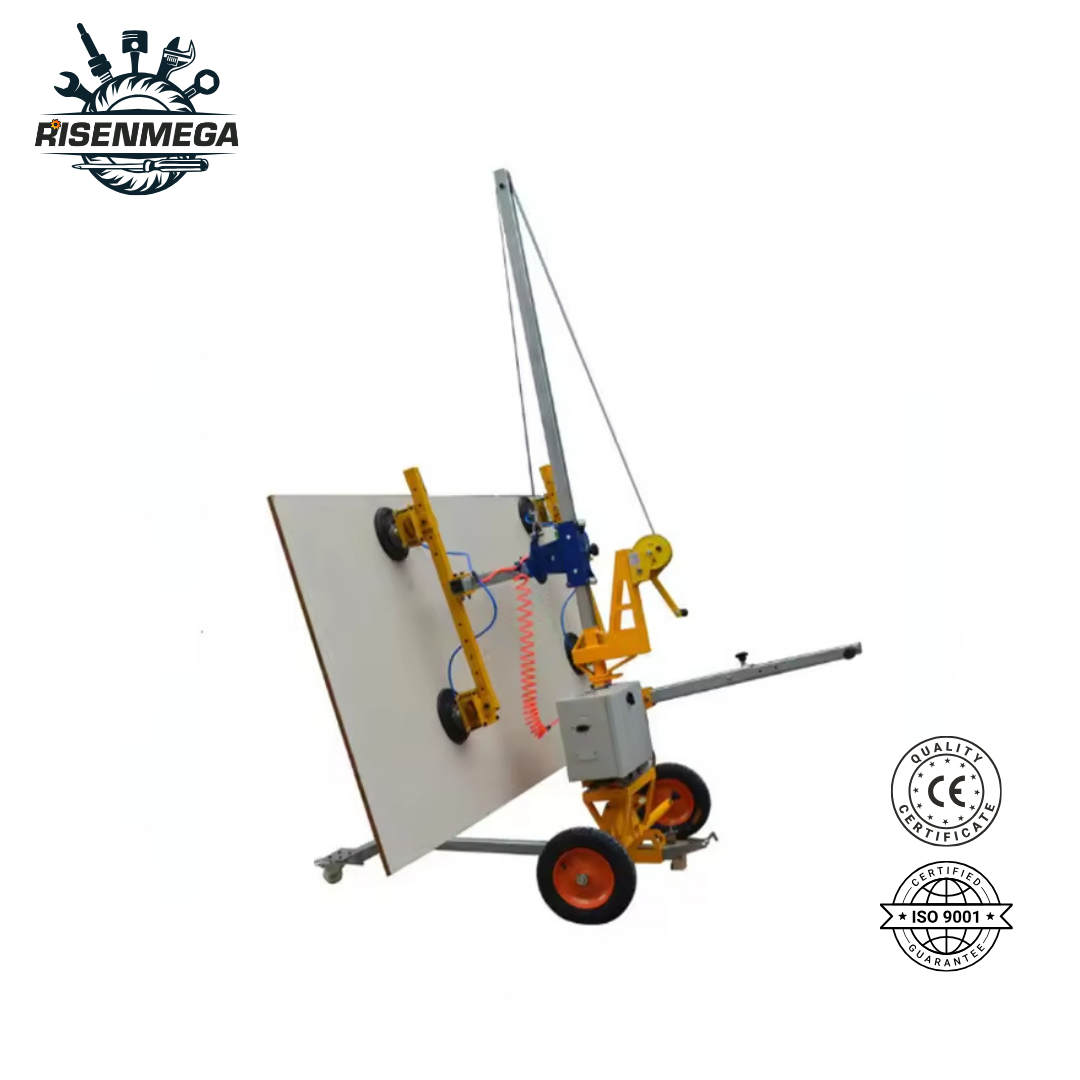

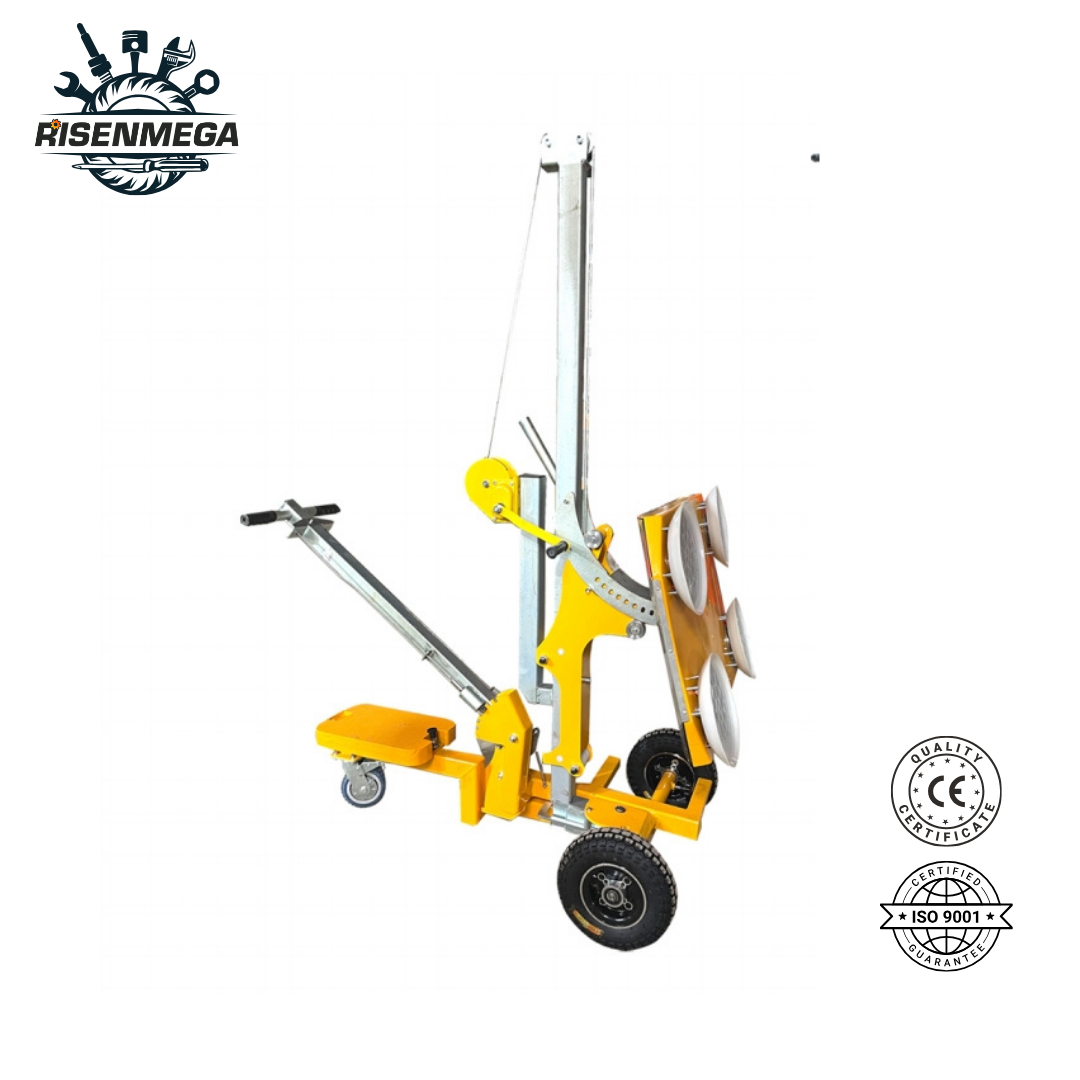

RMGLT Glass Vacuum Lifter Trolley — Manual & Electric Suction Cup Glass Cart, 200–400 kg
A rotating, tilting glass transport trolley built for glaziers, curtain-wall installers, and glass workshops. Load, rotate up to 360°, and roll large glass panels through narrow doorways with one or two operators — no external air source or workshop power supply required.
Built to Move Glass Safely — With Fewer People, Less Risk
Handling a large glass pane traditionally needs four to six workers. The RMGLT trolley's vacuum pads, rotating head, and wheeled steel chassis let one or two people unload, rotate, and carry glass through tight site corridors — cutting labor and reducing breakage and injury risk.
360° Rotation
Every model rotates a full 360° so glass can be turned to line up with a doorway, van, or installation point without repositioning the trolley.
No External Power Needed
The RMGLT20 runs on a fully manual hand-pump vacuum system — no compressor, generator, or mains power required on site.
Multi-Layer Safety
Emergency stop, emergency lowering, battery protection, and a cylinder holding valve guard against sudden pressure or power loss.
Heavy-Duty Build
Manganese steel frame construction paired with an American THOMAS DC vacuum pump and Italian METALROTA driving wheels for daily job-site use.
RMGLT20 vs. RMGLT40 vs. RMGLT20N — Compare Every Spec
All three models share the same rotating, wheeled steel-frame platform. The difference is capacity, power source, and side-turning ability — use the table below to match the right trolley to your glass weight and job-site conditions.
| Specification | RMGLT20 (R) | RMGLT40 (RB) | RMGLT20N (RBN) |
|---|---|---|---|
| Max. Load Capacity | 200 kg | 400 kg | 200 kg |
| Recommended Safe Working Load | 100 kg | 200 kg | 100–200 kg |
| Rotation | 360° (Manual) | 360° (Manual) | 360° (Manual) |
| Side Turning | Not available (fixed frame) | 90° Left & Right (Manual) | 90°, one direction (Manual) |
| Operation Type | Fully manual hand-pump vacuum | Battery-powered suction & release | Battery-powered, dual-circuit backup vacuum |
| Suction Pad Diameter × Qty | Ø230 mm × 2 pads | Ø300 mm × 6 pads | Ø250 mm × 4 pads |
| Max. Suction Frame Size (L×W) | 950 × 230 mm | 1670 × 1100 mm | 870 × 600 mm |
| Battery | Not applicable | 12V / 12AH | 12V / 7AH |
| Charger | Not applicable | 12V / 3A | 12V / 2A |
| Packing Size (L×W×H) | 1930 × 610 × 370 mm | 2440 × 950 × 460 mm | 1930 × 610 × 370 mm
Unconfirmed
|
| Frame Material | Reinforced manganese steel chassis, powder-coated | ||
| Vacuum Pump / Wheels | American THOMAS DC vacuum pump · Italian METALROTA heavy-duty driving wheels | ||
| Safety Systems | Emergency stop button · emergency lowering system · battery protection · cylinder holding valve | ||
| Reference Price (USD) | $2,850 | $3,070 | Contact for quote |
Specifications reflect manufacturer data and are subject to engineering updates. Confirm exact figures for your PO at time of order.
Match the Trolley to Your Glass Weight and Job Site

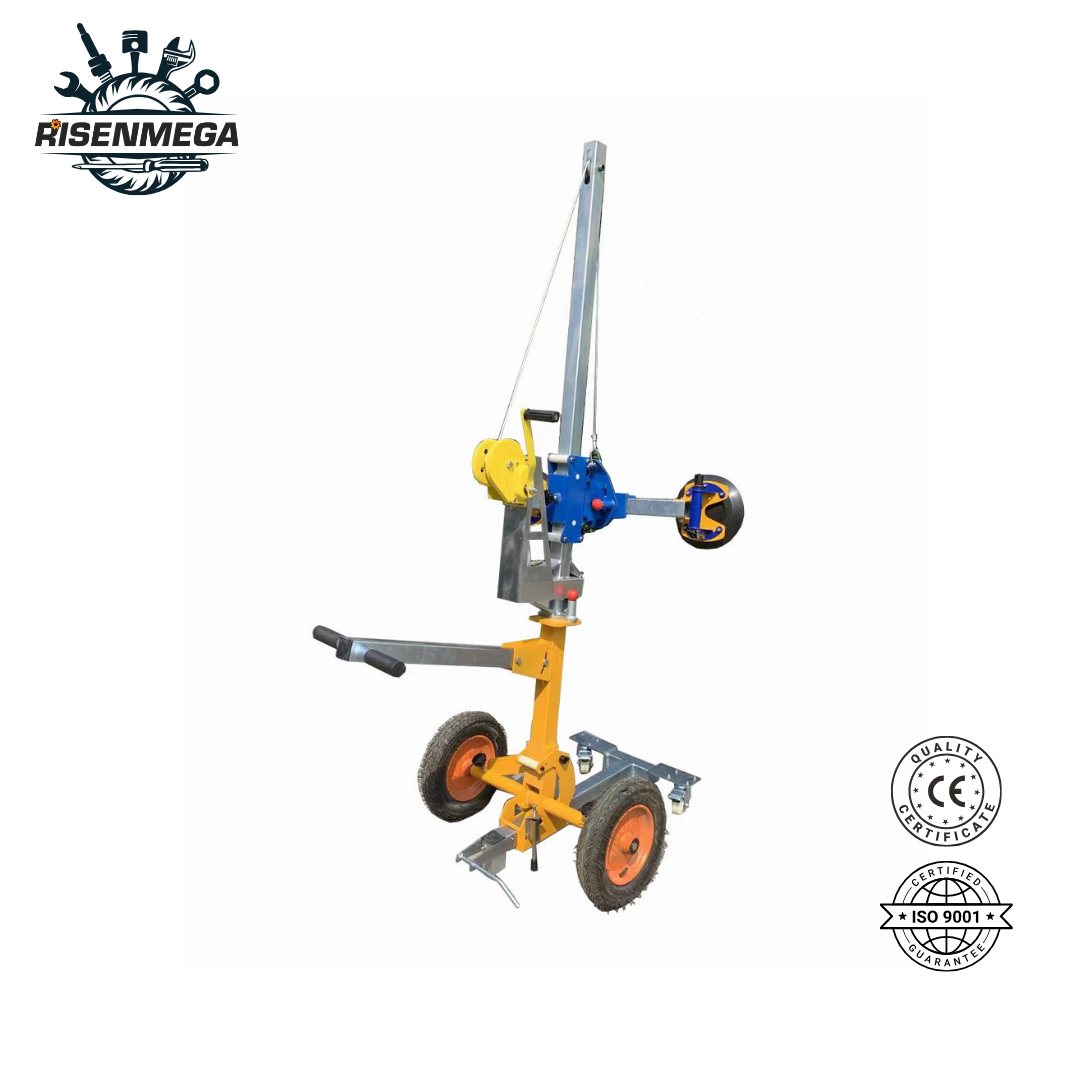

🔧 RMGLT20 — Light & Occasional Use
Best for smaller glass panels up to 200 kg where no power source is available on site.
- Fully manual hand-pump vacuum — no battery to charge
- Lightest and most compact of the three models
- Fixed frame (no side-turn) — best for straightforward, in-line moves
⚡ RMGLT40 — Daily, Heavier Loads
Suited to workshops and installers moving larger panels up to 400 kg on a regular basis.
- Battery-powered suction and release for faster cycle times
- 90° left & right side-turn to clear narrow doorways
- 6-pad frame supports large curtain-wall glass sizes

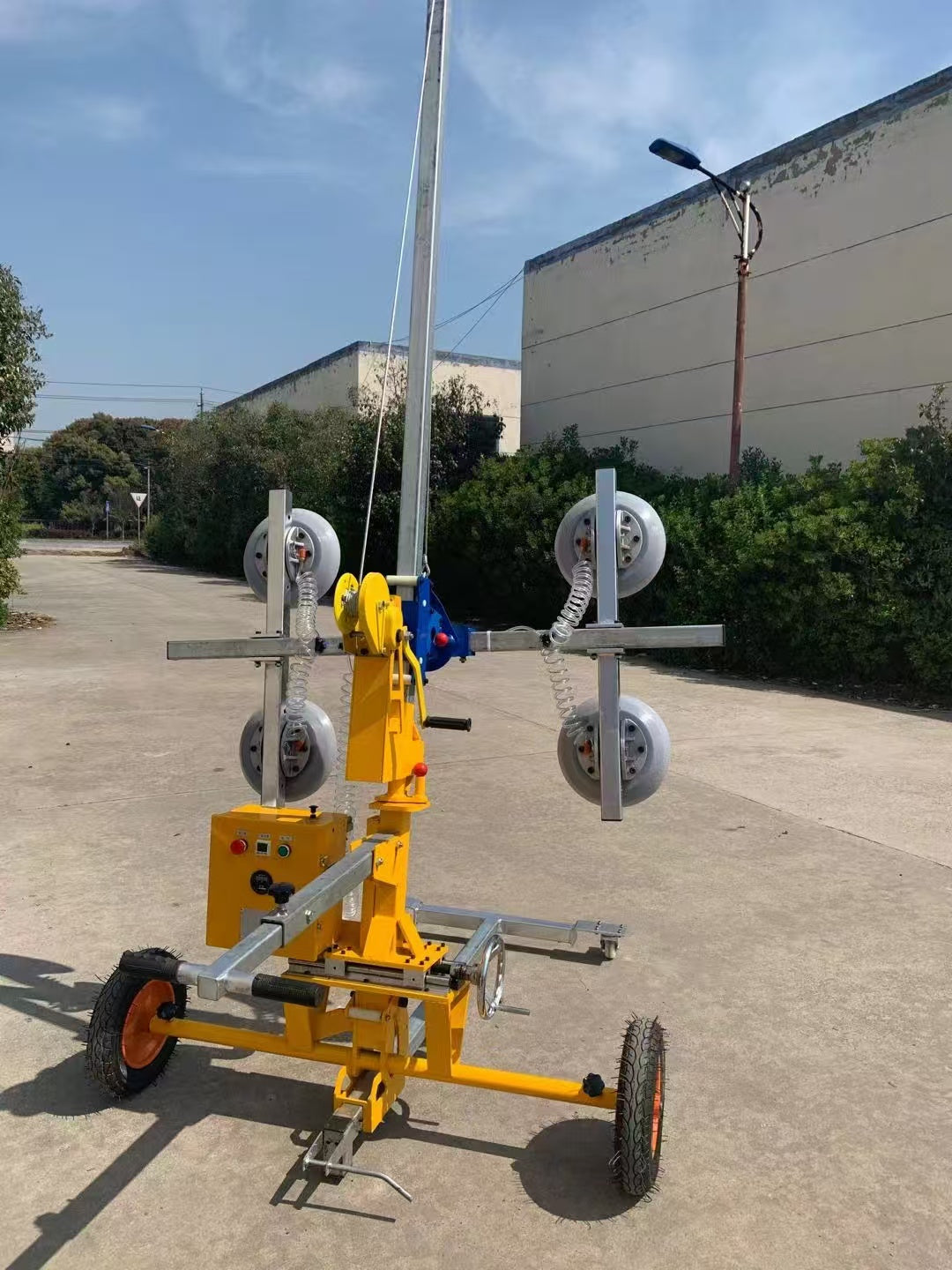

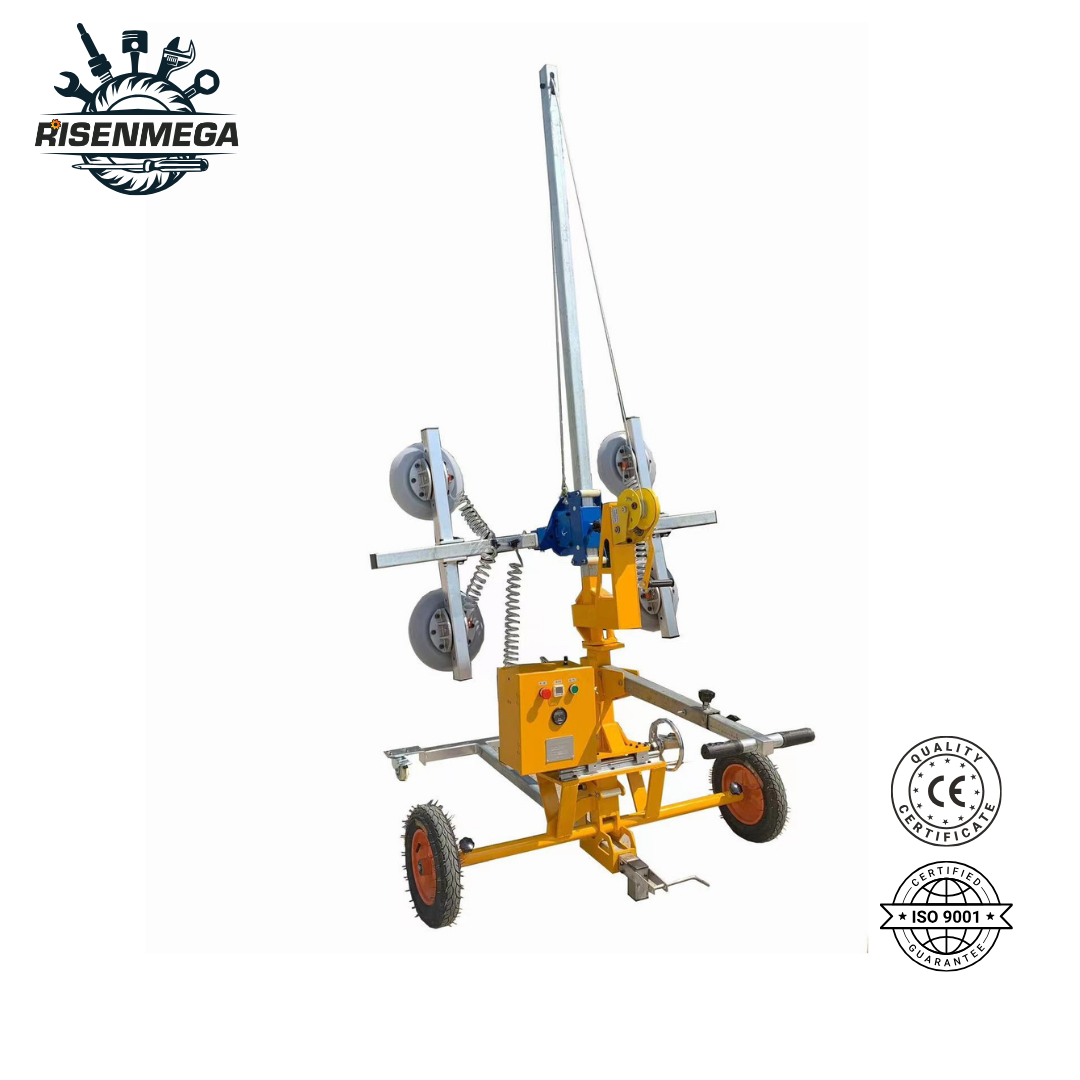

🔁 RMGLT20N — Redundant Vacuum Circuit
The multifunctional option: a dual-circuit vacuum system where a second circuit stands ready if the primary line loses pressure.
- Battery-powered dual-circuit vacuum for added job-site confidence
- Adjustable handle height and tiltable, rotating suction frame
- Compact enough to fit in most passenger estate cars
From Unloading to Installation in Five Steps
Position the Trolley
Wheel the RMGLT trolley alongside the glass panel or delivery crate.
Engage the Vacuum Pads
Attach the suction pads and build vacuum pressure — by hand pump (RMGLT20) or battery-powered pump (RMGLT40 / RMGLT20N).
Rotate & Tilt as Needed
Rotate the frame up to 360° and, on RMGLT40 / RMGLT20N, side-turn 90° to align with doorways or vehicles.
Transport
Roll the trolley on heavy-duty METALROTA wheels to the installation point or loading vehicle.
Release Safely
Release vacuum pressure with the pressure-keeping and emergency-lowering safety systems engaged throughout.
Where the RMGLT Trolley Gets Used
Curtain Wall Installation
Position and rotate large architectural glass panels during building facade installation.
Glazier Workshops
Unload and move glass sheets between cutting tables, storage racks, and delivery vehicles.
Construction Site Transport
Move glass indoors, around company premises, and through unfinished door openings.
Showroom & Retail Fit-Out
Handle glass shelving, display panels, and shopfront glazing without a crew of movers.
Glass Vacuum Lifter Trolley — Common Questions
What is the maximum glass weight the RMGLT trolley can lift?
The RMGLT20 and RMGLT20N handle up to 200 kg per load, while the RMGLT40 handles up to 400 kg. Risenmega recommends working within the safe working load — 100 kg for the RMGLT20, 200 kg for the RMGLT40, and 100–200 kg for the RMGLT20N — for daily operation.
Do I need an air compressor or mains power to use it?
No. The RMGLT20 uses a fully manual hand-pump vacuum system. The RMGLT40 and RMGLT20N use an onboard rechargeable battery to power suction and release, so neither model needs an external air source or workshop power connection.
What's the difference between the RMGLT20, RMGLT40, and RMGLT20N?
The RMGLT20 is a compact, fully manual trolley for lighter panels with no side-turning. The RMGLT40 adds battery power, a larger 6-pad frame, and 90° left/right side-turning for heavier daily use. The RMGLT20N keeps the 200 kg capacity but adds a battery-powered dual-circuit vacuum system as a backup if the primary circuit loses pressure.
Can the trolley turn sideways to pass through narrow doorways?
The RMGLT40 side-turns 90° in both directions (left and right). The RMGLT20N side-turns 90° in a single direction. The RMGLT20 has a fixed frame and does not side-turn.
What safety systems are built in?
All three models include an emergency stop button, an emergency lowering system, battery/pressure protection, and a cylinder holding valve to keep glass secured if vacuum pressure or power is interrupted.
Is CE documentation available?
CE documentation is available for applicable models. Confirm the certification package you need with our sales team before placing your order.
How is the trolley shipped, and what's the payment process?
Orders ship from Qingdao port under FOB, CIF, or DDP door-to-door terms, crated in wood with protective metal plates against rust and corrosion. A 30% deposit confirms your order, with the balance due before shipment; PayPal and T/T bank transfer are both accepted.
Get a Quote on the RMGLT Series
Tell us your glass weight, panel size, and job-site conditions — our team will recommend the right RMGLT model and send a quote within 24 hours.
