Truck-Mounted Mini Crane — 1 Ton; 2 Ton 12V Electric Hydraulic Crane
Truck-Mounted Mini Crane — 1 Ton; 2 Ton 12V Electric Hydraulic Crane - 1 T is backordered and will ship as soon as it is back in stock.
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
Truck-Mounted Mini Crane — 1 Ton; 2 Ton 12V Electric Hydraulic Crane
Description
Description
Truck-Mounted Mini Crane — 1 & 2 Ton 12V Electric Hydraulic Crane
A compact folding-boom crane that runs off a 12V battery and operates from a wireless remote — mount it on a truck bed or utility trailer, or keep it on the included trolley cart for a fully portable mini crane.

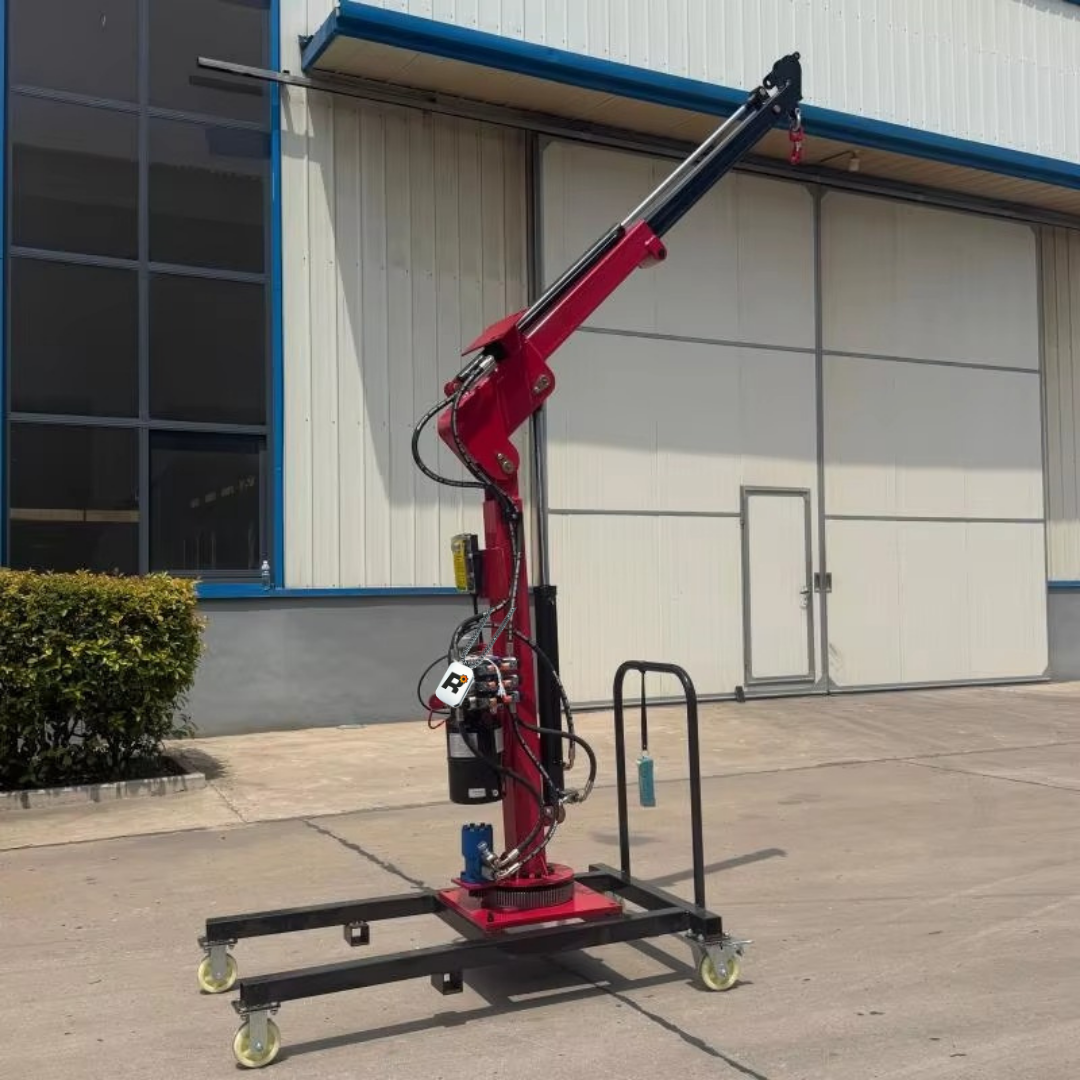

1 Ton Truck-Mounted Mini Crane, shown on the trolley cart
Why Choose the Risenmega Truck-Mounted Mini Crane
Both capacities in this line share the same core design: a 12V electric hydraulic system, a powered rotation motor, and a wireless remote — built to work anywhere a vehicle battery can reach, mains power or not.
Wireless 3-Channel Remote Control
Operate telescoping, rotation, and lift/lower functions from a handheld wireless remote — no need to stand at the crane while positioning a load.

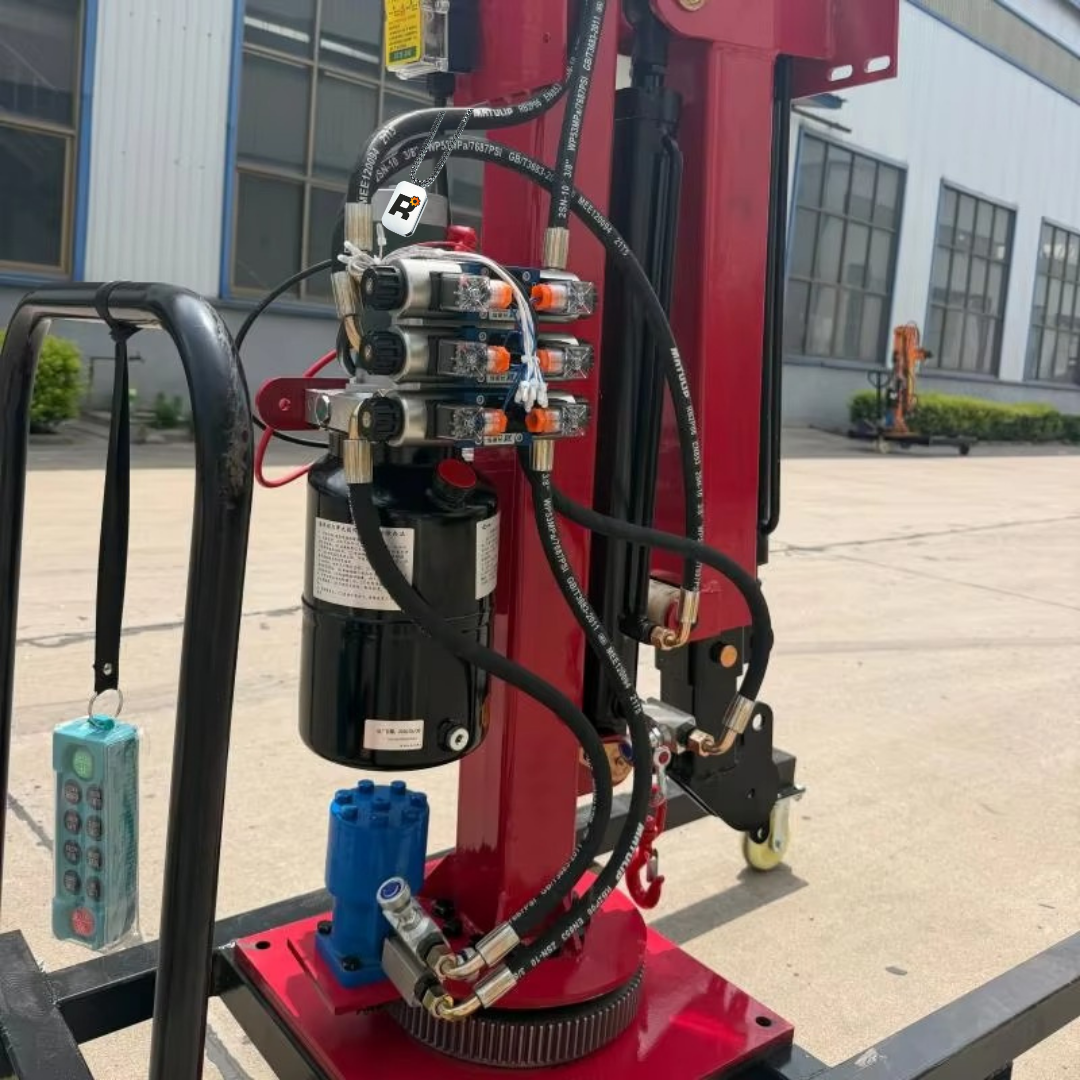

12V Electric Hydraulic System
Runs directly off a 12V vehicle or leisure battery, powering both the hydraulic pump and the rotation motor — no shop power or generator needed, even at remote sites.
3-Stage Folding Boom
Three boom sections extend reach and lift height in stages, so you can match boom position to the load and the space you're working in.
500W Powered Rotation
A dedicated rotation motor slews the boom independently of the lift and telescopic functions, controlled from the same wireless remote.
Vehicle Bed or Trolley Cart Mounting
Bolt the crane directly onto a truck bed or utility trailer, or keep it on its wheeled trolley cart for a fully portable, towable mini crane.
Compact Packed Size
Ships in a compact crate — as small as 135×48×160 cm for the 1 ton model — that fits in a pickup bed or small trailer for delivery.
Full Technical Specifications
Compare the 1 and 2 ton models side by side. Boom section lengths are the physical length of each folding section; max lift height is measured at full extension of that stage.
| Model | Capacity | Power Unit | Rotation Motor | Hydraulic Cylinders | Boom Section Lengths (1/2/3) | Max Lift Height by Stage (1/2/3) | Shipping Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|
| RMTMC-10 | 1,000 kg (1 Ton) | 1.2kW / 12V DC | 500W | Lift Ø63 / Telescopic Ø40 | 120 / 75 / 75 cm | 2.4 / 3.0 / 3.4 m | 135×48×160 cm |
| RMTMC-20 | 2,000 kg (2 Ton) | 2.2kW / 12V DC | 500W | Contact us for spec | 140 / 80 / 80 cm | 2.95 / 3.54 / 4.25 m* | 140×70×180 cm |
Both models: 12V DC electric hydraulic power unit, powered rotation, wireless 3-channel remote (telescopic / rotate / lift), 3-stage folding boom, wheeled trolley cart included. * 2 Ton max lift heights shown are measured with the trolley cart attached; contact us for the direct vehicle-mount (no-cart) figures. Contact us for a formal quote and freight cost to your destination.
How to Choose the Right Setup
Choosing a Capacity
Match the crane's rated capacity to your heaviest regular load and keep a safety margin. The 2 ton model also reaches slightly further and higher at each boom stage than the 1 ton model.
Trolley Cart vs. Direct Mount
Keep the crane on its wheeled trolley cart to tow it between sites and use it as a standalone mini crane, or bolt it directly onto a truck bed or trailer deck for a permanent vehicle-mounted setup — mounting hardware and height will differ between the two.
Boom Reach & Lift Stages
The boom extends in three stages — raise only the first section for lower, closer lifts, or extend through all three for maximum height and reach. Check the rated load at your working stage before lifting.
Frequently Asked Questions
Can this crane be mounted directly on my truck without the trolley cart?
Yes — the crane can be bolted directly onto a truck bed or trailer deck, or kept on the included wheeled trolley cart for a fully portable setup. Lift height differs slightly between the two mounting methods; contact us for exact figures for your intended installation.
What does the wireless remote control?
The 3-channel remote operates the boom's telescoping (extend/retract), rotation, and lift/lower functions, so you can position a load from the ground without standing at the crane itself.
Does the crane need shop power or a generator?
No. It runs entirely off a 12V battery — typically the vehicle's own battery — so it works at remote or off-grid sites without access to mains power.
Does the crane's lifting capacity change as the boom extends?
Yes. As with most folding/telescopic jib cranes, rated capacity is highest with the boom retracted and decreases as it extends further out or higher. Always check the rated load chart at your working stage before lifting.
What's included with the crane?
Each unit ships with the crane body, 3-stage folding boom, hook, 12V hydraulic power unit, rotation motor, wireless remote control, and the wheeled trolley cart. Contact us to confirm the exact accessory package for your order.
Do you ship internationally?
Yes, Risenmega ships worldwide. Since the crane runs on its own 12V DC system rather than local mains power, it isn't tied to a particular country's voltage standard — contact us for compliance documentation and freight quotes.
