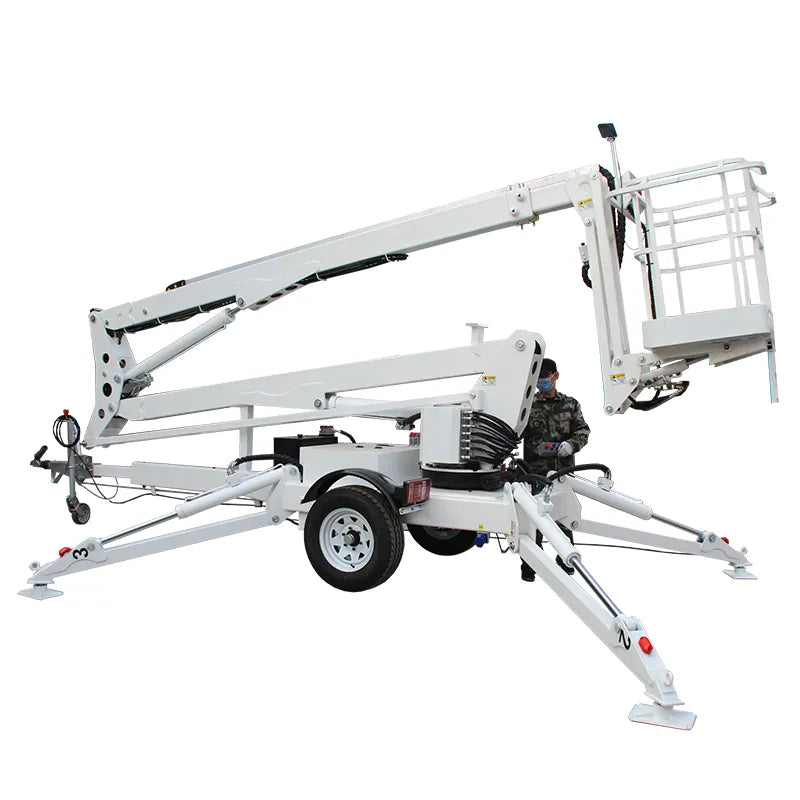

Towable Articulated Boom Lift Curl Arm 10M
Towable Boom Lift
Q235 or Q500D Steel Electrophoresis process Aerial work platforms, can be towed by car
Description
Description
10M Towable Boom Lift Parameters:
- Automatic hydraulic outriggers. can crossing obstacles.
- Rotary lifting device and Automatic leveling device.
- 360° Rotary Turntable, Above Platform Controller.
- High load capacity allows 2 people to work at the same time.
- Trailers are easy to transport and can be quickly and directly towed.
| Battery: | Level I Lead-acid Battery |
| Working Time: | 5 Hours |
| Power: | Electric |
| Capacity: | 200 KG |
| Lift Height: | 10 Meters |
| Maximum working distance: | 5.7 M |
| Platform Rotation Angle: |
160° |
| Turntable rotation angle: | 360° |
| Overall dimensions: | 5400*1665*1900 mm |
| Platform size: | 1200*800*1100 mm |
| Weight: | 1600 KG |
| Charging time: | 6-8 Hours |
| Power & Voltage: | 24V/4.5kw |
| battery level: | 4*6V 180Ah |
| axle pin: | 45# Round Steel Configuration |
| Wheels: | 185/75R14C |
Safety System:
- Automatic braking system
- Emergency descent system
- Emergency stop button
- Fuel line explosion-proof system
-
Fault diagnosis system
- Tilt protection system
- Charging protection system
