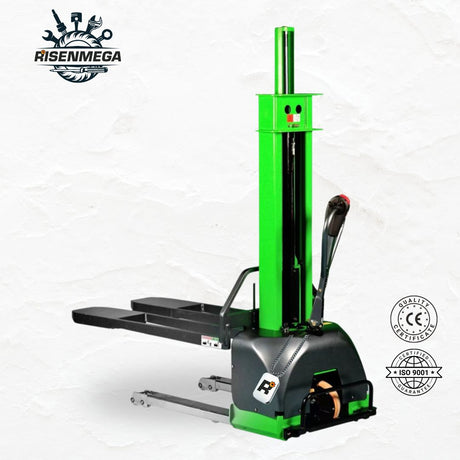

Risenmega ES150 Electric Roll Stacker
A lightweight, aluminum-alloy electric stacker built for narrow-aisle handling. It combines electric lifting with an electric roller-pushing arm, letting one operator lift and load up to 150 kg without manual pushing or straining. Available in three lifting heights — 1500 mm, 1800 mm, and 2000 mm — to match your racking, workbench, or vehicle loading needs.
Key Features
- Dual electric control — electric lifting (~50 mm/s) and electric roller pushing (25–30 mm/s) with 2–3 mm jog positioning accuracy
- Nylon belt lift transmission — high wear resistance and long service life vs. chain lifts
- Interchangeable attachments — bolt-on hooks, flat plates, forks, and custom fixtures
- Special aluminum-alloy single column — high strength at a fraction of the weight of steel masts
- Dual rear casters with foot brakes — 360° rotation for tight turning in narrow aisles
- Customizable — non-standard sizes, pushing speed, and attachment types available on request
Dimensional reference for ES150-15 / ES150-18 / ES150-20
Specifications
| Model | ES150-15 | ES150-18 | ES150-20 |
| Rated Load | 150 kg | ||
| Lifting Height | 1500 mm | 1800 mm | 2000 mm |
| Total Height | 1965 mm | 2165 mm | 2465 mm |
| Net Weight | 72 kg | 74 kg | 76 kg |
| Axle Ground Clearance | 220 mm (top of axle) | ||
| Leg Inner / Outer Width | 395 / 520 mm | ||
| Leg Length | 520 mm | ||
| Motor | 24V / 150W | ||
| Battery | 24V / 12Ah (~120 full lifts per charge) | ||
| Lifting Speed | ~50 mm/s | ||
| Pushing Speed | 25–30 mm/s (jog accuracy 2–3 mm) | ||
| Effective Pushing Stroke | 500 mm | ||
| Overall Footprint (L×W) | 850 × 520 mm | ||
| Roller Diameter | φ70 mm | ||
| Roller Single-Axis Length | 600 mm | ||
Product Details
Simple up/down and forward/reverse push-button controls make operation intuitive. The roller arm extends with a 500 mm effective pushing stroke, and attachments are fixed by screws for quick, tool-free swaps between hooks, flat plates, and other fixtures. Dual rear casters with foot-operated brakes rotate 360° for effortless maneuvering.
The single-column design offers a wide field of vision and a small turning radius, making it ideal for production workshops, warehouses, supermarkets, loading docks, and inside vehicle/container spaces.
Custom options available: non-standard sizes, adjustable pushing speed, and alternative attachments. Contact us for custom configurations.
