Description
Description
Electric Floor Crane — 1, 1.5 & 2 Ton Battery-Powered Mobile Jib Cranes
Fully electric telescopic-boom floor cranes with optional 180° or 360° rotating bases — built for workshops, warehouses, and tight-access sites where a fixed overhead crane isn't practical.
Pricing depends on capacity and rotation type — configure your crane below and our team will send a formal quote.
Configure & Get a Quote See Specs & FAQ

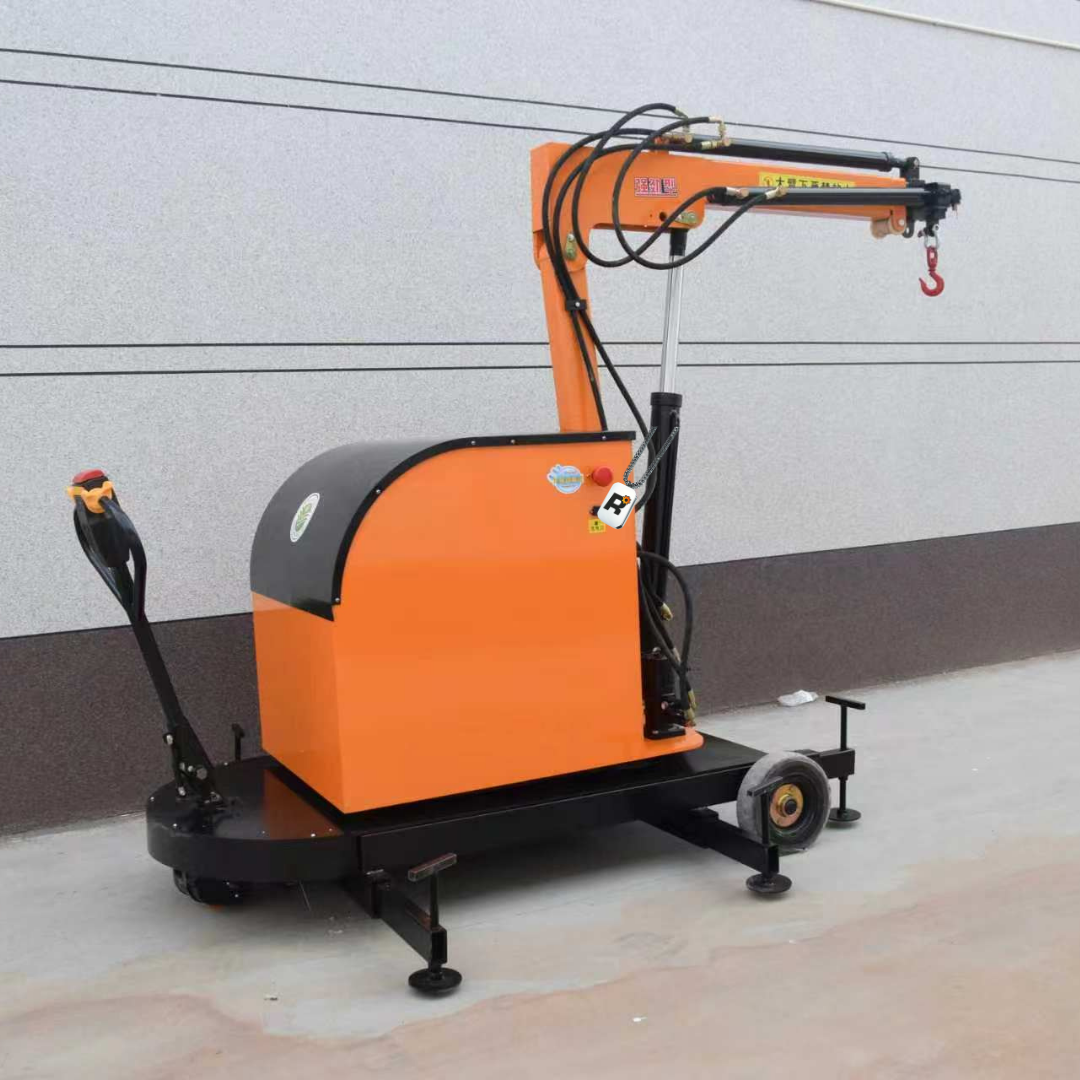

1.5 Ton Electric Floor Crane, 180° rotating base shown
Why Choose the Risenmega Electric Floor Crane
Every capacity in this range shares the same core engineering: a fully electric drive and lift system, a reinforced 3-stage telescopic boom, and hydraulic cylinders sized for the crane's full rated load — not just its nameplate figure.
Fully Electric Power
An onboard 48V battery drives both crane travel and boom lift — no compressed air line, no manual hydraulic pumping, and no engine exhaust indoors.
3-Stage Telescopic Boom
Two hydraulic-powered boom sections plus one manually adjustable section extend total reach up to 3.3 meters for flexible load positioning.
180° / 360° Rotating Base Options
A slewing base lets the boom pivot around the mast without repositioning the whole crane — useful for loading from two or more angles in a confined bay.
Wide, Adjustable Outrigger Legs
Extendable support legs with leveling screw feet widen the footprint on rotating models for stability under full rated load.
Purpose-Sized Hydraulic Cylinders
Ø80mm lift / Ø50mm telescopic cylinders on the 1–1.5 ton models step up to a Ø100mm lift cylinder on the 2 ton model, matched to each crane's working load.
Smooth-Rolling Casters
Poly-on-steel caster wheels let a single operator reposition the crane around the shop floor without a tow vehicle or forklift.
Full Technical Specifications — All 7 Configurations
Compare every capacity and rotation option side by side. All dimensions are for the crane in its standard shipping/operating configuration; consult the rated load chart on the boom for capacity at full extension.
| Model | Capacity | Rotation | Boom Extension (3-stage) | Hook Height (retracted / mid / extended) | Motor | Net / Gross Weight | Overall Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|
| RMEFC-10 | 1,000 kg (1 Ton) | Fixed | 880+880+1400mm (3,160mm total) | 4,000 / 2,900 / 2,400 mm | 48V / 800W | 558 kg / 671 kg | 2,200×1,030×1,880 mm |
| RMEFC-10-R180 | 1,000 kg (1 Ton) | 180° Rotating | 900+900+1400mm (3,200mm total) | 4,150 / 3,600 / 3,000 mm | 48V / 800W | 842 kg / 995 kg | 2,400×1,300×2,200 mm |
| RMEFC-10-R360 | 1,000 kg (1 Ton) | 360° Rotating | 900+900+1400mm (3,200mm total) | 3,900 / 3,330 / 2,750 mm | 48V / 800W | 1,330 kg / 1,470 kg | 2,500×1,100×2,000 mm |
| RMEFC-15 | 1,500 kg (1.5 Ton) | Fixed | 900+900+1400mm (3,200mm total) | 4,000 / 3,400 / 2,800 mm | 48V / 800W | 558 kg / 671 kg | 2,400×1,300×1,900 mm |
| RMEFC-15-R180 | 1,500 kg (1.5 Ton) | 180° Rotating | 900+900+1400mm (3,200mm total) | 4,300 / 3,700 / 3,100 mm | 48V / 800W | 910 kg / 1,060 kg | 2,400×1,300×2,200 mm |
| RMEFC-20 | 2,000 kg (2 Ton) | Fixed | 1000+900+1400mm (3,300mm total) | 4,150 / 3,500 / 2,850 mm | 48V / 1200W | 1,100 kg / 1,250 kg | 2,700×1,070×2,100 mm |
| RMEFC-20-R180 | 2,000 kg (2 Ton) | 180° Rotating | 950+850+1400mm (3,200mm total) | 4,300 / 3,650 / 2,900 mm | 48V / 1200W | 1,370 kg / 1,520 kg | 2,700×1,350×2,200 mm |
All models: 48V/32Ah battery, electric power-assisted travel, hydraulic lift & telescopic cylinders, 2-stage hydraulic + 1-stage manual boom. Contact us for a formal quote and freight cost to your destination.
How to Choose the Right Configuration
Choosing a Capacity
Match the crane's rated capacity to your heaviest regular load, then keep a safety margin — capacity is highest with the boom retracted and drops as it extends, so check the rated load chart at your working reach, not just the nameplate rating.
Fixed vs. 180° vs. 360°
A fixed base is the lightest and most maneuverable option for straight-line load transfer. 180° rotation suits loading docks or working between two machines without repositioning the base. 360° rotation is built for a stationary workstation that needs a full-circle reach — it uses a heavier four-leg outrigger chassis for stability.
Weight & Footprint Trade-Offs
Rotating models carry a slewing bearing and wider outrigger legs, so they weigh more and take up a larger footprint than the fixed-base crane of the same capacity. If floor space or portability is the priority, the fixed base is the more compact choice.
Frequently Asked Questions
What's the difference between a fixed-base and a rotating-base electric floor crane?
A fixed-base crane's boom only moves up, down, and in/out along the crane's travel direction — to change the load's angle, you reposition the whole crane. A rotating-base crane lets the boom slew around the mast (180° or 360°) while the base stays put, which is useful in tight bays or when you need to load from more than one side.
Do I need 180° or 360° rotation?
180° rotation covers most two-sided use cases, such as a loading dock or working between two machines. 360° rotation is built for a stationary workstation crane that needs a full-circle reach without ever moving the base — it comes on a heavier four-leg outrigger chassis for the added stability that full rotation requires.
How long does the battery last on a full charge?
Runtime depends on how often you're lifting versus traveling. Each crane in this range uses a 48V/32Ah battery pack sized for a full shift of intermittent workshop use; contact us with your expected duty cycle for a specific runtime estimate.
Does the crane's lifting capacity change as the boom extends?
Yes. As with most telescopic jib cranes, rated capacity is highest with the boom fully retracted and decreases as it extends further out. Always check the rated load chart on the boom at your working extension before lifting.
What's included with the crane?
Each unit ships with the crane body, telescopic boom, hook with safety latch, onboard 48V battery and charger, electric drive/lift motor, and a walk-behind control handle. Contact us to confirm the exact accessory package for your order.
Can this run on a different voltage, and do you ship internationally?
The standard configuration runs on its own onboard 48V DC battery system, so it isn't tied to local mains voltage. Risenmega ships worldwide — contact us for country-specific compliance documentation and freight quotes.
