Lift tables
Our factory customized 0.5-5 Ton Lift table, it can manual or electric, with wheel or without, according your meet.
Description
Description

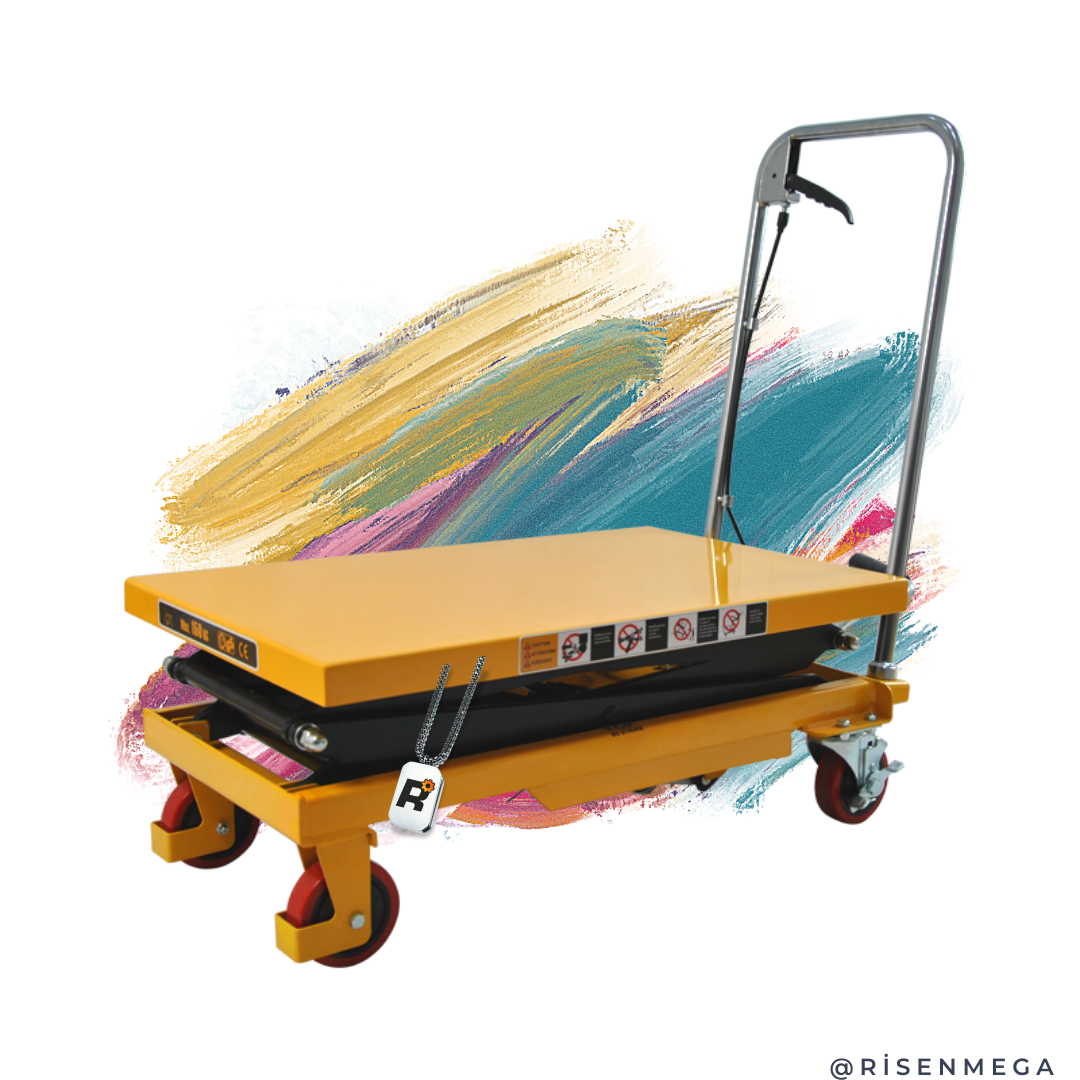

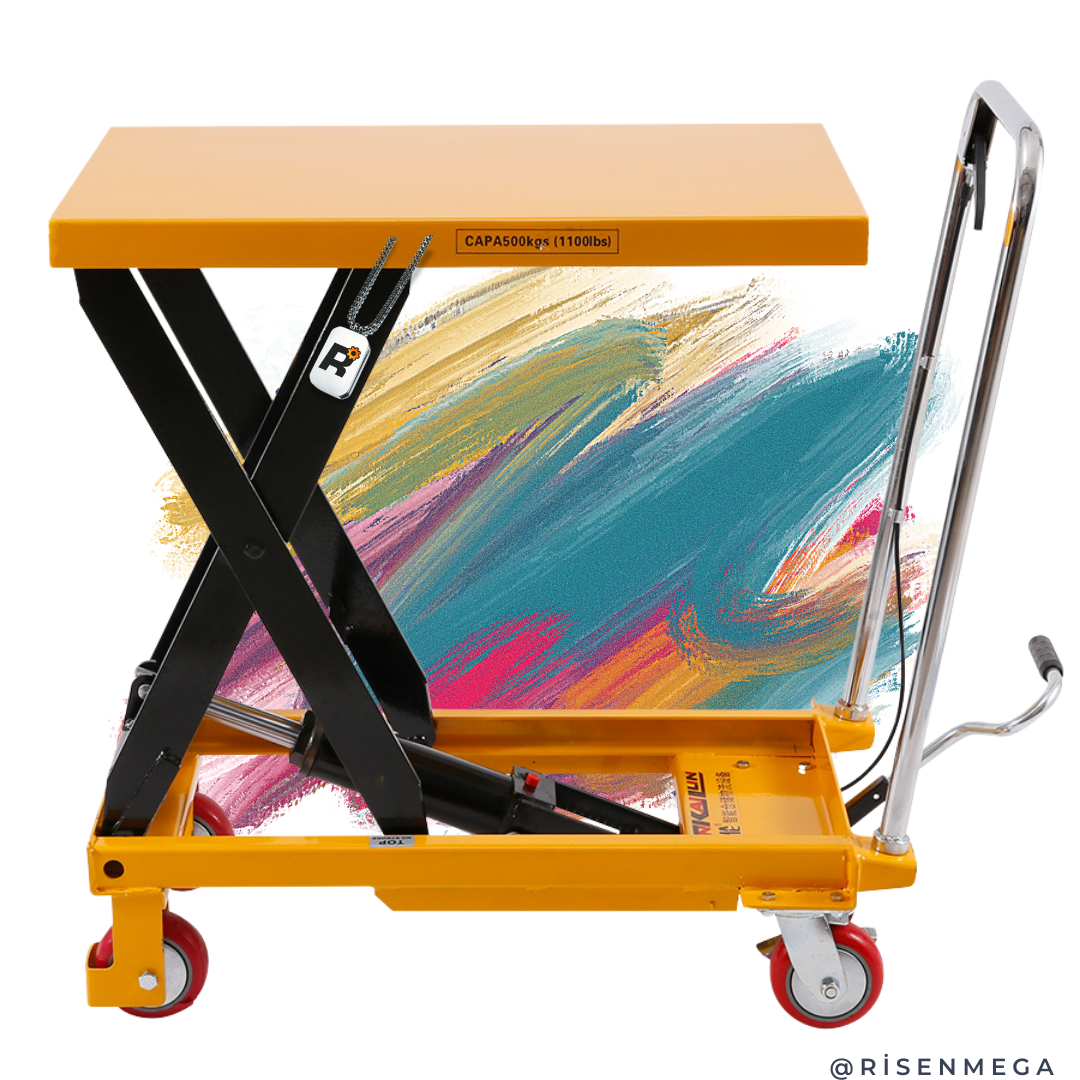

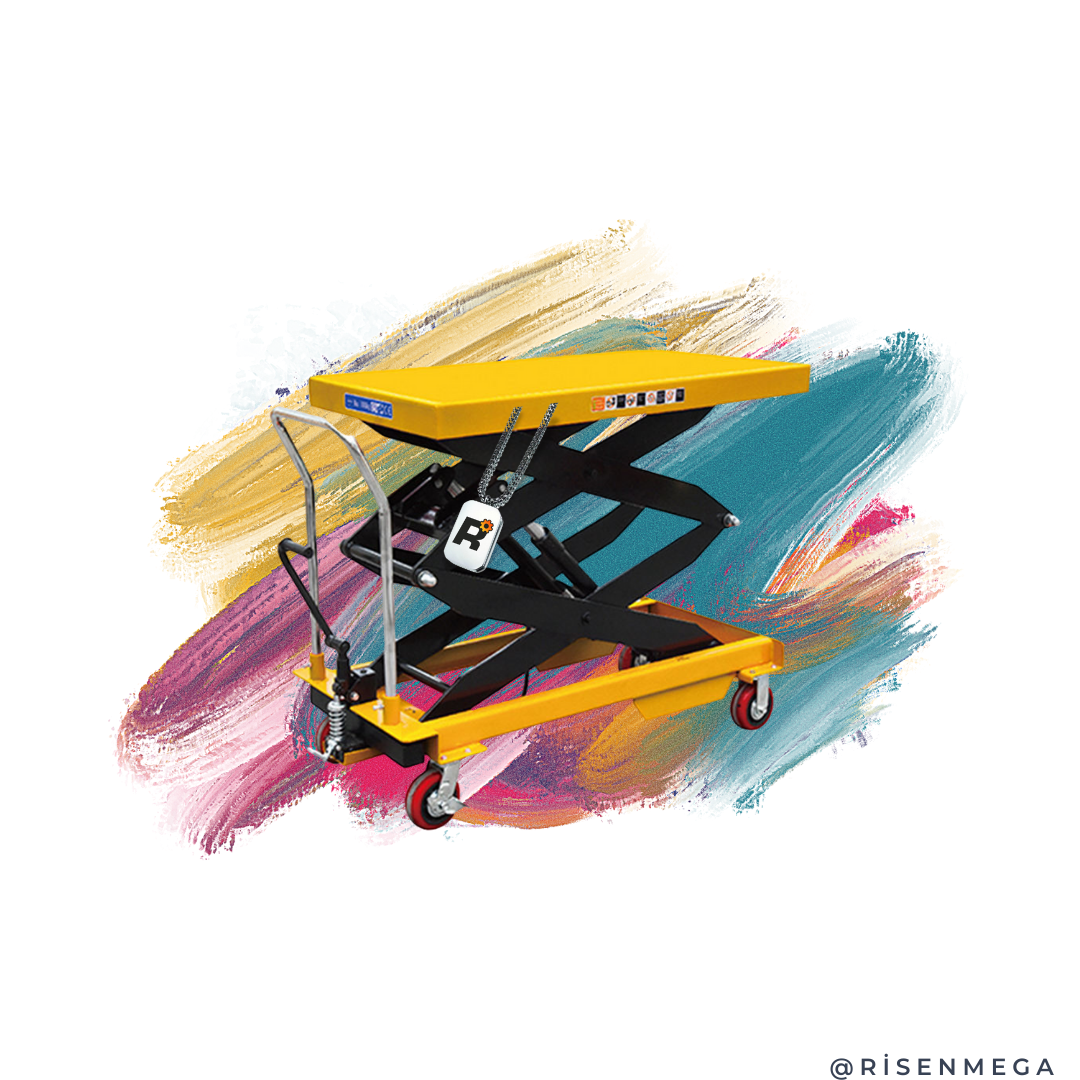

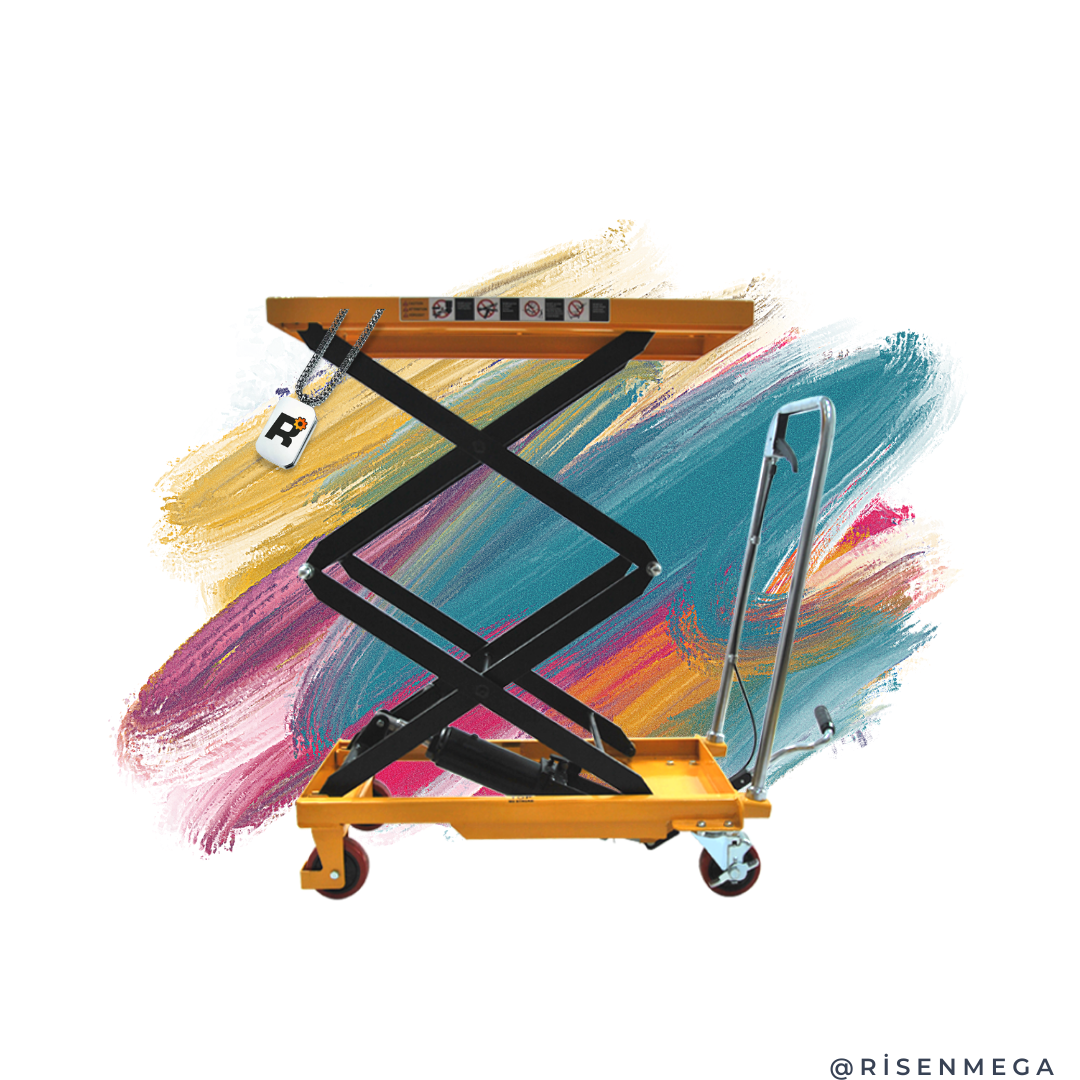

Movable Manual Scissor Lift Table, 0.5–4 Ton Capacity
A heavy-duty manual hydraulic scissor lift table that needs no power supply and moves to the load instead of the load moving to the lift. From light 500 kg tasks up to 4-ton equipment, each unit is built to your capacity, platform size and lifting height.
Get a Quote on WhatsApp View Standard ModelsHeavy-Duty Lifting That Goes Where You Work
Our movable manual scissor lift tables combine a rugged load-bearing frame with a mobile platform that works anywhere, with no electrical connection.
Up to 4 Ton Capacity
Handle heavy machinery, dies, tooling and stacked pallets that lighter lift tables cannot carry.
Mobile Design
Reposition the lift between stations, bays and production lines, so one unit serves several areas.
Manual Hydraulic Operation
A hand-operated hydraulic pump raises the platform smoothly and lowers it in a controlled way, with no motor to maintain.
Q345 Steel Frame
Welded Q345 high-strength steel frame and scissor arms stay rigid under heavy, repeated loads.
Built to Last
Designed for demanding industrial duty and over one million lift cycles.
No Power Required
Use it in workshops, yards, job sites and anywhere without a nearby power outlet. Capacity and size are made to your requirement.
Standard Models & Specifications
Pick a ready model from 500 kg to 2000 kg, or have a larger or special unit built up to 4 ton.
| Model | Capacity (kg) | Table Size (mm) | Closed Height (mm) | Max. Height (mm) | Wheel Ø (mm) | Package Size (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| RMMSL5001 | 500 | 815×500 | 285 | 900 | 125 | 920×510×320 | 74 |
| RMMSL5002 | 500 | 1600×800 | 285 | 900 | 125 | 1680×810×320 | 120 |
| RMMSL1001 | 1000 | 1000×500 | 415 | 1000 | 150 | 1140×510×450 | 110 |
| Model | Capacity (kg) | Table Size (mm) | Closed Height (mm) | Max. Height (mm) | Wheel Ø (mm) | Package Size (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| RMMSL5003 | 500 | 850×500 | 360 | 1500 | 125 | 1010×525×390 | 107 |
| RMMSL8001 | 800 | 1200×600 | 500 | 1500 | 150 | 1400×600×500 | 165 |
| RMMSL1002 | 1000 | 1200×600 | 500 | 1700 | 150 | 1400×600×500 | 226 |
| RMMSL1003 | 1000 | 1500×800 | 500 | 1700 | 150 | 1700×800×500 | 245 |
| Model | Capacity (kg) | Table Size (mm) | Closed Height (mm) | Max. Height (mm) | Wheel Ø (mm) | Package Size (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| RMMSL5004 | 500 | 905×500 | 360 | 1500 | 125 | 1060×550×360 | 108 |
| RMMSL5005 | 500 | 905×500 | 475 | 2000 | 125 | 1080×550×480 | 156 |
| RMMSL1004 | 1000 | 1200×600 | 380 | 1000 | 150 | 1400×600×390 | 168 |
| RMMSL2001 | 2000 | 1200×600 | 380 | 1000 | 150 | 1400×600×390 | 190 |
Optional: foldable handle versions and ball-transfer tops on selected models. Dimensions are nominal. Capacities above 2000 kg are made to order.
Fully Customizable Specifications
Beyond the standard models above, every unit can be built to your requirement. Send us your needs and our engineers will design the lift around them.
| Parameter | What You Can Specify |
|---|---|
| Load Capacity | 500 kg to 4000 kg (0.5–4 ton) |
| Platform Size (L × W) | Made to your load, pallet, machine or workstation dimensions |
| Lowered Height | Set to suit your loading method and site conditions |
| Maximum Lifting Height | Set to your required working height |
| Mobility | Wheel configuration for repositioning, matched to your floor and load weight |
| Operation | Manual hydraulic pump, no electrical connection needed |
| Frame Material | Q345 high-strength steel |
| Surface Finish | Painted in your choice of color |
| Optional Accessories | Safety bellows skirt, roller or ball-transfer top, handrails, loading ramp |
Choose the Right Capacity
Light to Medium Loads
- Pallets and cartons
- Workbench and line feeding
- Everyday warehouse handling
Heavy Pallets & Parts
- Stacked or dense pallet loads
- Large components and molds
- Assembly and maintenance work
Heavy Equipment
- Machinery and heavy tooling
- Steel, coils and bulky goods
- Demanding production lines
Applications
Industries
- Manufacturing and heavy assembly
- Warehousing and logistics
- Workshops, maintenance and repair
- Metalworking and fabrication
Typical Uses
- Lifting heavy parts to working height
- Moving one lift between workstations
- Feeding machines and work lines
- Loading and transferring heavy equipment
How to Order Your Custom Lift Table
Send us the details and we will reply with a drawing and quotation. WhatsApp: +86 198 1871 6298
Send Your Needs
Load, platform size, heights and floor conditions.
Receive a Design
Our engineers prepare a drawing and a quote for approval.
Production
Your lift is built and tested to the confirmed specification.
Delivery
Export-ready packing and shipping to your site.
Frequently Asked Questions
What is the maximum capacity of this movable scissor lift table?
The range covers 0.5 to 4 ton (500–4000 kg), built to your requirement.
Does the lift table need electricity?
No. It is operated manually through a hydraulic pump, so no power supply is needed.
Can the platform size and height be customized?
Yes. Platform size, lowered and maximum heights, capacity and accessories are all made to order.
What information do I need to send for a quote?
Please share the load weight, platform length and width, lowered and maximum heights, and any accessories needed.
What is the frame made of?
The frame and scissor arms are welded from Q345 high-strength steel.
