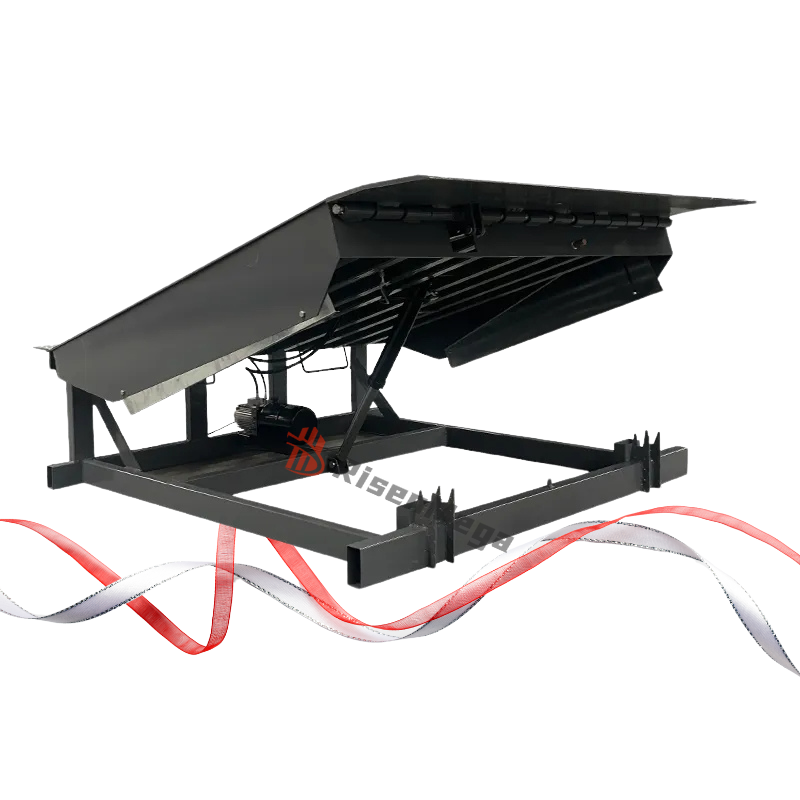

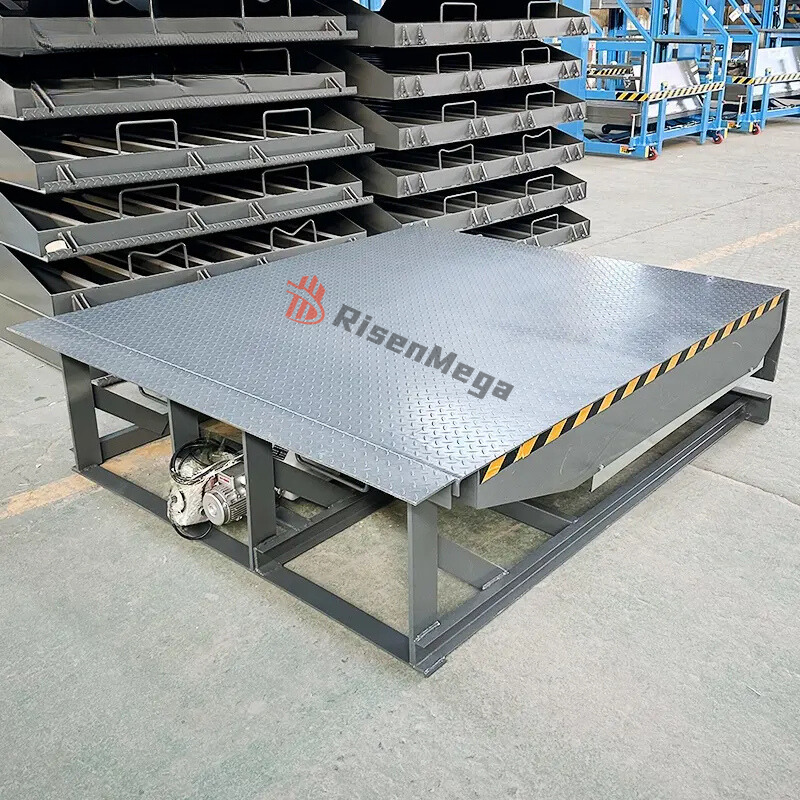

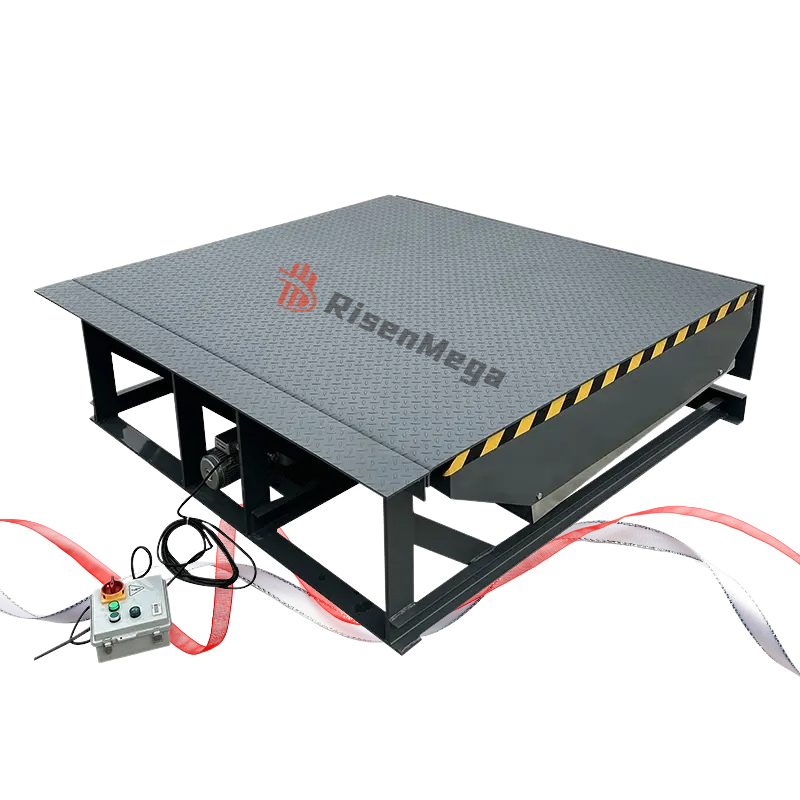

Hydraulic Stationary Dock Ramp 12 Ton

The product is a 20-30% deposit not the total price, please contact us first to determine the parameters before paying the deposit!

$1,000.00

Lift Height
Capacity

Payment Way

After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.

Delivery and Shipping

Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!

Hydraulic Dock Ramp

Mobile dock ramp and Stationary dock ramp, standard steel and match for forklift.

Description

 Hydraulic Stationary Dock Ramp 12 Ton Parameters:

  • Q245 Regular manganese steel construction.
  • Anti-slip table top, non-slip and stable.
  • The equipment adopts full hydraulic drive, easy to operate.

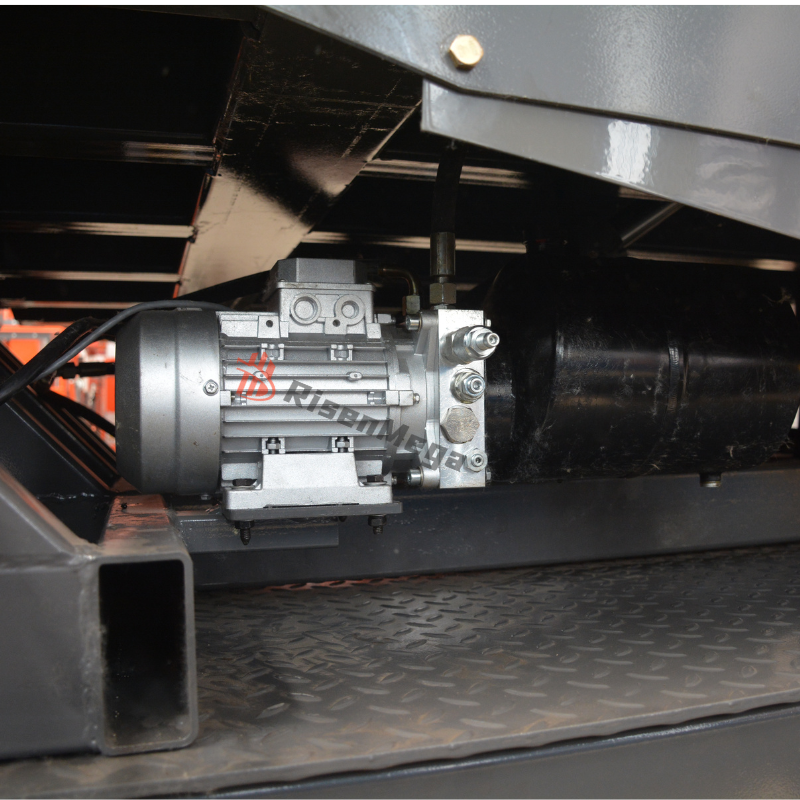

  • The equipment adopts high power motor, stable operation.
  • Adopt sealed hydraulic cylinder to prevent oil leakage.
Max platform height: 2000 mm
Table Size (Wide): 2500 mm
Power: Electric
Capacity: 12 Ton
Working Platform: 400 mm
Rise: 300 mm
Float Down:
200 mm
Pit Size: 2080*1540*600 mm
Main beam size: 160*80*4
Cylinders (2pcs): 80*50
Weight: 950 KG
Charging time: 6 Hours
Power: 0.75kw
Steels: Q235
axle pin: 45# Round Steel Configuration
Move: Standard dock ramp

More Safety:

  • Manual/electrical lift operation is possible.
  • Reinforced steel for durability and safety.
  • Longer, gentler slopes.
  • Anti-slip treatment of bridge deck, safe and reliable.
  • Emergency stop button
