Hydraulic Mobile Dock Ramp 8 Ton

The product is a 20-30% deposit not the total price, please contact us first to determine the parameters before paying the deposit!

$1,000.00

Lift Height
Capacity

Payment Way

After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.

Delivery and Shipping

Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!

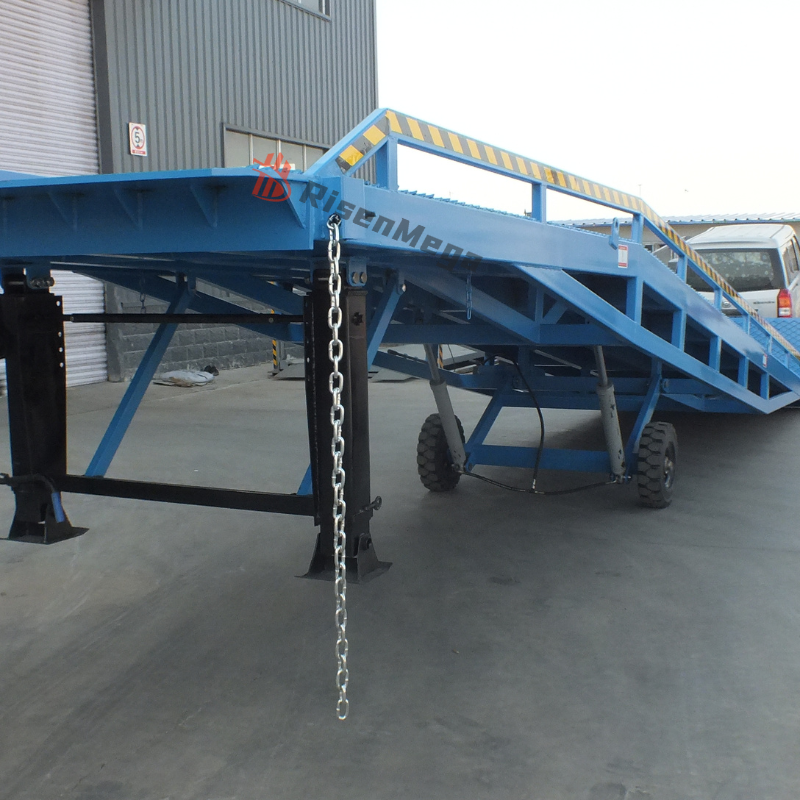

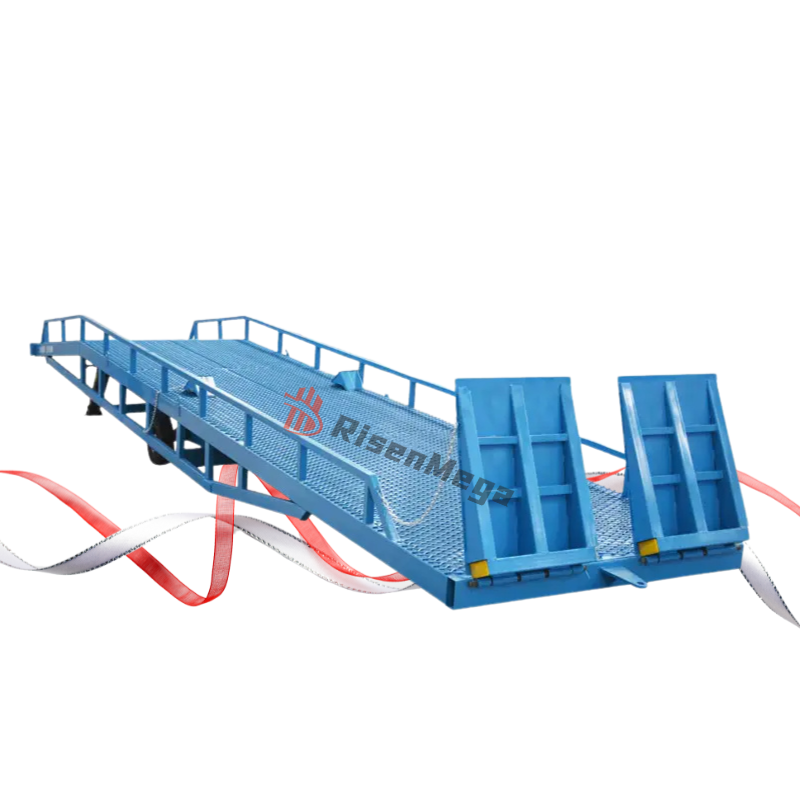

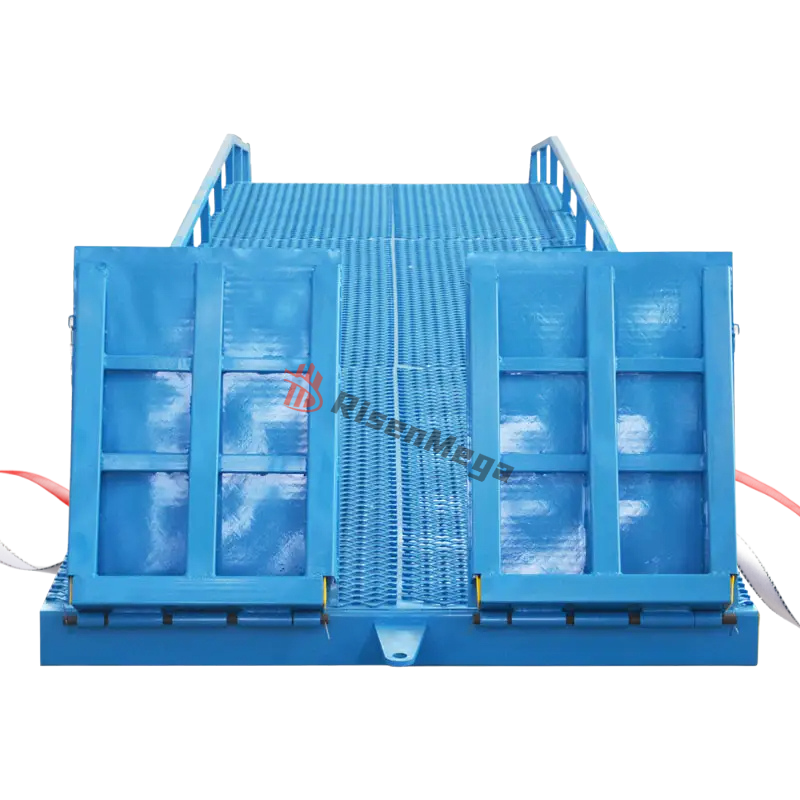

Hydraulic Dock Ramp

Mobile dock ramp and Stationary dock ramp, standard steel and match for forklift.

Description

 Hydraulic Mobile Dock Ramp 8 Ton Parameters:

  • Q245 Regular manganese steel construction.
  • Reinforced connecting chain, Anti-skid diamond mesh.
  • Triangle brake pads,Hydraulic cylinder.
  • Multi-function auxiliary legs,Hand-operated hydraulic pump.
  • Anti-slip treatment for safety and reliability.
Max platform height: 1100-1700 mm
Overall dimensions: 11000*2100*1100 mm
Power: Electric
Capacity: 8 Ton
Working Platform: 2500*1900 mm
Slope Size: 7150*2000 mm
Wheels:
600-9 mm
Tough Size: 1050-1890 mm
Main beam size: 160*80*4
Cylinders (2pcs): 80*50
Weight: 2350 KG
Charging time: 6 Hours
Battery Lift(Option): 24V
Steels: Q245
axle pin: 45# Round Steel Configuration
Move: Mobile dock ramp

More Safety:

  • Manual/electrical lift operation is possible.
  • Reinforced steel for durability and safety.
  • Longer, gentler slopes.
  • Anti-slip treatment of bridge deck, safe and reliable.
  • Emergency stop button
