Custom Hydraulic Cage Tipper Trailer, Made to Your Size and Payload
A hot-dip galvanized hydraulic tipping box trailer, built to your size and payload. The box has a removable mesh cage and removable drop-down front and rear doors, and it tips on a hydraulic ram so you can empty soil, gravel, mulch and garden waste without shovelling.
- Tipping body
- Removable cage
- Hydraulic tipping
- Custom size and payload
- CE certification
One trailer for hauling and unloading
A fixed box trailer gets the load to the site. Then somebody has to empty it by hand. This cage tipper trailer solves that second half of the job. The box lifts on a hydraulic ram, so loose material slides out instead of being forked or shovelled out.
The 600 mm mesh cage lifts off when you do not need it and adds height when you do, which lets you carry light, bulky loads such as green waste and hedge clippings without stacking them above the rail. The front and rear doors drop down and can be removed, which makes it easier to load and unload by hand.
The body and chassis are fully welded from hot-dip galvanized steel, with a 50 × 100 × 3 mm main beam. It suits landscapers, builders, property owners and small farms that want one towable unit for both carrying and tipping. Every trailer is built to order, so tell us the body size and payload you need.
Typical jobs
- Landscaping and gardens. Soil, mulch, sand, pavers and green waste.
- Building and renovation. Gravel, rubble and site debris.
- Property and rural work. Firewood, fencing material and general loads.
- Tip runs. Load at home, tip at the transfer station or on the pile.
Always stay within the rated payload and the towing limit of your tow vehicle. Payload is rated to your requirement.
What you get on this tipper trailer
Hydraulic tipping on a fully welded chassis

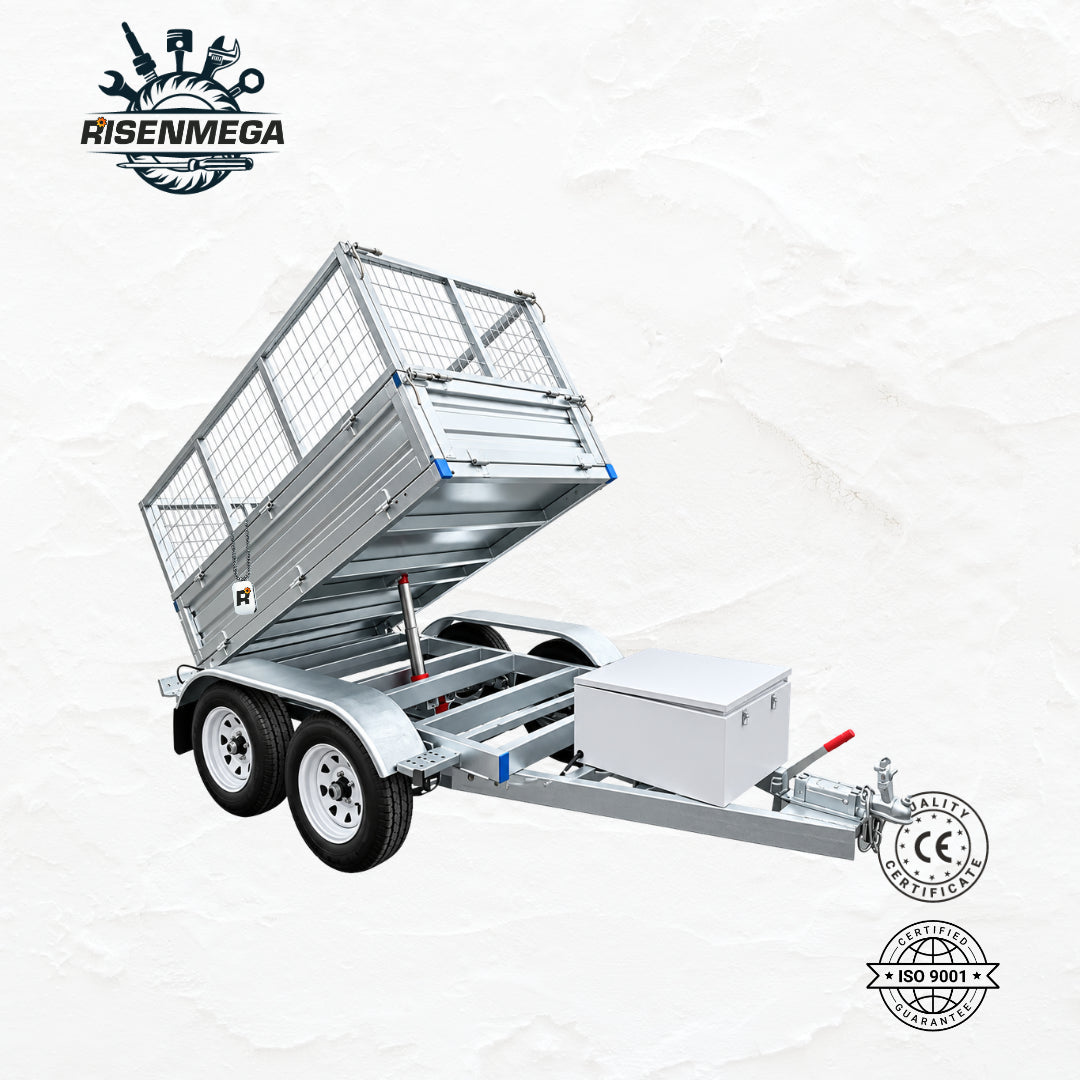

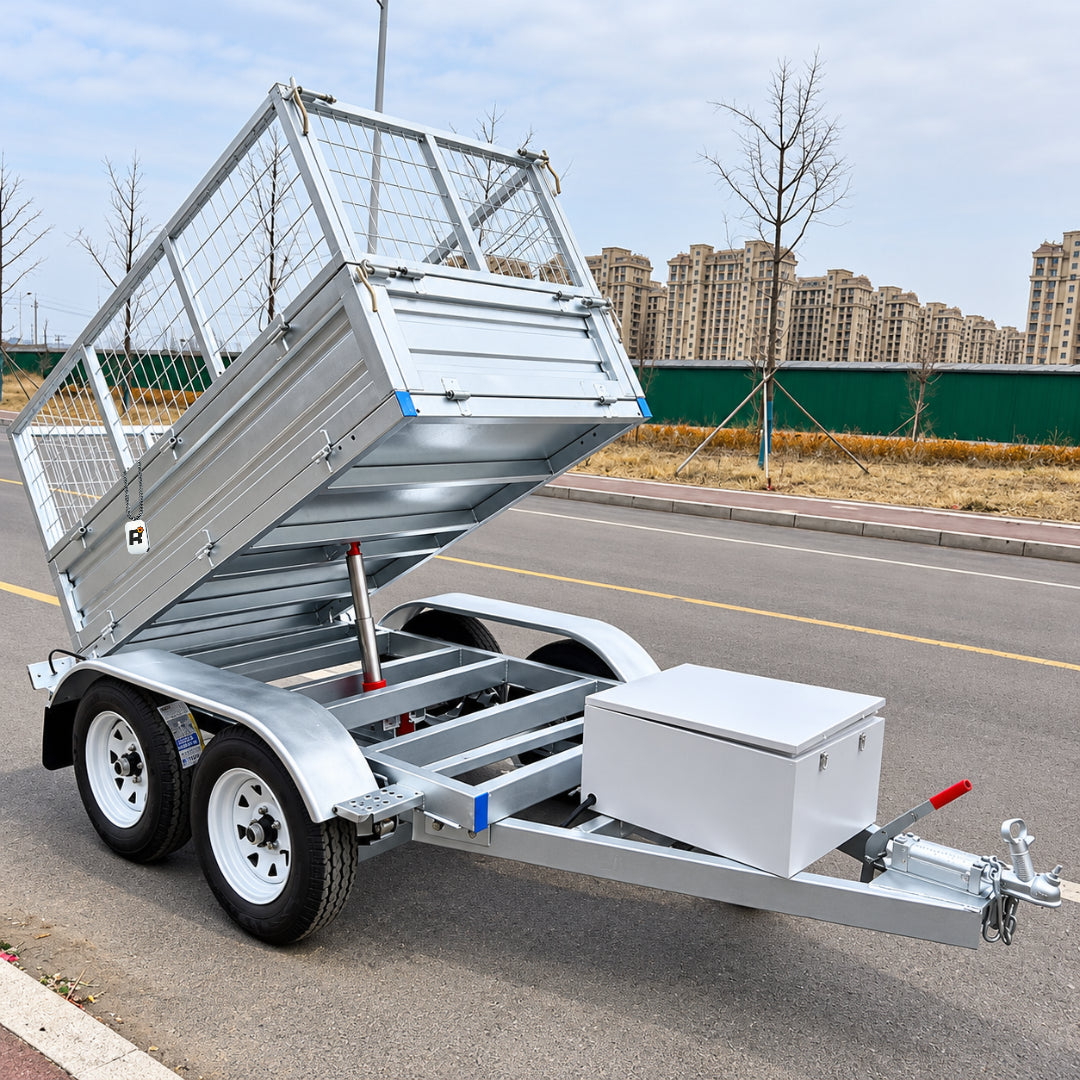

The box lifts on a hydraulic ram and empties loose material in one pass. The raised photo shows the cross members and ram, so you can see how the body is carried.
- Fully welded body and chassis, hot-dip galvanized
- 50 × 100 × 3 mm main beam, 100 × 50 × 3 mm drawbar
Removable cage and drop-down doors

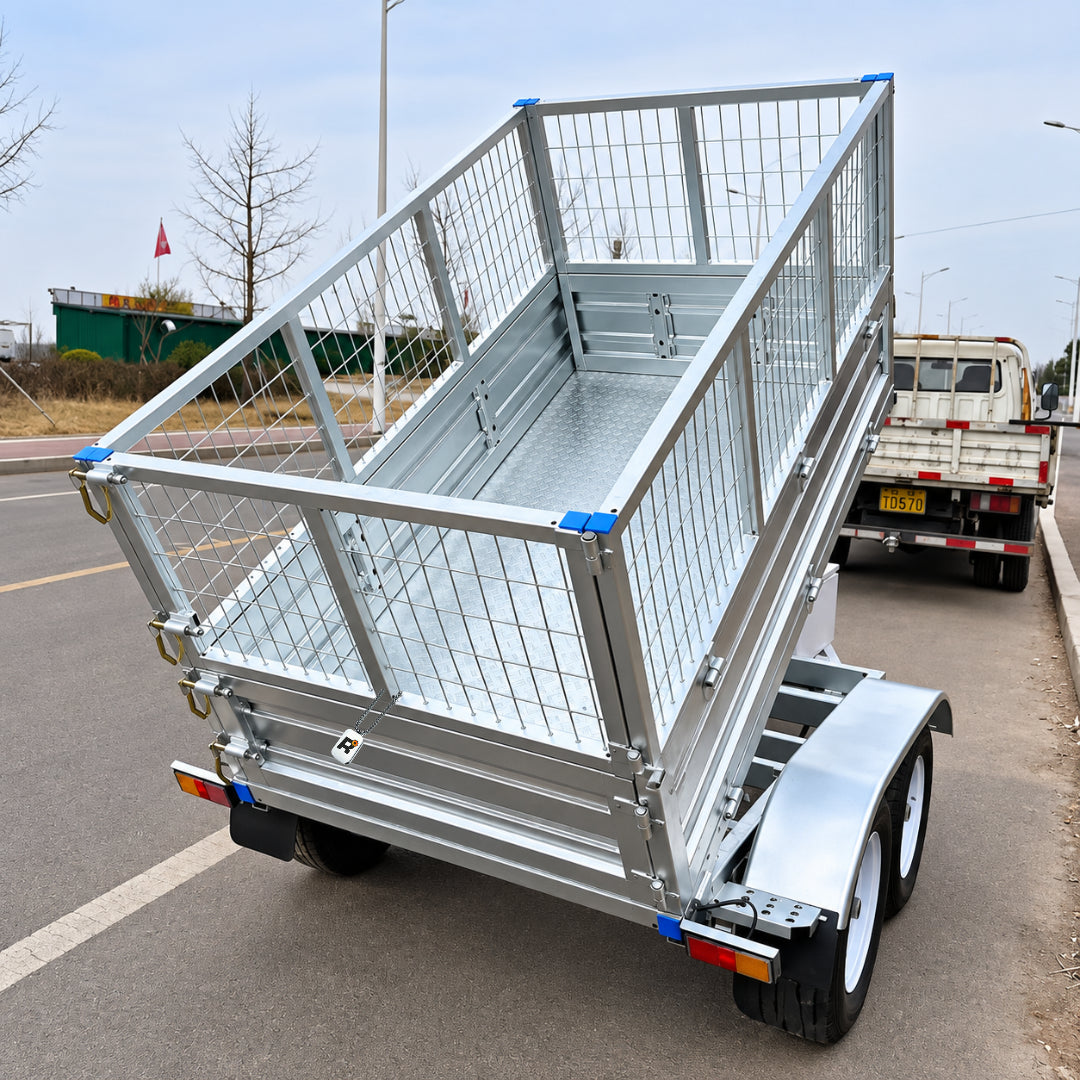

The mesh cage (40 × 40 mm tube) sits on the box side and comes off when you want a low-sided trailer. The front and rear doors drop down and can be removed for easy loading.
- Body size made to your requirement
- 2.5 mm patterned (anti-slip) plate floor

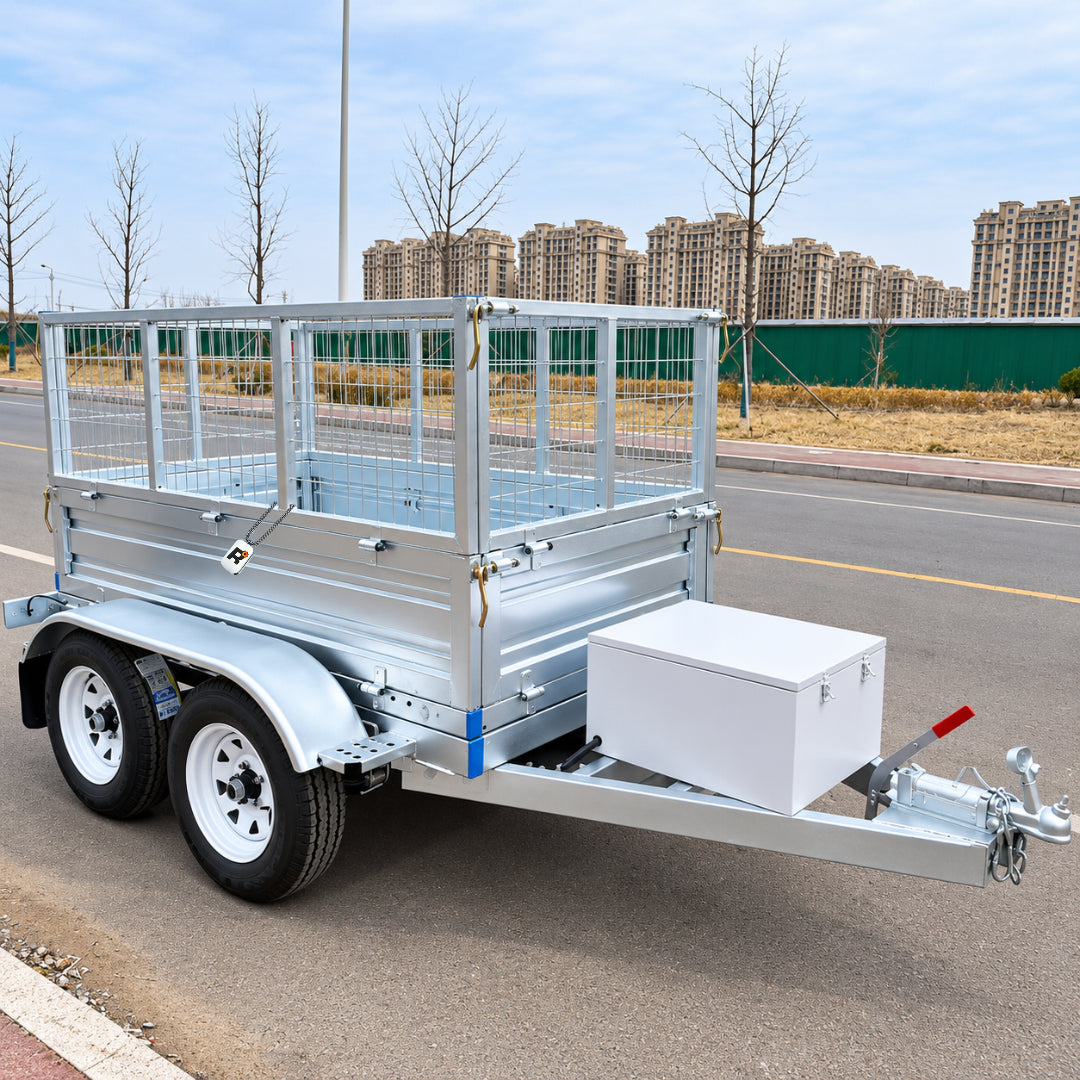

Drawbar, jockey wheel and lighting
A 1300 mm drawbar carries the coupler and a 1500 lb dual-wheel jockey wheel for easy parking. LED lights are fitted, and the plug can be fitted as an EU 7-pin, US 7-pin or Australian flat 7-pin.
- Plug type selectable at order
- Steel toolbox shown on the drawbar in the photos
Electric brakes, leaf springs and 185R14LT tyres
The trailer runs on 185R14LT tyres with 10-inch electric brake hubs on a 60 mm hot-dip galvanized round-tube high-speed axle. A 5-leaf hot-dip galvanized spring set carries the load.
- Anti-loosening nuts on the wheels
- High-speed bearings packed with a measured amount of Mobil grease
Built to work, built to last
Safe, full welding
The body and chassis are fully welded with a high-precision process.
Corrosion protection
Hot-dip galvanizing helps resist rust in wet and outdoor working conditions.
Hard-wearing floor
A 2.5 mm patterned plate floor gives grip and takes wear.
Secure fastening
Anti-loosening nuts help keep fixings tight under road vibration.
Smooth running
High-speed bearings are filled with a measured amount of Mobil grease.
Made to your size
Body size, payload and axle setup are all built to order. Tell us what you need to carry.
Specifications
| Type | Hydraulic tipping cage box trailer, built to order |
|---|---|
| Body size | Customisable. Inner and outer dimensions made to your requirement |
| Payload | Customisable |
| ATM and tare weight | Customisable. Confirmed on your quote |
| Tipping system | Hydraulic self-unloading |
| Surface treatment | Hot-dip galvanizing |
| Construction | Fully welded body and chassis, safe welding |
| Main beam | 50 × 100 × 3 mm |
| Drawbar | 100 × 50 × 3 mm, 1300 mm |
| Floor | 2.5 mm patterned plate |
| Doors | Removable front and rear drop-down doors |
| Cage | Removable mesh cage, 40 × 40 mm tube. Height customisable |
| Axle | 60 mm hot-dip galvanized round-tube high-speed concentric axle. Axle count customisable |
| Suspension | 5-leaf hot-dip galvanized high-strength leaf springs |
| Brakes | 10-inch electric brake hubs |
| Tyres | 185R14LT |
| Wheel fixings and bearings | Anti-loosening nuts, high-speed bearings with a measured amount of Mobil grease |
| Jockey wheel | 1500 lb dual wheel |
| Lighting | LED lights |
| Plug | EU 7-pin, US 7-pin or Australian flat 7-pin, selectable |
| Certification | CE certification |
| Customisation | Any body size and payload, built to order |
| Toolbox | Available on request |
Photos show the configuration. Every trailer is built to order. Size, payload and axle setup change with your requirement, and other figures are confirmed on your quote. Road registration rules differ by country, so confirm local requirements before towing.
Cage tipper trailer questions
What is a cage tipper trailer?
It is a box trailer with mesh cage sides and a body that tips to unload. You carry the load like a normal box trailer, then tip the body to empty it. In North America this type is often called a dump trailer.
How much can this trailer carry?
Payload is customised to your requirement and stated on your quote. Dense materials such as wet soil and gravel are heavy, so part-fill the box and keep the total under the payload.
Does it tip hydraulically?
Yes. The body is hydraulic self-unloading and lifts on a ram.
Can I remove the cage and doors?
Yes. The mesh cage is removable, and the front and rear drop-down doors can be removed for easy loading.
Can I order a different size or payload?
Yes. Every trailer is built to order, so body size and payload are made to what you need. Send us the dimensions and the load you plan to carry.
Which plug and tow connection does it use?
You can choose an EU 7-pin, US 7-pin or Australian flat 7-pin plug when you order.
Is this trailer CE certified?
RISENMEGA lists CE certification for this trailer. Contact us to confirm the certificate details for your market, and check your local road registration rules before towing.
How do I get a quote?
Use the quote button below and tell us your destination market, tow vehicle, body size and payload. We will confirm the specification and options.
