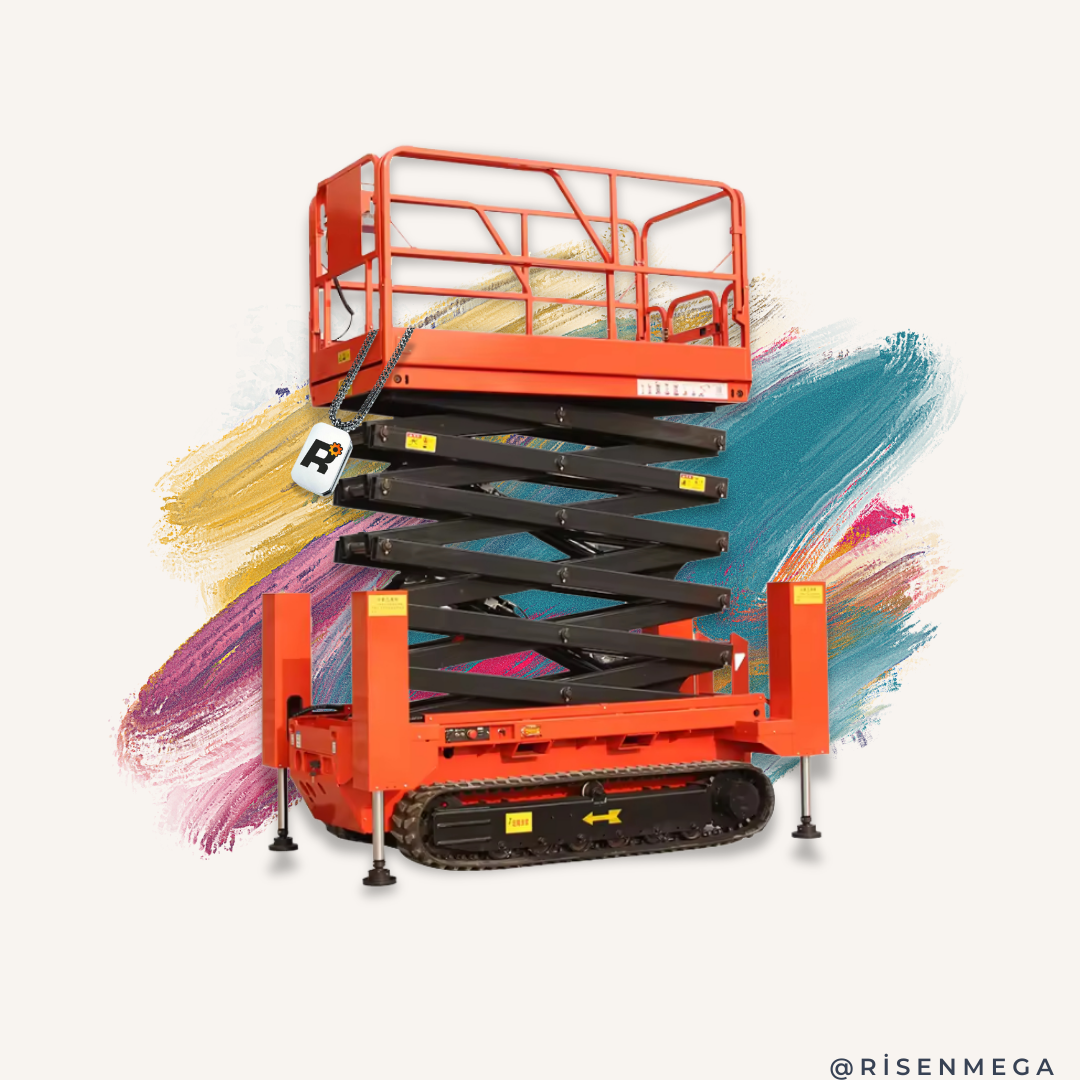

High Steel Crawler Scissor Lift Hydraulic 14M With Hydraulic Outriggers
High Steel Crawler Scissor Lift Hydraulic 14M With Hydraulic Outriggers - 6M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
High Steel Crawler Scissor Lift Hydraulic 14M With Hydraulic Outrig...
Crawler Self-Propelled Scissor Lift
Q355 Steel High End Electrophoresis process Aerial work platforms, Mature operating systems for staff security
Description
Description
High Steel Crawler Hydraulic Scissor Lift 10M Parameters:
- Q355 High strength manganese steel construction.
- High-strength steel tracks for all rugged surfaces.
- GPS positioning,4*2 drive, Non-marking tires.
- High load capacity allows 3 people to work at the same time.
- Drawer chassis for easy maintenance.
| Battery: | Level I Lead-acid Battery |
| Working Time: | 6 Hours |
| Power: | Electric |
| Capacity: | 320 KG |
| Lift Height: | 14 Meters |
| Lift speed: | 84/38 sec |
| Maximum Working Angle: |
1.5°-3° |
| Travel Speed: | 1.8 km/h |
| Overall dimensions: | 2731*1661*2164 mm |
| Climb: | 30° |
| Weight: | 3700 KG |
| Charging time: | 6-8 Hours |
| Power & Voltage: | 48V/4.5kw |
| battery level: | 48V/35A |
| axle pin: | 45# Round Steel Configuration |
| Storage batteries: | 8*12V/200Ah |
Safety System:
- Automatic braking system
- Emergency descent system
- Emergency stop button
- Fuel line explosion-proof system
-
Fault diagnosis system
- Tilt protection system
- Charging protection system
