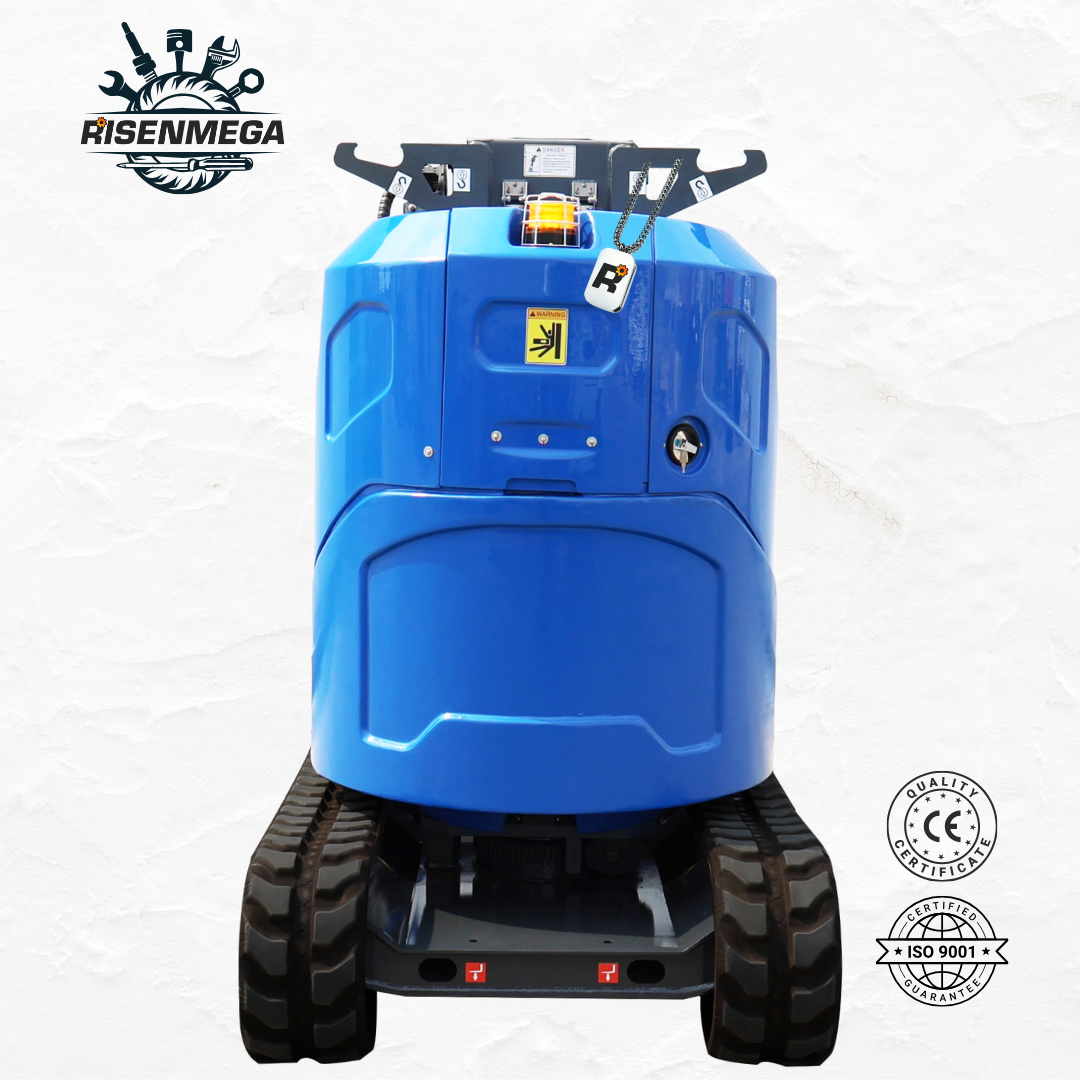

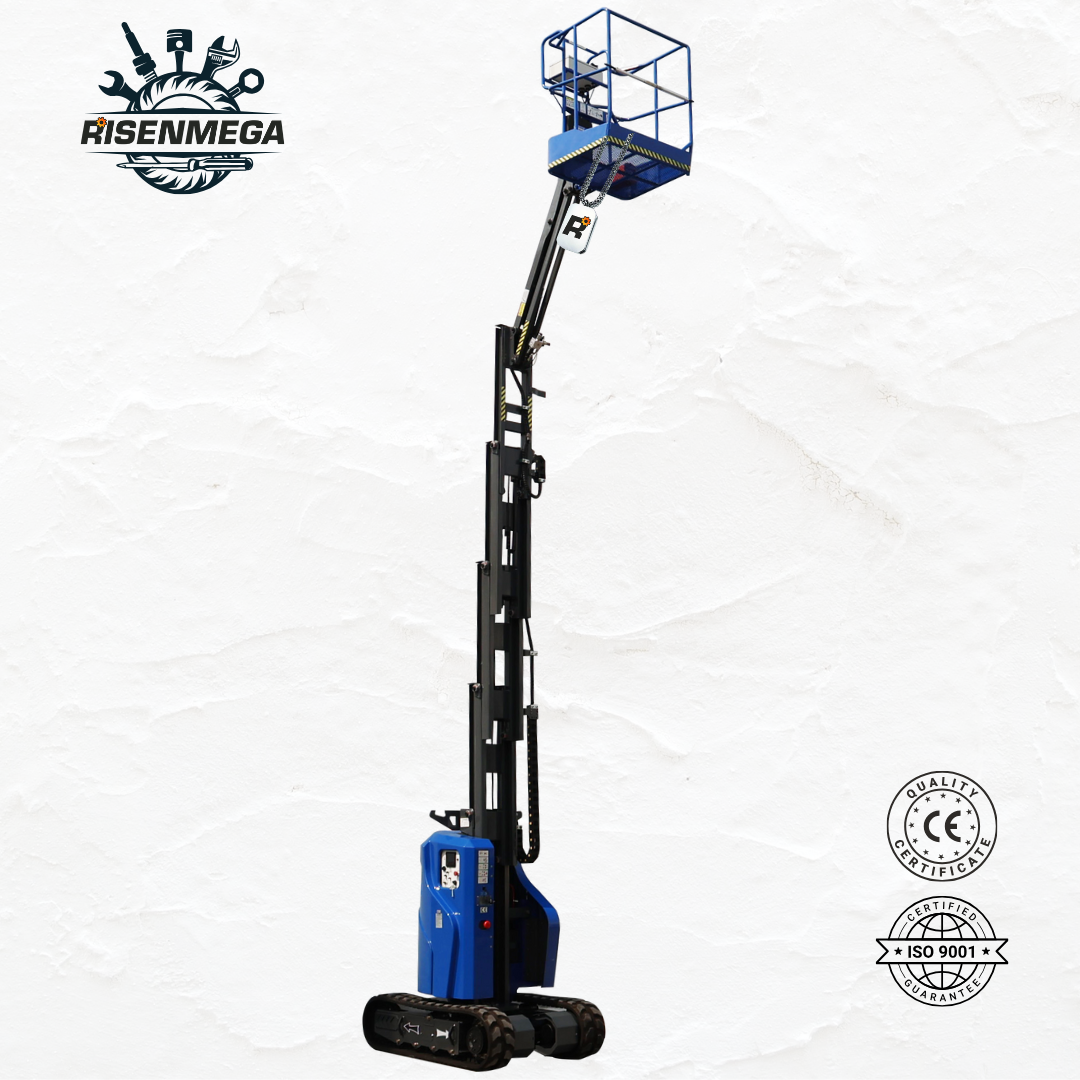

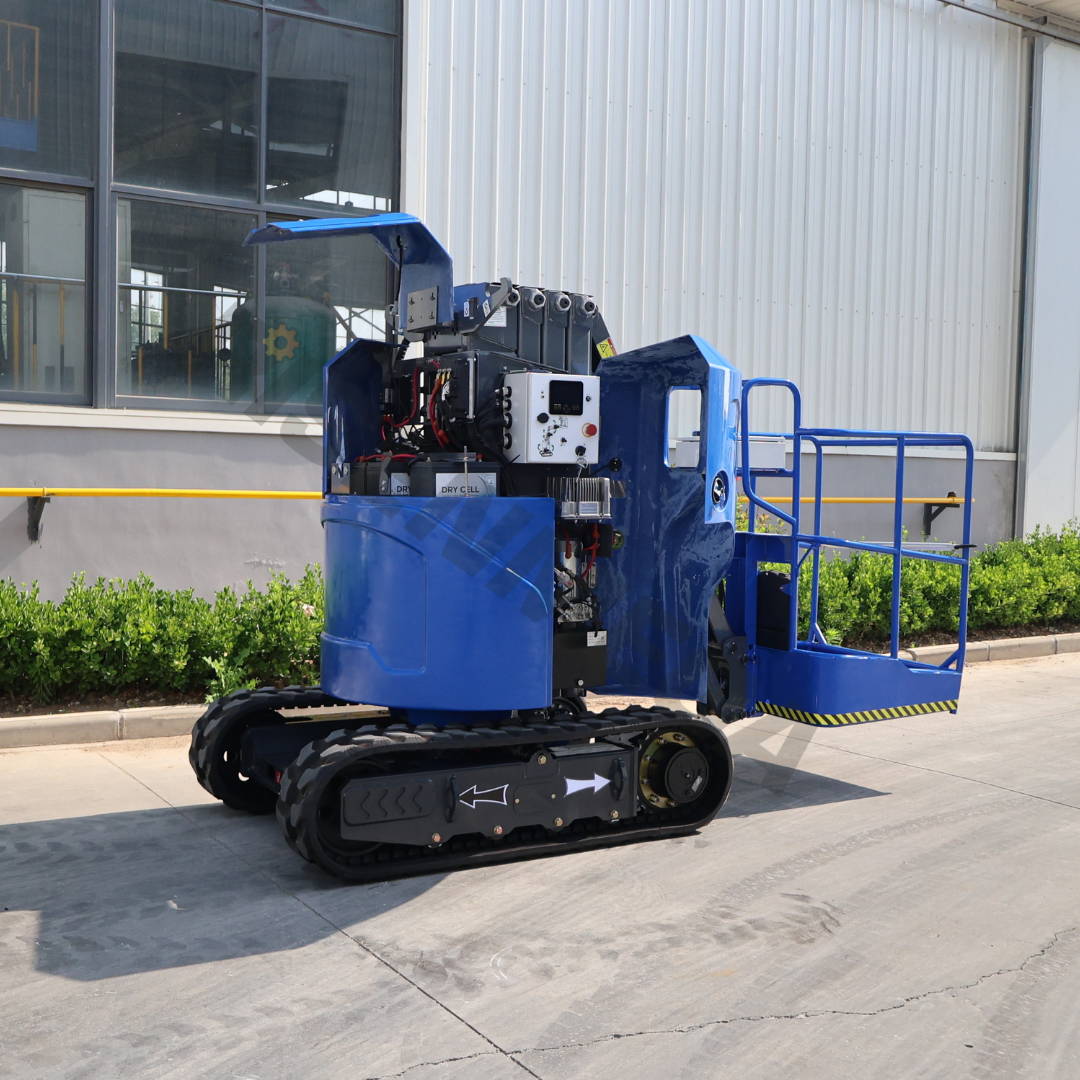

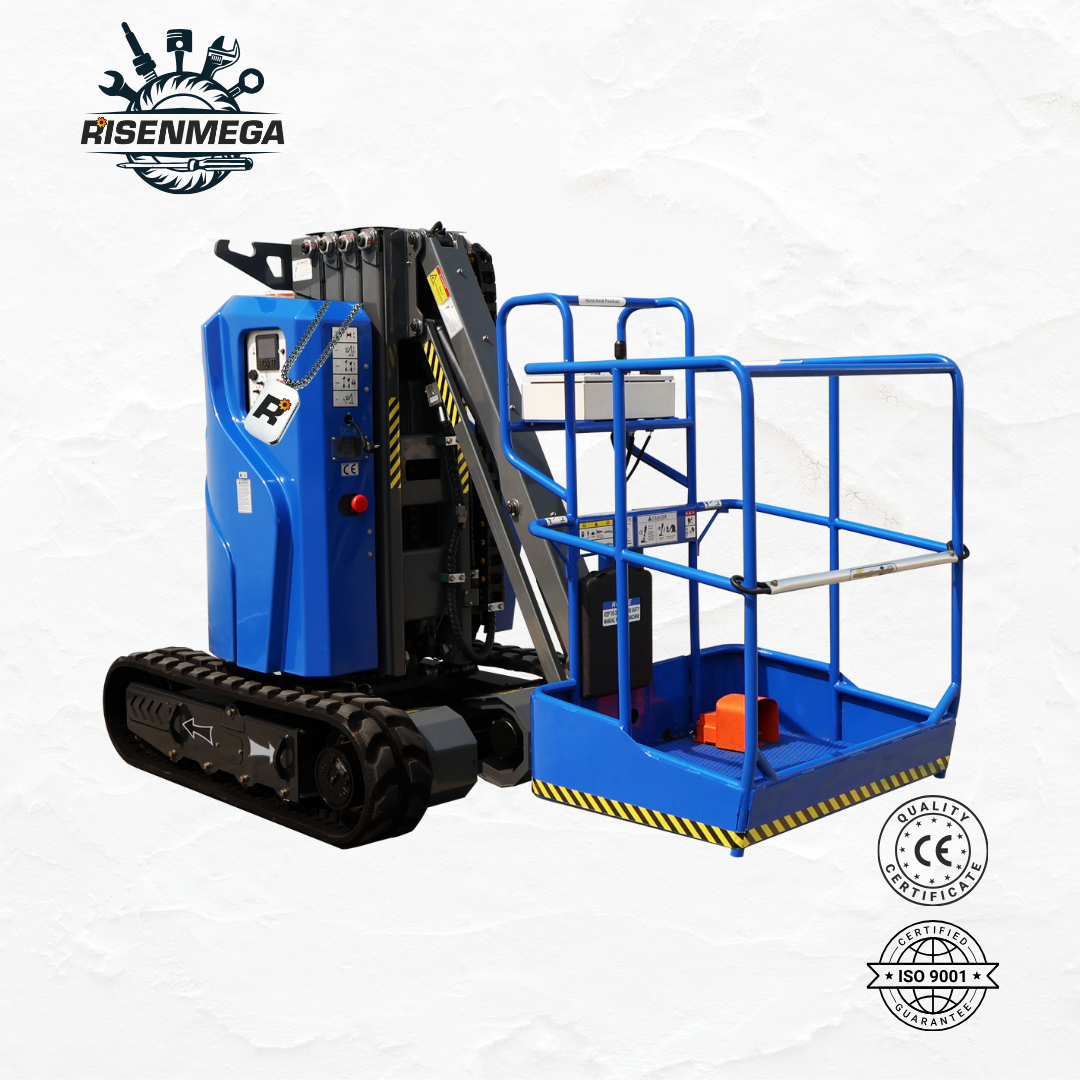

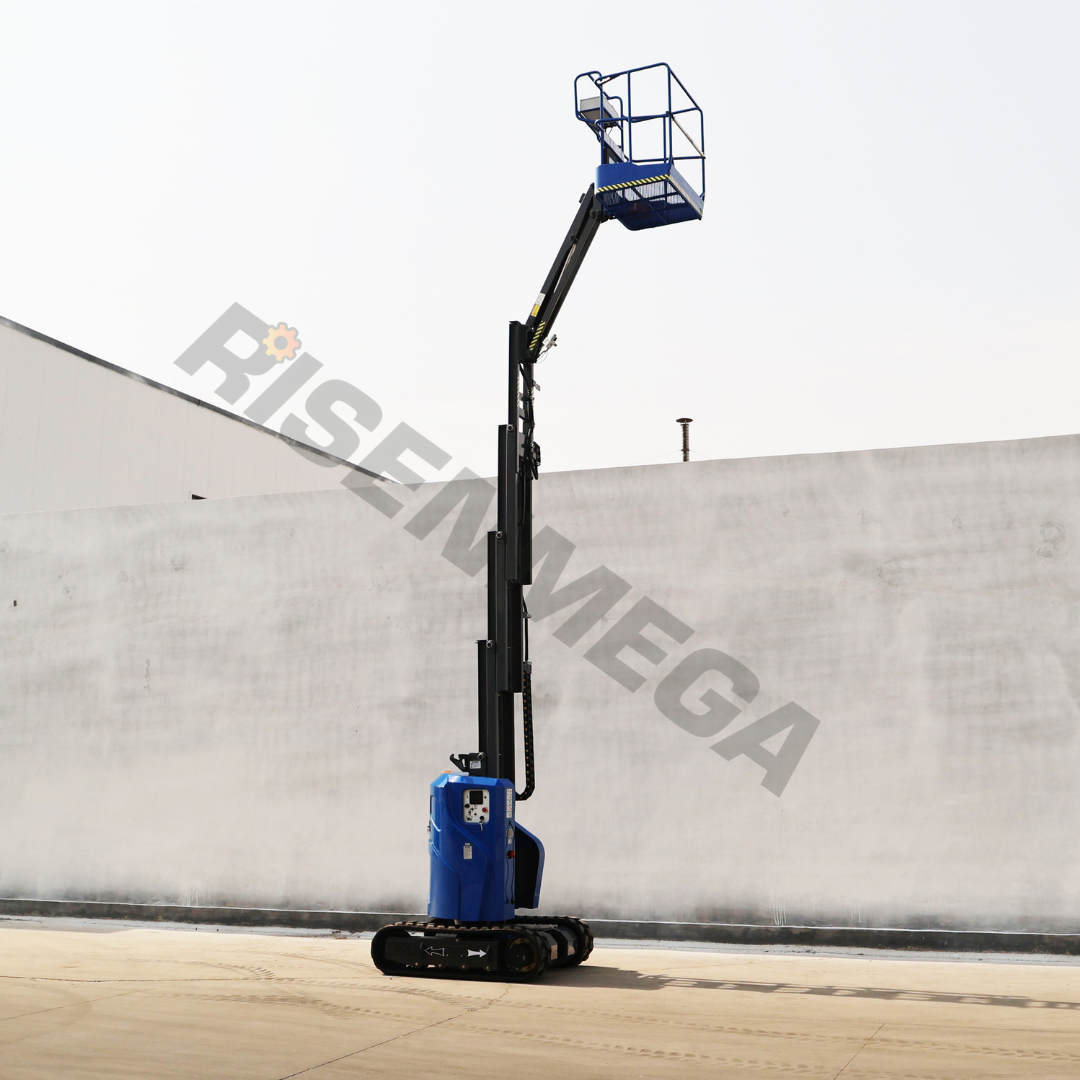

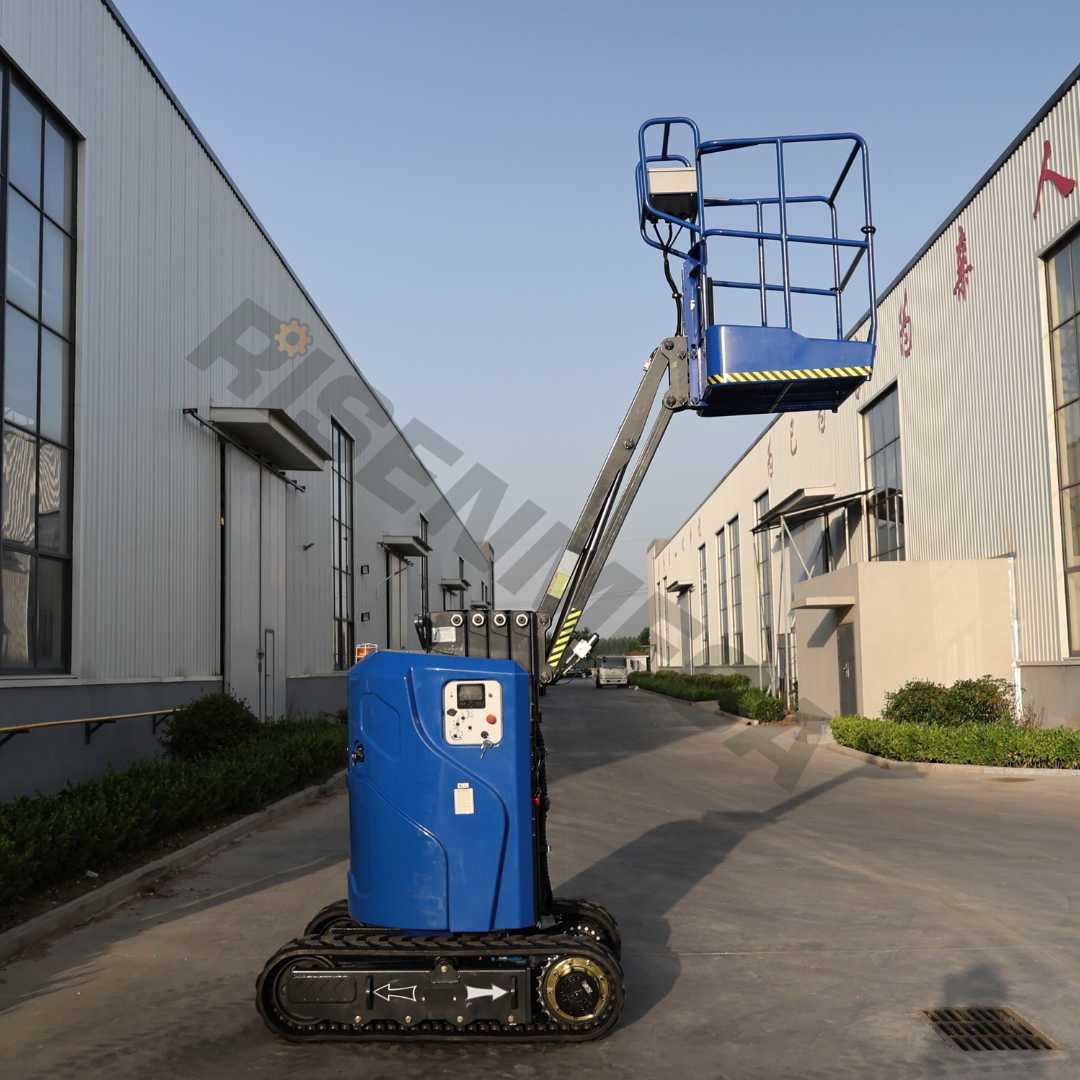

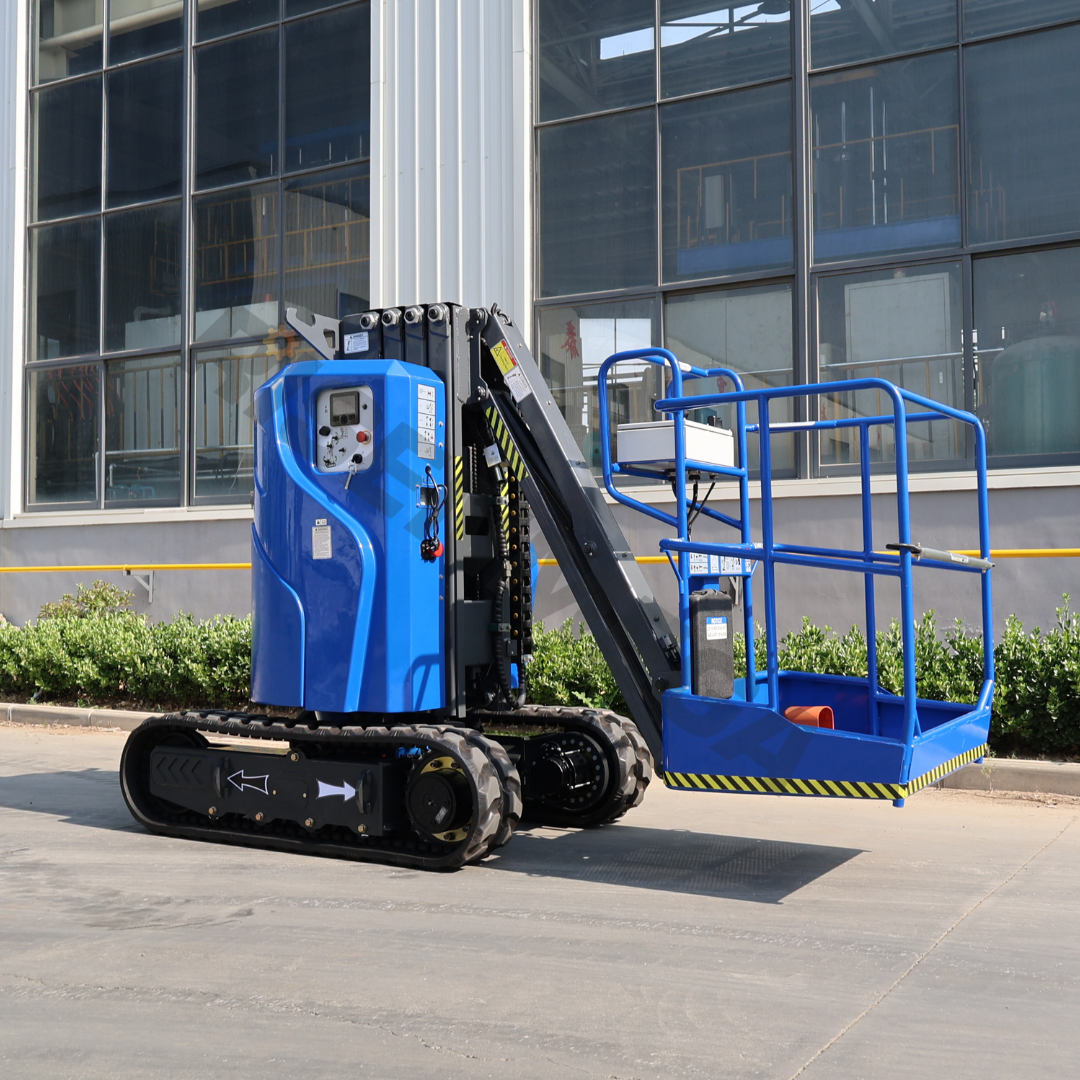

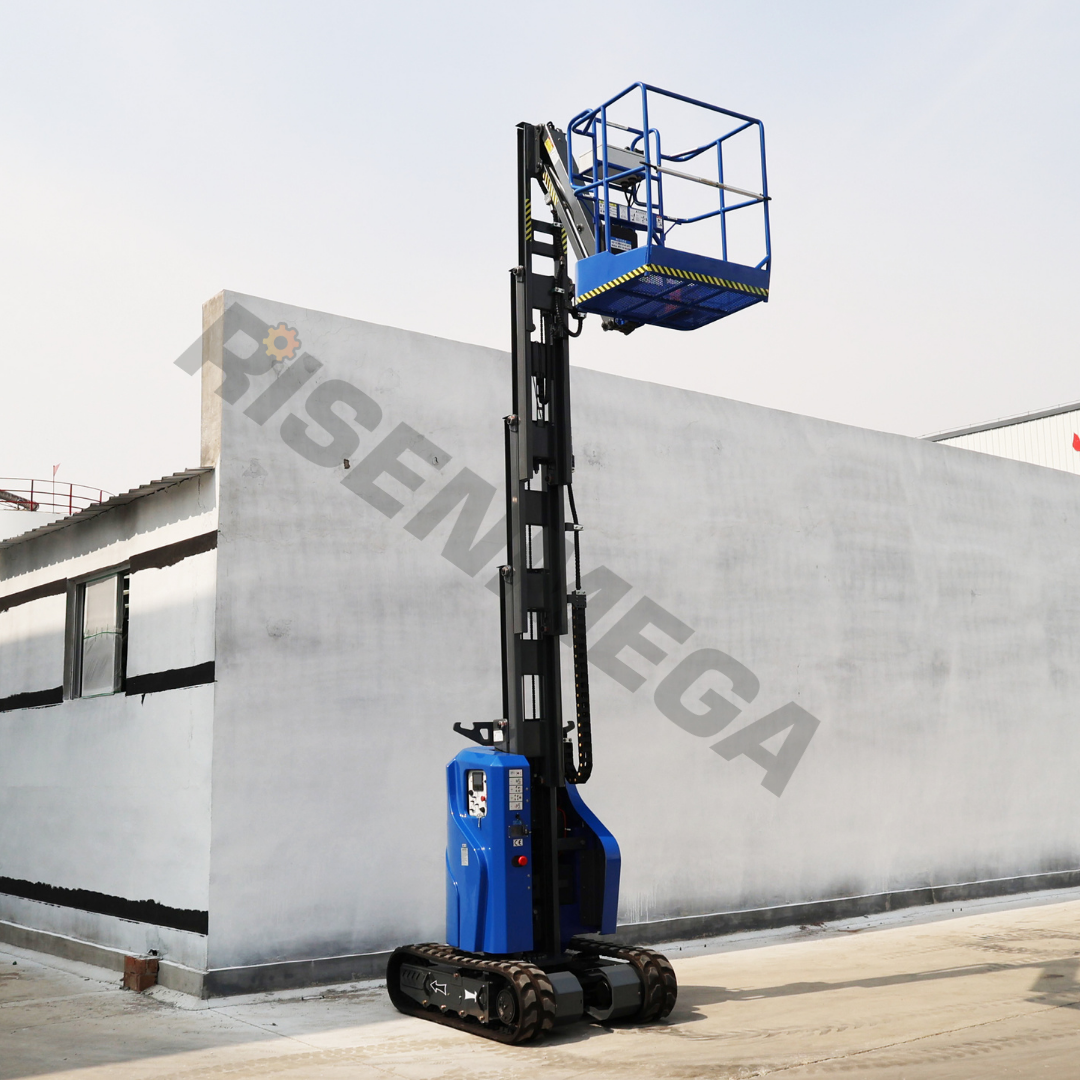

High End P9C Full Electric Gantry Crawler Vertical Mast Lift With JLB

Product support includes customization of lifting, load capacity, walking, clicking, engine, plug, color, voltage, charging time, hydraulic cylinder, and other components.


Lift Height
Capacity

Payment Way

After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.

Delivery and Shipping

Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!

Aluminum Alloy Lift

This Machine Separate Regular and High End, one is Q235 Steels and Standard Parameters, another is Q500D Steels with intelligent system.

Description

High End P9C Full Electric Gantry Crawler Vertical Mast Lift With JLB Parameters:

  • Q355 Stronger manganese steel construction.
  • Non-marking Crawler, 220° Turret Rotation
  • Proportional Controls, Automatic pothole protection, drive at full height.
  • Flashing Beacon, Charging Indicator, Hour Meter.
  • Automatic brake system, Swing Out Components Cover.
Wheel base: 1150 mm
Battery DC: 48V/220ah
Power: Electric
Capacity: 200 KG
Lift Height: 7.2 Meters
Travel Speed: 1.6 km/h
Wheels:

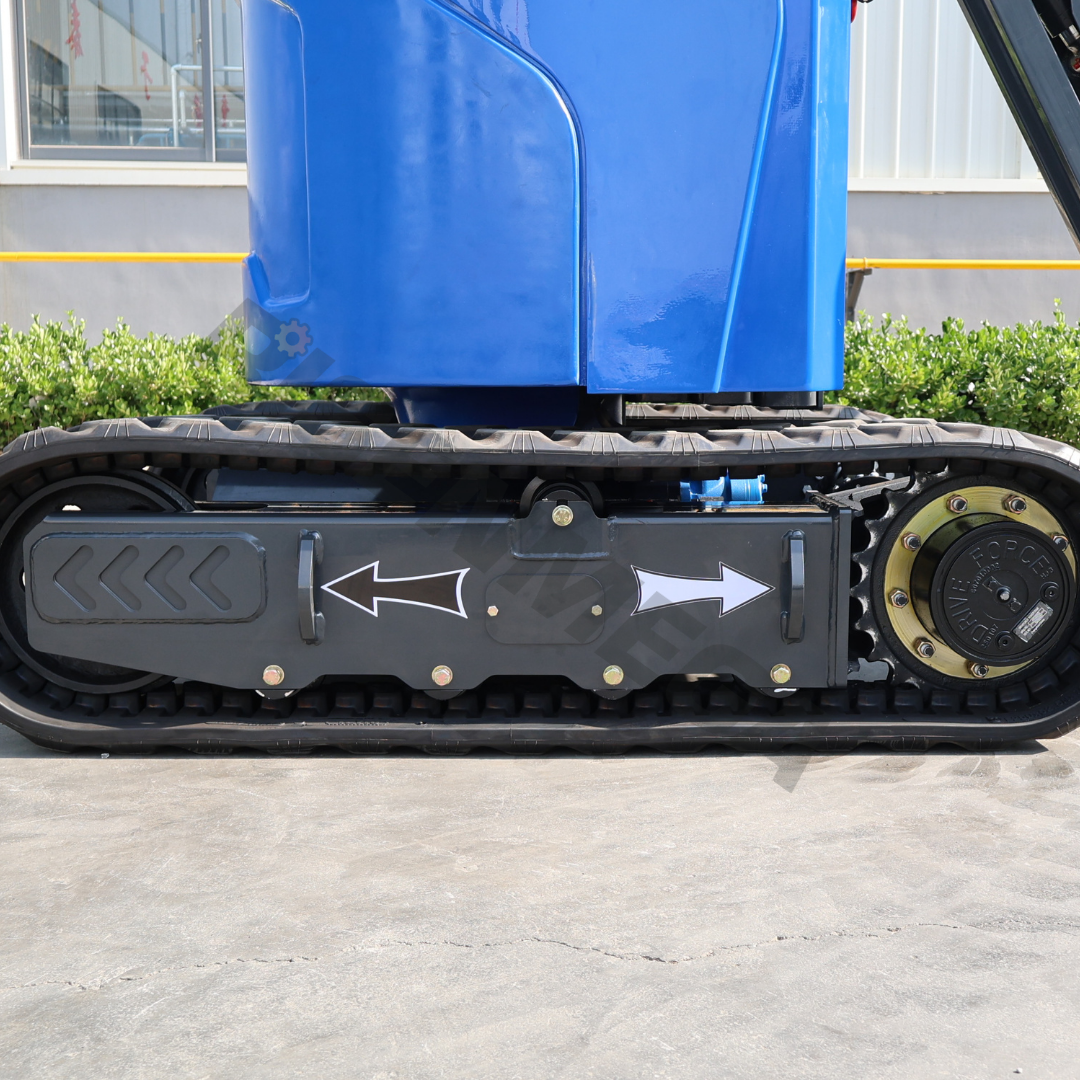

Crawler
Charger: 48V/35Ah
Overall dimensions: 2750*1150*1980 mm
working platform: 800*930 mm
Weight: 2800 KG
Charging time: 6 Hours
Power & Voltage: 48VDC/3KW
Steels: Q355
axle pin: 45# Round Steel Configuration
Turret Rotation / Max working slope 220°/ X-2° Y-2°

More Safety:

  • Automatic Braking System, Emergency Decent System.
  • Tubing Explosion-Proof System, Fault Diagnosis System.
  • Charging Protection System
  • Tie-down and Lifting points
  • Emergency stop button
  • Manual Brake Release
