High-End Electric Articulated Boom Lift Curl Arm 12M
High-End Electric Articulated Boom Lift Curl Arm 12M - 9M / 230kg is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!

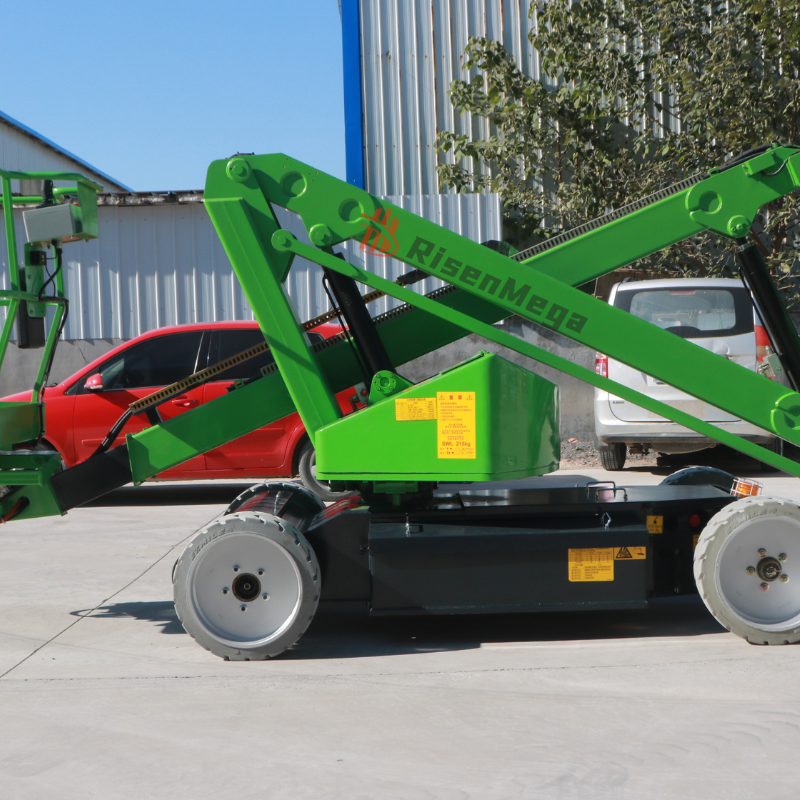

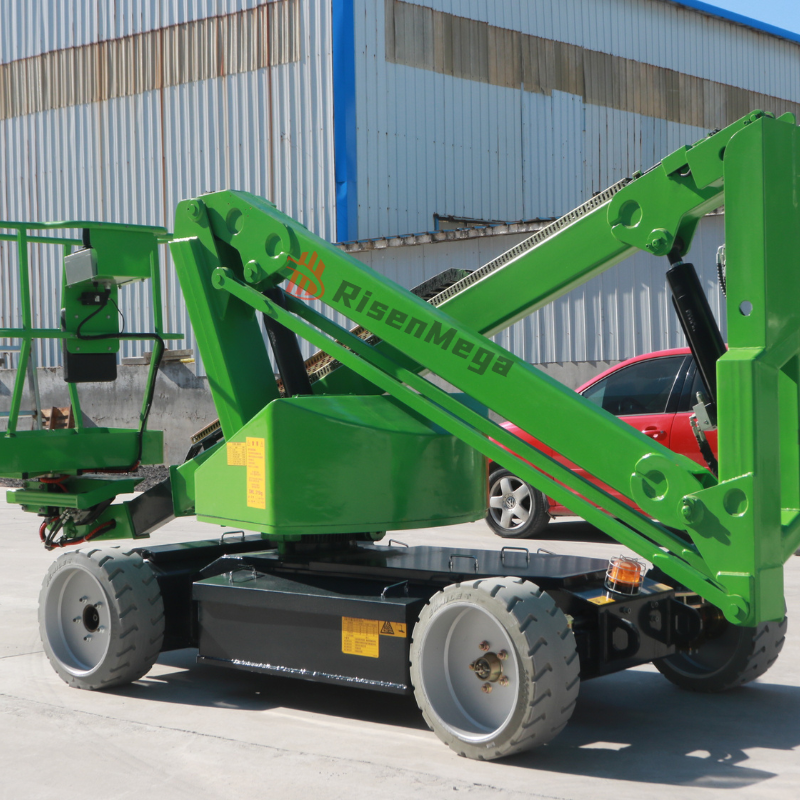

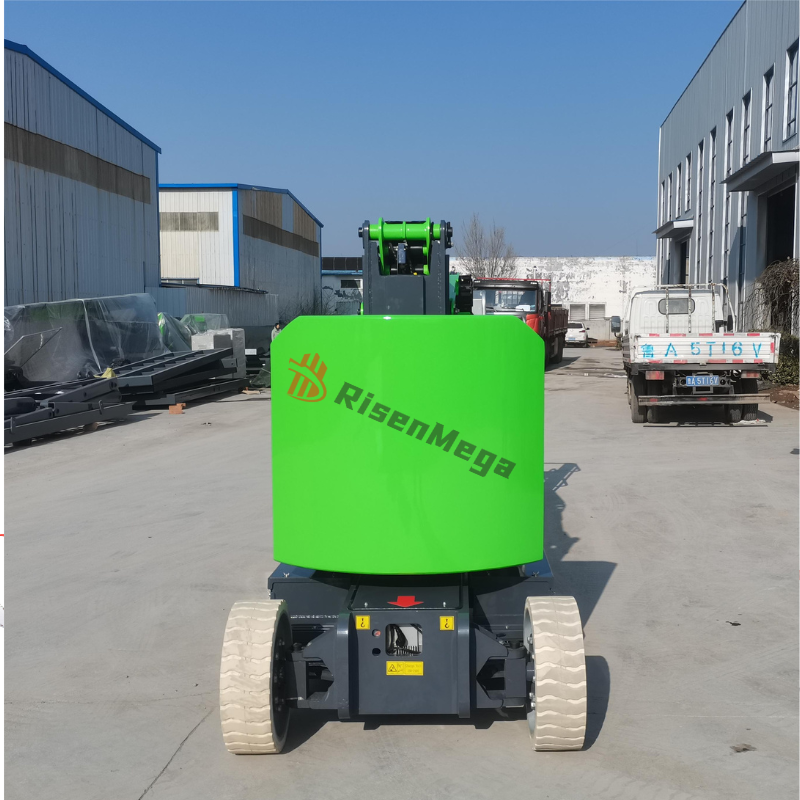

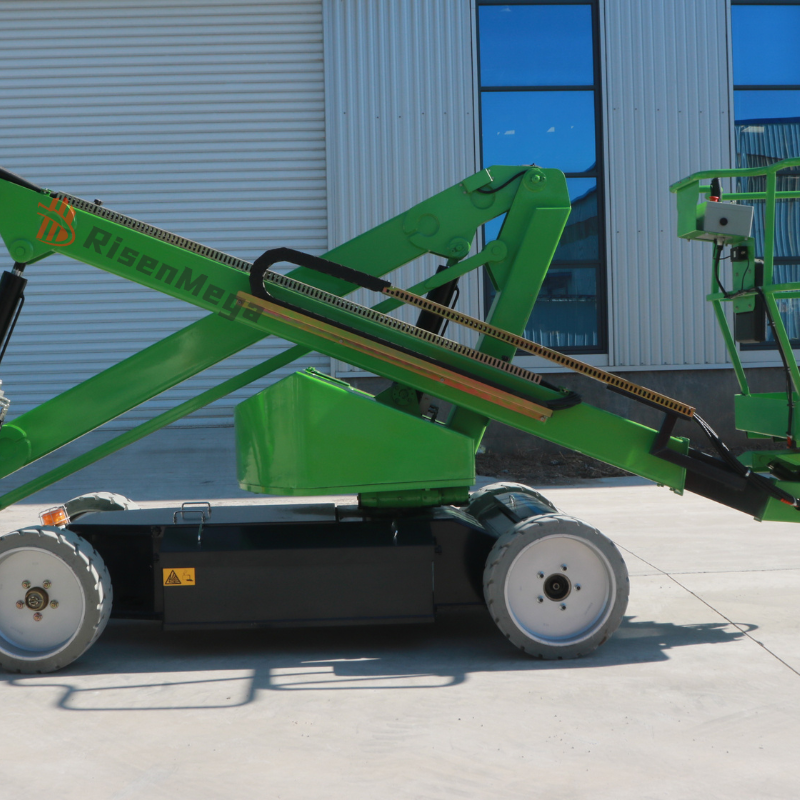

High-End Electric Articulated Boom Lift Curl Arm 12M
Electric Articulated Boom Lift
Q500D Stronger Steel Electrophoresis process Aerial work platforms, 360° rotation
Description
Description
12M High-End Electric Articulated Boom Lift Parameters:
- It is equipped with ± 90°rotating aluminum platform.
- “Σ-shaped”boom with compact structure and flexible extension.
- 360° Rotary Turntable, Above Platform Controller.
- High load capacity allows 2 people to work at the same time.
- Curtis Drive Controller,Main power unit BUCHER
- Aluminum Pockets
-
Q500D It adopts high strength steel.
| Battery: | Tianneng Lead-acid Battery |
| Working Time: | 4 Hours |
| Power: | Electric |
| Capacity: | 215 KG |
| Lift Height: | 12 Meters |
| Travel Speed: | 4-5 km/h |
| Wheelbase: |
2M |
| Turntable rotation angle: | 360° |
| Overall dimensions: | 4040*1500*2050 mm |
| Platform size: | 1200*800*1100 mm |
| Weight: | 5200 KG |
| Charging time: | 5-6 Hours |
| Power & Voltage: | 24V/4kw |
| battery level: | 8*6V 220Ah |
| Climb: | 35% |
| Wheels: | 23*10*16 |
Safety System:
- Automatic braking system
- Emergency descent system
- Emergency stop button
- Fuel line explosion-proof system
-
Fault diagnosis system
- Tilt protection system
- Charging protection system
