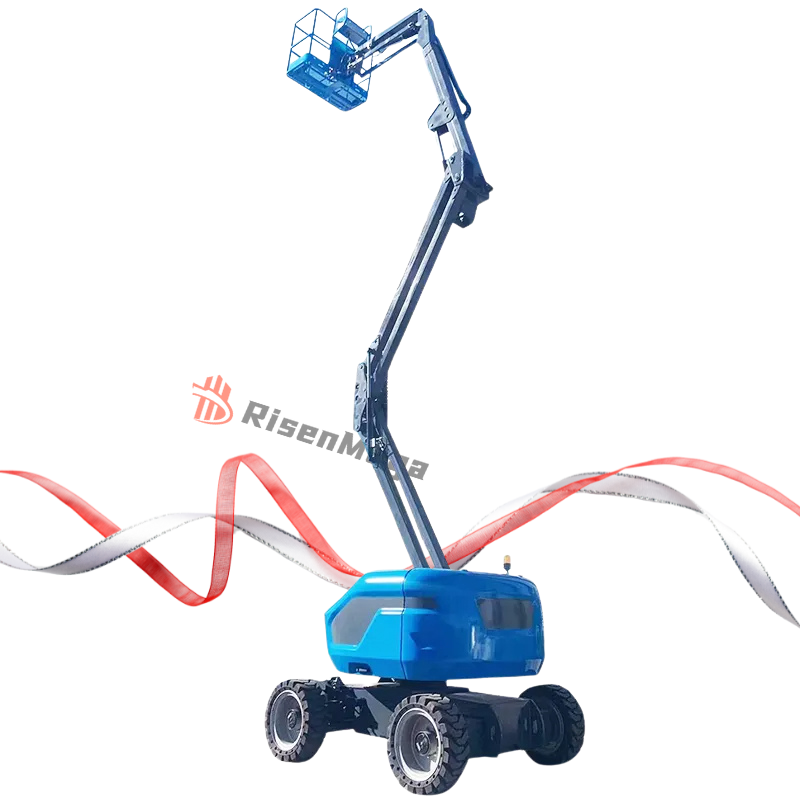

High-End Diesel Curved Arm Articulated Boom Lift 30M
High-End Diesel Curved Arm Articulated Boom Lift 30M - 14M / 230KG is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
High-End Diesel Curved Arm Articulated Boom Lift 30M
Electric Articulated Boom Lift
Q500D Stronger Steel Electrophoresis process Aerial work platforms, 360° rotation
Description
Description
30M High-End Diesel Curved Arm Articulated Boom Lift Parameters:
- 480KG loading capacity leads to simple operation.
- Strong driving power and 45% of climbing capacity make it convenient
- Automatic leveling and hydraulic rotary table
- Unique four-wheel drive traction system delivers powerful traction.
- Dual cylinders with hydraulic steering system, 150L fuel tank, Yangma motor.
- Environmental friendly zero emission, low noise and traceless driving
| Motor: | Yangma Motor |
| Working Time: | 8-10 Hours |
| Power: | EDiesel |
| Capacity: | 230/450 KG |
| Lift Height: | 30 Meters |
| Travel Speed: | 4.4km/h |
| Wheelbase: |
3M |
| Turntable rotation angle: | 360° |
| Overall dimensions: | 13100*2490*3220 mm |
| Platform size: | 1200*800*1100 mm |
| Weight: | 18000 KG |
| Fuel tank volume: | 240L |
| Voltage: | 54kw/2400rpm |
| Hydraulic Oil: | 85L |
| Climb: | 45% |
| Wheels: | 33*12 |
Safety System:
- Automatic braking system
- Emergency descent system
- Emergency stop button
- Fuel line explosion-proof system
-
Fault diagnosis system
- Tilt protection system
- Charging protection system
