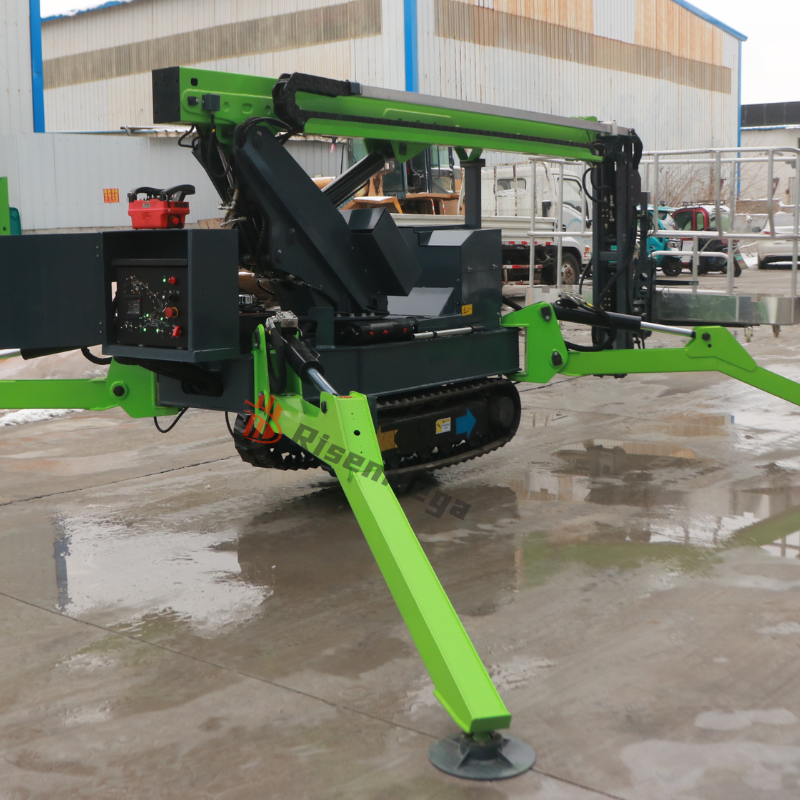

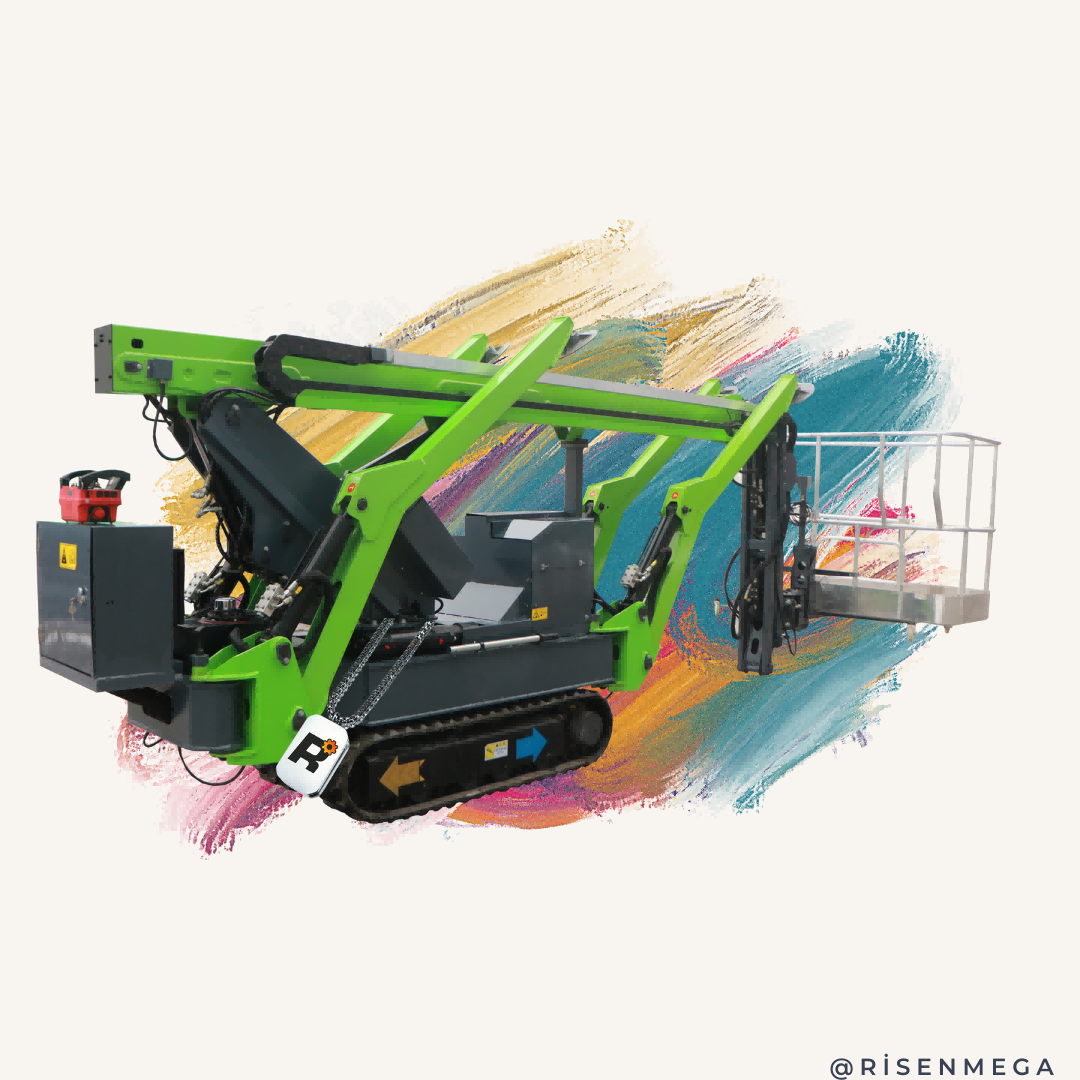

High-End Crawler Electric Curved Arm Boom Lift 8-16M

The product is a 20-30% deposit not the total price, please contact us first to determine the parameters before paying the deposit!

$5,000.00

Lift Height
Capacity

Payment Way

After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.

Delivery and Shipping

Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!

Electric Articulated Boom Lift

Q500D Stronger Steel Electrophoresis process Aerial work platforms, 360° rotation

Description

8-16M High-End Crawler Boom Lift Parameters:

  • It is equipped with ± 80° rotating aluminum platform.
  • The outrigger automatic leveling of platform.
  • 360° Rotary Turntable, Above Platform Controller.
  • High load capacity allows 2 people to work at the same time.
  • Positive Traction Four Wheel Drive, thumb stick steering
  • Aluminum Pockets
  •  Q500D It adopts high strength steel.

Battery: YiWei Lithium Battery
Working Time: 5-6 Hours
Power: Electric
Capacity: 200 KG
Lift Height: 8-16 Meters
Travel Speed: 1.5 km/h
Platform Rotation Angle:
160°
Turntable rotation angle: 360°
Overall dimensions: 4900*750*1900 mm
Platform size: 1200*800*1100 mm
Weight: 1720 KG
Charging time: 6-8 Hours
Power & Voltage: 48V/4.5kw
battery level: 4*6V 230Ah
axle pin: 45# Round Steel Configuration
Hydraulic Oil: 20L

Safety System:

  • Automatic braking system
  • Emergency descent system
  • Emergency stop button
  • Fuel line explosion-proof system
  • Fault diagnosis system
  • Tilt protection system
  • Charging protection system
