High-End Crawler Electric Curved Arm Boom Lift 14-16M
High-End Crawler Electric Curved Arm Boom Lift 14-16M - 8M / 200kg is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
High-End Crawler Electric Curved Arm Boom Lift 14-16M
Electric Articulated Boom Lift
Q500D Stronger Steel Electrophoresis process Aerial work platforms, 360° rotation
Description
Description
8-16M High-End Crawler Boom Lift Parameters:
- It is equipped with ± 80° rotating aluminum platform.
- The outrigger automatic leveling of platform.

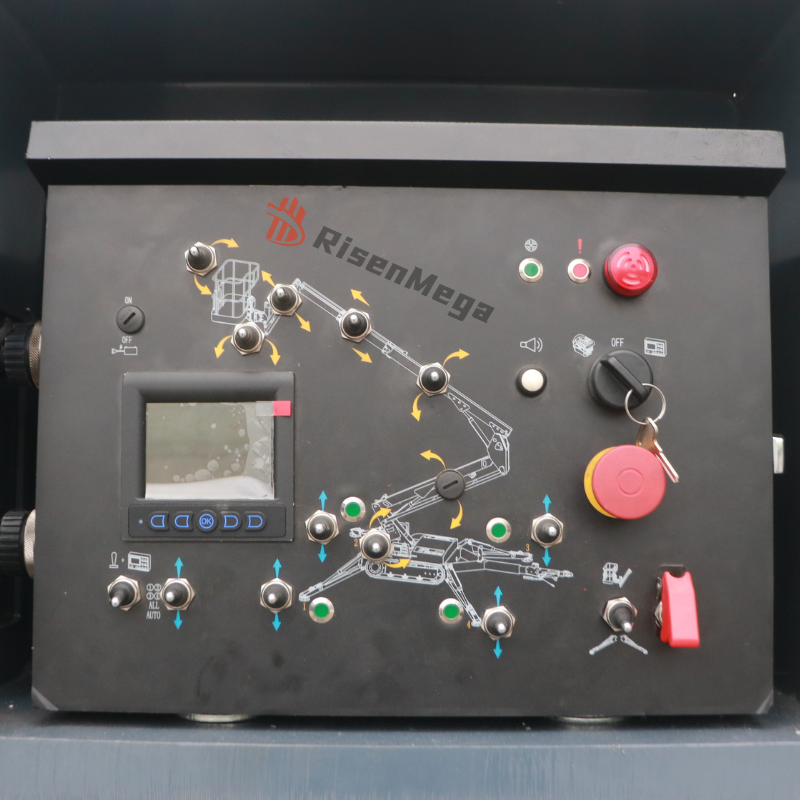

- 360° Rotary Turntable, Above Platform Controller.
- High load capacity allows 2 people to work at the same time.
- Positive Traction Four Wheel Drive, thumb stick steering
- Aluminum Pockets
-
Q500D It adopts high strength steel.
| Battery: | YiWei Lithium Battery |
| Working Time: | 5-6 Hours |
| Power: | Electric |
| Capacity: | 200 KG |
| Lift Height: | 14-16 Meters |
| Travel Speed: | 1.5 km/h |
| Platform Rotation Angle: |
160° |
| Turntable rotation angle: | 360° |
| Overall dimensions: | 5200*850*2000 mm |
| Platform size: | 1200*800*1100 mm |
| Weight: | 1900 KG |
| Charging time: | 6-8 Hours |
| Power & Voltage: | 48V/4.5kw |
| battery level: | 4*6V 230Ah |
| axle pin: | 45# Round Steel Configuration |
| Hydraulic Oil: | 20L |
Safety System:
- Automatic braking system
- Emergency descent system
- Emergency stop button
- Fuel line explosion-proof system
-
Fault diagnosis system
- Tilt protection system
- Charging protection system
