Galvanised Cage Trailer with Loading Ramp
Description
Description
Galvanised Cage Trailer with Loading Ramp

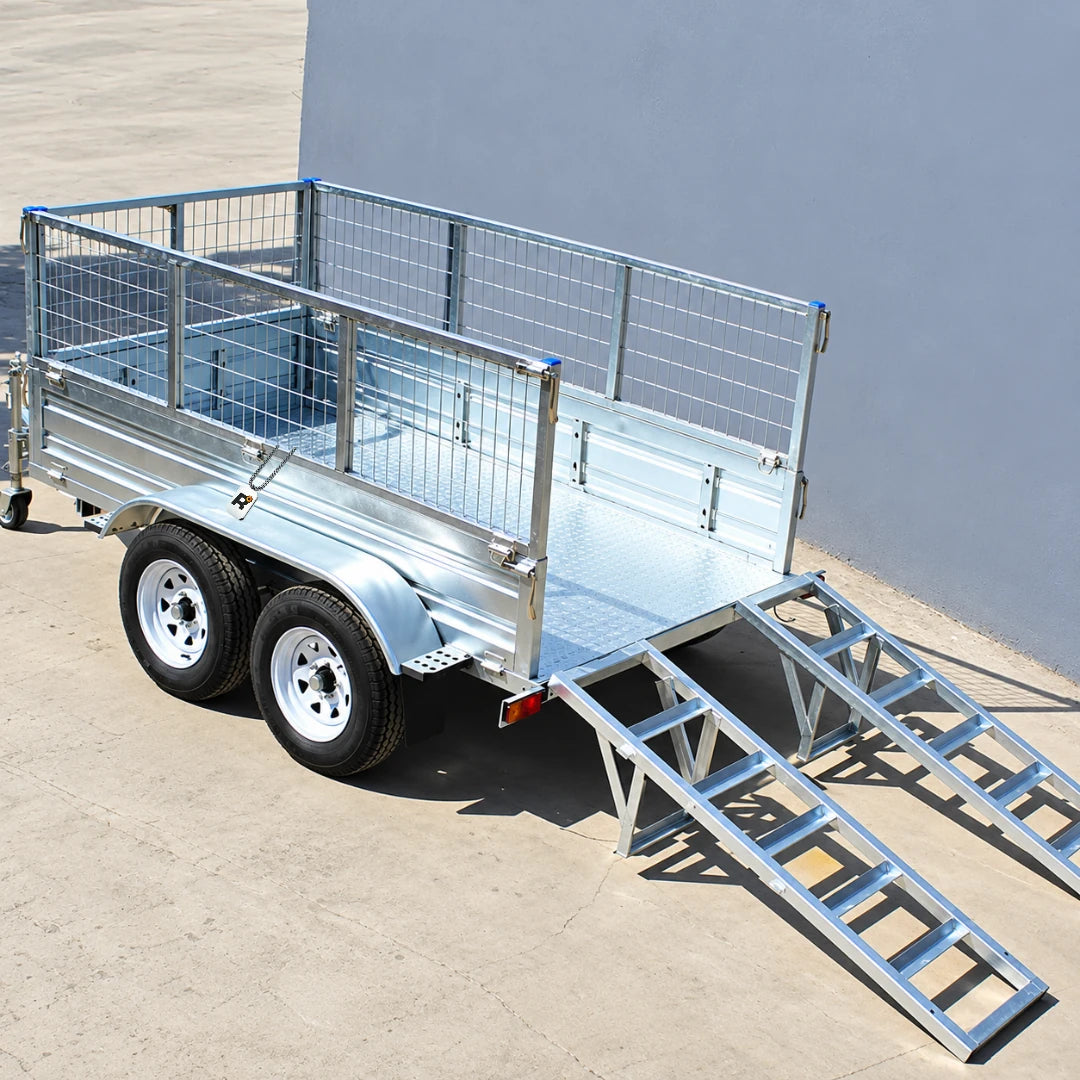

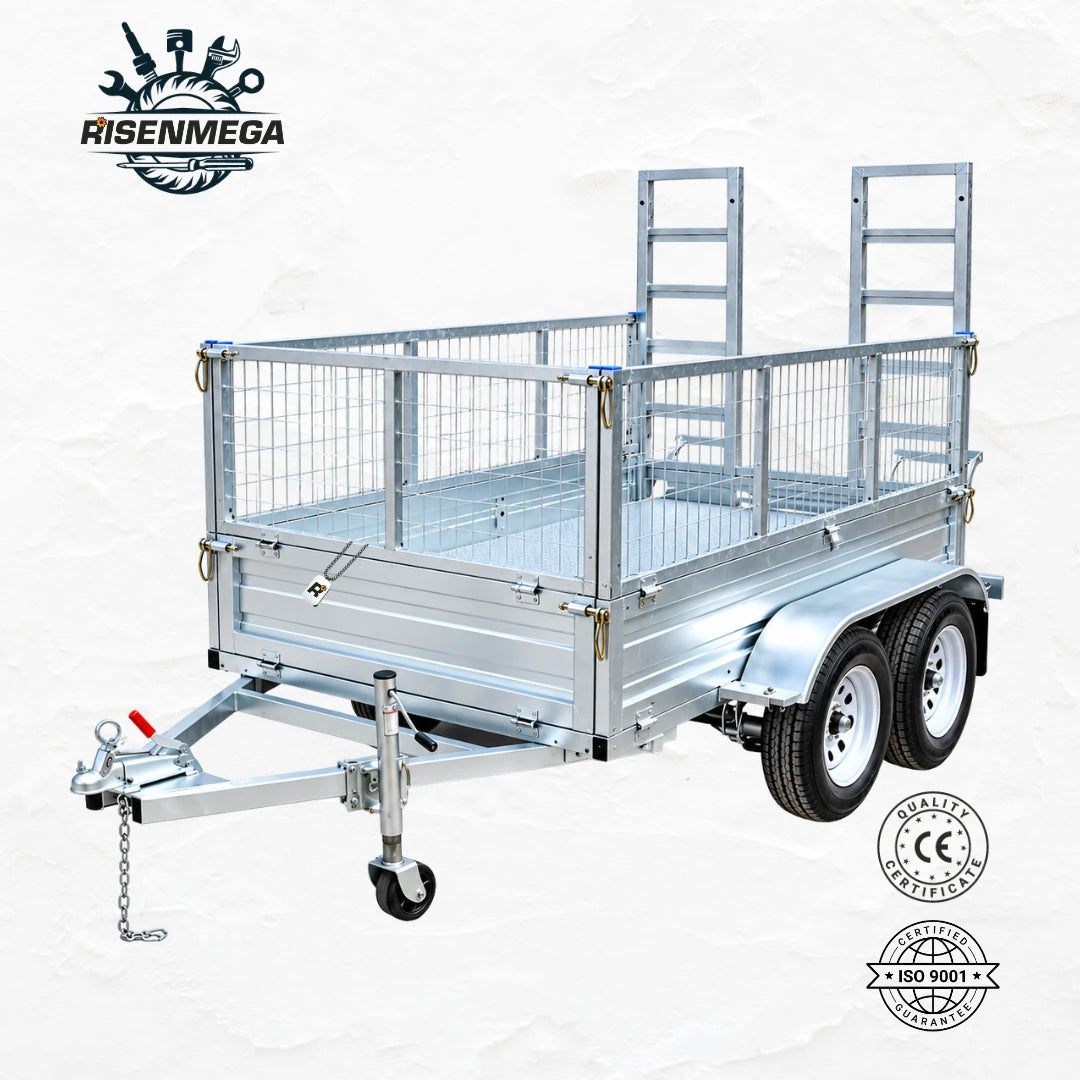

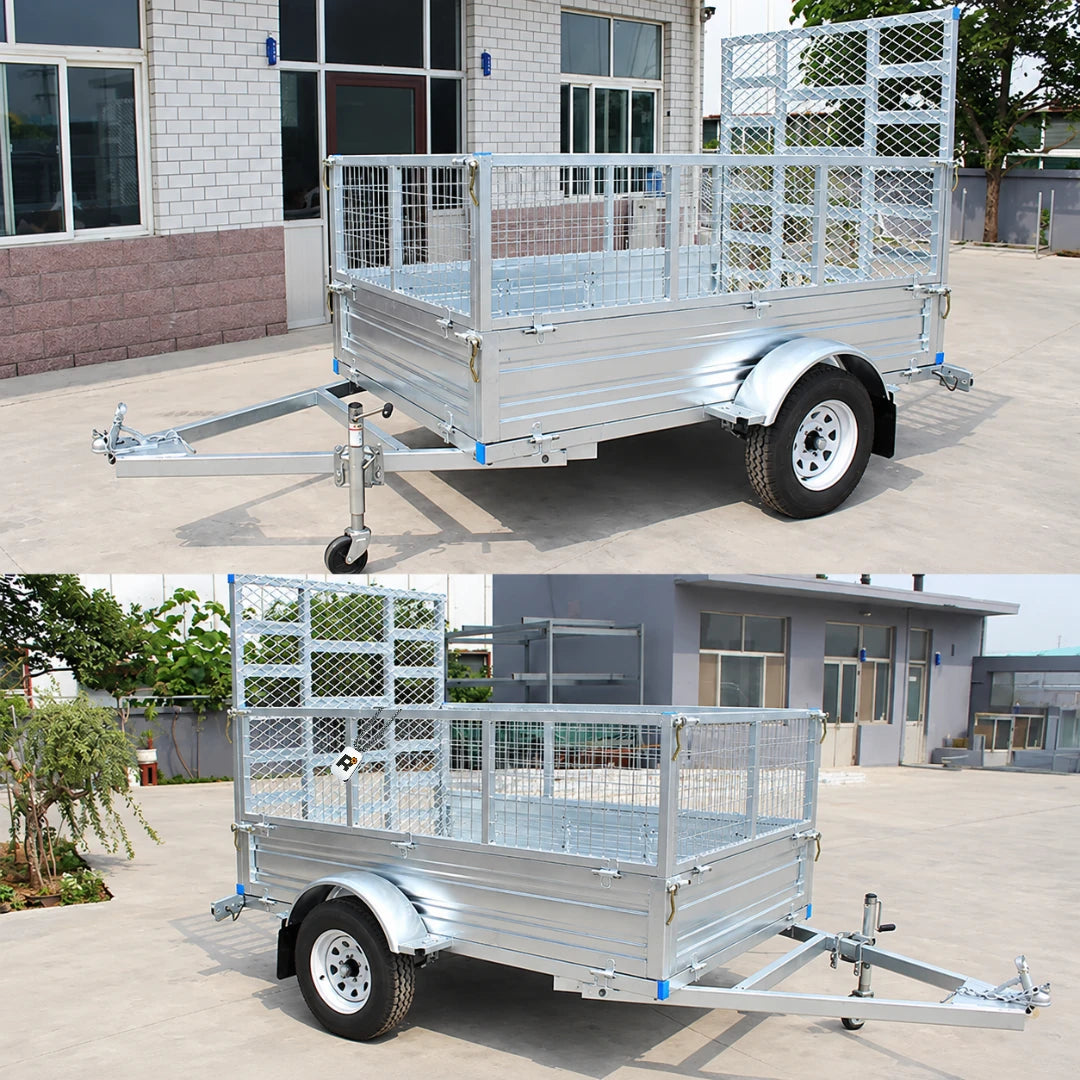

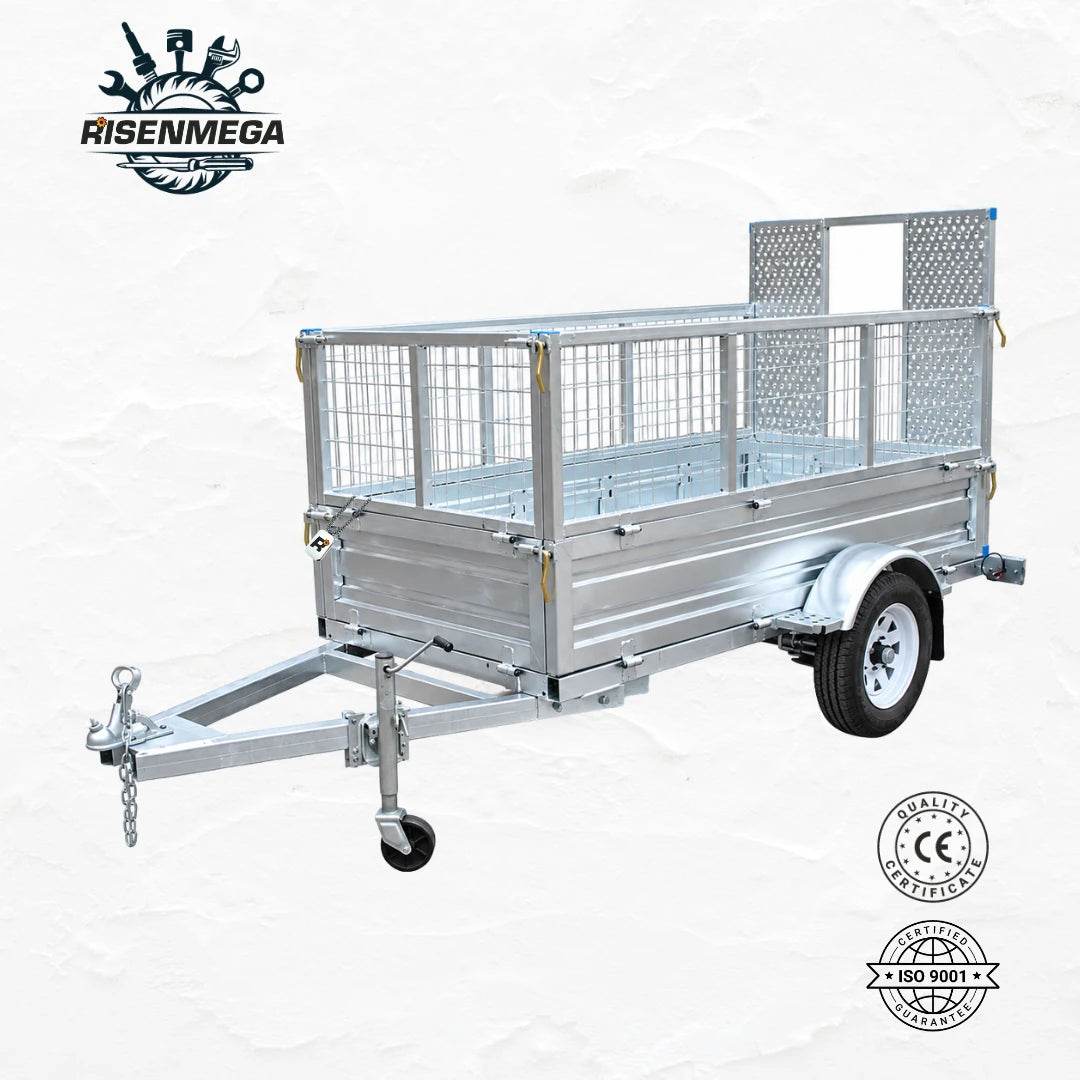

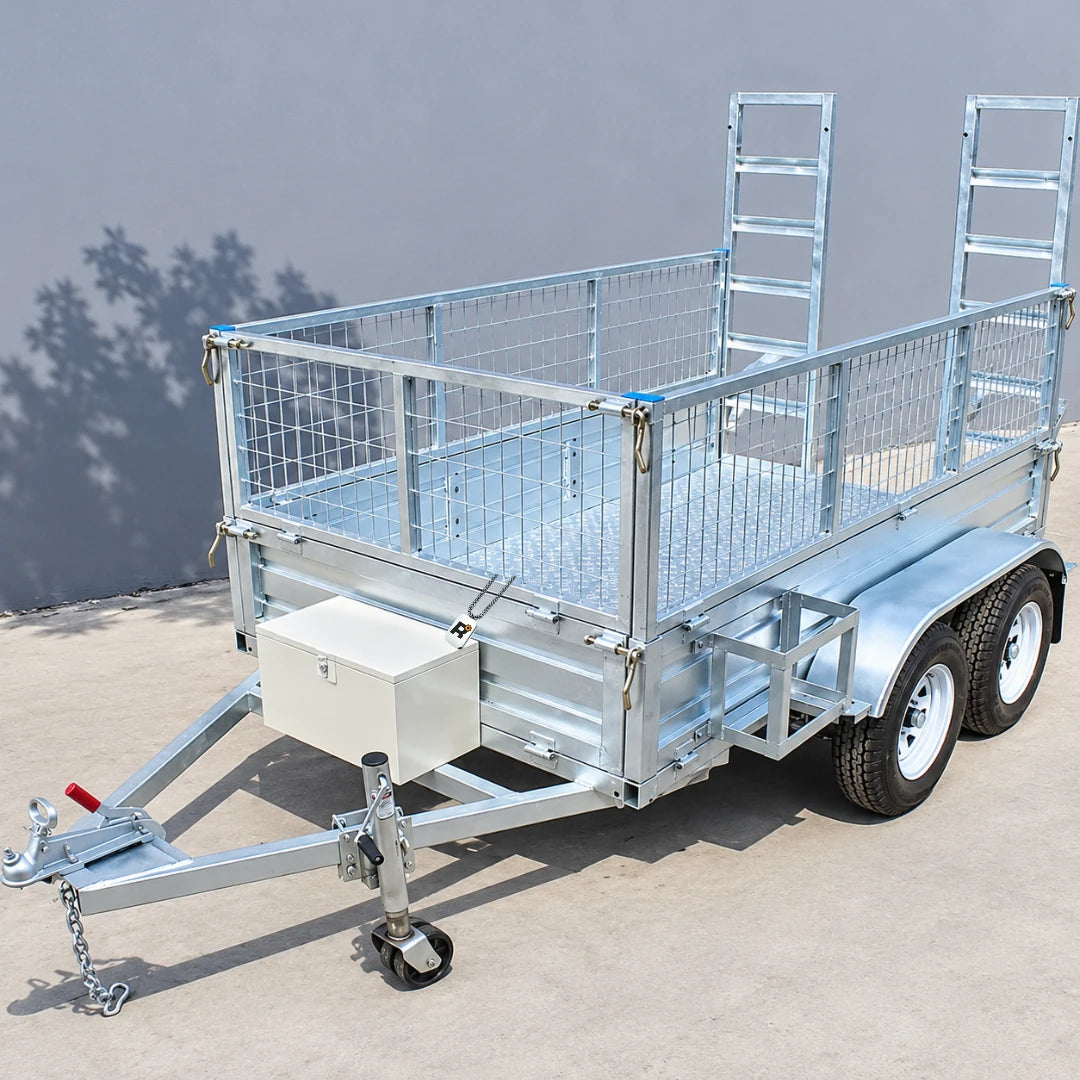

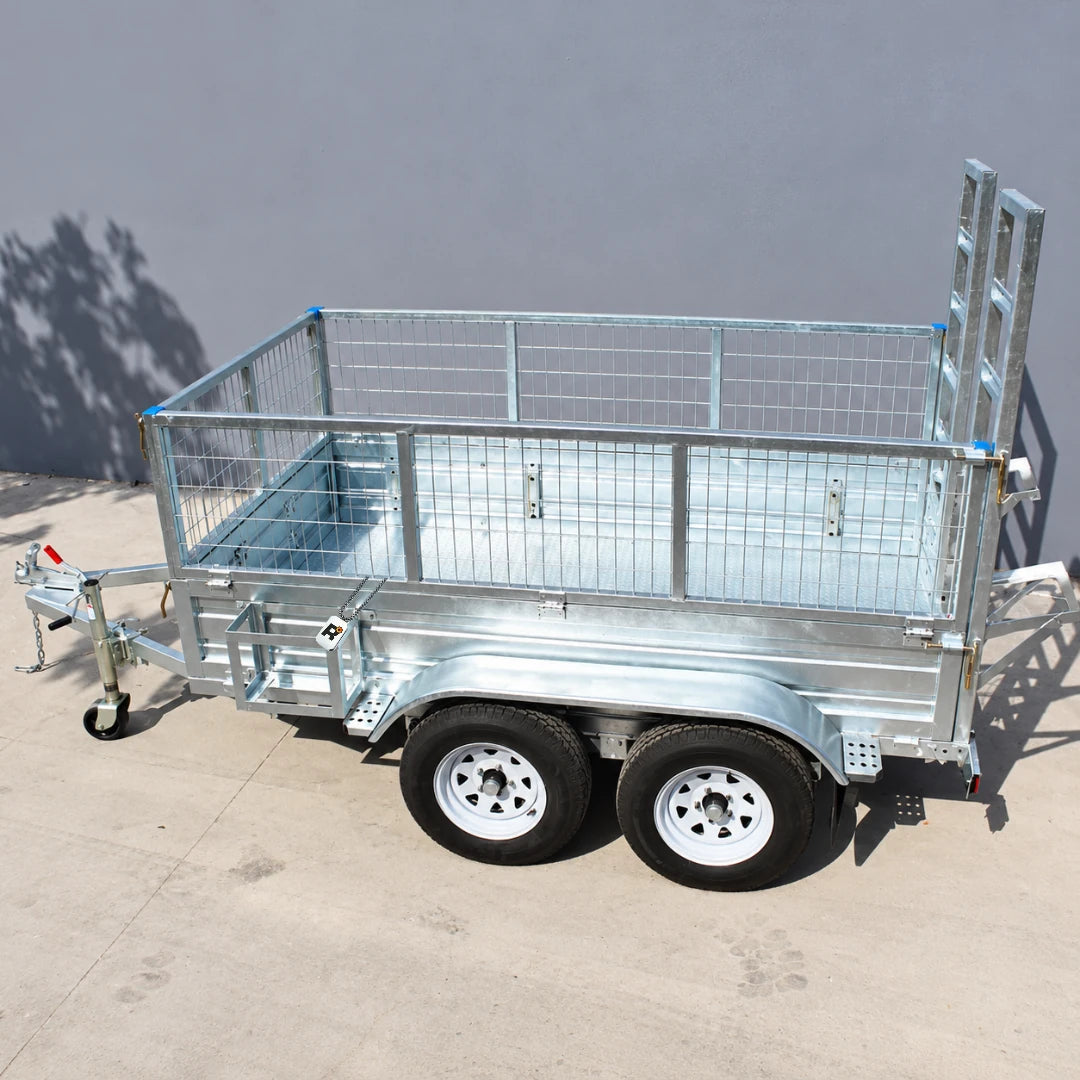

A 3100 x 1600 mm hot-dip galvanised cage trailer with welded mesh sides, a folding rear ramp and 1000 kg payload. Any size and payload can be custom-built to your requirements.
Request a QuoteHow to customizeEngineered for Durability and Easy Loading
Nine build details that make this trailer long-lasting and simple to use every day.
Precision Welding
High-precision welding for strong, consistent joints throughout the chassis and body.
Hot-Dip Galvanised Square Tube
Square tube construction with hot-dip galvanising for strong corrosion protection.
Anti-Slip Aluminium Plate
Wear-resistant, lightweight aluminium plate with a non-slip pattern and high strength.

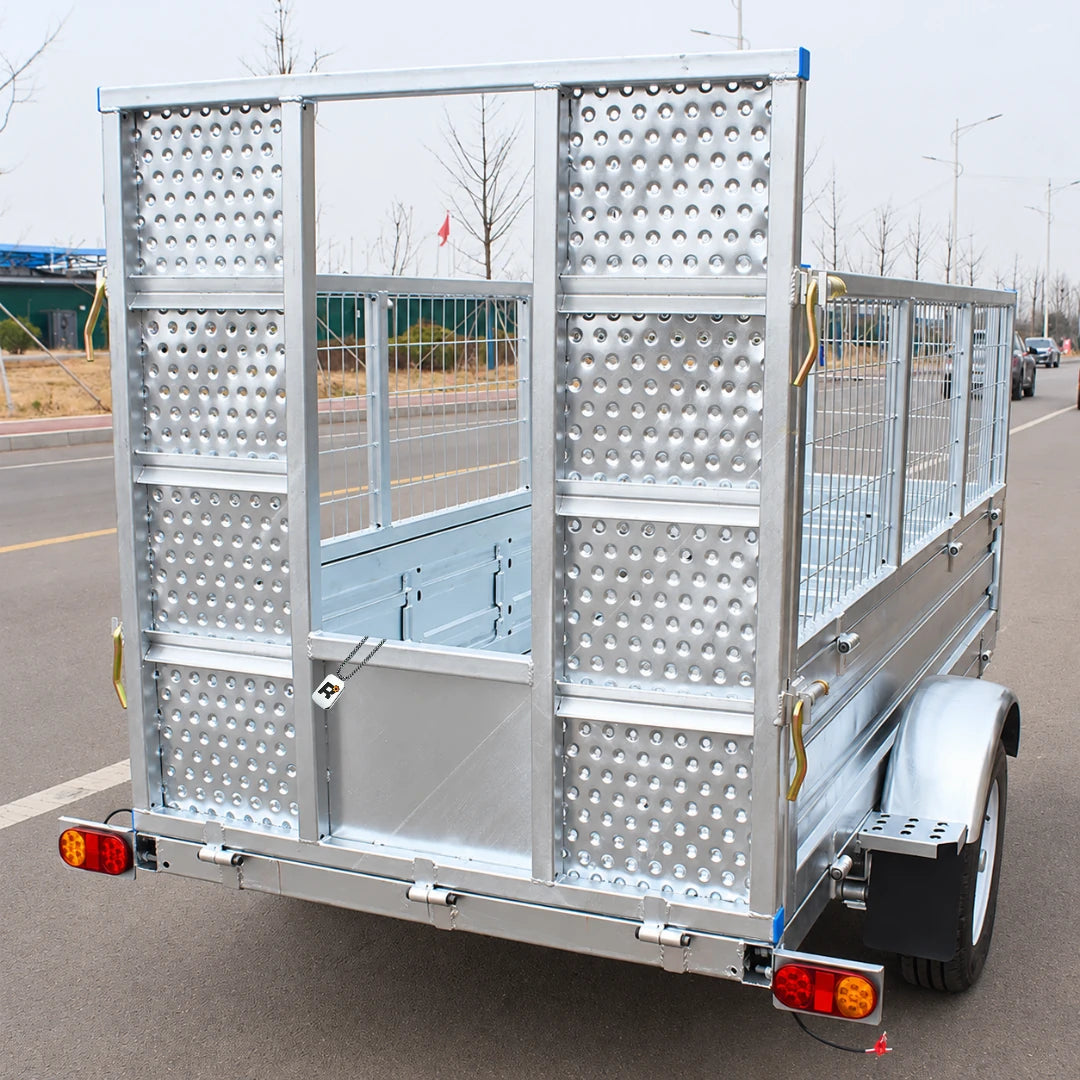

Folding Rear Ramp
Folds down for easy loading and unloading, and closes up to secure the rear.
Caster-Wheel Jack
Jockey wheel jack makes hitching, unhitching and moving the trailer by hand easier.
LED Waterproof Tail Lights
Waterproof LED rear lights built to international standards.
Automotive Tubeless Tyres
175R14 vehicle-grade tubeless tyres, selected for wear resistance and durability.
Anti-Loosening Lock Nuts
Lock nuts resist vibration loosening on the road for added reliability.
High-Speed Bearings
High-speed bearings packed with a measured amount of Mobil lubricant for smooth running.
Confirm your requirements in four points
Use, size, load and configuration can all be adjusted. Tell us what you need and we confirm each point with you before quoting.
1. Use
You tell usWhat you will haul, such as an ATV, UTV, equipment or general cargo.
We confirmThe trailer type and deck style suit that use.
2. Size
You tell usDeck length and width you need, and any limit on overall length.
We confirmInternal box size and overall dimensions.
3. Load capacity
You tell usThe weight of your cargo or vehicle.
We confirmLoad capacity, axle count and tire size to match.
4. Configuration
You tell usRear gate or ramp, side rails, jack, coupler, lights, and your destination.
We confirmThe fittings and any destination-specific requirements.
Options vary by model. Pricing, lead time, minimum order and delivery terms are confirmed in your quote.
Send your requirementsOne Trailer, Many Jobs
Open-top mesh sides, a folding rear ramp and a 3100 x 1600 mm load bed make this cage trailer a flexible tool for hauling bulky, loose or wheeled cargo. These are the jobs it suits best, with the setup we suggest for each.
Landscaping and Garden Work
Carry cuttings, hedge trimmings, bagged soil, paving and garden equipment. Mesh sides keep loose material in while the ramp makes loading wheelbarrows and mowers simple.
Suggested: standard size, full expanded-mesh ramp.
Construction and Site Support
Move tools, formwork, fencing, scaffolding parts and offcuts between the yard and the job site, then return with site waste.
Suggested: higher payload and tandem axle for heavier loads.
Waste and Recycling Runs
Haul bulky household, workshop or green waste to the tip. The open cage lets you load from above and see the load while driving.
Suggested: standard model with tall cage sides.
Farm and Property Maintenance
General estate work: fence posts, feed bags, tools, bales of light material and equipment moved around the property.
Suggested: galvanised frame with cage height set for your loads.
Open-top trailer: it has no roof, so cover and strap loads that need weather protection. Always stay within the trailer's rated payload and your towing vehicle's towing capacity.
Technical Data
Clear specifications for quick comparison.
| Product type | Cage trailer, open top with mesh sides |
|---|---|
| Model | Customized |
| Internal body size (L x W) | 3100 x 1600 mm (standard), customisable |
| Cage height | Customized |
| Payload | 1000 kg (standard), customisable |
| Frame | Hot-dip galvanised square tube, precision welded |
| Floor and step plates | Anti-slip aluminium plate |
| Loading | Folding rear ramp |
| Tyres | 175R14 automotive tubeless tyres |
| Axle | Customized |
| Bearings | High-speed bearings, factory-filled with Mobil lubricant |
| Fasteners | Anti-loosening lock nuts |
| Jack | Caster-wheel jack |
| Lighting | LED waterproof tail lights |
| Braking | Customized |
| Certification | CE certified |
Specifications are for the standard model. Custom sizes and payloads are available on request. See how we confirm requirements.
Common Questions
Can I customise the size and payload?
Yes. The standard body is 3100 x 1600 mm with a 1000 kg payload, and any size and payload can be built to order. Contact us with your requirements. Confirm your requirements here.
What is the standard payload?
The standard payload is 1000 kg. Always check the compliance plate and your towing vehicle's rated towing capacity.
What can I use this cage trailer for?
It suits landscaping, construction site support, waste and recycling runs, light machinery and wheeled equipment, workshop and warehouse transport, events, moving and bulky items. The mesh sides hold loose cargo and the folding rear ramp makes loading easy.
Is this an enclosed trailer?
No. It is an open-top cage trailer with mesh sides and no roof.
Is the trailer CE certified?
Yes, the standard model is CE certified. Contact us for certificate details.
Does the trailer need to be registered for road use?
Road requirements depend on your country or state. Check local regulations before towing.
Configure Your Cage Trailer
Tell us your preferred axle layout, size, ramp style and quantity, and our team will reply with options.
