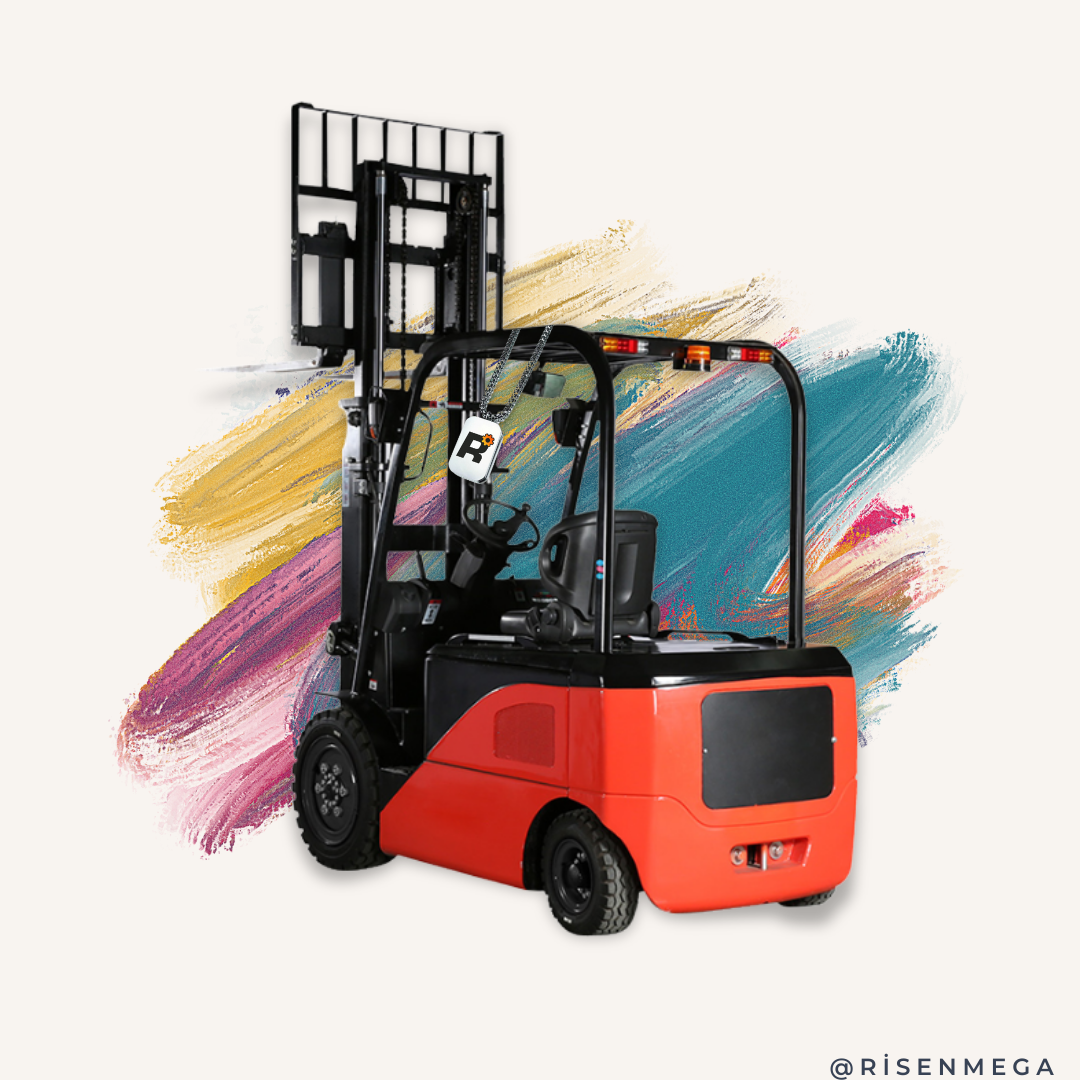

CPD30F8 Electric Forklift — 3–6 Ton Capacity, 2–6M Lift Height
A four-wheel pivot counterbalanced electric forklift built for mid-to-heavy pallet handling, with a permanent magnet motor, wide-view mast, and full waterproofing for daily multi-shift warehouse and yard use.
What Is the CPD30F8 Electric Forklift?
The CPD30F8 is a four-wheel pivot counterbalanced electric forklift for 3–6 ton loads and 2–6 meter lifts, powered by a top-level lead-acid battery and permanent magnet motor — built for warehouses, distribution centers, and multi-level racking work.
Four-Wheel Balance Chassis
Wider wheelbase distributes load across four contact points for stable lifting on uneven yard surfaces and warehouse floors.
Intelligent Dashboard
Displays real-time battery charge level and usage hours so operators know when to recharge before a shift runs out of power.
Permanent Magnet Motor
High-power PM motor delivers stronger torque per amp than standard AC motors, extending runtime per charge cycle.
Energy-Saving Tires
Non-marking compound reduces rolling resistance, cutting battery drain versus standard rubber tires on hard floors.
Fully Waterproofed Body
Sealed electrical housing and controller allow use in damp yards, wash-down areas, and light rain conditions.
High Ground Clearance
Extra clearance under the chassis prevents scraping on loading-dock lips, speed bumps, and uneven concrete.
Available Configurations
The CPD30F8 is sold in five lift heights (2–6 m) and six load capacities (3–10 ton), so you pick the exact combination your racking and aisle widths require instead of over- or under-buying capacity.
| Lift Height | Available Load Capacities |
|---|---|
| 2 M | 3 / 4 / 5 / 6 Ton (8 & 10 Ton on request) |
| 3 M | 3 / 4 / 5 / 6 Ton (8 & 10 Ton on request) |
| 4 M | 3 / 4 / 5 / 6 Ton (8 & 10 Ton on request) |
| 5 M | 3 / 4 / 5 / 6 Ton (8 & 10 Ton on request) |
| 6 M | 3 / 4 / 5 / 6 Ton (8 & 10 Ton on request) |
8-Ton and 10-Ton variants use uprated components not covered in the base spec sheet below — confirm dimensions and battery size when quoting these two trims. Production starts once a 30% deposit is confirmed by PayPal or T/T; request a quote for current pricing on your exact configuration.
Full Technical Specifications
The CPD30F8 base configuration runs on an 80V/500Ah lead-acid battery for 6–8 hours per charge, lifts 3–6 tons to 2–6 meters, and weighs 4,980 kg — sized for standard warehouse aisles and 15% grade ramps.
| Battery Type | Top-level lead-acid battery |
| Battery Voltage / Capacity | 80 V / 500 Ah |
| Working Time | 6–8 hours per full charge |
| Charging Time | 8–10 hours |
| Power Source | Electric (battery-powered) |
| Load Capacity (base range) | 3–6 Ton |
| Lift Height | 2–6 Meters |
| Travel Speed | 11 km/h loaded / 12 km/h unloaded |
| Wheelbase | 1,622 mm |
| Mast Type | 2-stage (Level II) wide-view mast |
| Free Lift | 135 mm on standard mast; up to 1,410 mm with optional 3-stage (Level III) mast |
| Mast Tilt (Forward / Back) | 6° / 10° |
| Overall Dimensions (L × W × H) | 3,620 × 1,220 × 2,220 mm |
| Turning Radius | 2,300 mm |
| Net Weight | 4,980 kg |
| Max Gradeability | 15% |
Built-In Safety Features
Every CPD30F8 ships with overload protection, full LED lighting, and a fork-lowering cushion as standard — no add-on safety package required for indoor or nighttime yard operation.
- Non-marking tires rated for indoor and outdoor floors
- Lifting overload protection cuts out before rated capacity is exceeded
- Full LED lighting for low-visibility and nighttime shifts
- Fork-lowering cushion softens impact at full descent
- Smooth hydraulic lift and lowering with no jerking at load transfer
- Sealed, waterproofed electrical components for damp environments
CPD30F8 vs. CPD15-20: Which Forklift Fits Your Load?
Choose the CPD30F8 for loads from 3 to 10 tons and lifts up to 6 meters; step down to the CPD15-20 for loads under 2.5 tons and lower-cost light-duty pallet work.
| Spec | CPD30F8 | CPD15-20 |
|---|---|---|
| Load Capacity | 3–10 Ton | 1.5–2.5 Ton |
| Lift Height | 2–6 Meters | 2–3 Meters |
| Battery | 80V / 500Ah | 80V / 385Ah |
| Net Weight | 4,980 kg | 2,670 kg |
| Deposit to Start Production | 30% (PayPal / T/T) | 30% (PayPal / T/T) |
| Best Suited For | Heavy pallet and container loads, multi-level racking, high-throughput distribution centers | Retail backrooms, light warehouse pallet work, mixed indoor/outdoor yards |
Customization Options
Every CPD30F8 can be reconfigured before production — from lift height and load capacity to voltage, plug type, and tire style — so the unit matches your floor plan and power supply instead of the other way around.
Shipping, Lead Time & Payment Terms
All units ship from Qingdao port under FOB, CIF, or DDP door-to-door terms, crated in wood with steel-plate reinforcement to prevent rust and transit damage. Production starts after a 30% deposit; contact us for a current lead-time estimate on your exact spec.
- Confirm specification — capacity, lift height, voltage, and any customization are locked in writing before production.
- Pay 30% deposit — via PayPal or T/T bank transfer to schedule your unit in the production queue.
- Production & crating — the forklift is built, wood-crated, and steel-plate reinforced to prevent rust and impact damage in transit.
- Photo & video confirmation — you receive photos and video of the finished, crated unit before it's loaded.
- Loading & shipping — shipped from Qingdao port on the agreed schedule under FOB, CIF, or DDP terms.
- Balance payment — remaining balance is settled before or upon shipment, per your agreed terms.
Product Gallery
Detail shots of the CPD30F8's mast, dashboard, tires, and chassis, taken from production units before crating and export.
Frequently Asked Questions
How do I get pricing for the CPD30F8 electric forklift?
What's the difference between the CPD30F8 and the CPD15-20?
How long does the battery last, and how long does it take to charge?
Can the forklift be customized above 6 tons?
How is the forklift shipped?
Ready to Spec Your CPD30F8?
Tell us your load capacity, lift height, and voltage requirements — we'll confirm pricing and lead time within one business day.
