CPD15-20 3M 2Ton Electric Lead-Acid Battery Counterbalanced Forklifts
CPD15-20 3M 2Ton Electric Lead-Acid Battery Counterbalanced Forklifts - 2M / 1.5Ton is backordered and will ship as soon as it is back in stock.
Payment Way
Payment Way
After we Confirm the model, the deposit can be paid by paypal, or by T/T credit card transfer, etc.
Delivery and Shipping
Delivery and Shipping
Our products are sent from Qingdao port by default, before shipment, all machinery will be loaded with wooden crates and metal plates to prevent rust and corrosion, and then take photos and videos to customers to confirm, according to the agreed time to load the ship!
CPD15-20 3M 2Ton Electric Lead-Acid Battery Counterbalanced Forklifts
High-End Forklift
Full electrophoresis process, Top Level Battery. no rust, one year overseas warranty
Description
Description

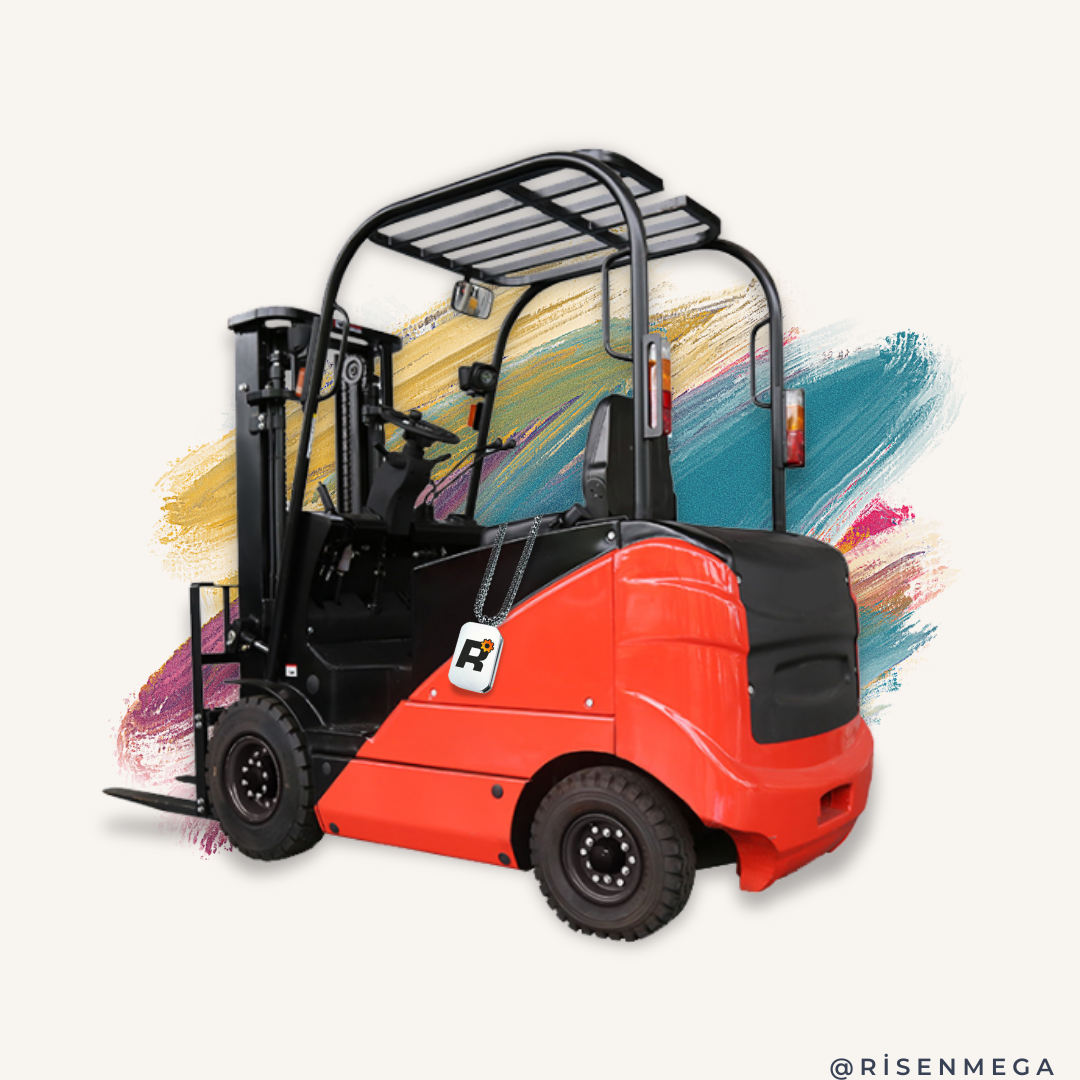

CPD15-20 Electric Forklift — 1.5–2.5 Ton Capacity, 2–3M Lift Height
A four-wheel counterbalanced lead-acid battery forklift built for indoor and outdoor pallet handling, with a permanent magnet motor, intelligent dashboard, and full waterproofing for daily multi-shift use.
What Is the CPD15-20 Electric Forklift?
The CPD15-20 is a four-wheel counterbalanced electric forklift for 1.5–2.5 ton loads and 2–3 meter lifts, powered by a top-level lead-acid battery and permanent magnet motor — built for warehouses, retail backrooms, and light-to-mid industrial yards.
Four-Wheel Balance Chassis
Wider wheelbase distributes load across four contact points for stable lifting on uneven yard surfaces and warehouse floors.
Intelligent Dashboard
Displays real-time battery charge level and usage hours so operators know when to recharge before a shift runs out of power.
Permanent Magnet Motor
High-power PM motor delivers stronger torque per amp than standard AC motors, extending runtime per charge cycle.
Energy-Saving Tires
Non-marking compound reduces rolling resistance, cutting battery drain versus standard rubber tires on hard floors.
Fully Waterproofed Body
Sealed electrical housing and controller allow use in damp yards, wash-down areas, and light rain conditions.
High Ground Clearance
Extra clearance under the chassis prevents scraping on loading-dock lips, speed bumps, and uneven concrete.
How Much Does the CPD15-20 Cost?
Pricing runs from $11,850 to $15,580 FOB Qingdao across six lift-height and capacity combinations. Production starts once a 30% deposit is confirmed by PayPal or T/T, with the balance due before the container ships.
| Lift Height | Load Capacity | Price (FOB Qingdao) |
|---|---|---|
| 2 M | 1.5 Ton | $11,850 |
| 2 M | 2 Ton | $13,600 |
| 2 M | 2.5 Ton | $14,930 |
| 3 M | 1.5 Ton | $12,088 |
| 3 M | 2 Ton | $13,905 |
| 3 M | 2.5 Ton | $15,580 |
Prices are FOB Qingdao and reflect the base configuration. CIF and DDP door-to-door quotes are available on request — ask about combining this order with other equipment in one container to reduce freight cost.
Full Technical Specifications
The CPD15-20 runs on an 80V/385Ah lead-acid battery for 7–8 hours per charge, lifts 1.5–2.5 tons to 2–3 meters, and weighs 2,670 kg — sized for standard warehouse aisles and 15% grade ramps.
| Battery Type | Top-level lead-acid battery |
| Battery Voltage / Capacity | 80 V / 385 Ah |
| Working Time | 7–8 hours per full charge |
| Charging Time | 6–8 hours |
| Power Source | Electric (battery-powered) |
| Load Capacity | 1.5–2.5 Ton |
| Lift Height | 2–3 Meters |
| Travel Speed | 12 km/h loaded / 12.5 km/h unloaded |
| Wheelbase | 1,410 mm |
| Mast Type | 2-stage (Level II) wide-view mast |
| Free Lift | 120 mm on standard mast; up to 1,475 mm with optional 3-stage (Level III) mast |
| Mast Tilt (Forward / Back) | 6° / 10° |
| Overall Dimensions (L × W × H) | 3,085 × 1,080 × 2,170 mm |
| Turning Radius | 2,060 mm |
| Net Weight | 2,670 kg |
| Max Gradeability | 15% |
Built-In Safety Features
Every CPD15-20 ships with overload protection, full LED lighting, and a fork-lowering cushion as standard — no add-on safety package required for indoor or nighttime yard operation.
- Non-marking tires rated for indoor and outdoor floors
- Lifting overload protection cuts out before rated capacity is exceeded
- Full LED lighting for low-visibility and nighttime shifts
- Fork-lowering cushion softens impact at full descent
- Smooth hydraulic lift and lowering with no jerking at load transfer
- Sealed, waterproofed electrical components for damp environments
CPD15-20 vs. CPD30F8: Which Forklift Fits Your Load?
Choose the CPD15-20 for loads under 2.5 tons and lifts up to 3 meters; step up to the CPD30F8 for 3–10 ton loads, 6-meter racking, and higher-throughput warehouse duty cycles.
| Spec | CPD15-20 | CPD30F8 |
|---|---|---|
| Load Capacity | 1.5–2.5 Ton | 3–10 Ton |
| Lift Height | 2–3 Meters | 2–6 Meters |
| Battery | 80V / 385Ah | 80V / 500Ah |
| Net Weight | 2,670 kg | 4,980 kg |
| Starting Price (FOB) | $11,850 | $19,550 |
| Best Suited For | Retail backrooms, light warehouse pallet work, mixed indoor/outdoor yards | Heavy pallet and container loads, multi-level racking, high-throughput distribution centers |
Customization Options
Every CPD15-20 can be reconfigured before production — from lift height and load capacity to voltage, plug type, and tire style — so the unit matches your floor plan and power supply instead of the other way around.
Shipping, Lead Time & Payment Terms
All units ship from Qingdao port under FOB, CIF, or DDP door-to-door terms, crated in wood with steel-plate reinforcement to prevent rust and transit damage. Production starts after a 30% deposit; contact us for a current lead-time estimate on your exact spec.
- Confirm specification — capacity, lift height, voltage, and any customization are locked in writing before production.
- Pay 30% deposit — via PayPal or T/T bank transfer to schedule your unit in the production queue.
- Production & crating — the forklift is built, wood-crated, and steel-plate reinforced to prevent rust and impact damage in transit.
- Photo & video confirmation — you receive photos and video of the finished, crated unit before it's loaded.
- Loading & shipping — shipped from Qingdao port on the agreed schedule under FOB, CIF, or DDP terms.
- Balance payment — remaining balance is settled before or upon shipment, per your agreed terms.
Product Gallery
Detail shots of the CPD15-20's mast, dashboard, tires, and chassis, taken from production units before crating and export.
Frequently Asked Questions
How much does the CPD15-20 electric forklift cost?
What's the difference between the CPD15-20 and the CPD30F8?
How long does the battery last, and how long does it take to charge?
Can the forklift be customized?
How is the forklift shipped?
Ready to Spec Your CPD15-20?
Tell us your load capacity, lift height, and voltage requirements — we'll confirm pricing and lead time within one business day.
