Did You Know? Just Two Types of Suction Cups Can Handle 90% of Industrial Materials (The Ultimate Guide to Vacuum Lifter Versatility)

Introduction

In the fast-paced world of construction, logistics, and industrial manufacturing, versatility is the ultimate currency.

Imagine this scenario: It’s 8:00 AM, and your crew needs to install a delicate, high-transparency curtain wall. By 1:00 PM, the schedule shifts, and you need to move rugged granite slabs or porous plywood panels.

The old way of thinking suggests you need a fleet of different machines or a warehouse full of specialized attachments to handle these varying textures and porosities. You might think, "A glass lifter can't touch rough stone," or "A stone lifter will shatter the glass."

We are here to bust that myth.

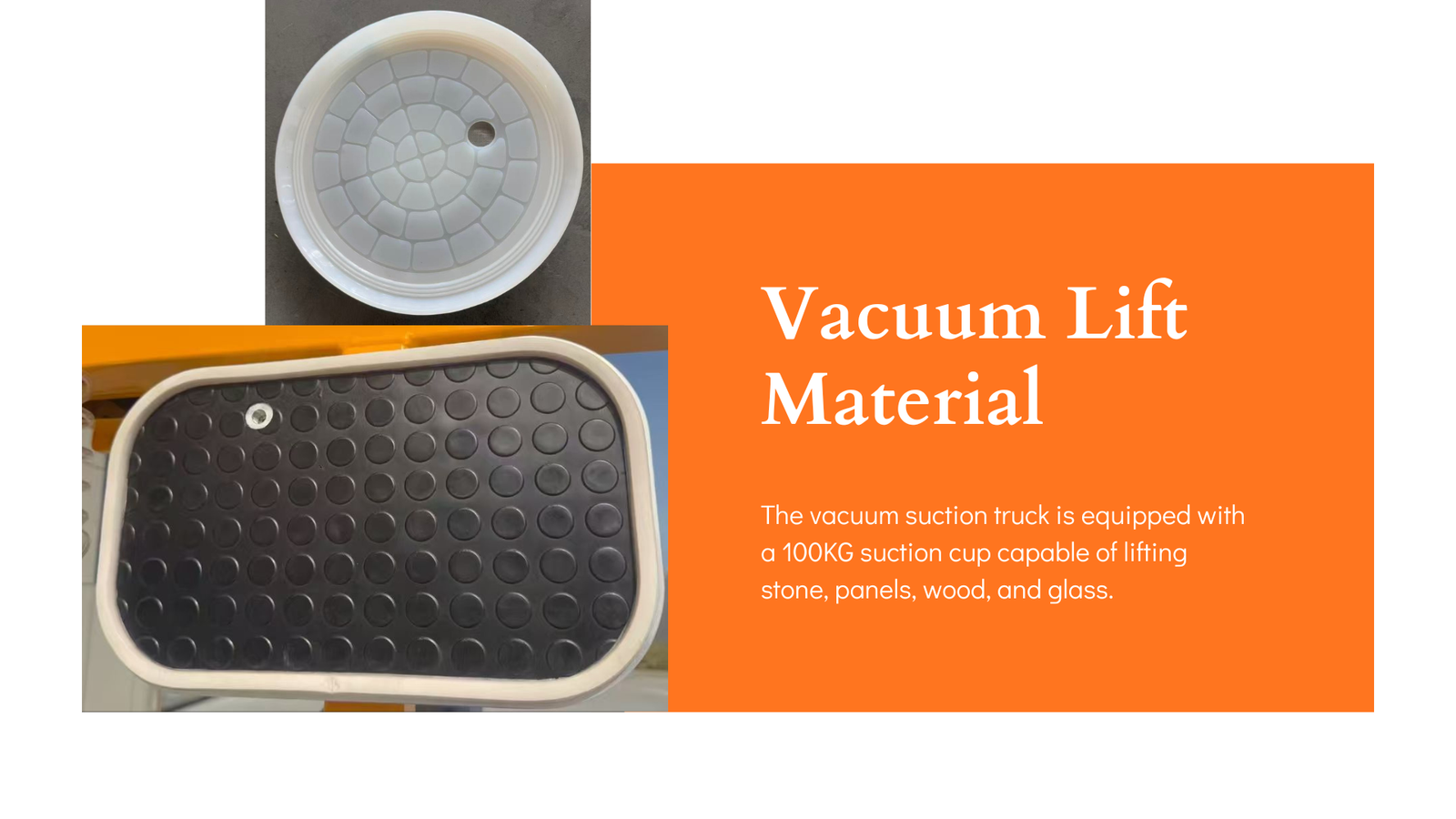

Take a look at the image above. What you see are not just "spare parts." They are the two technological marvels that power our vacuum suction trucks. With just these two specific types of suction cup materials—the Rectangular Sponge Pad and the Round Silicone Pad—our equipment can safely adhere to and lift the vast majority of materials found on any job site.

Whether it’s stone, panels, wood, or glass, we have engineered a solution that simplifies your workflow. In this guide, we will dive deep into the science behind these materials and why your next vacuum lifter needs this dual-capability.

 The Problem with Traditional Lifting

To understand the solution, we must first understand the challenge. Vacuum lifting works on a simple principle: creating a negative pressure zone between the cup and the material, allowing atmospheric pressure to hold the load.

However, materials are not created equal:

1. Smooth Surfaces (Glass, Metal): Require an airtight seal that doesn't slide.

2. Rough/Porous Surfaces (Stone, Wood, Concrete): Air constantly leaks in through the material's surface texture, breaking the vacuum seal of standard cups.

In the past, using a standard rubber cup on rough stone was a recipe for disaster. The air leakage would cause the load to drop. Conversely, using a heavy-duty stone cup on glass often left behind oily residue or black rubber marks that were impossible to clean.

The Solution? Specialized material engineering.

The "Rough Terrain" Warrior (The Black Rectangular Pad)

Let’s look at the bottom image in the visual provided. This is the Sponge Rubber Vacuum Pad.

What makes it special?

This rectangular pad is typically crafted from high-density EPDM (Ethylene Propylene Diene Monomer) Sponge Rubber. If you look closely at the texture, you will see a series of raised circular nodules and a thick, compressible foam border.

How it works:

When this suction cup lands on a rough surface—like a flamed granite slab or a piece of plywood—the foam rubber does something magical: it compresses.

• Conforming to Irregularities: The soft foam fills in the microscopic valleys, cracks, and bumps on the material's surface.

• Compensating for Leakage: While stone and wood are slightly porous (breathable), the surface area of this pad, combined with the high-flow vacuum pump of our truck, maintains a safe vacuum level despite minor air leakage.

Best Used For:

• Natural Stone: Granite, limestone, sandstone, and marble with unpolished or rough finishes.

• Wood & Timber: Plywood, OSB boards, and solid wood beams.

• Textured Metals: Diamond plate steel or checker plate aluminum.

• Concrete: Pre-cast concrete panels and pavers.

Pro Tip: This pad is the reason our 100KG-rated cups can lift heavy construction materials without mechanical clamps. It grabs where others slip.

 The "Precision Artist" (The White Round Pad)

Now, look at the top image. This is the White Silicone/Polyurethane Pad.

What makes it special?

This pad is distinctively different. It is often translucent or white, made from high-grade Silicone or specialized Polyurethane. The internal structure features a geometric grid pattern (often honeycomb or segmented) which provides structural rigidity while allowing flexibility.

How it works:

• Zero-Marking Assurance: The most critical feature of this material is that it is non-marking. In the glazing industry, leaving black rubber rings on a coated glass facade is a costly mistake. This material ensures the glass remains pristine.

• Temperature Resilience: Silicone offers exceptional resistance to heat and cold. Whether you are installing glass in the freezing winter or moving hot metal sheets in a factory, this material maintains its flexibility and grip.

• Airtight Seal: On smooth surfaces, this cup creates a near-perfect vacuum seal, offering the highest safety factor for non-porous loads.

Best Used For:

• Glass: Curtain walls, window units, automotive glass, and solar panels.

• Composite Panels: ACM (Aluminum Composite Material) panels used in modern cladding.

• Polished Stone: High-gloss marble or quartz countertops where staining is a concern.

• Plastic & Acrylic: Delicate sheets that scratch easily.

The Power of the Machine (Beyond the Cup)

While the suction cup material is the "hand" that grabs the load, the "muscle" is the vacuum suction truck itself.

As noted in the image, our system is equipped with suction cups capable of 100KG per pad. But the magic lies in the configuration.

1. Modular Configuration

Our vacuum lifters are not static. You can arrange these cups in frames of 4, 6, 8, or more.

• Scenario A: You are lifting a 600kg glass pane. You utilize a frame with 6 White Silicone pads.

• Scenario B: You are moving a 400kg slab of rough concrete. You swap the pads (or use a dedicated frame) with 4 Black Sponge pads.

2. Safety Reserve Tank

Lifting heavy stone and wood requires dealing with air leakage. Our trucks are equipped with a vacuum reservoir tank. If the pump stops or there is a sudden leak, the tank provides a buffer of vacuum pressure, holding the load safely for enough time to lower it to the ground. This is critical when working with porous materials like wood.

Why "One Truck, Two Cups" Saves You Money

Investing in a vacuum suction truck that utilizes these two interchangeable technologies offers a massive Return on Investment (ROI).

1. Reduced Equipment Cost: You don't need to rent a "glass robot" today and a "stone lifter" tomorrow. One machine handles both.

2. Faster Job Site Turnaround: Switching between handling composite panels and glass windows can be done rapidly, keeping the project on schedule.

3. Material Safety: By using the right cup for the right material, you drastically reduce the risk of dropping a load or damaging the surface (e.g., staining expensive stone or scratching coated glass).

Maintenance and Care for Long-Lasting Suction

To ensure your suction cups continue to adhere to "most materials," proper maintenance is key.

• For the Black Sponge Pad: Inspect the foam border regularly for tears or gouges. Since it works on rough surfaces, abrasion is the enemy. Keep it away from sharp metal shards.

• For the White Silicone Pad: Clean regularly with mild soap and water or specific rubber cleaner. Dust and oil are the enemies of a smooth vacuum seal. Store away from direct sunlight when not in use to prevent UV degradation.

Conclusion: The Universal Lifting Solution



The construction industry is complex, but your lifting equipment doesn't have to be.

The image of the white and black suction cups represents more than just rubber; it represents adaptability. Whether you are building a skyscraper facade with glass, paving a plaza with stone, or moving timber in a warehouse, the combination of Sponge Rubber technology and Silicone precision covers your bases.

Are you ready to streamline your material handling?

Don't let the variety of materials on your job site slow you down. Equip your team with a Vacuum Suction Truck that understands the science of adhesion.
